System Diagram




Starting and Charging Schematics

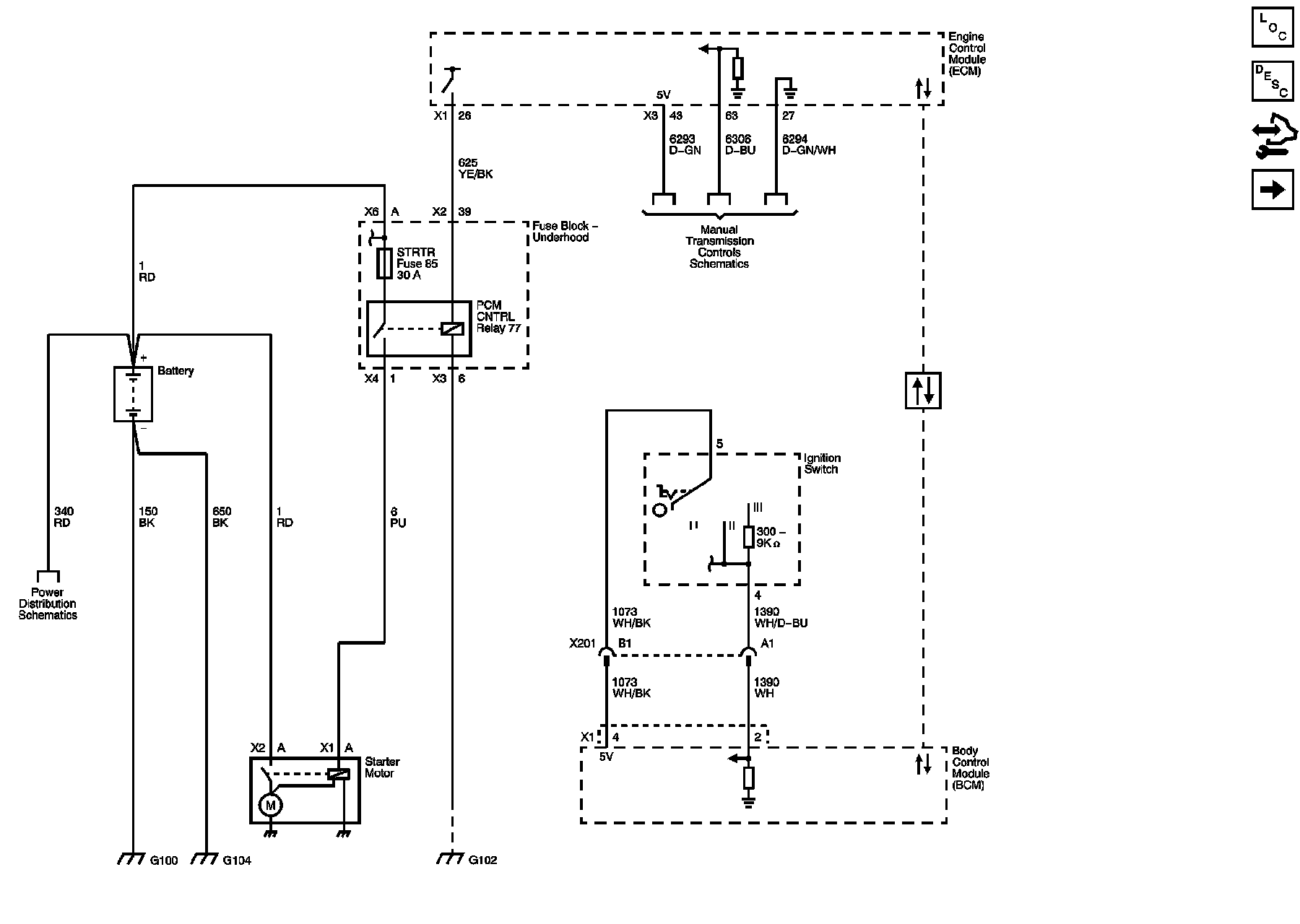

Starting (MA5)

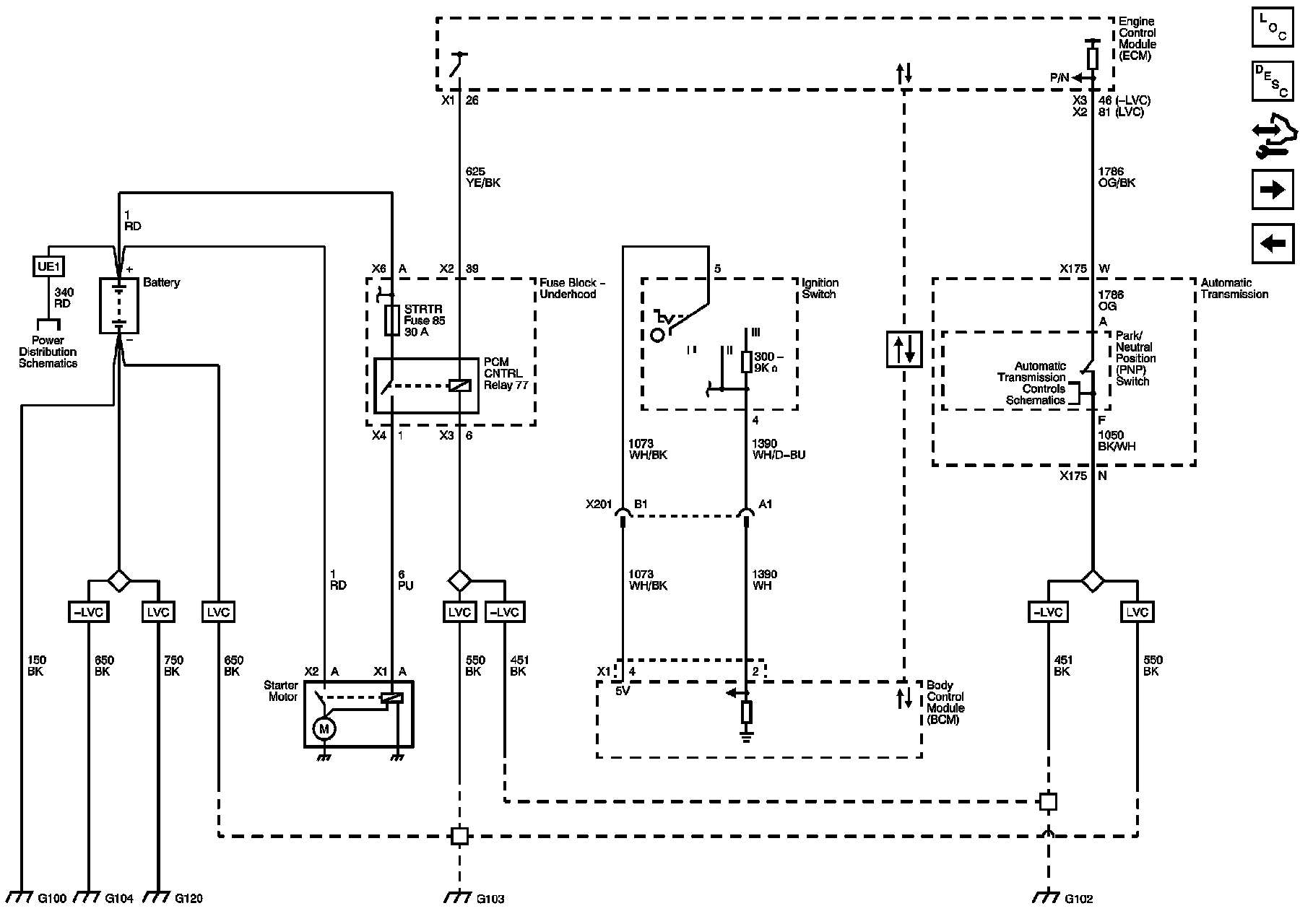

Starting (M30 or MD8)





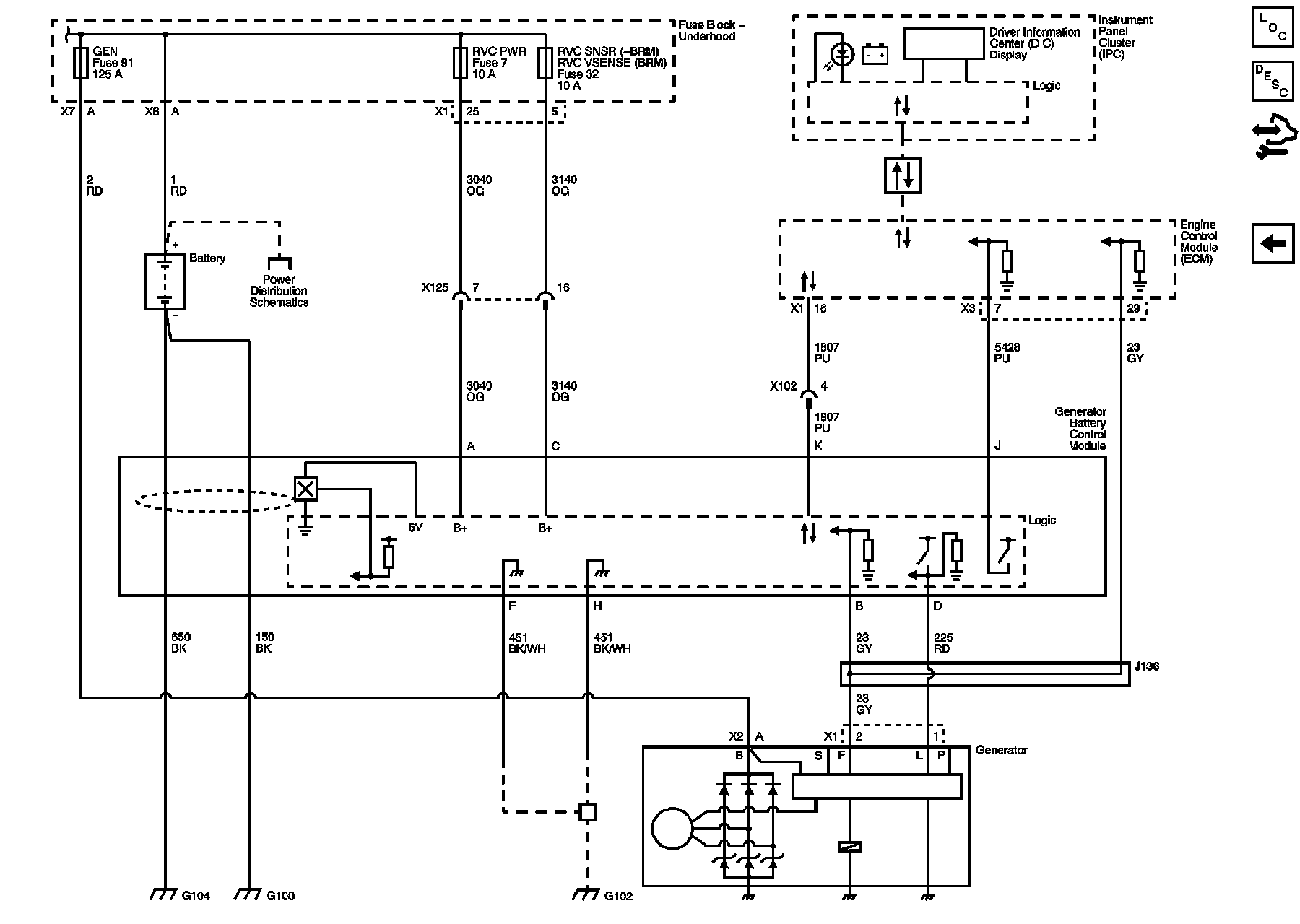

Charging
