Trailer Connector/Provision Schematics




Trailer Connector/Provision Schematics

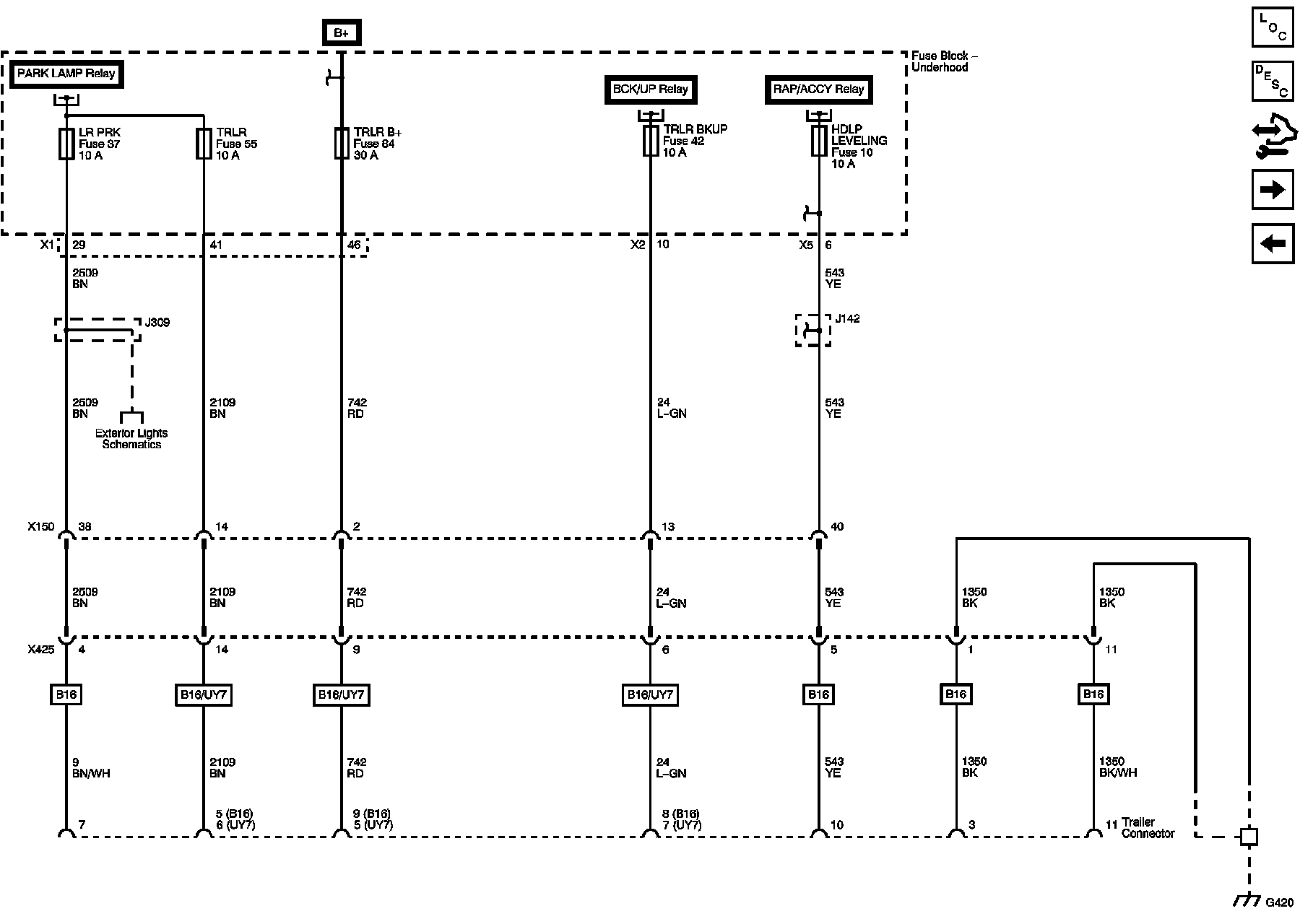

Trailer Wiring (SUV without T89)

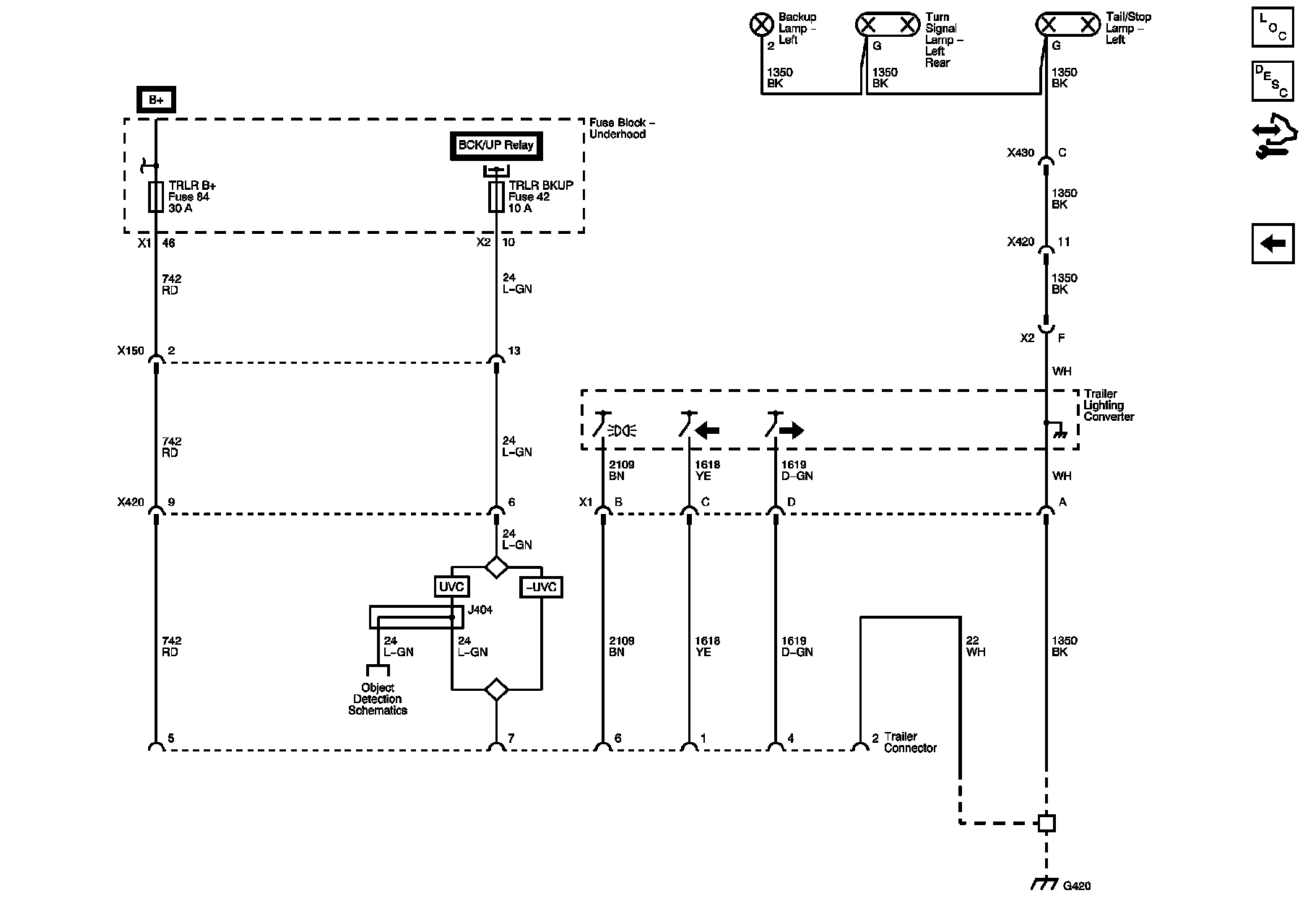

Trailer Wiring (SUV with T89) (1 of 2)

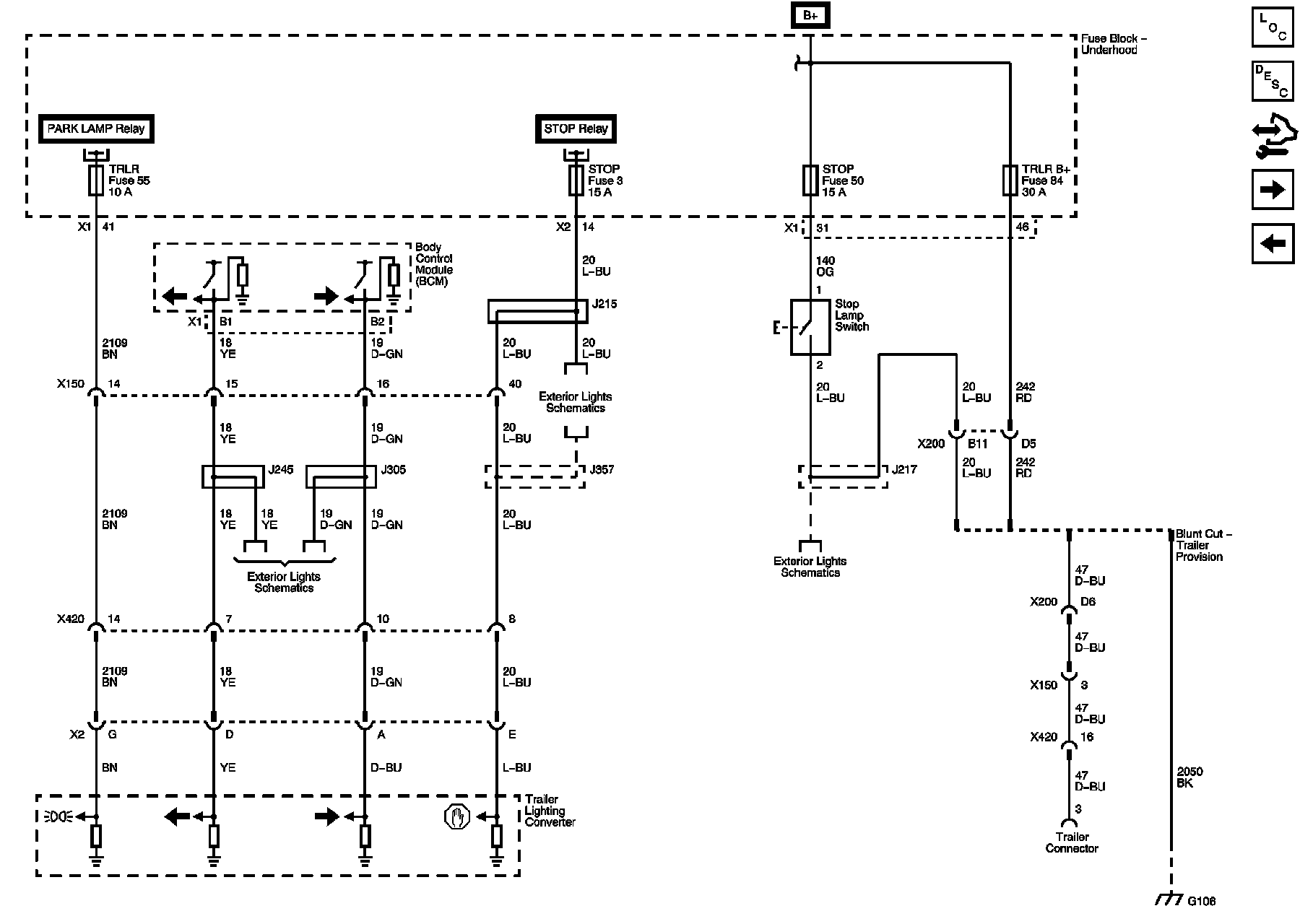

Trailer Wiring (SUV with T89) (2 of 2)

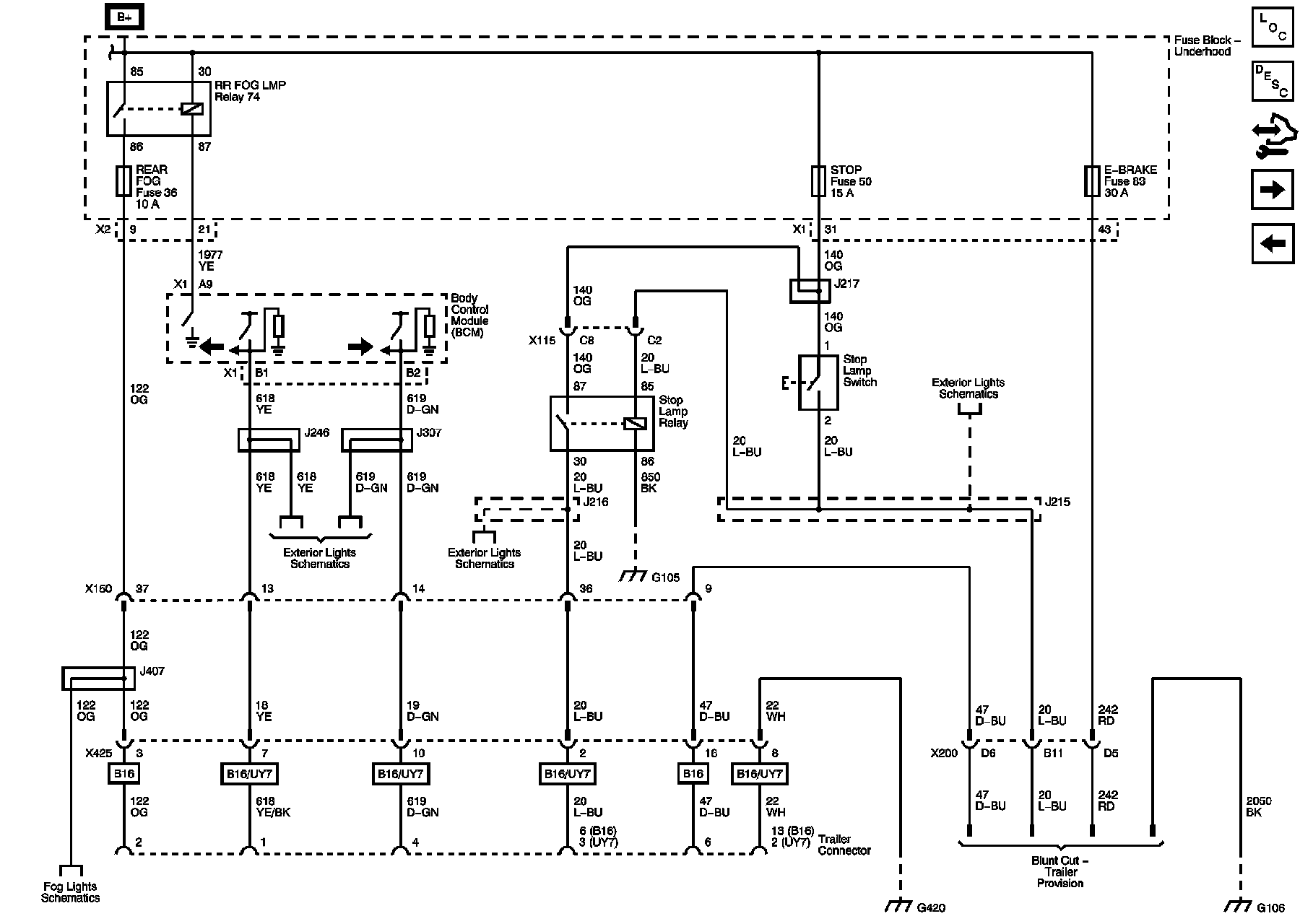

Trailer Wiring (Truck with UY7) (1 of 2)

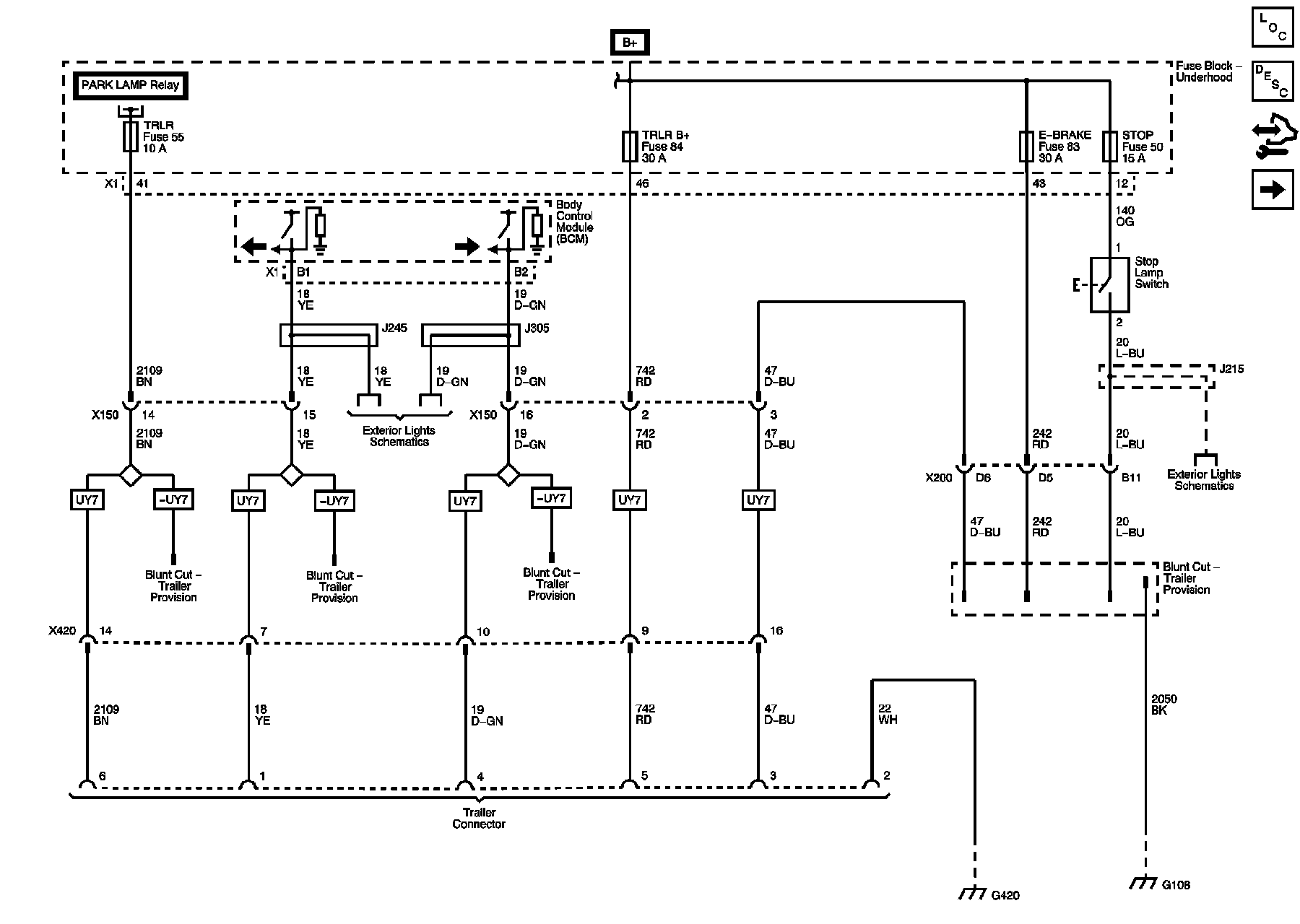

Trailer Wiring (Truck with UY7) (2 of 2)
