Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Wiring Schematic Index

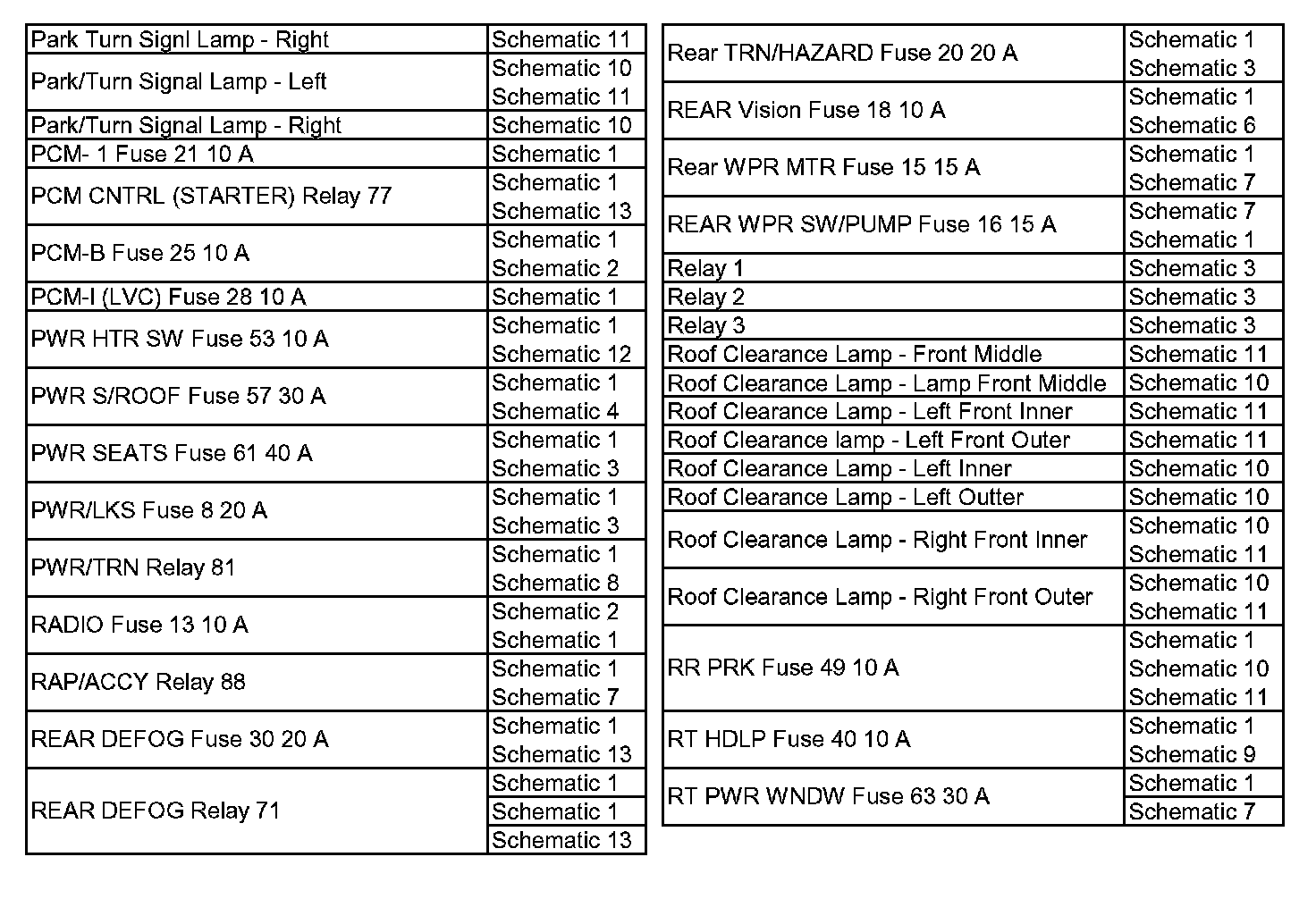

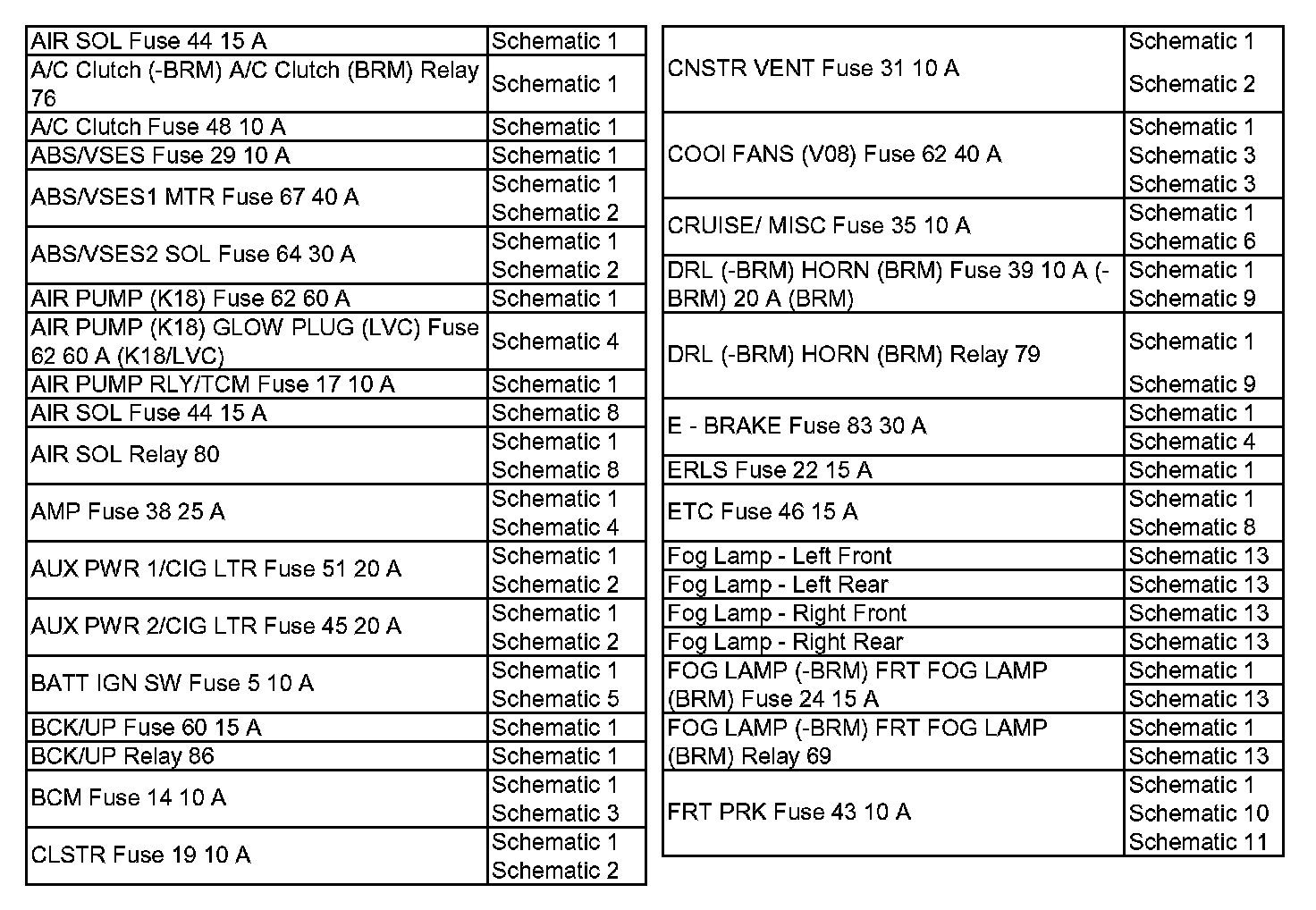

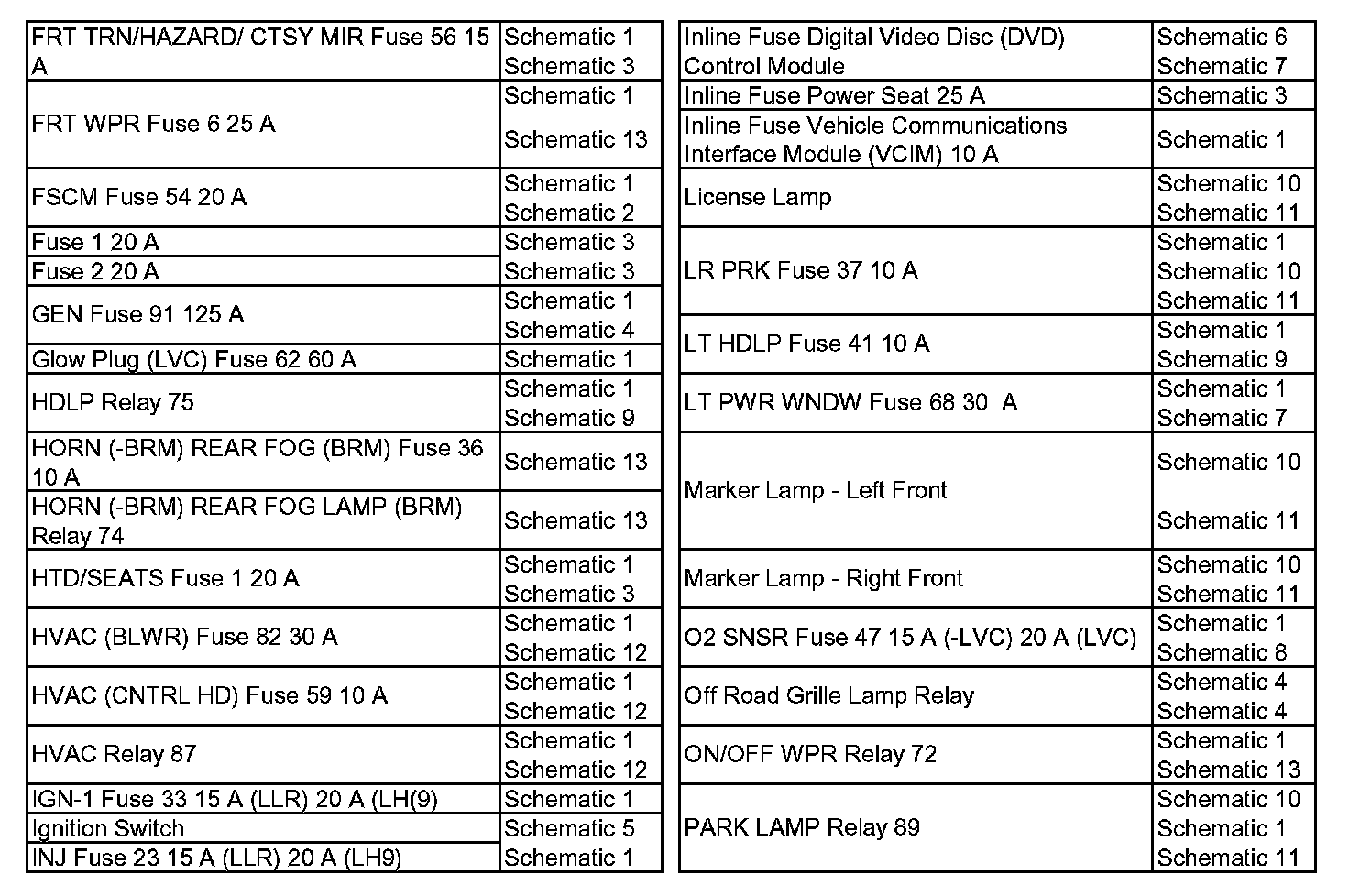

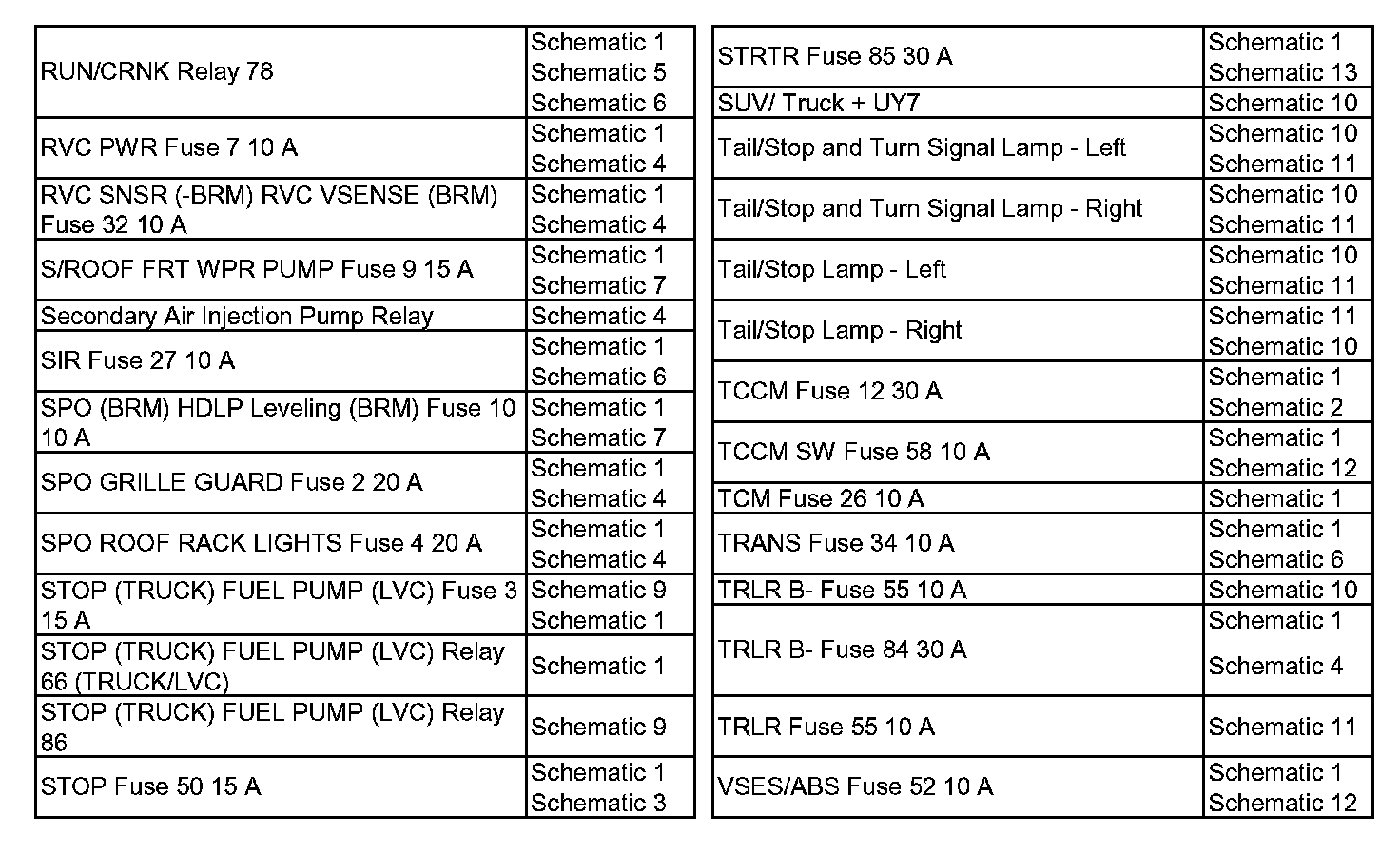

Wiring Schematic Index

AI - FR:



FR - PA:



PA - RT:



RU - VS:
