Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 8

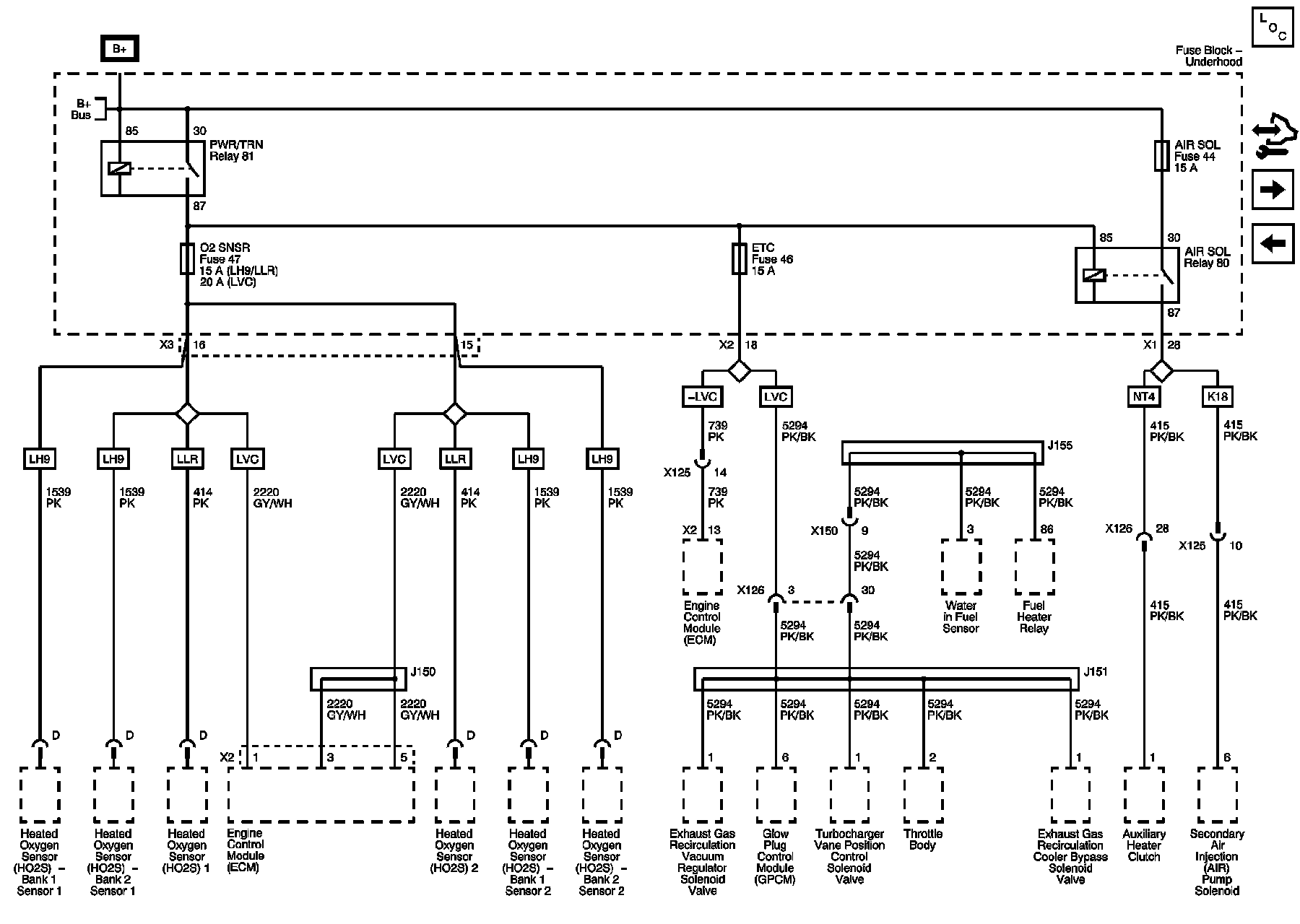

Power Distribution Schematic 8




Power Distribution Schematics

AIR SOL, ETC, and O2 SNSR Fuses
