Hummer
>>
2010
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Schematics
>>
Power Distribution Schematic 3
Power Distribution Schematic 3
Power Distribution Schematics

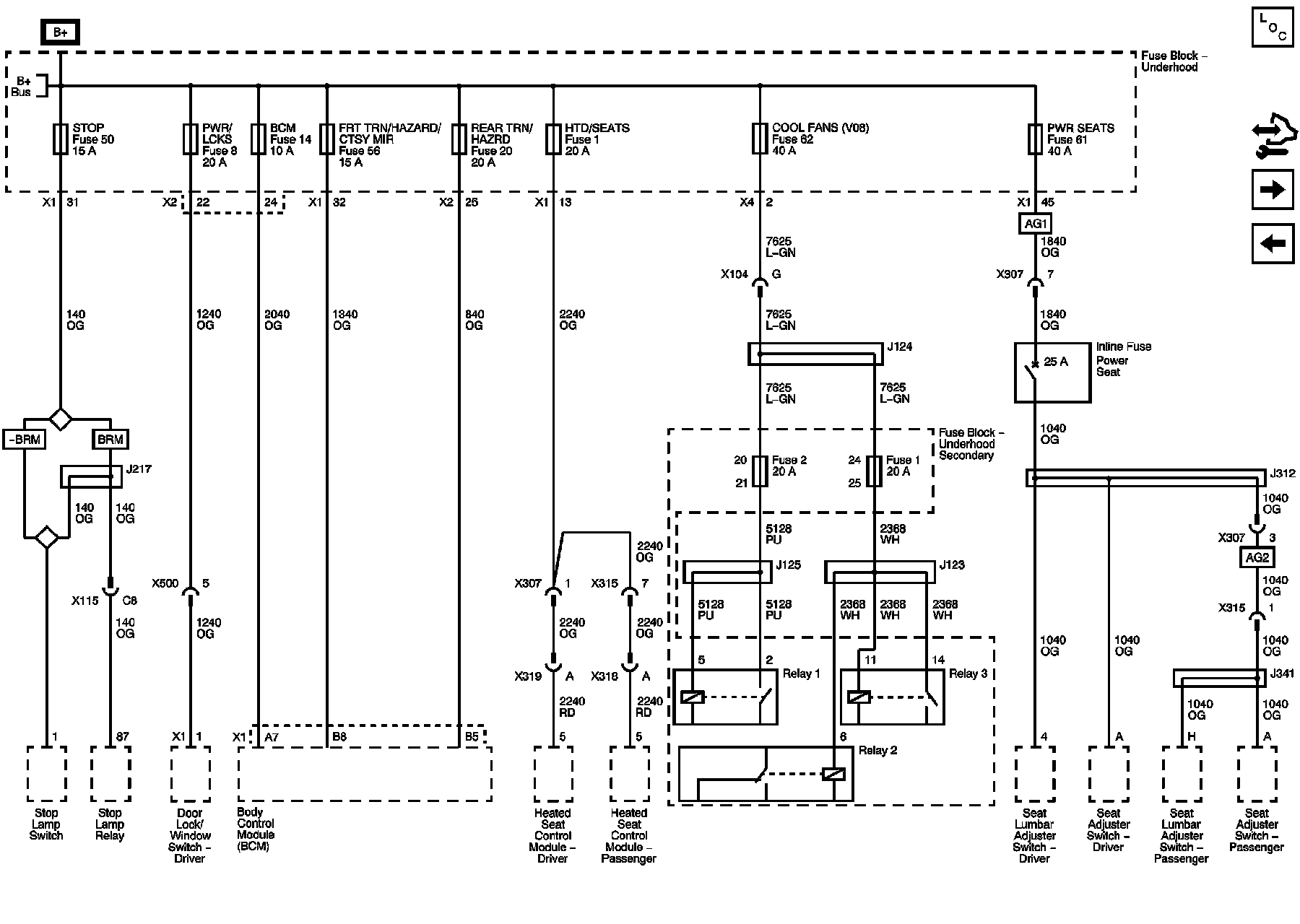

BCM, COOL FANS (V08), FRT TRN/HAZRD/CTSY MIR, HTD/SEATS, PWR/LKS, PWR SEATS, REAR TRN/HAZRD, and STOP Fuses
