Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G105

G105




Ground Distribution Schematics

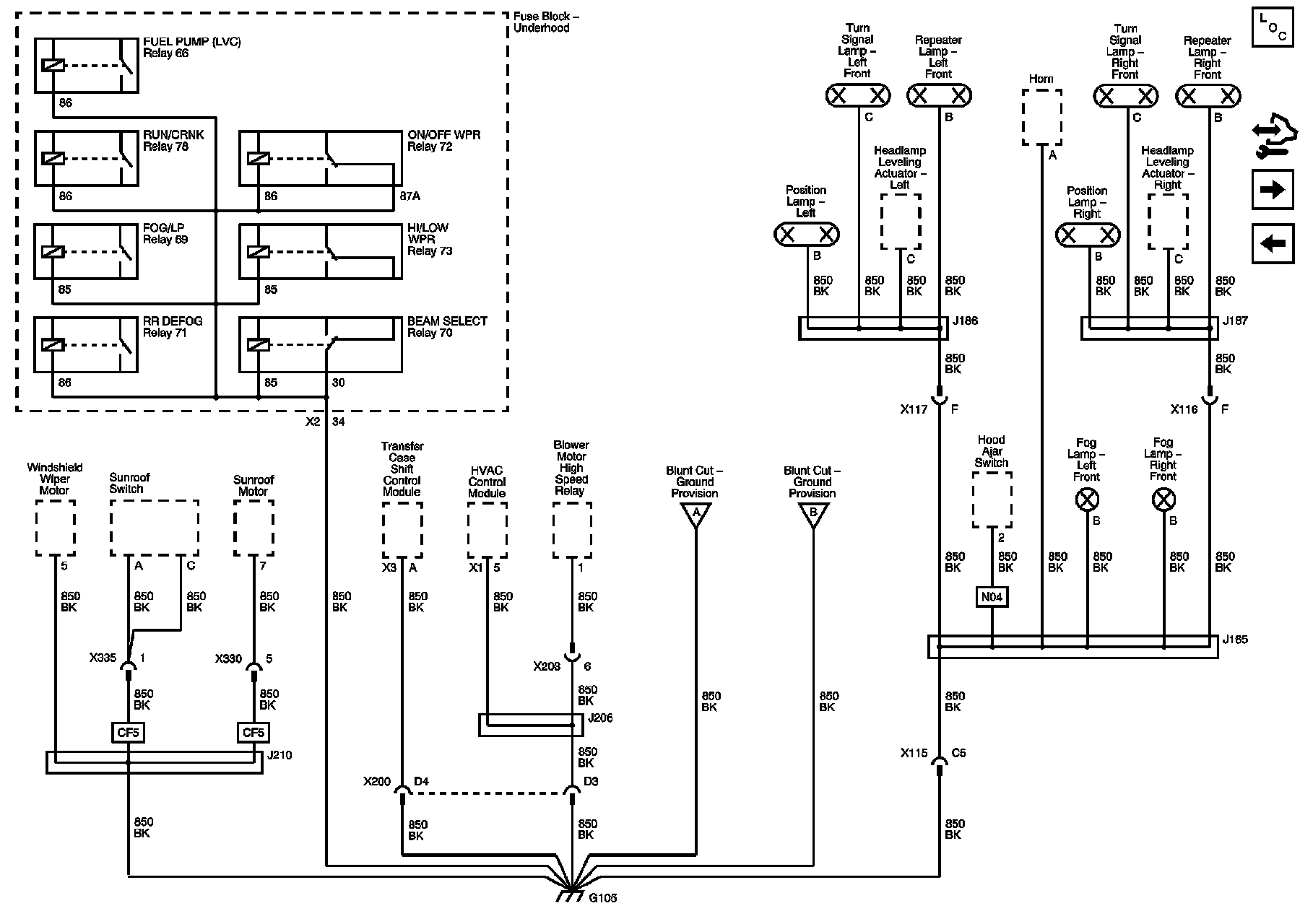

G105 (BRM with Right Hand Drive) (1 of 2)





G105 (2 of 2)
