Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls Schematic 11

Engine Controls Schematic 11




Engine Controls Schematics

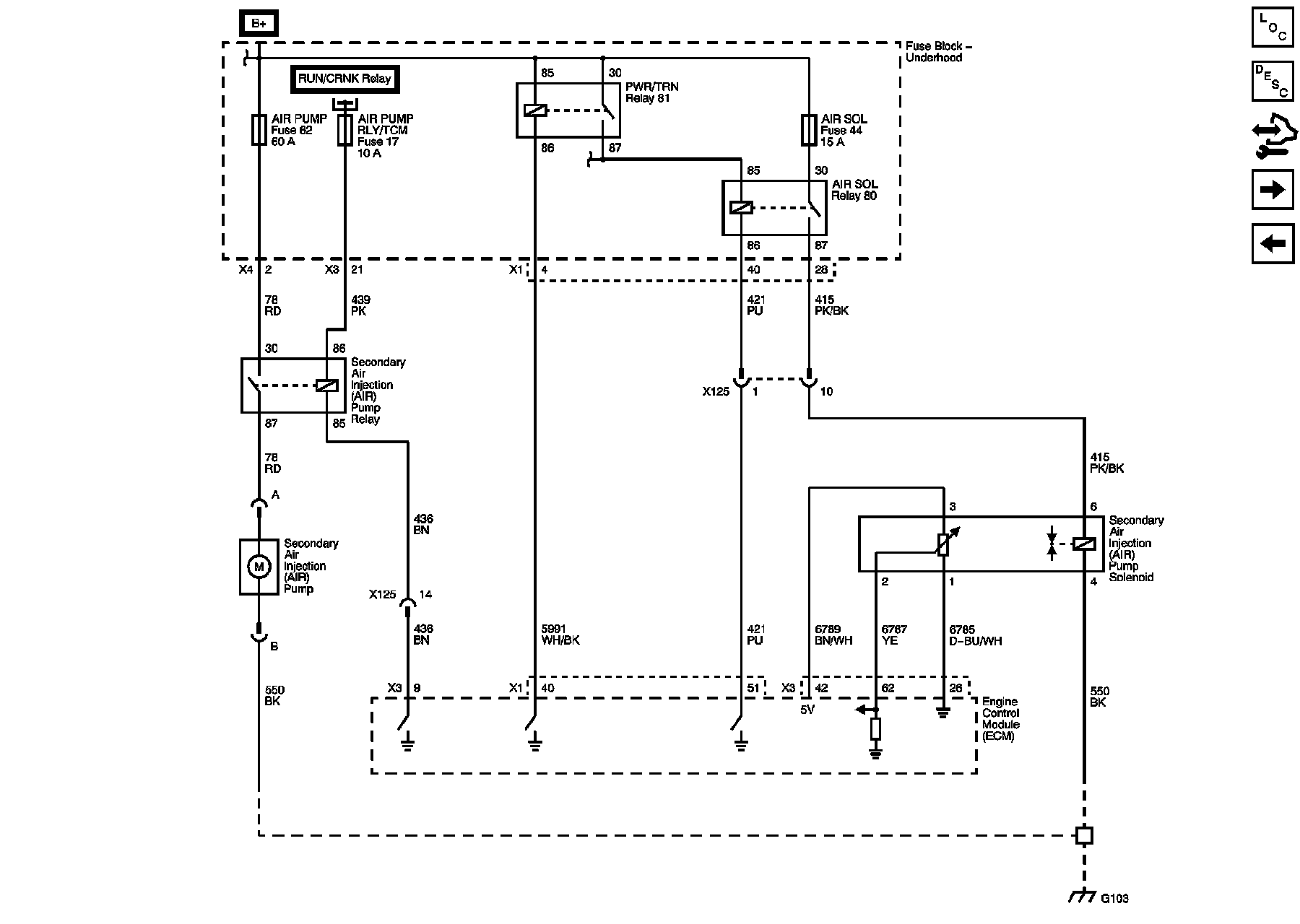

Device Controls - Secondary Air Injection (K18)
