Headlights/Daytime Running Lights (DRL) Schematics
>>

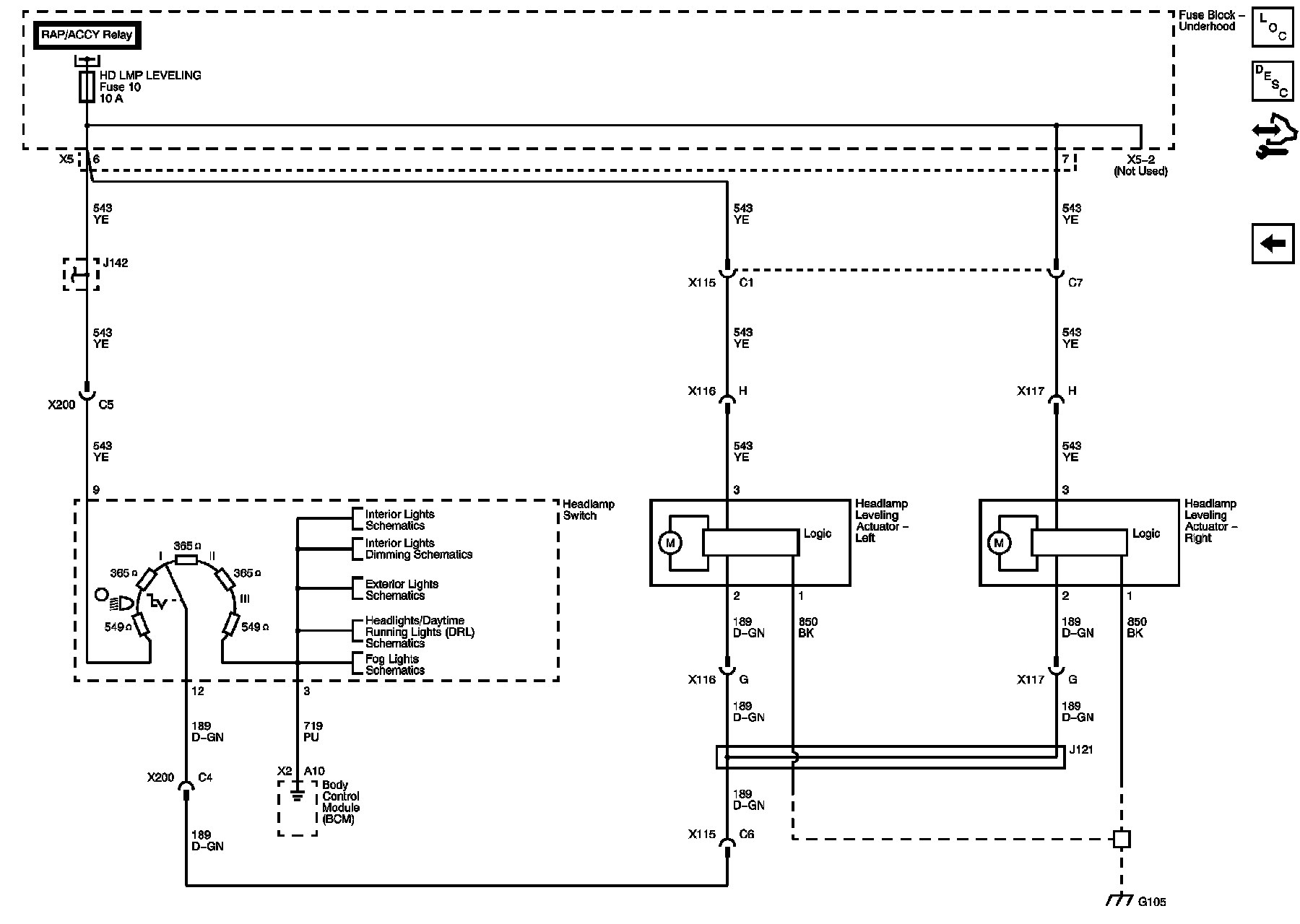

Headlights/Daytime Running Lights (DRL) Schematic 4
Headlights/Daytime Running Lights (DRL) Schematic 4
Headlights/Daytime Running Lights (DRL) Schematics
Headlamp
Leveling (TR6)
