Headlights/Daytime Running Lights (DRL) Schematics
>>

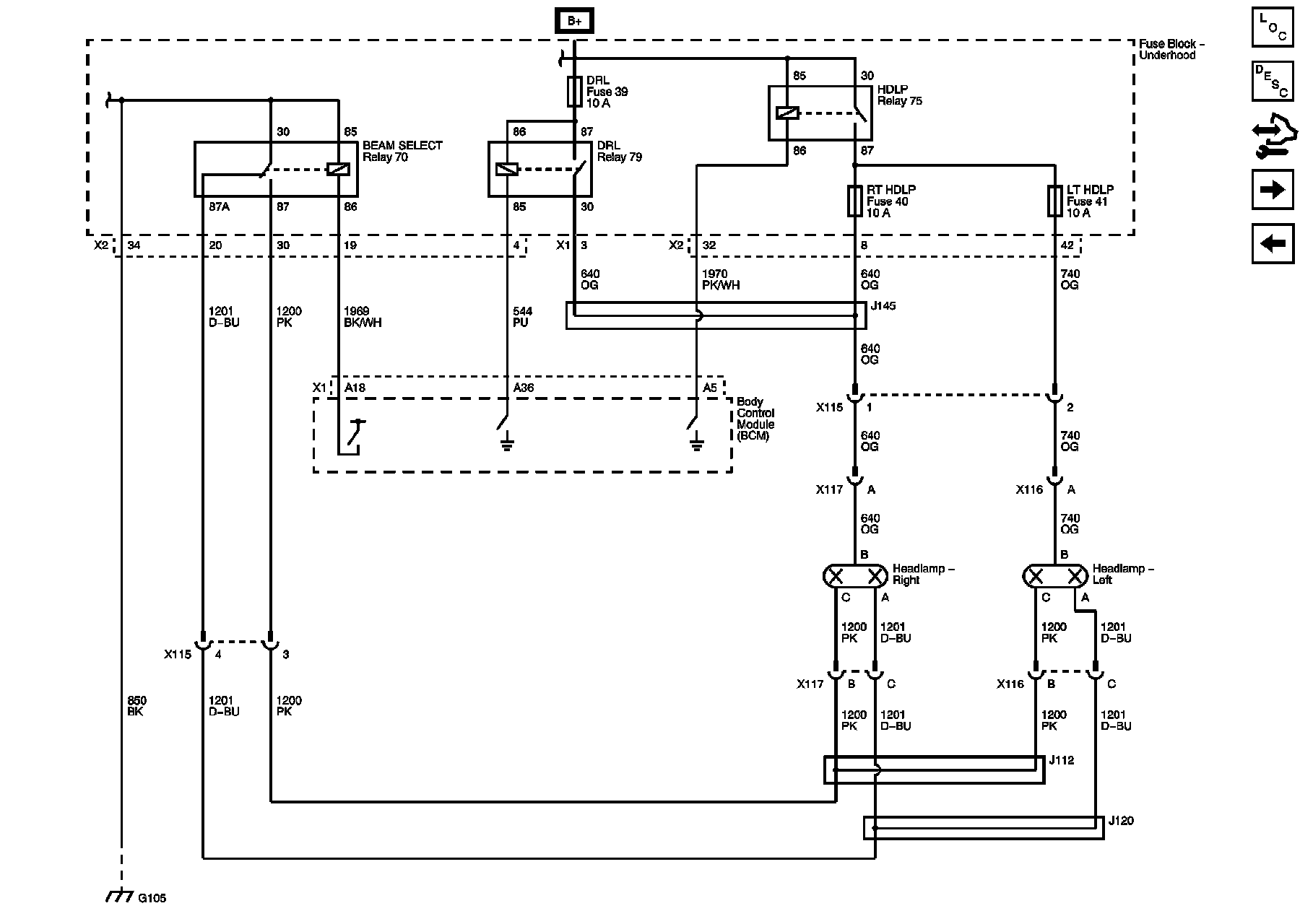

Headlights/Daytime Running Lights (DRL) Schematic 2
Headlights/Daytime Running Lights (DRL) Schematic 2
Headlights/Daytime Running Lights (DRL) Schematics
Headlamps (SLA)
