Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights Schematics >> Exterior Lights Schematic 12

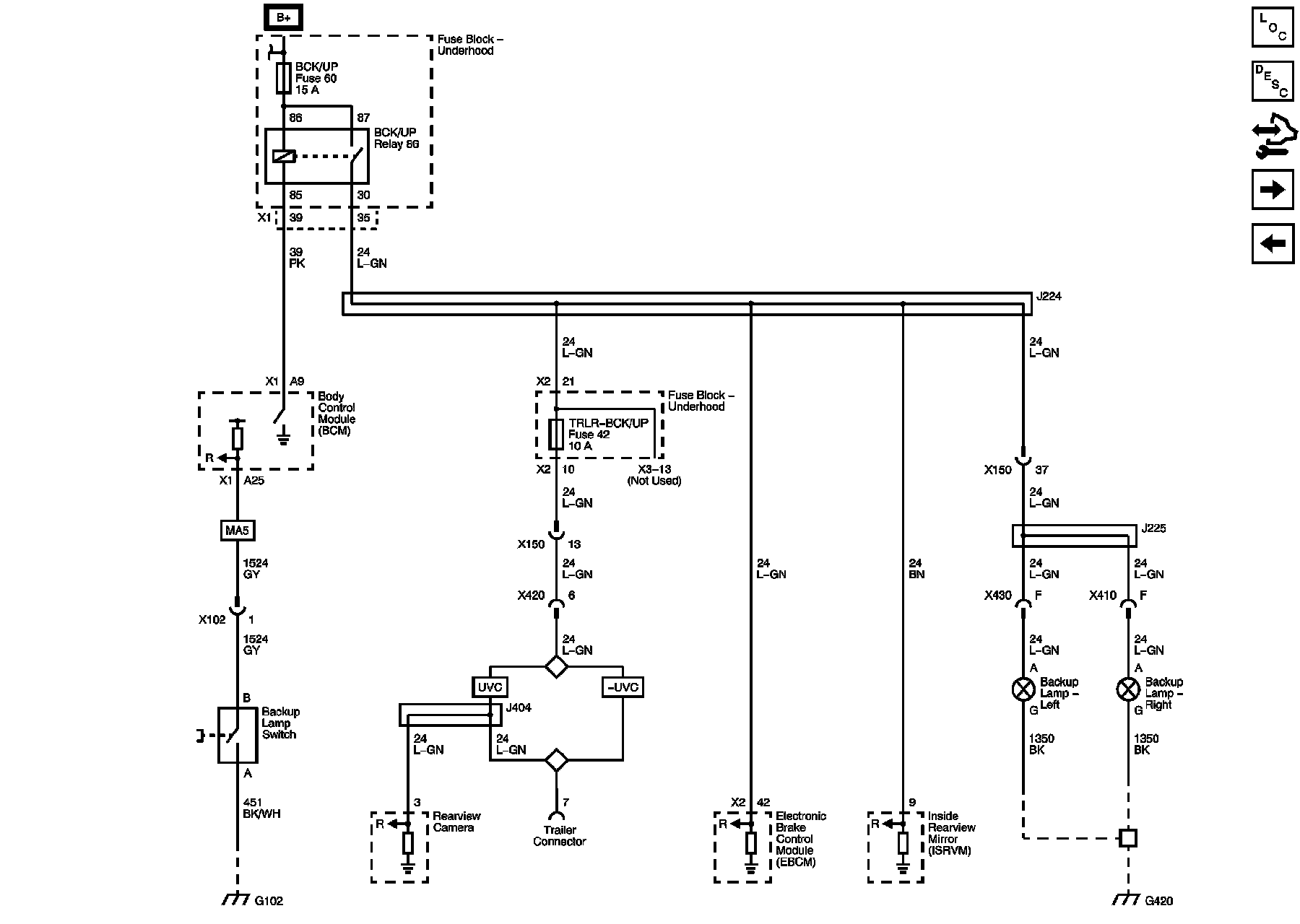

Exterior Lights Schematic 12




Exterior Lights Schematics

Backup Lamps (Truck)
