System Diagram




HVAC Schematics

Module Power, Ground, Serial Data, and Blower Controls





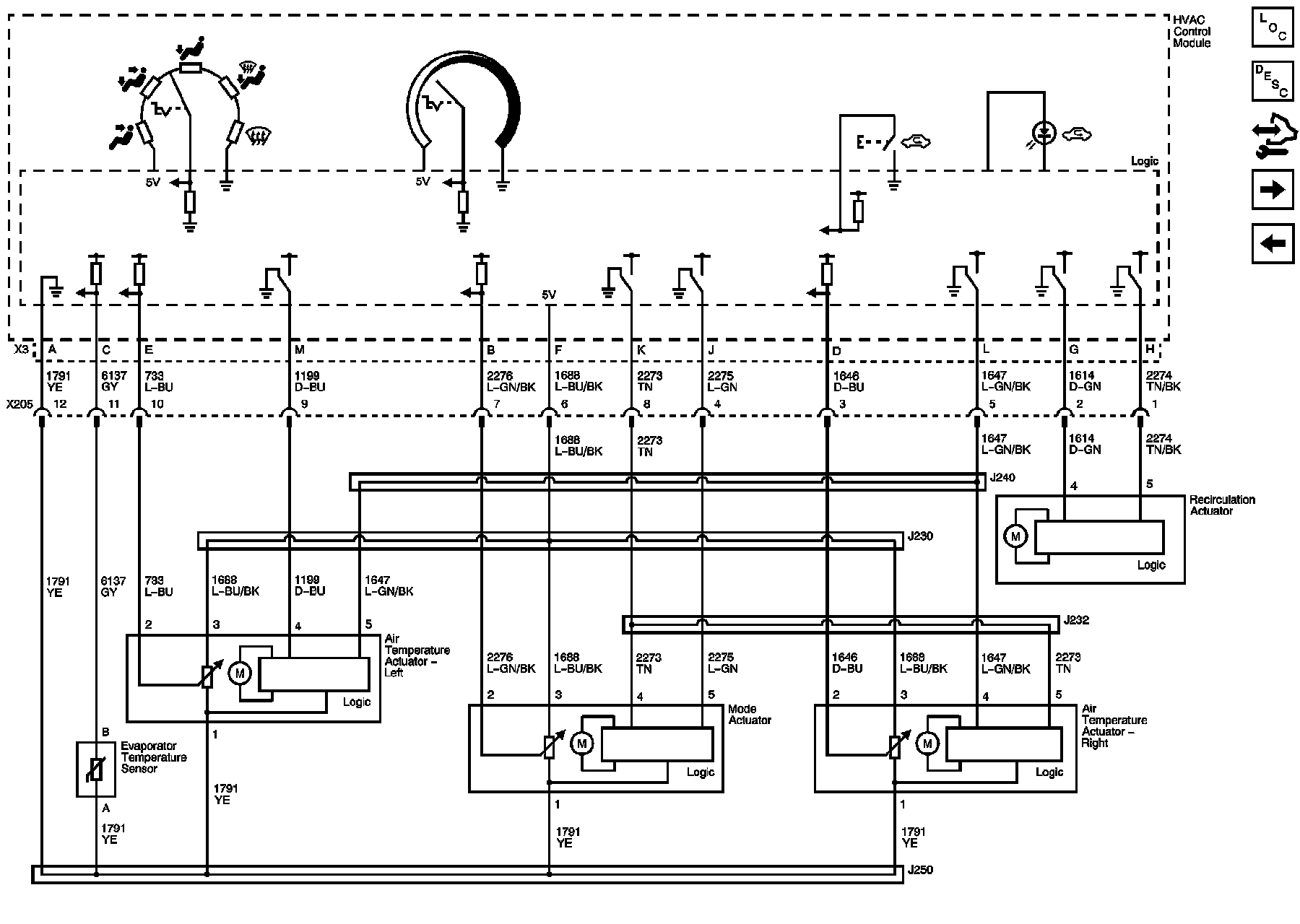

Air Delivery Control

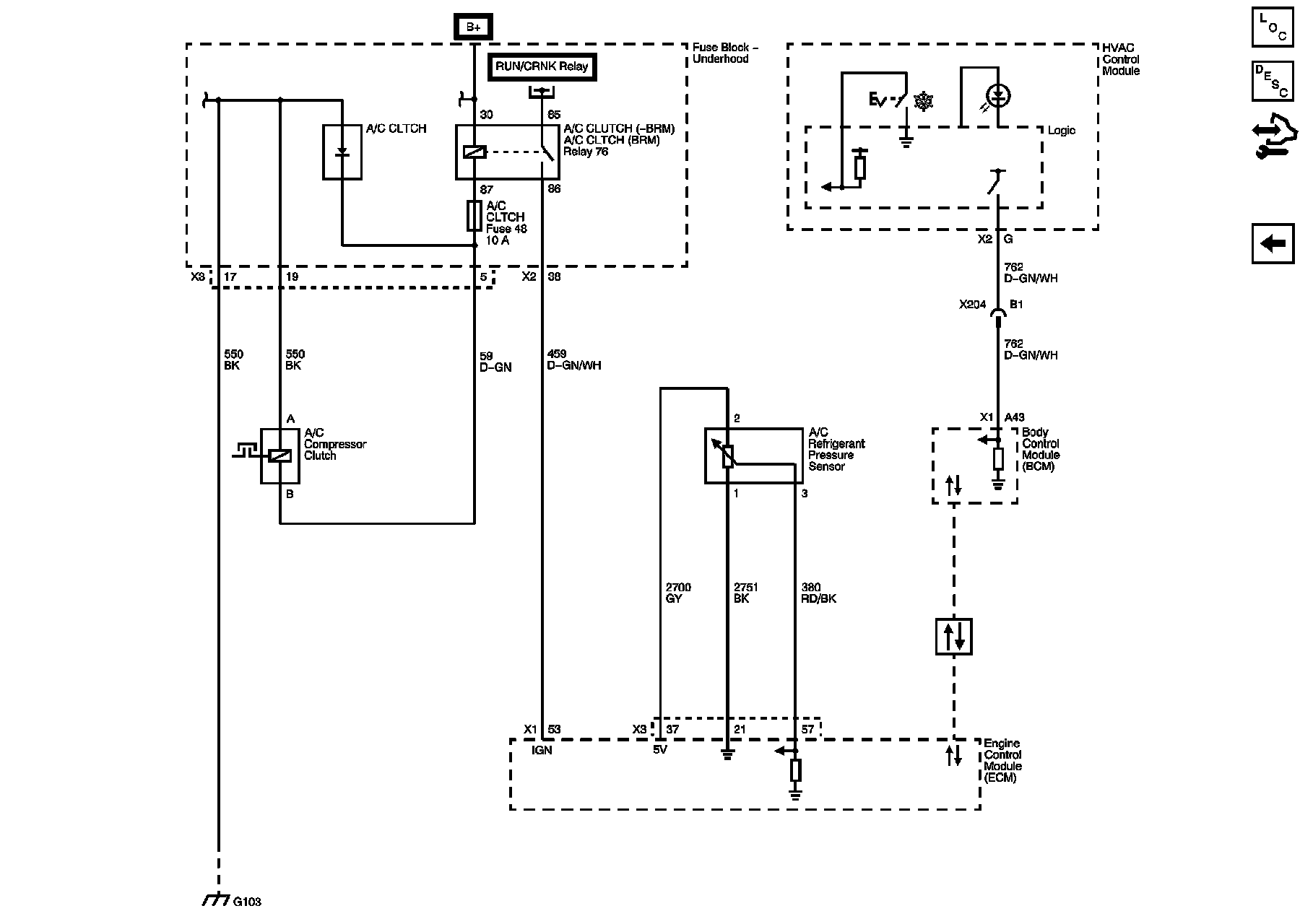

Compressor Controls (without LVC)
