Immobilizer Schematics
Immobilizer Schematics
Immobilizer Schematics

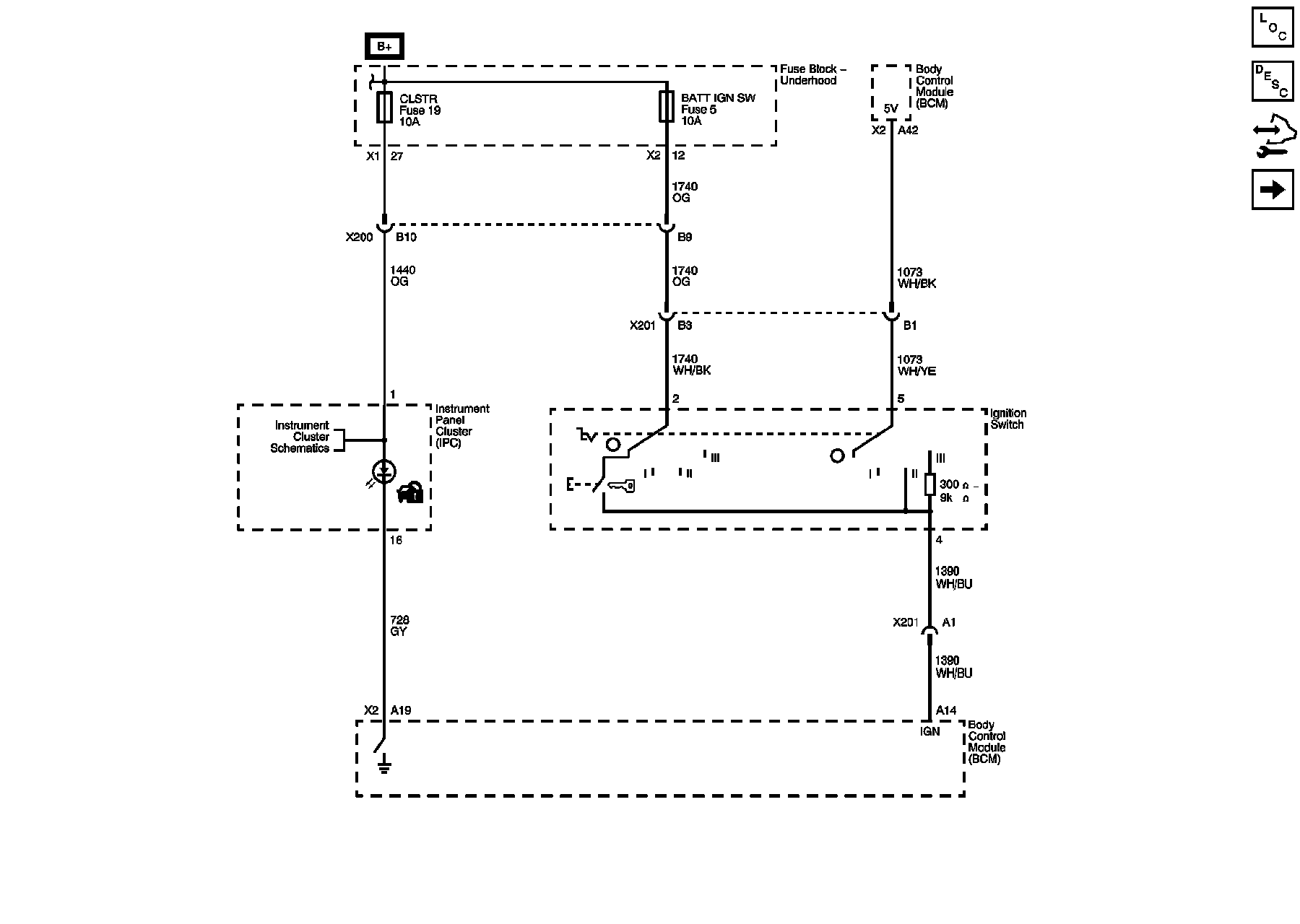

PassLock (without BAE)

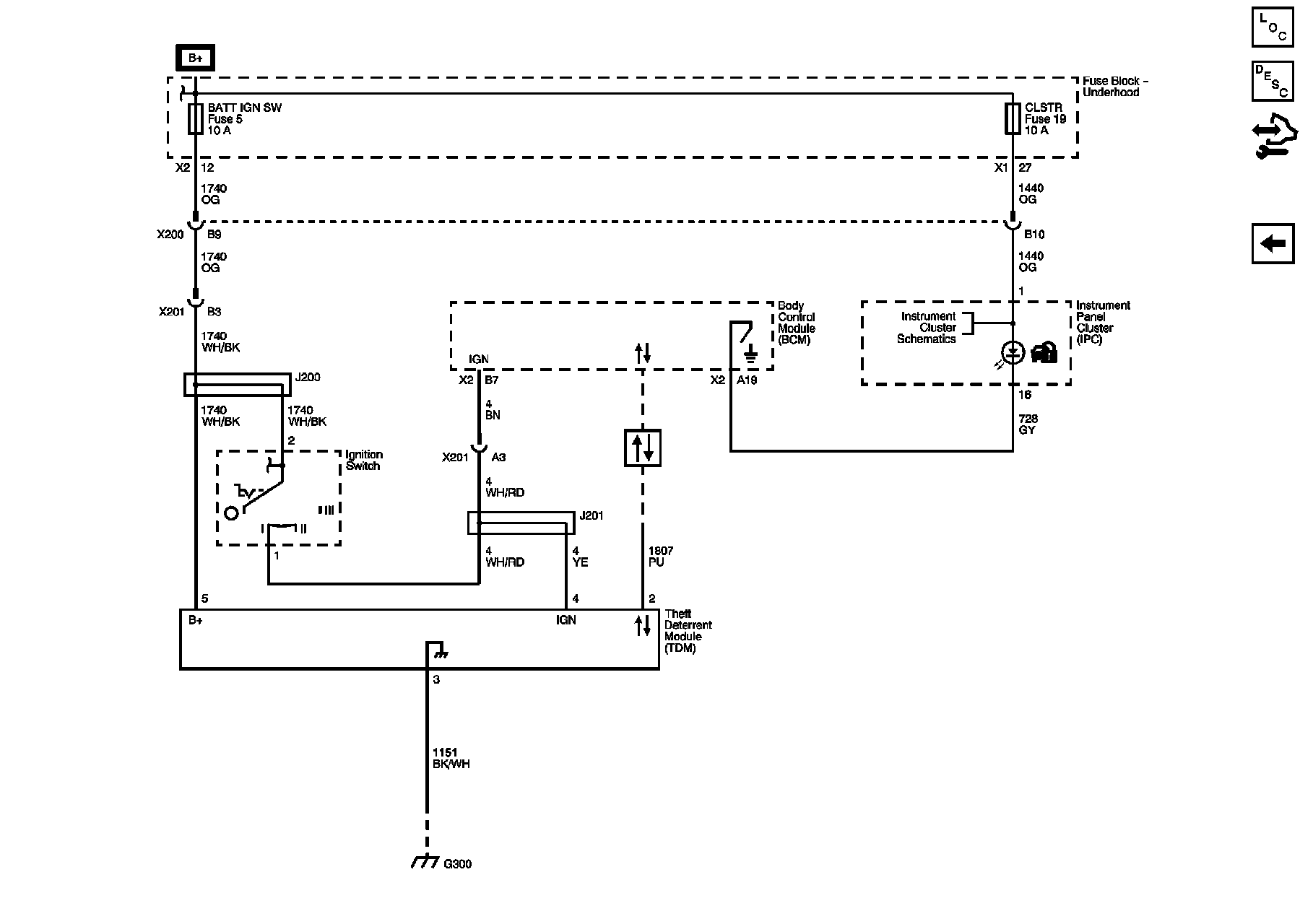

PASS-Key(C) III (BAE)
