X350




Harness Routing Views

Body Harness Routing - Right (Left Hand Drive)




1 - X350

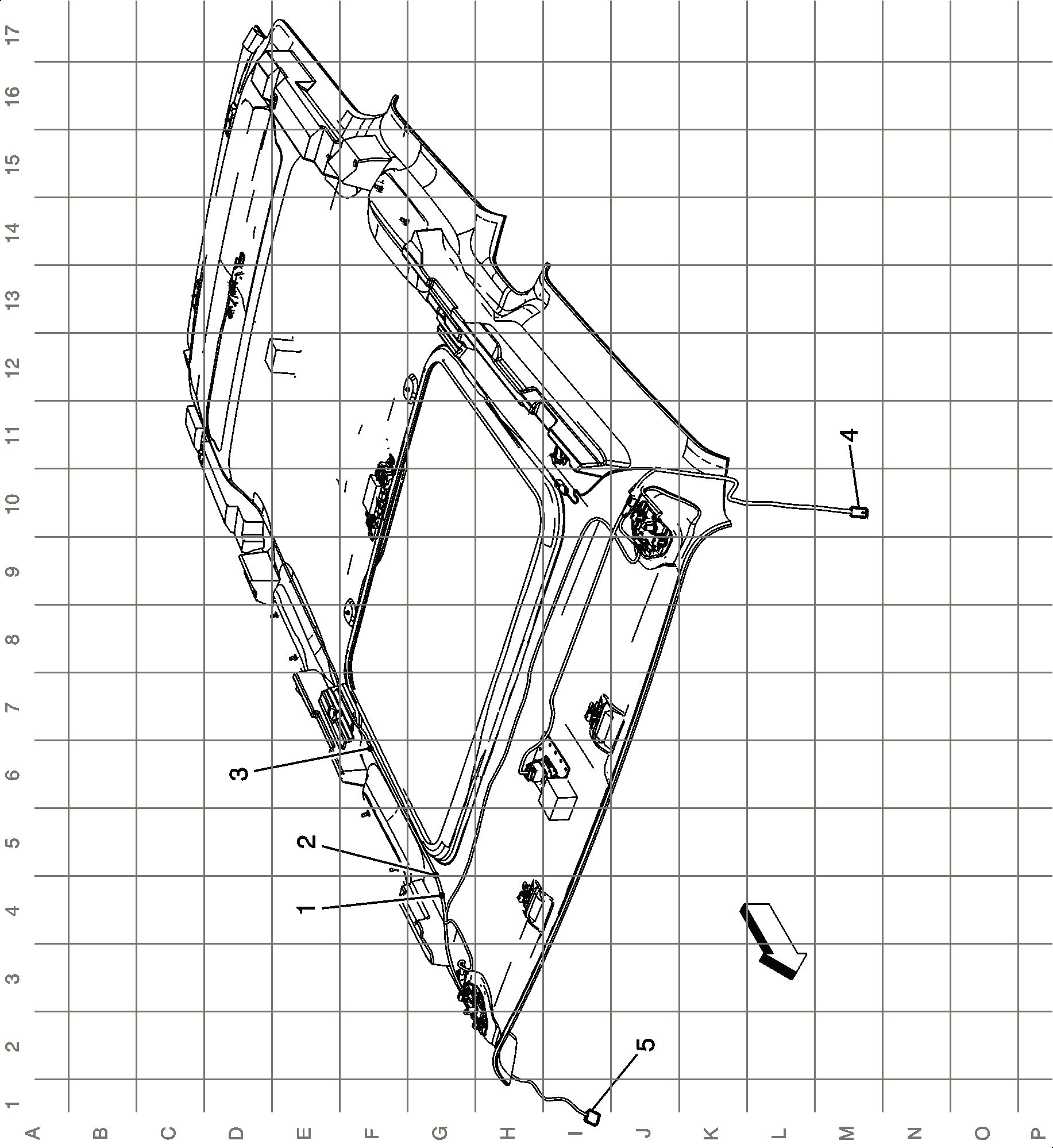

Headliner Harness and Sunroof Switch/Cellular Telephone Microphone Harness Routing




5 - X350
