Trailer Connector
Trailer Connector
Component Connector End Views

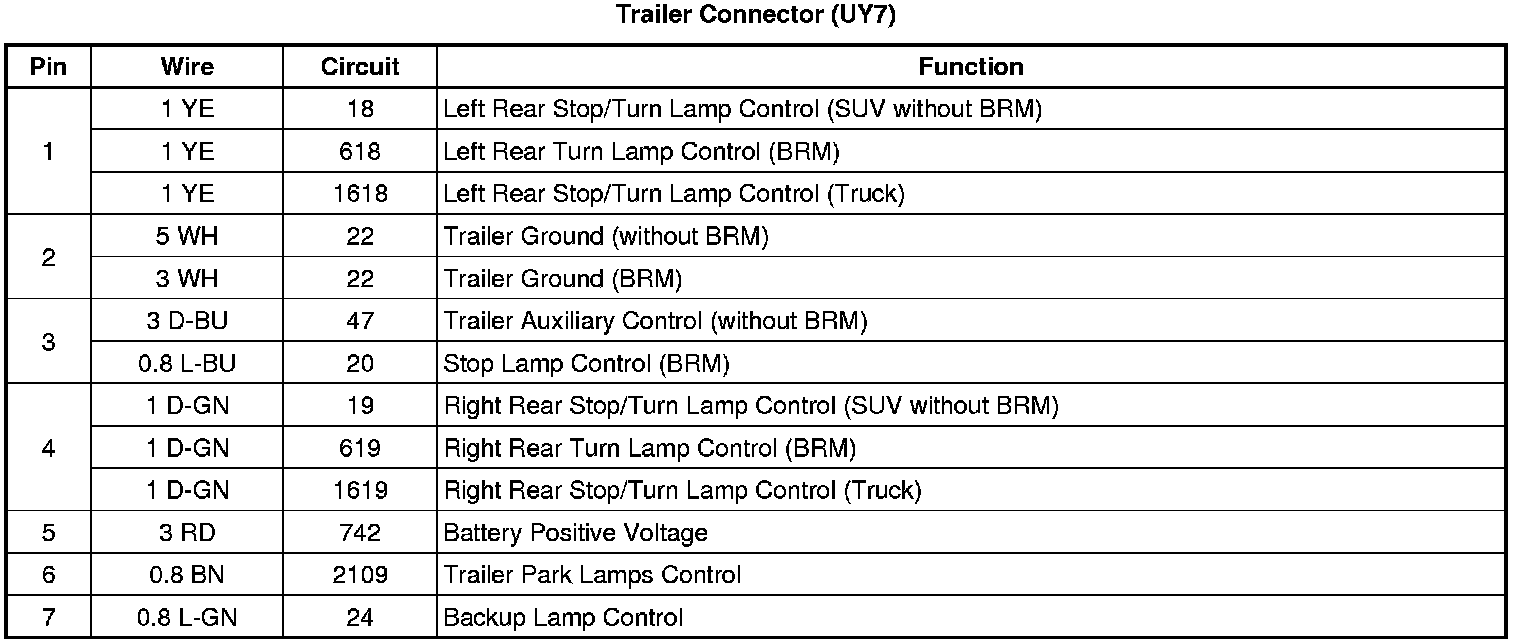

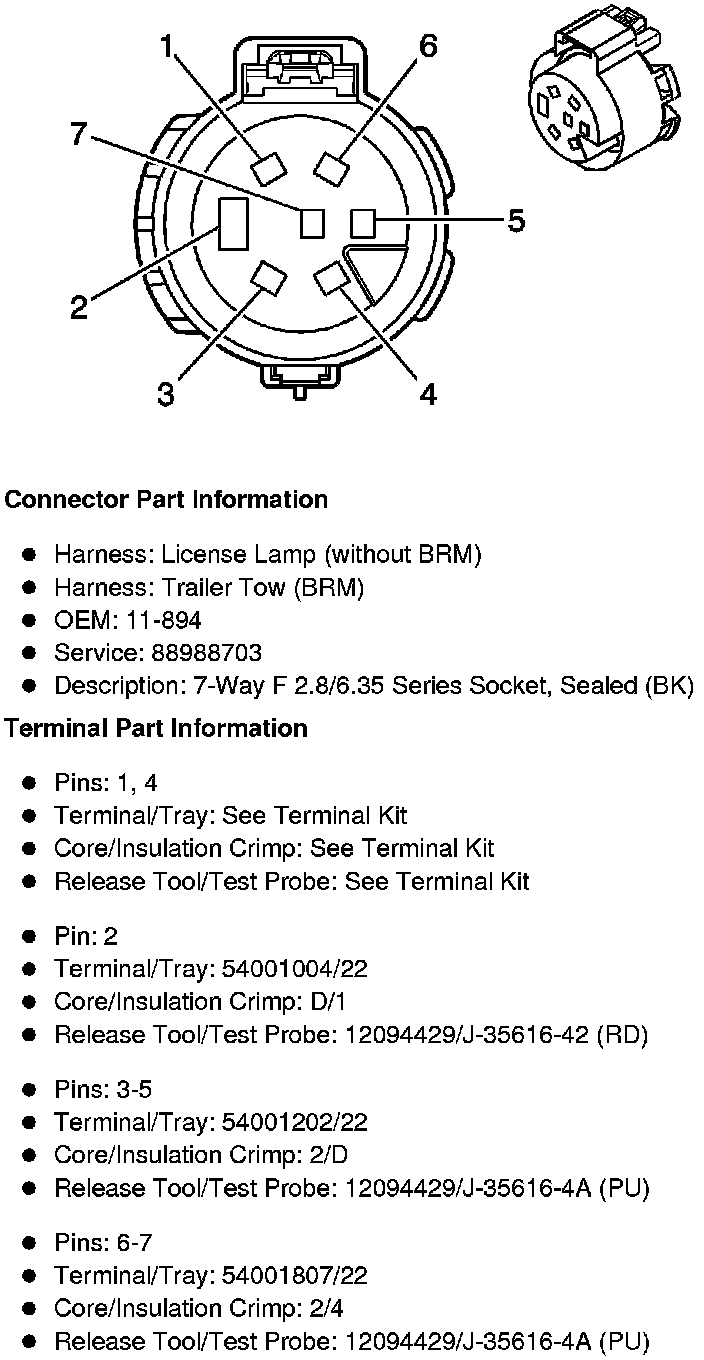

Trailer Connector
(UY7)

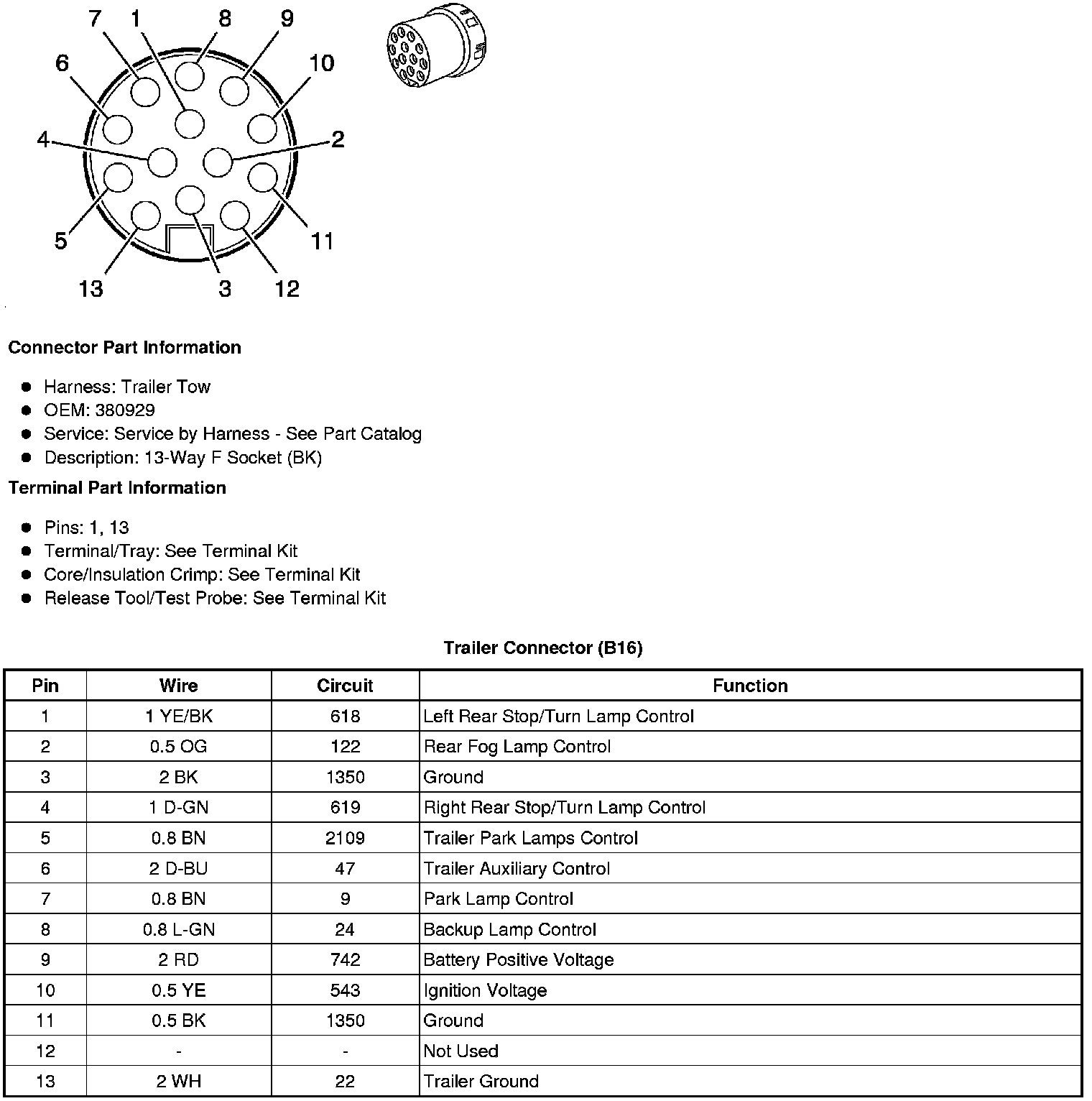

Trailer Connector
(B16)
