Home
>>
Hummer
>>
2010
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sun Shade
Sun Shade
Component Connector End Views

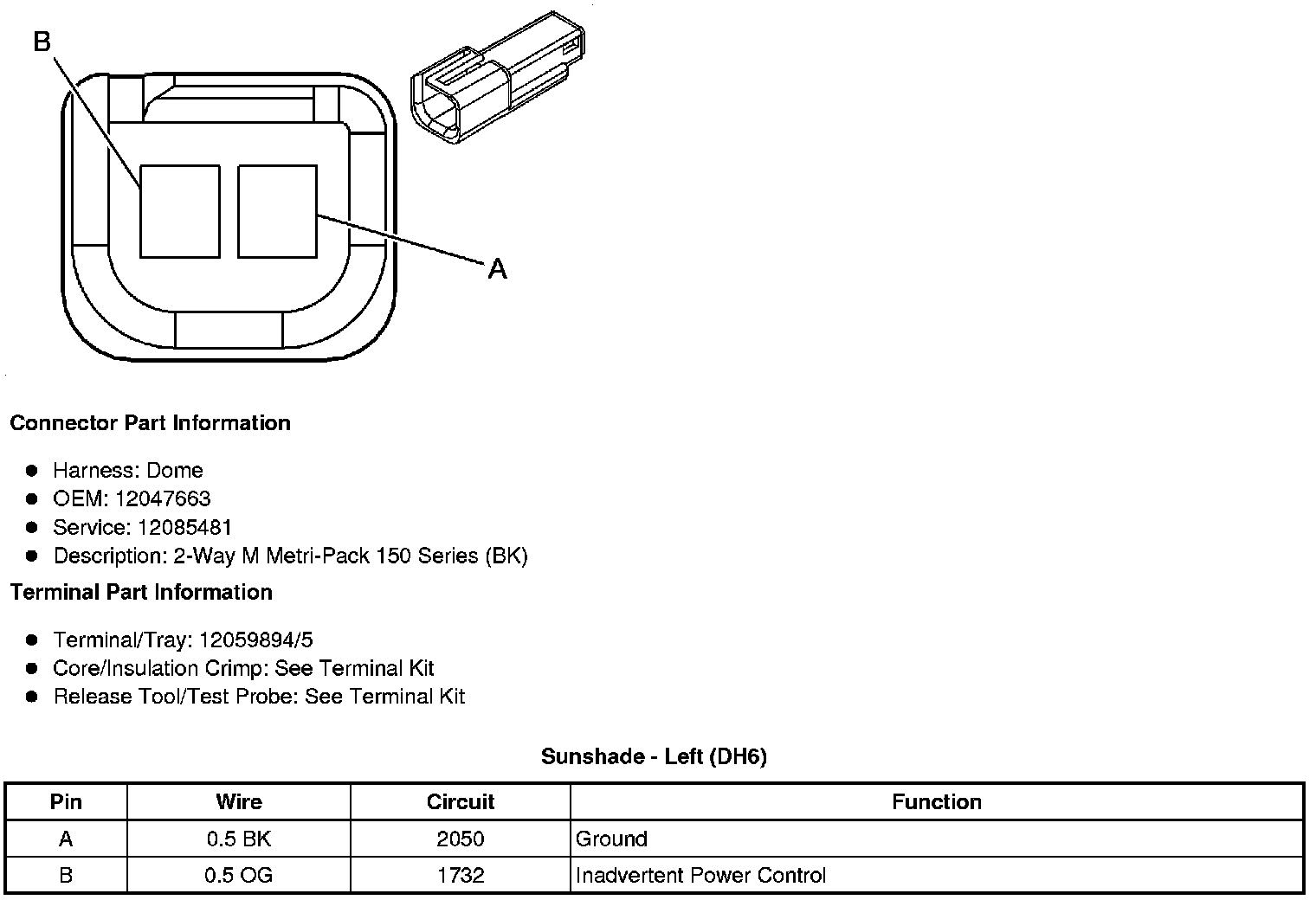

Sunshade - Left (DH6)
Sunshade - Right (DH6)
