Speaker




Component Connector End Views

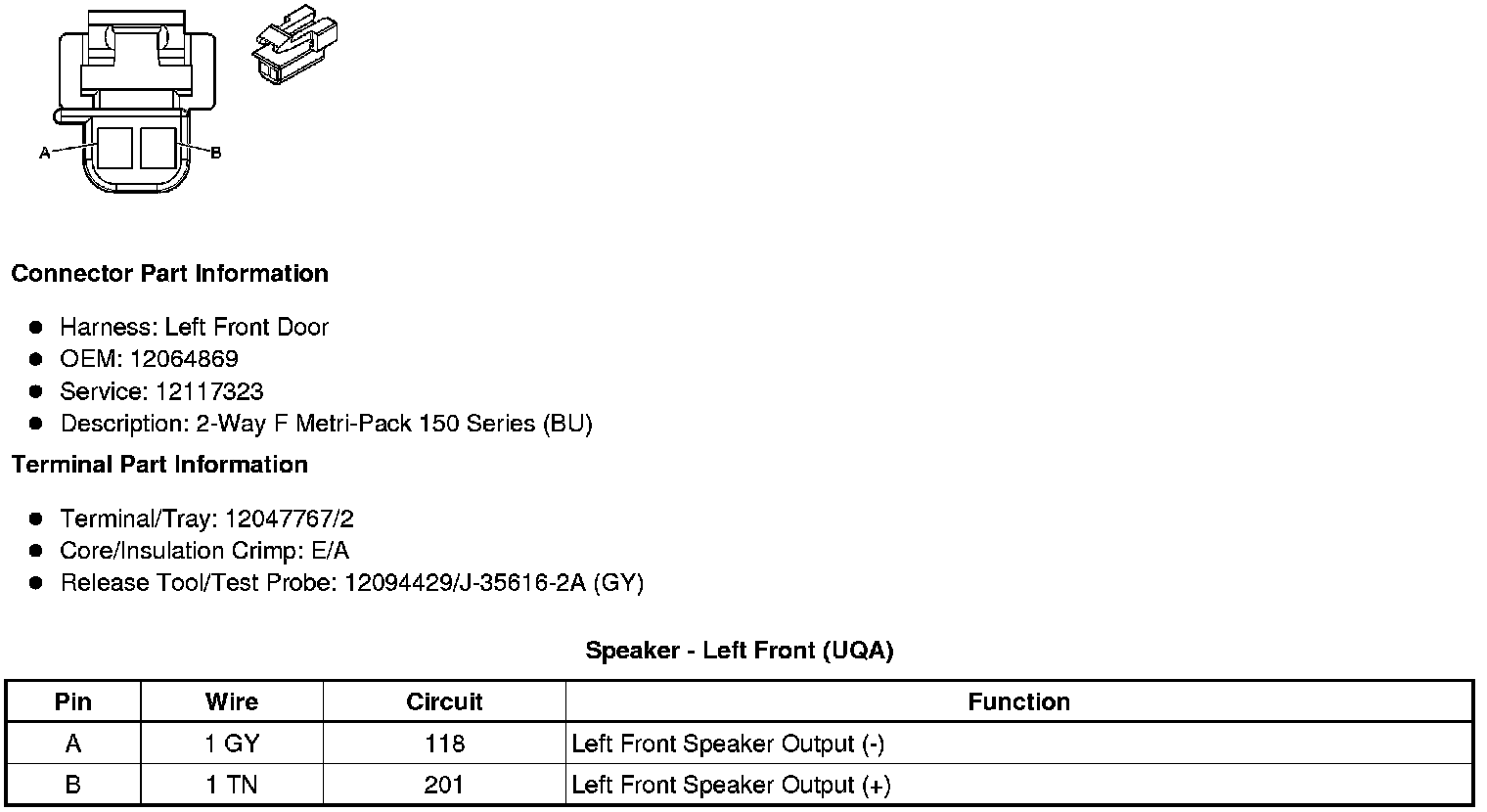

Speaker - Left Front (UQA)

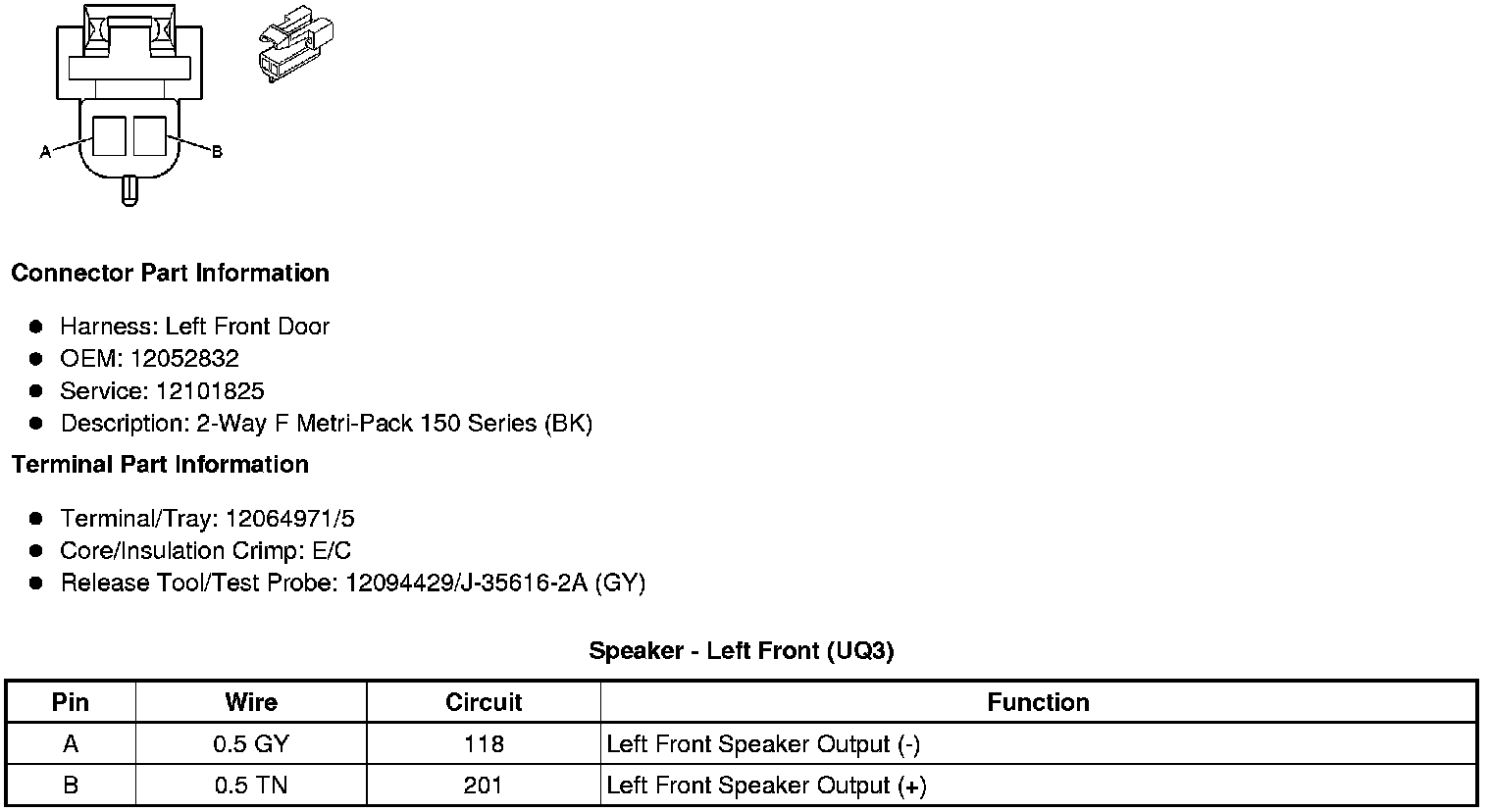

Speaker - Left Front (UQ3)

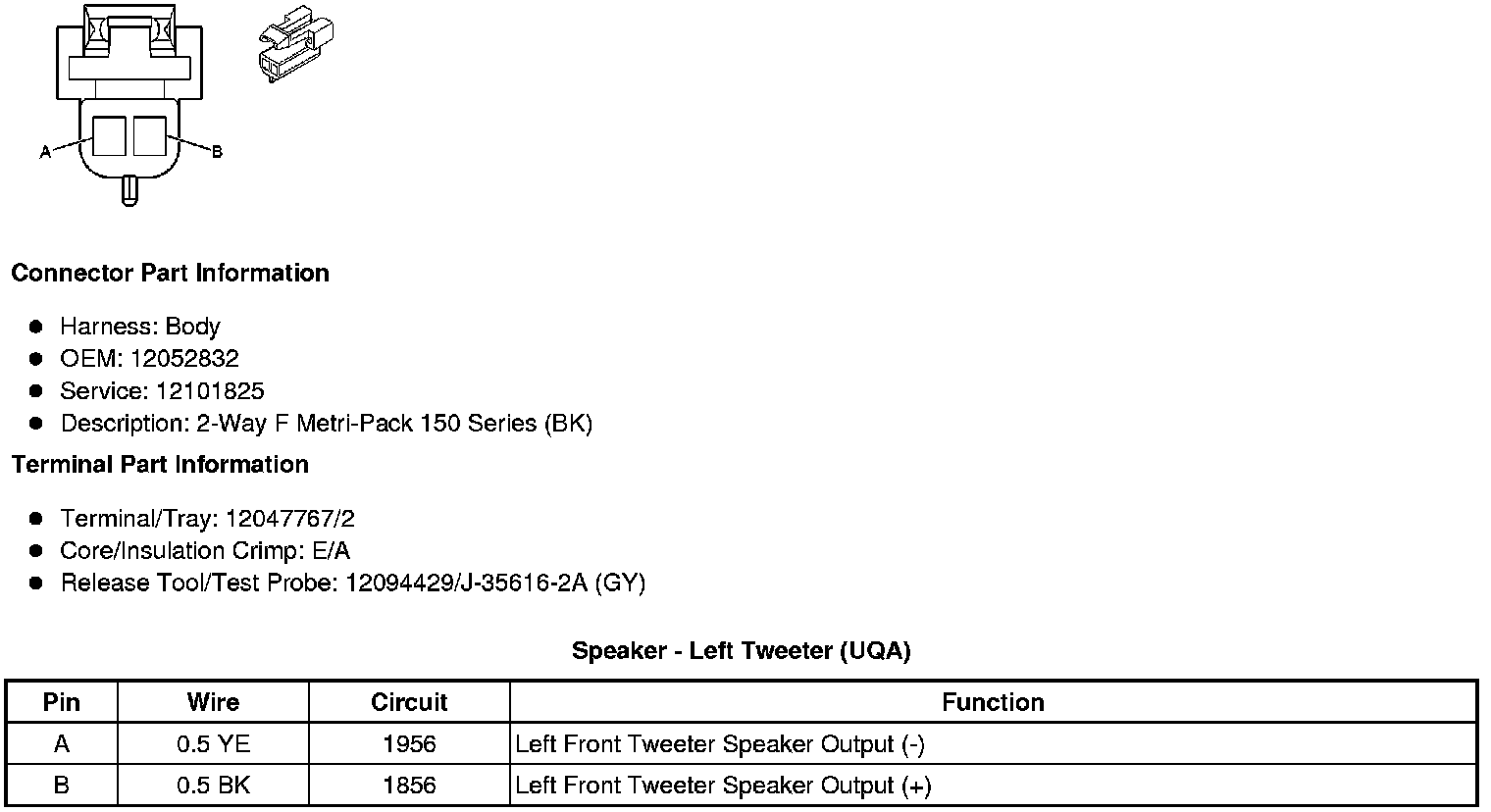

Speaker - Left Tweeter (UQA)

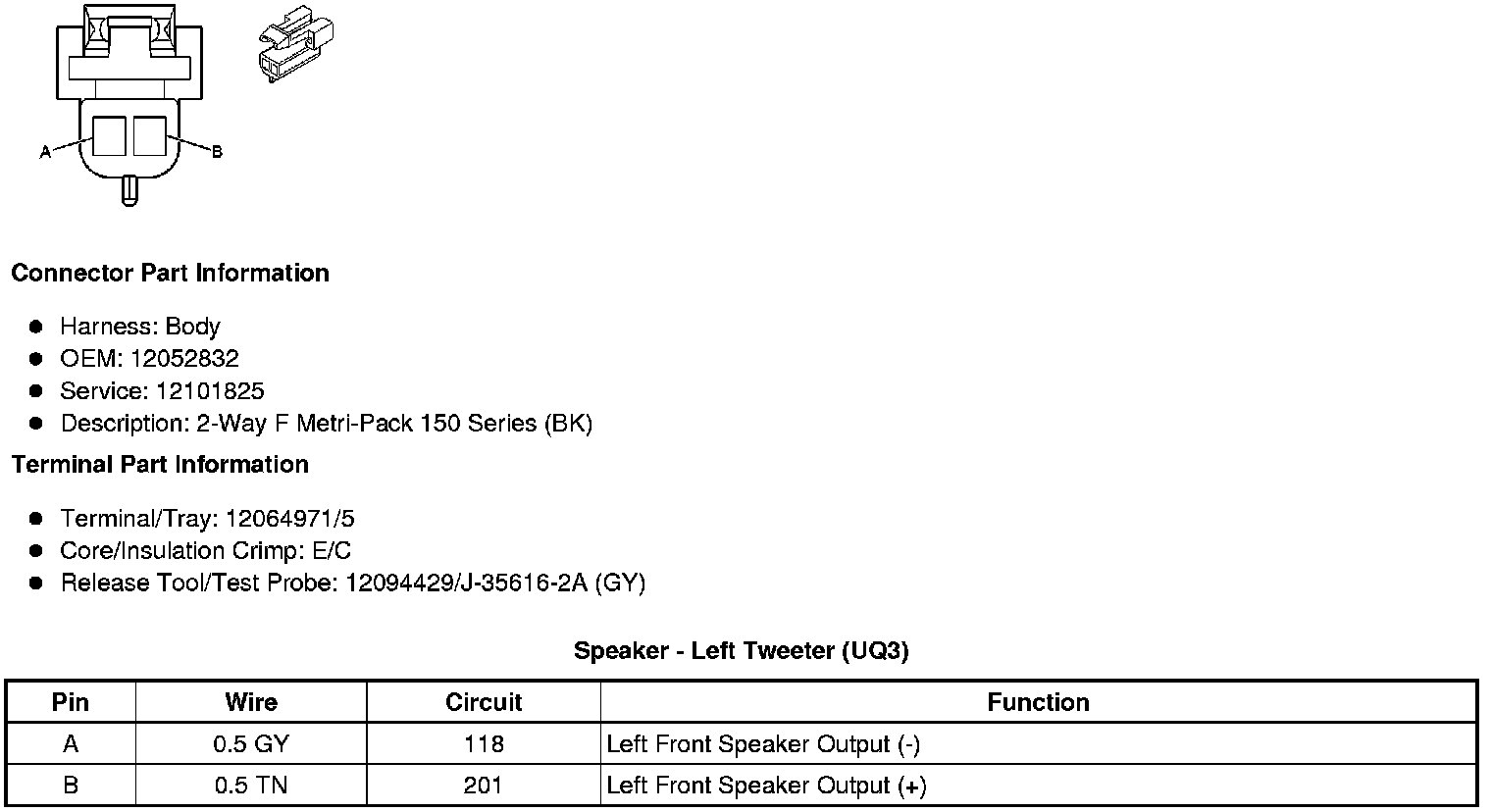

Speaker - Left Tweeter (UQ3)

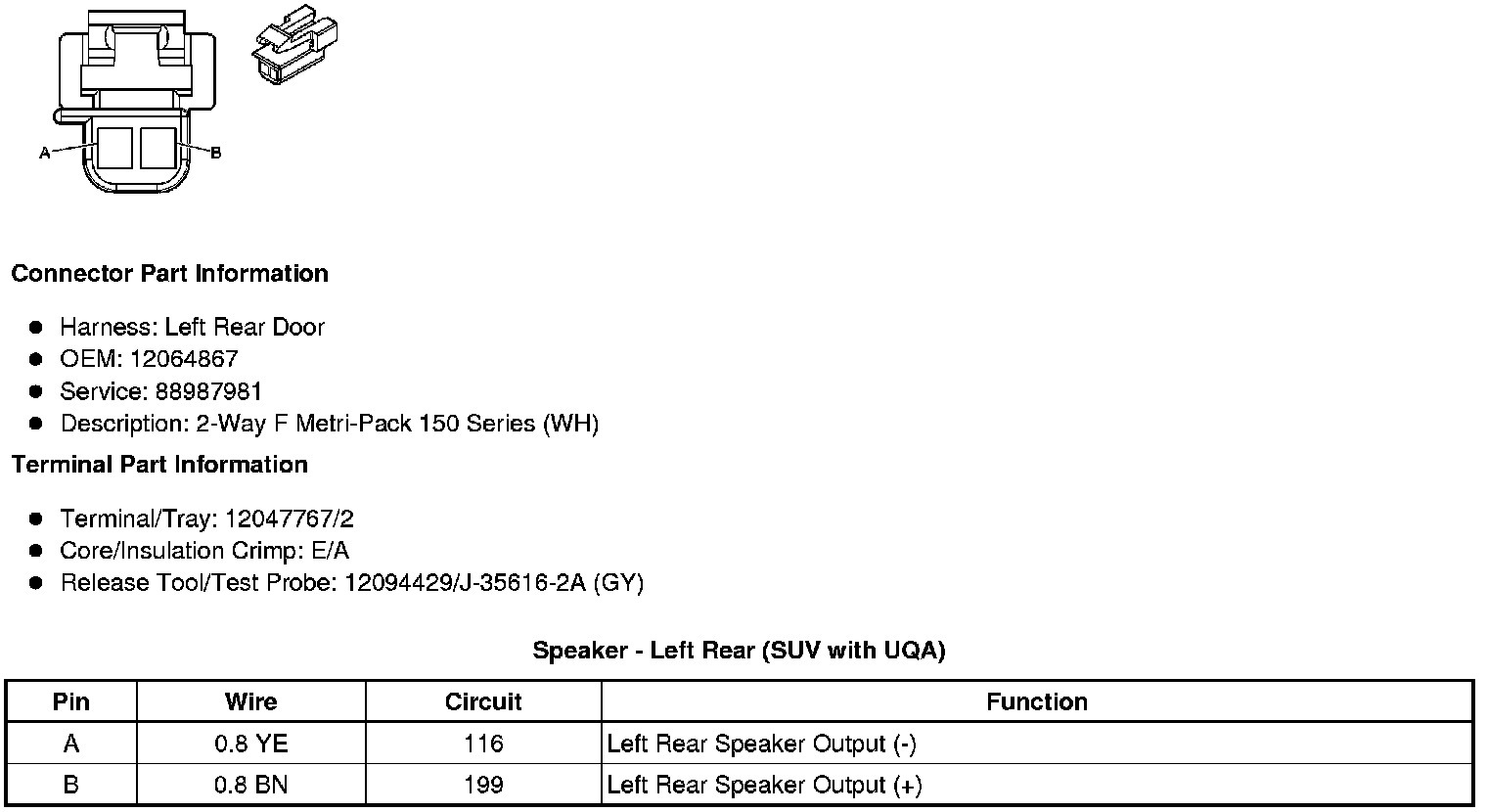

Speaker - Left Rear (SUV with UQA)

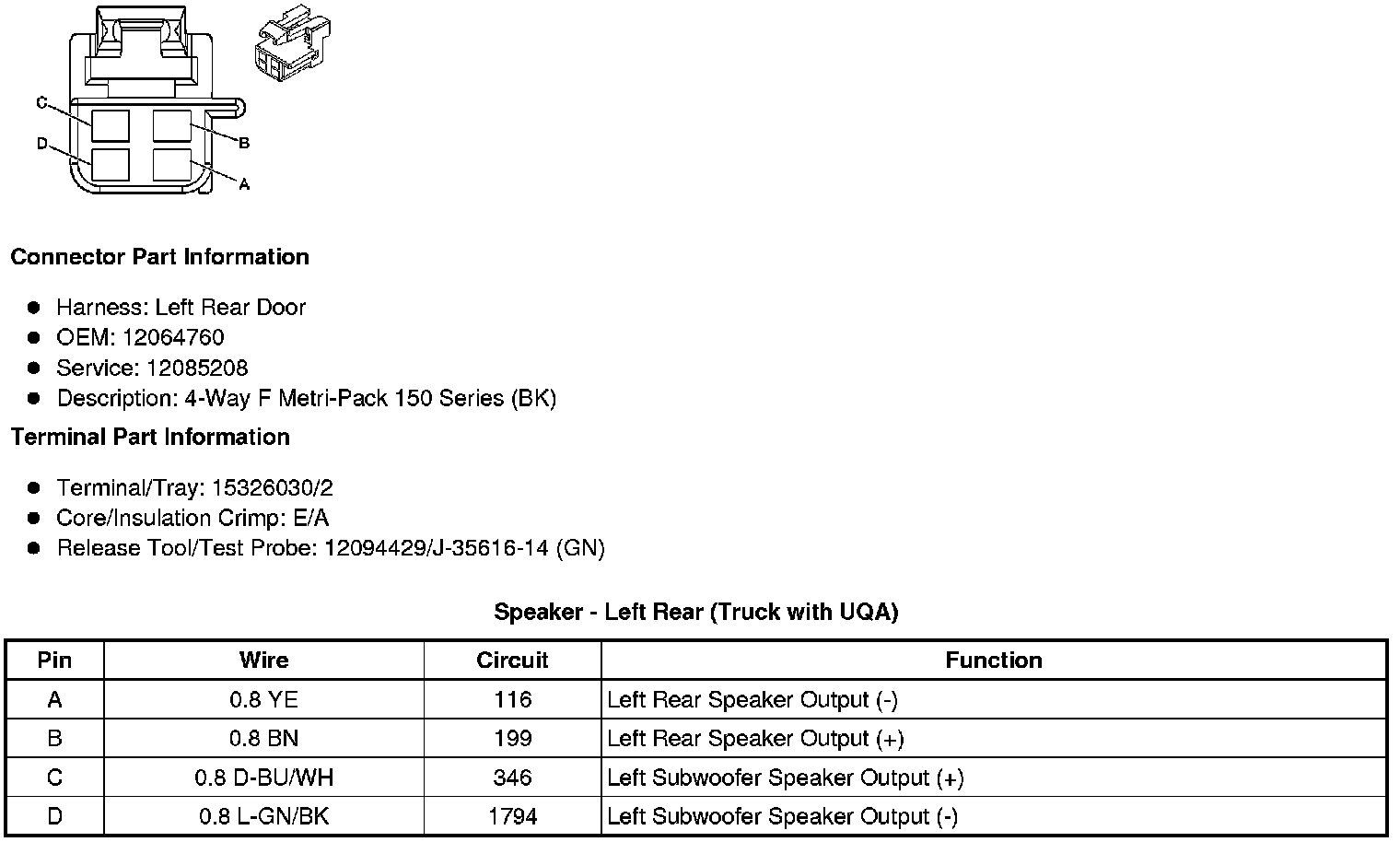

Speaker - Left Rear (Truck with UQA)

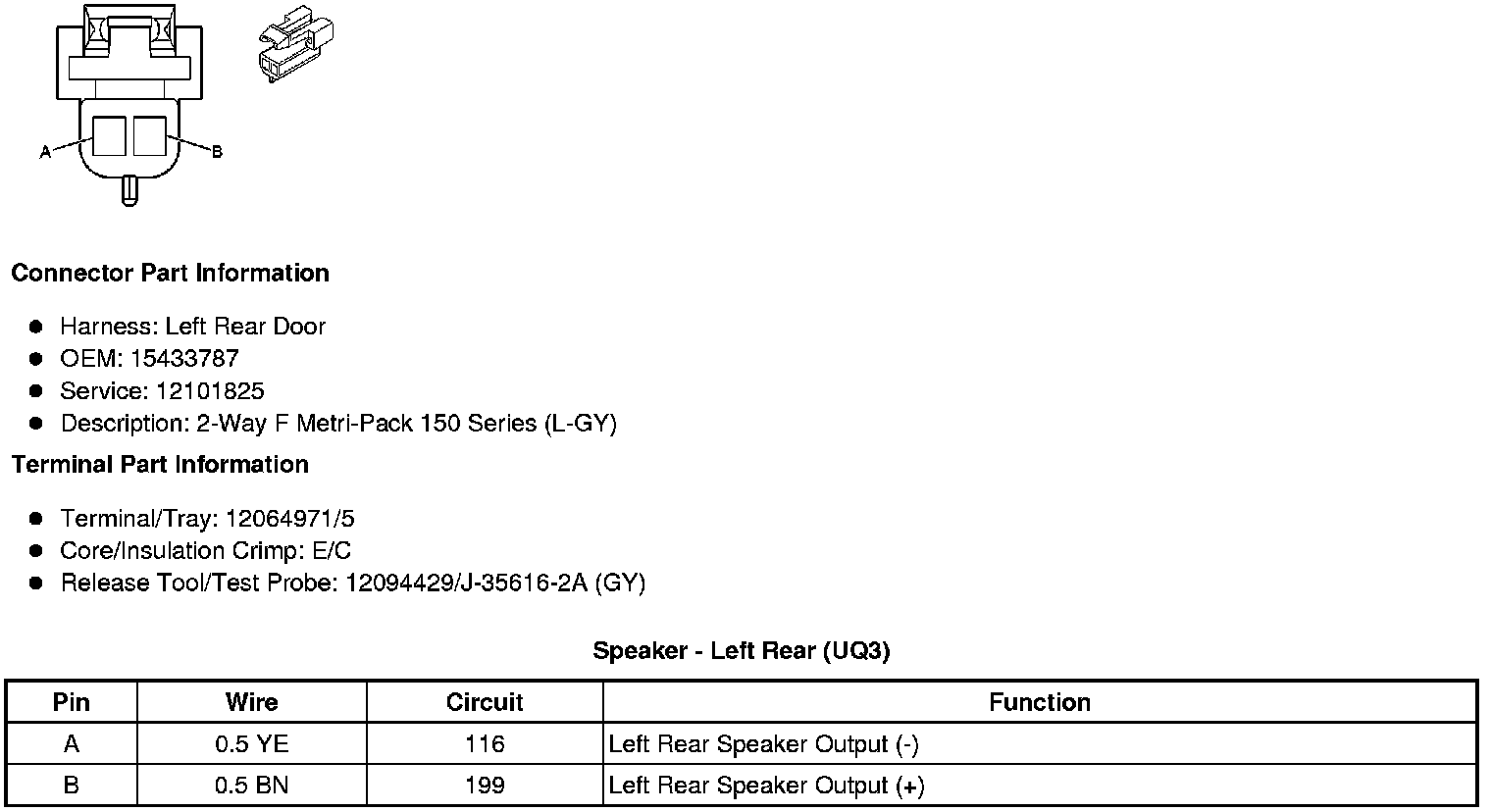

Speaker - Left Rear (UQ3)

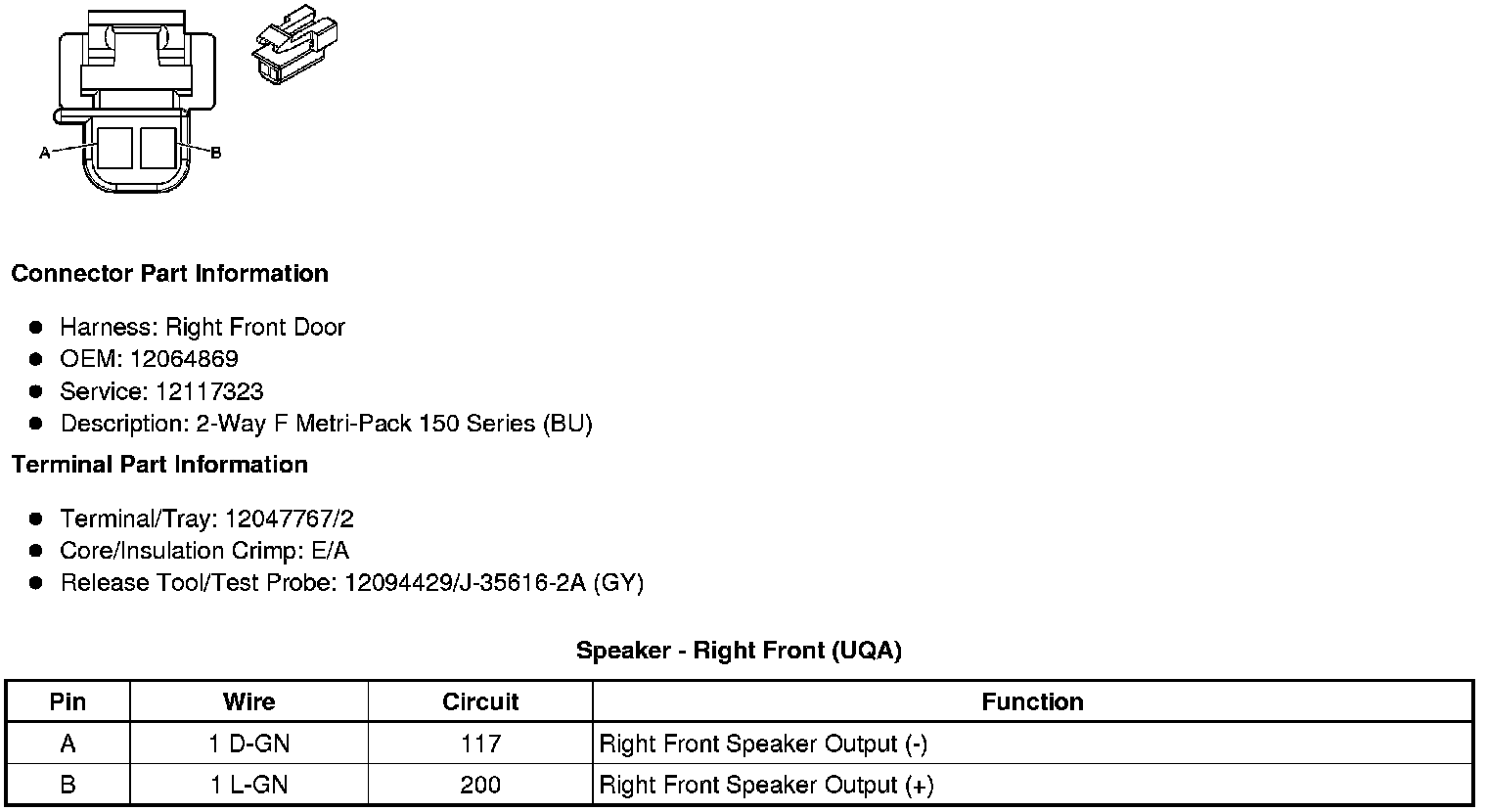

Speaker - Right Front (UQA)

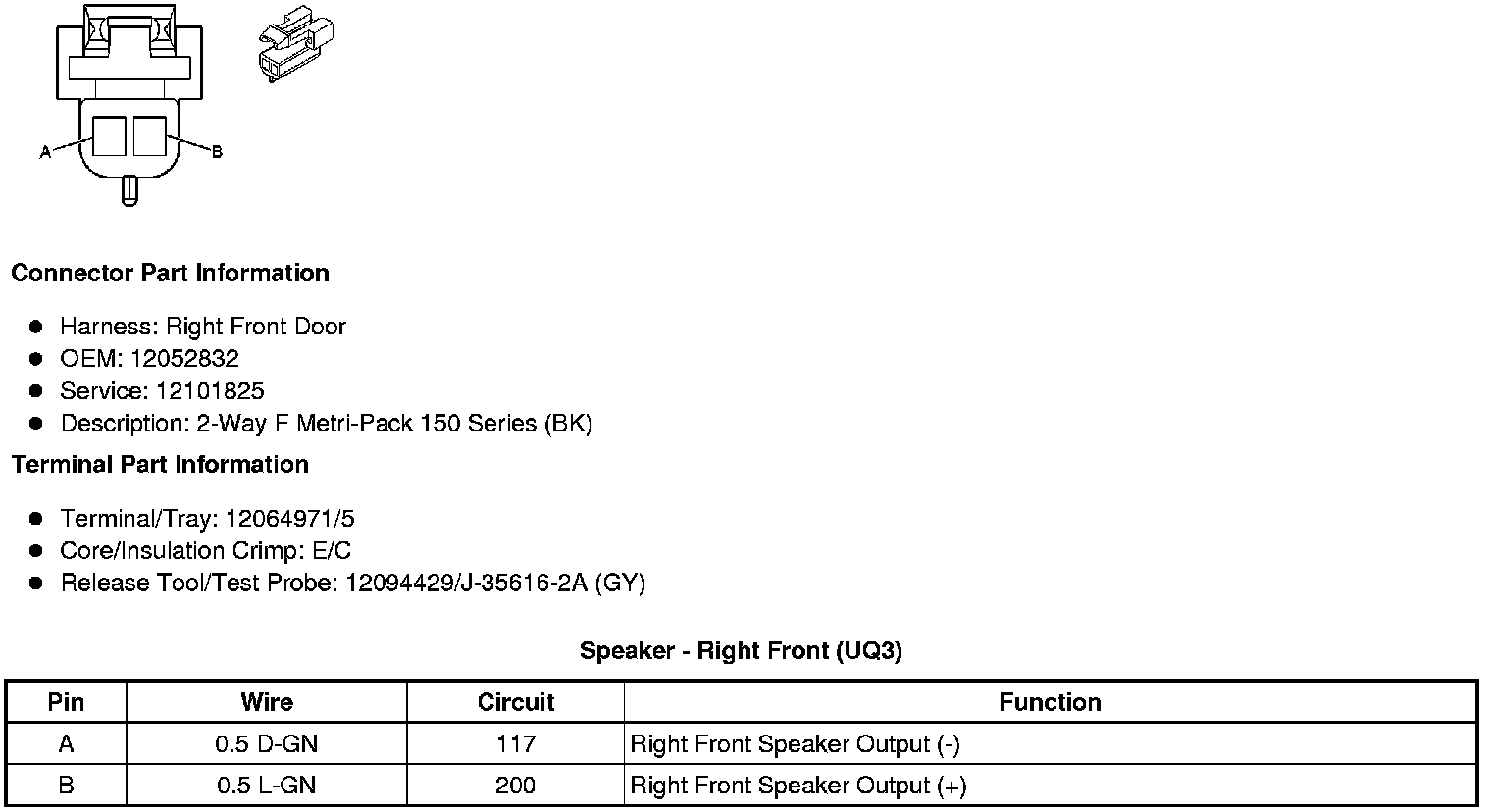

Speaker - Right Front (UQ3)

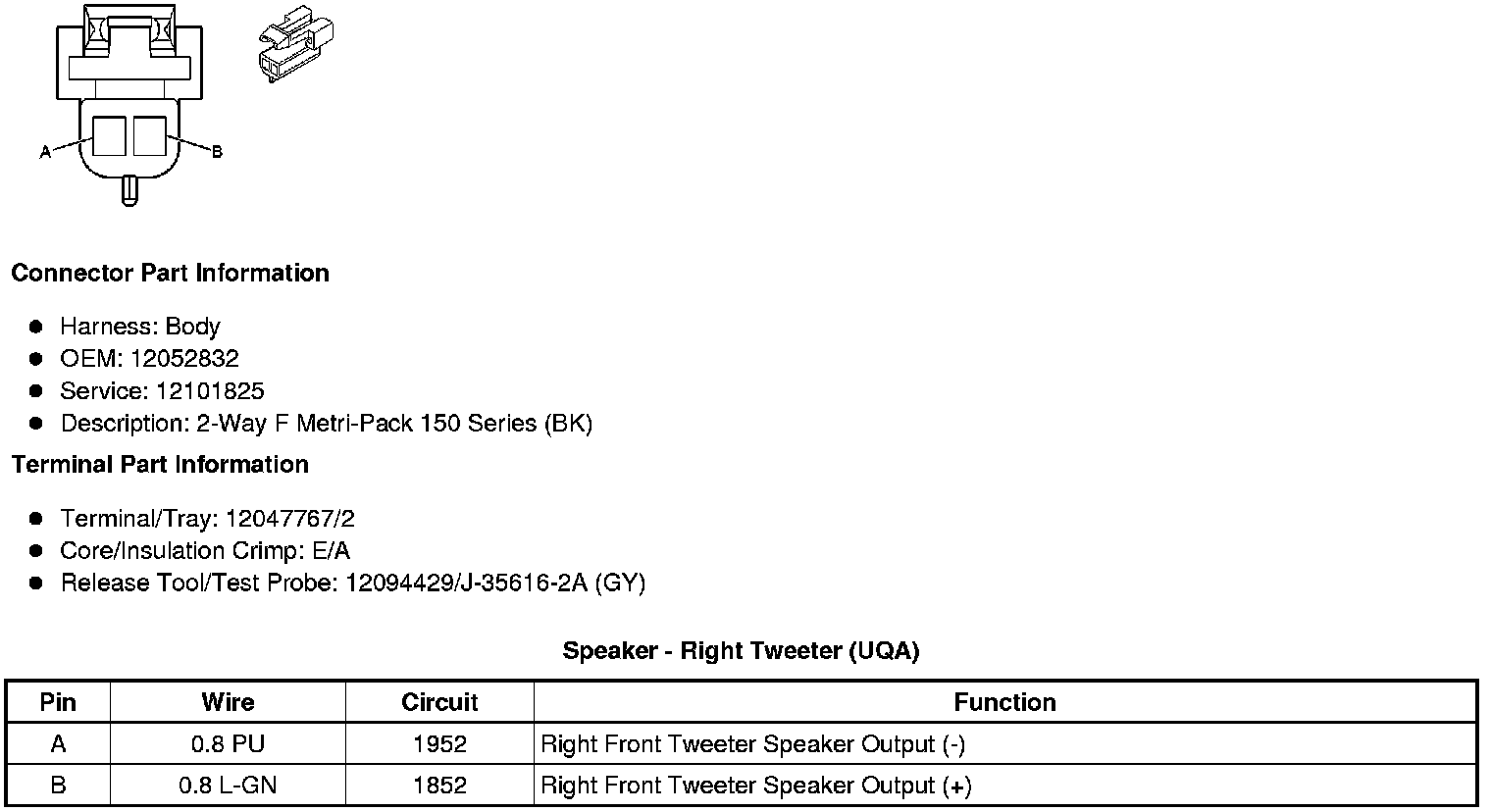

Speaker - Right Tweeter (UQA)

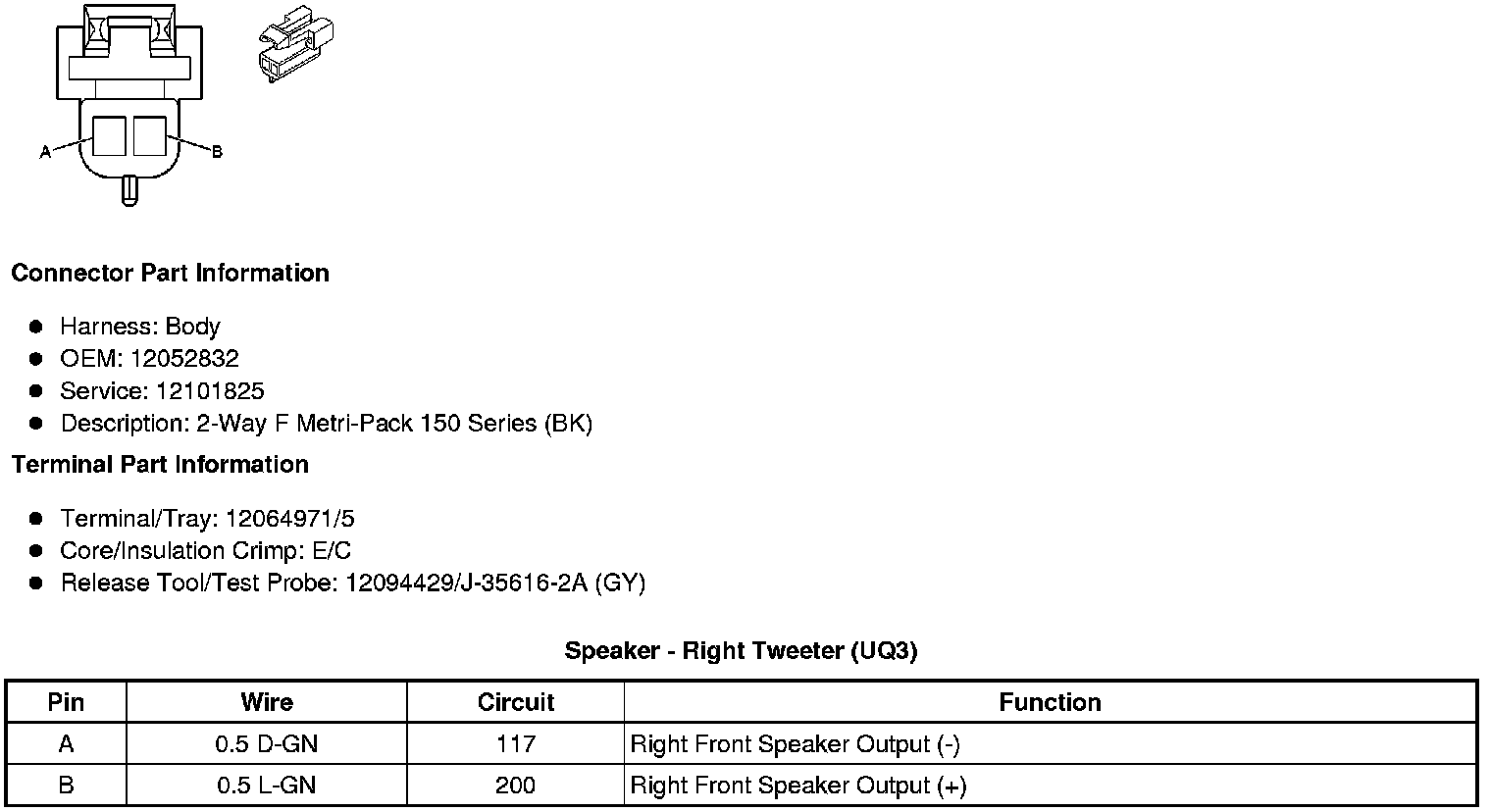

Speaker - Right Tweeter (UQ3)

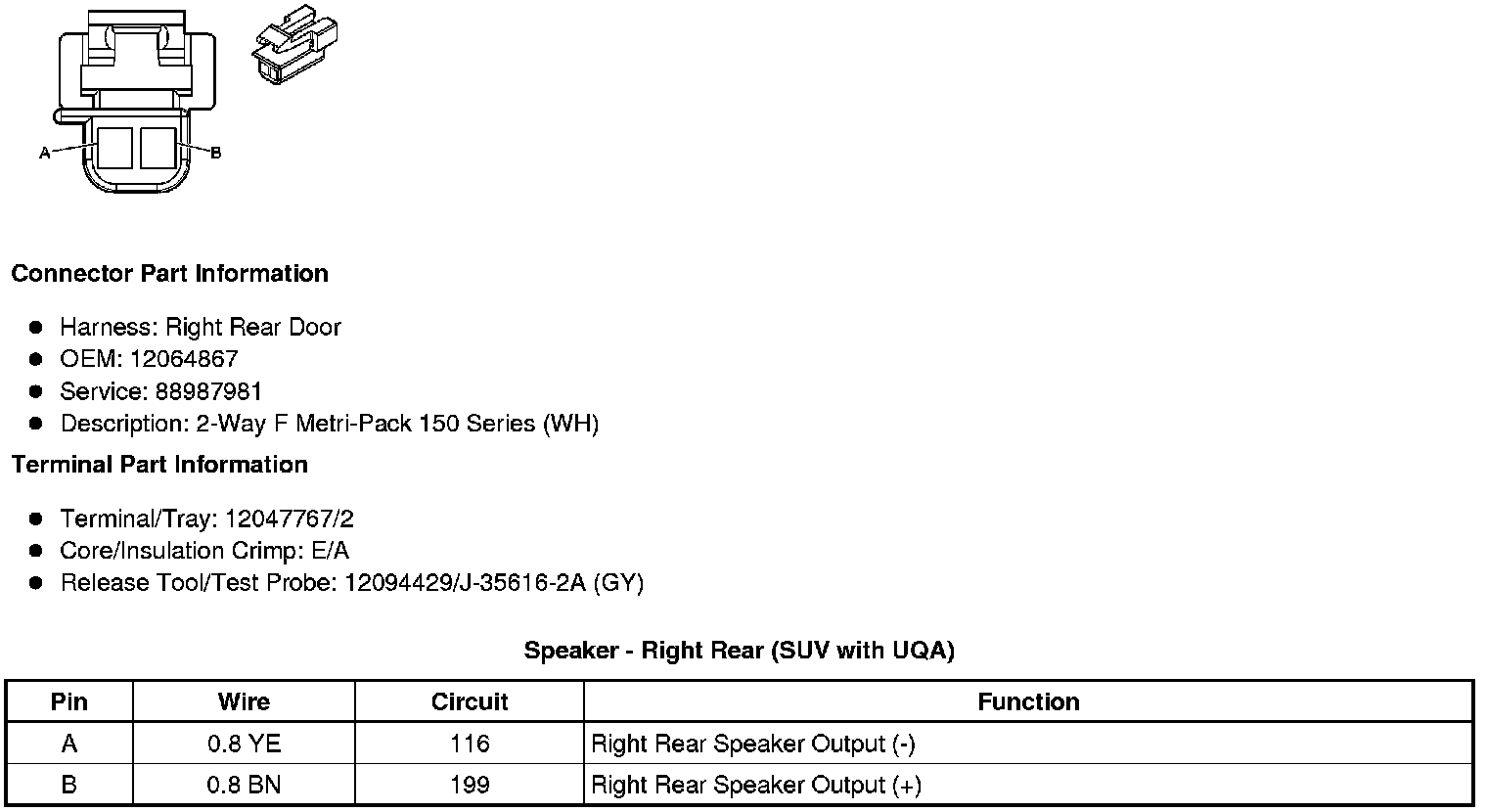

Speaker - Right Rear (SUV with UQA)

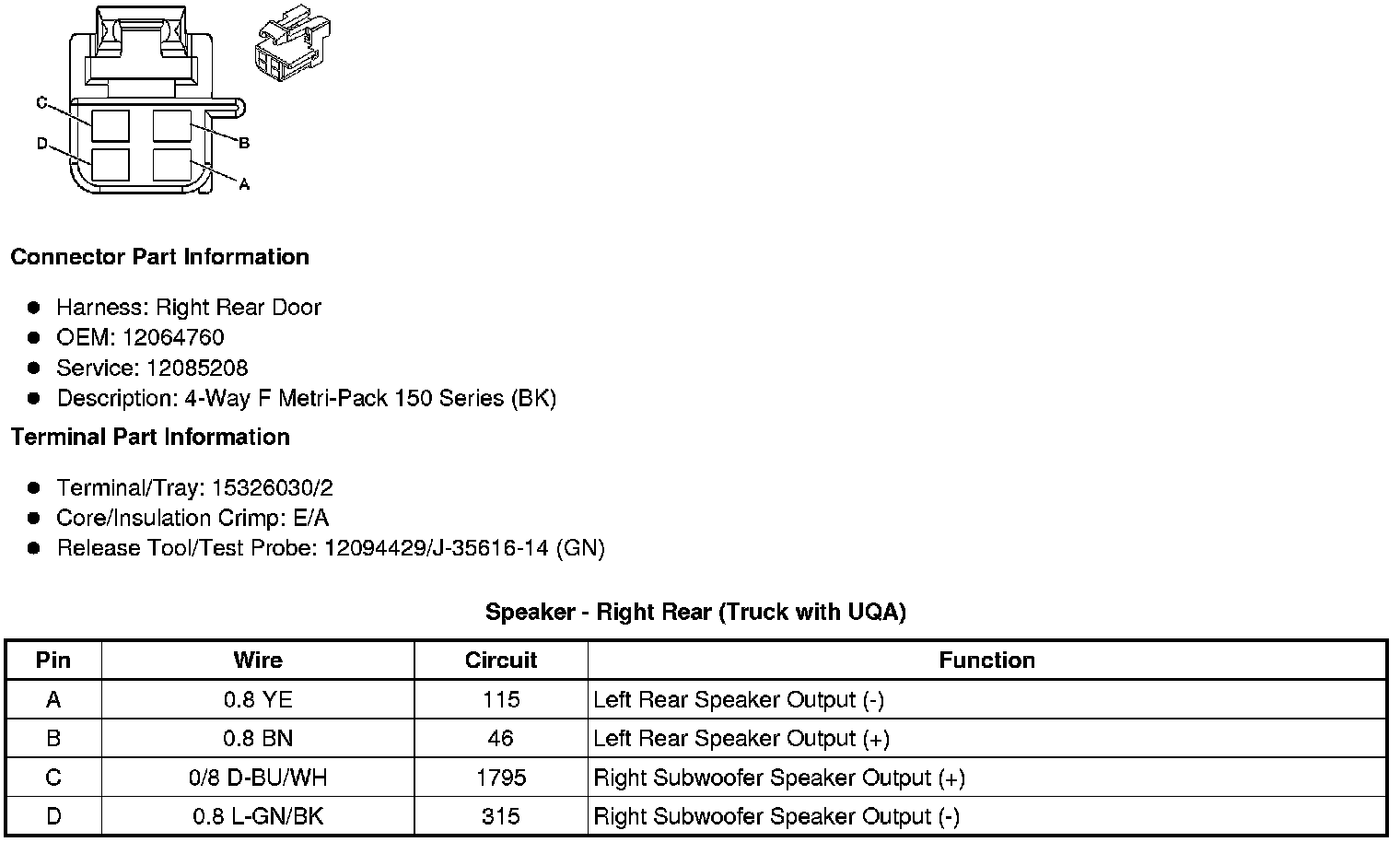

Speaker - Right Rear (Truck with UQA)

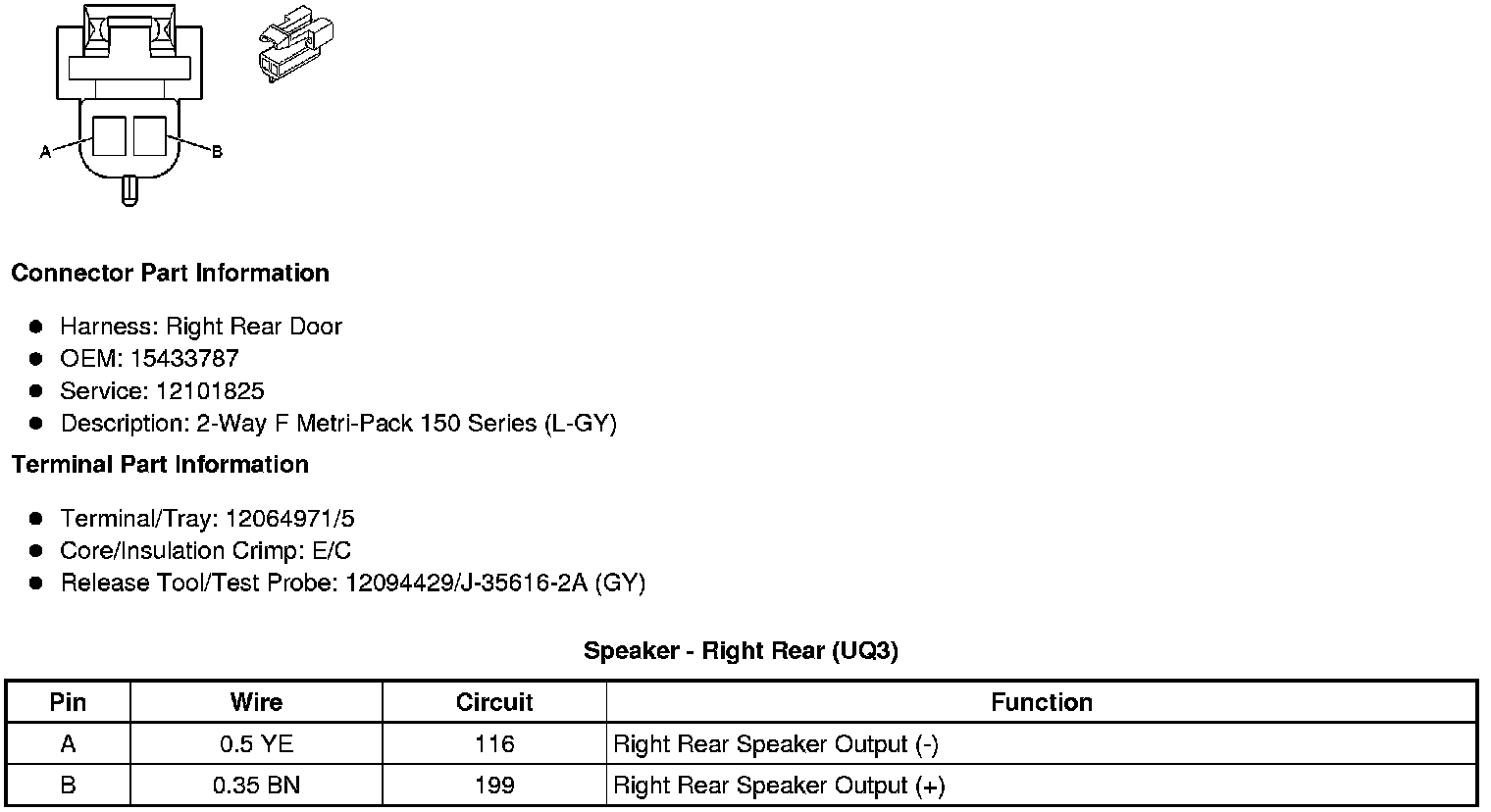

Speaker - Right Rear (UQ3)

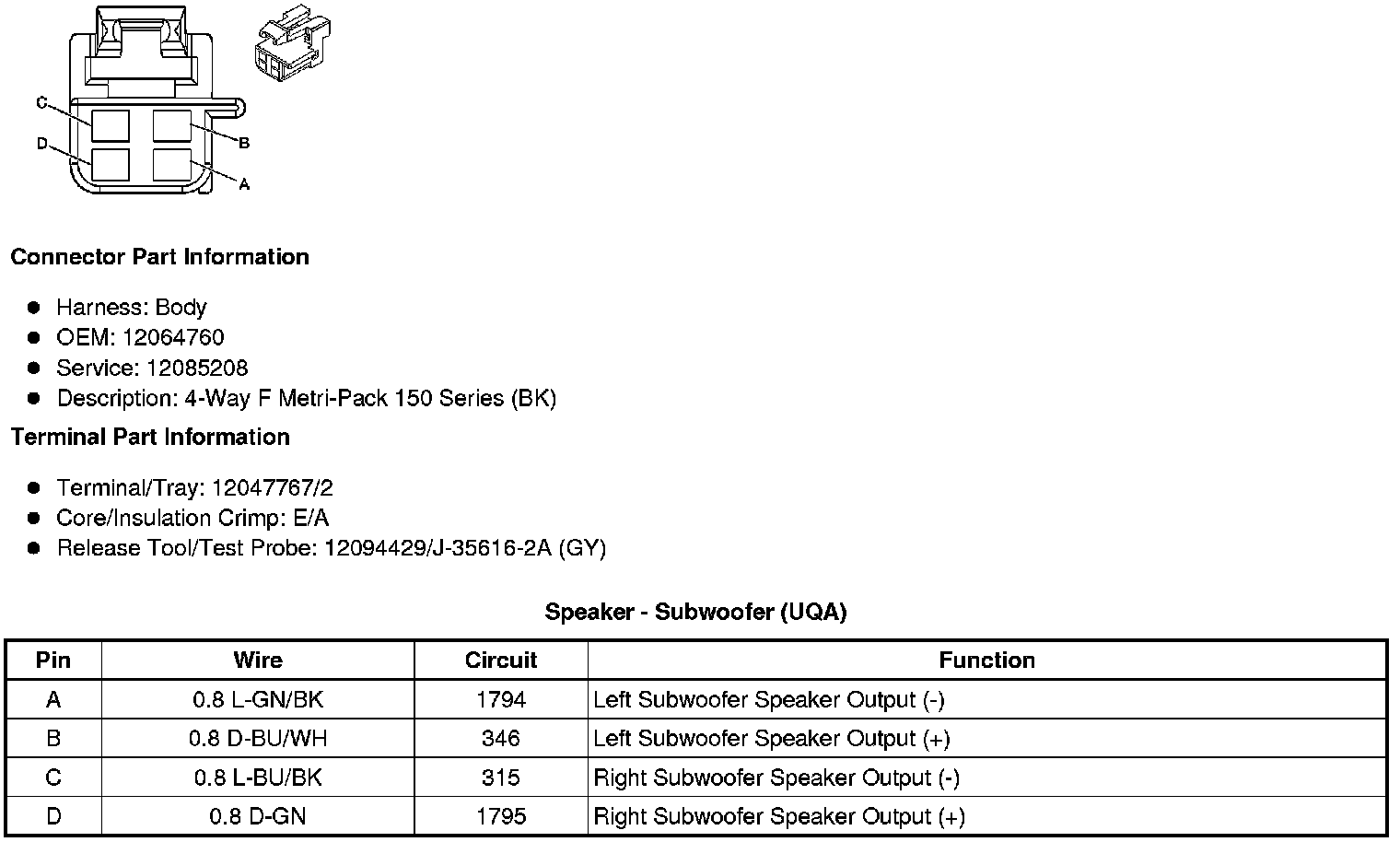

Speaker - Subwoofer (SUV with UQA)
