Power Door Lock Actuator




Component Connector End Views

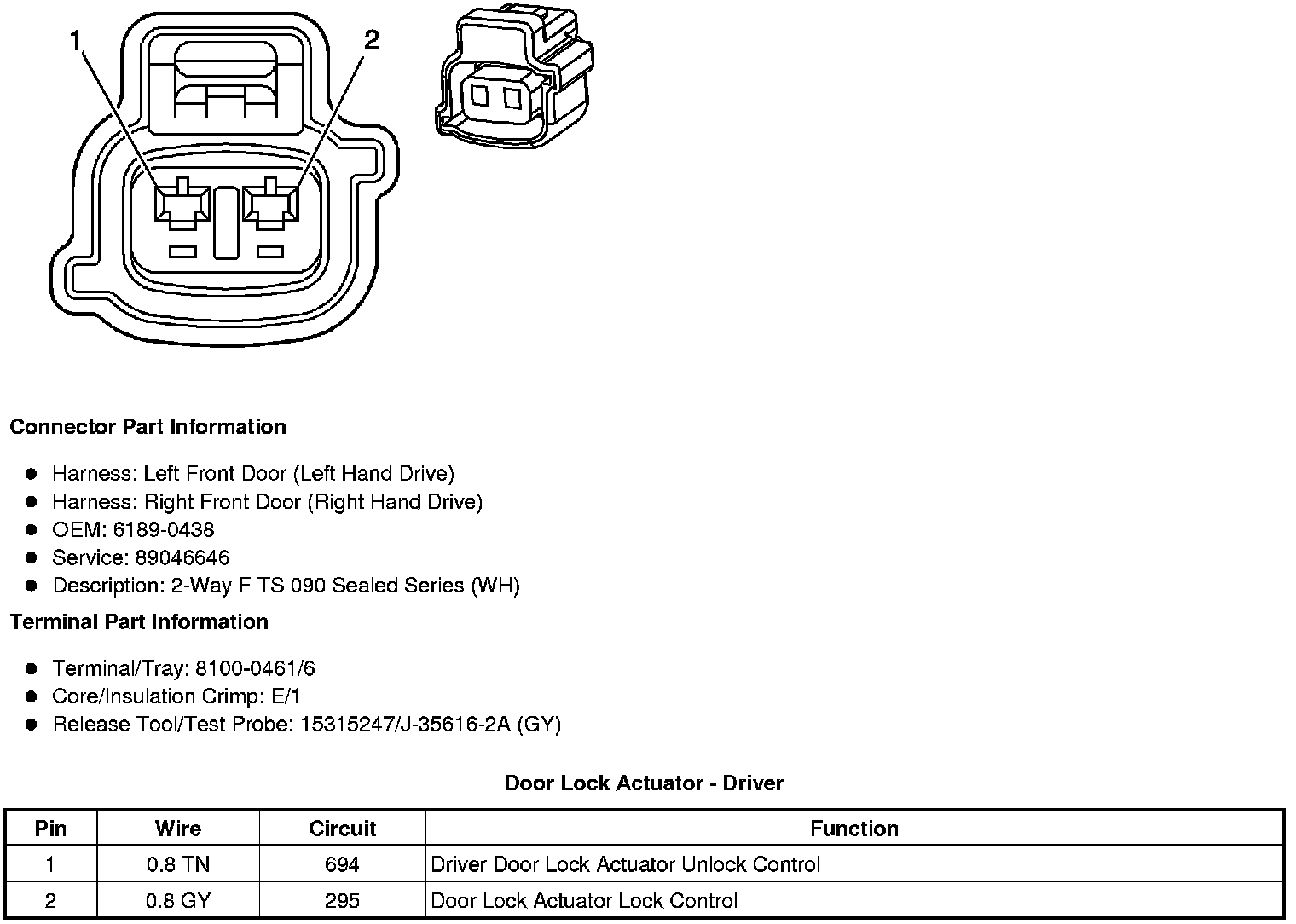

Door Lock Actuator - Driver

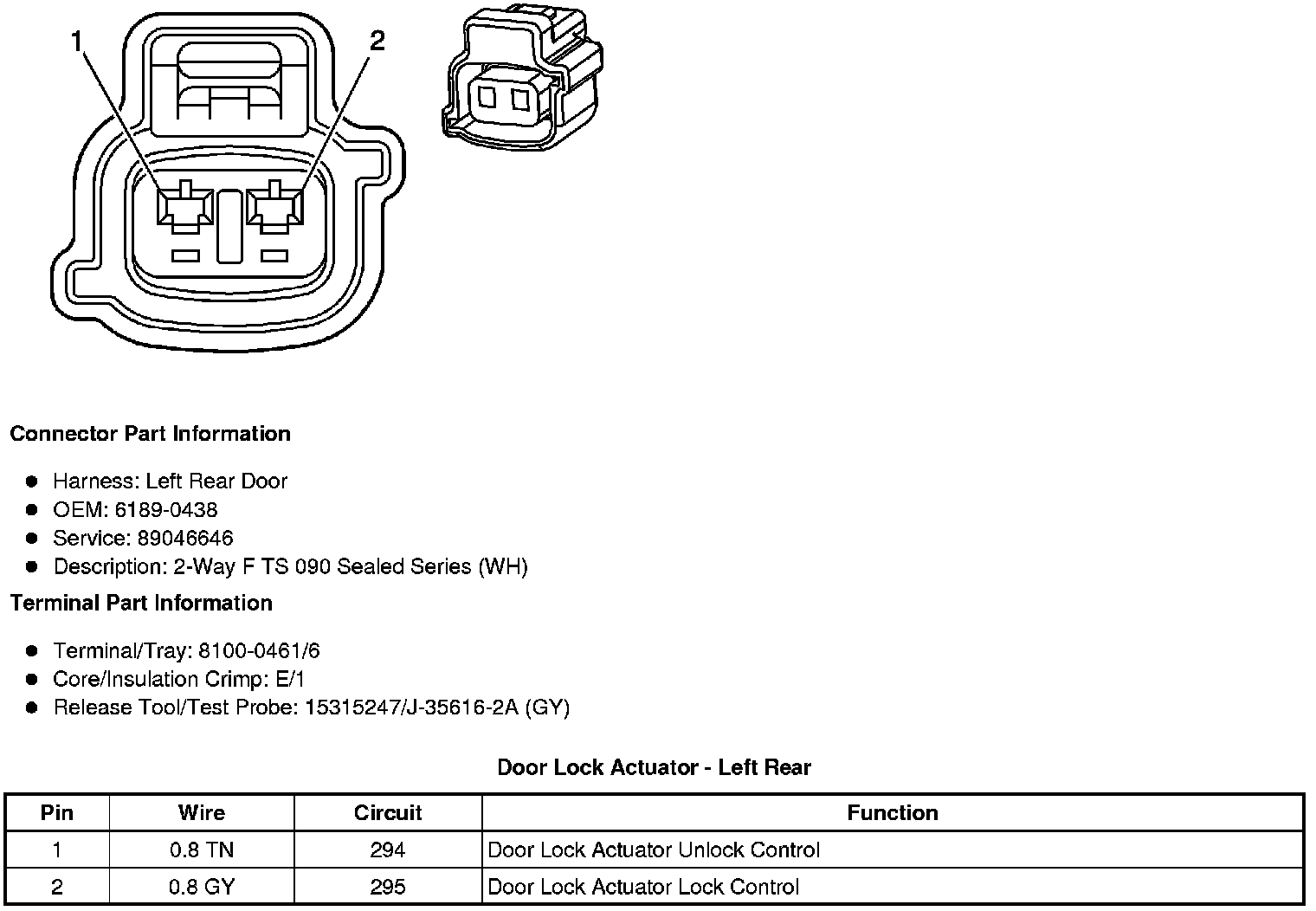

Door Lock Actuator - Left Rear

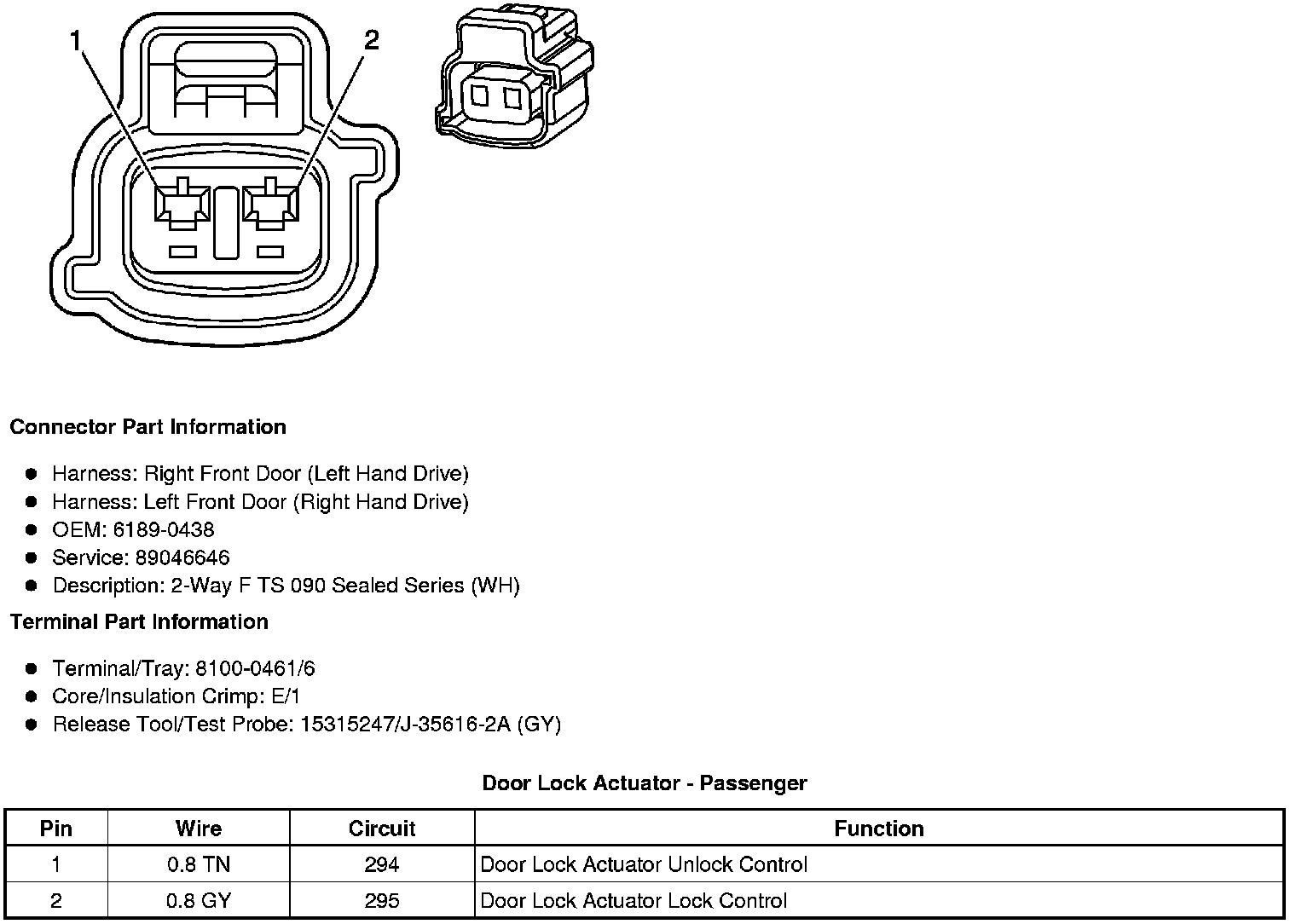

Door Lock Actuator - Passenger

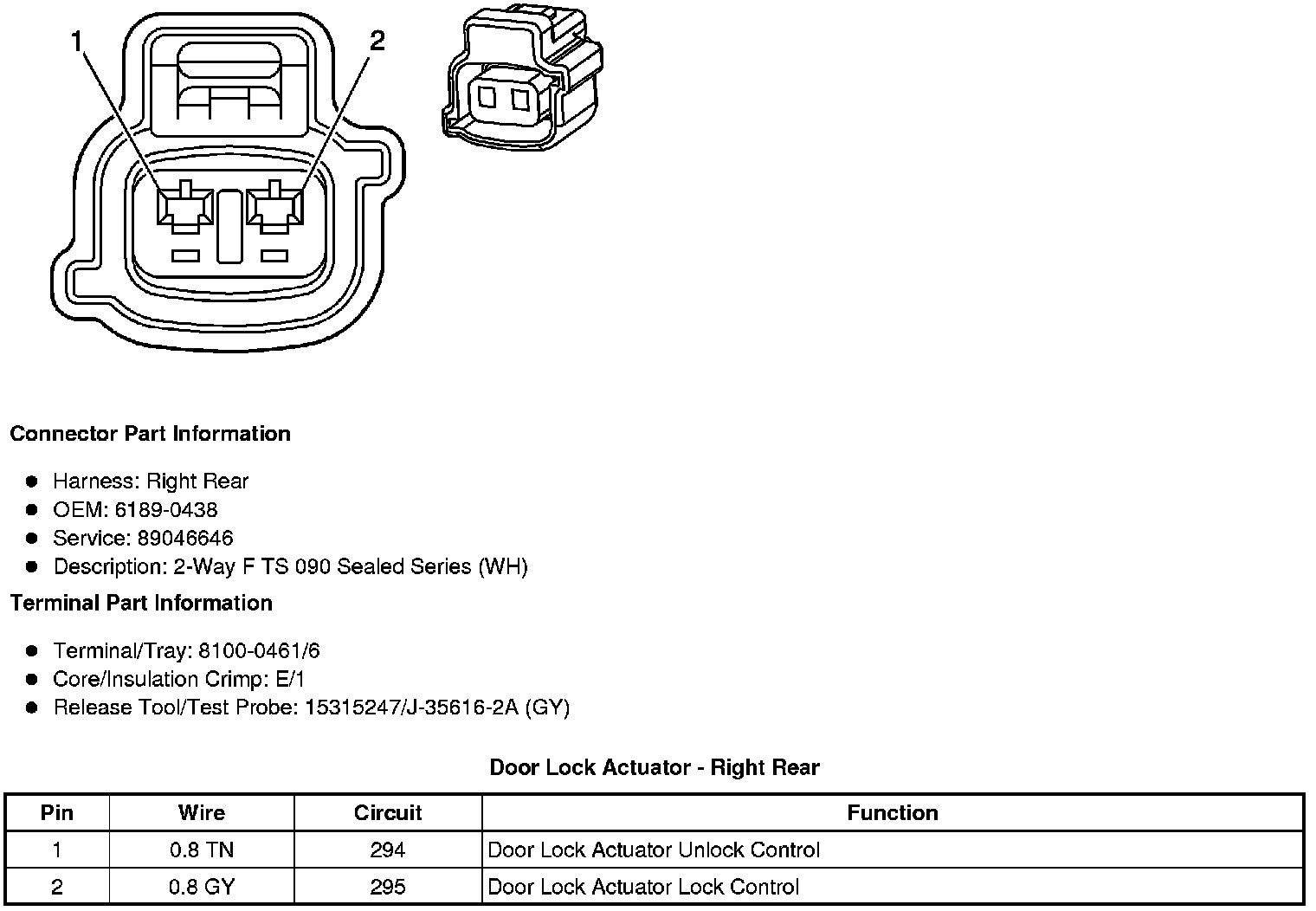

Door Lock Actuator - Right Rear
