Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram




Component Connector End Views

Outside Rearview Mirror - Driver

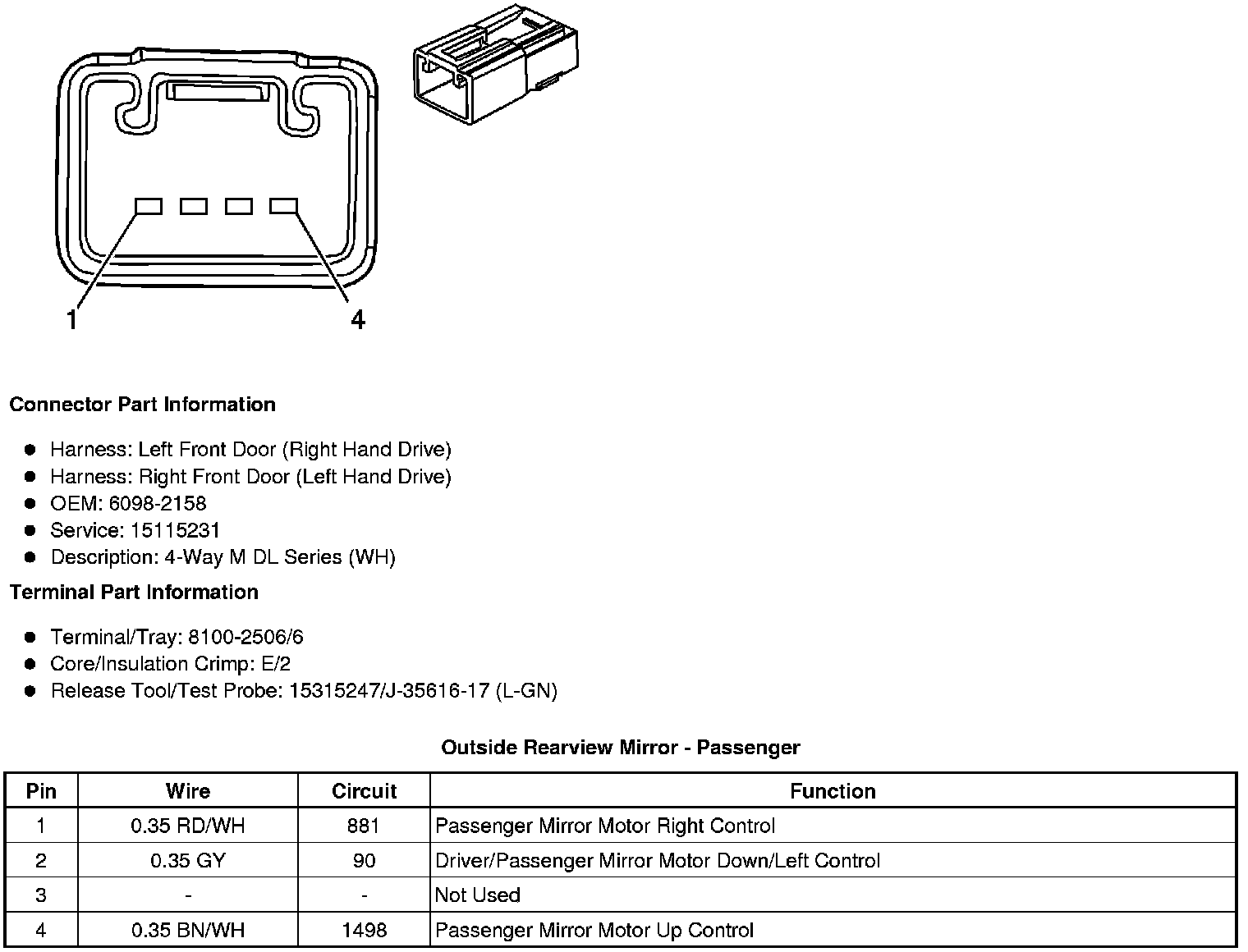

Outside Rearview Mirror - Passenger





Inside Rearview Mirror (ISRVM)
