Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram

System Diagram

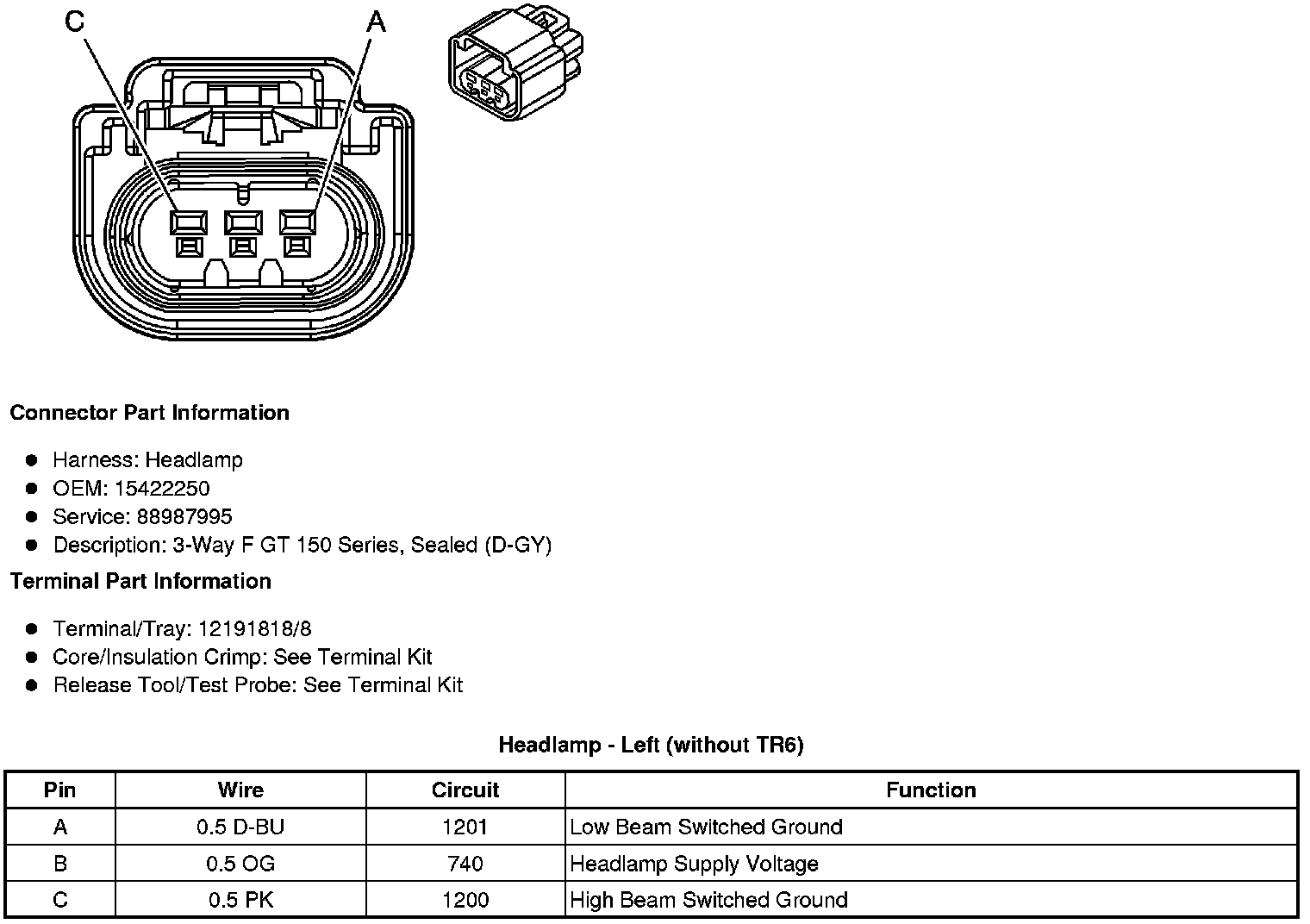

Headlamp - Left (without TR6)

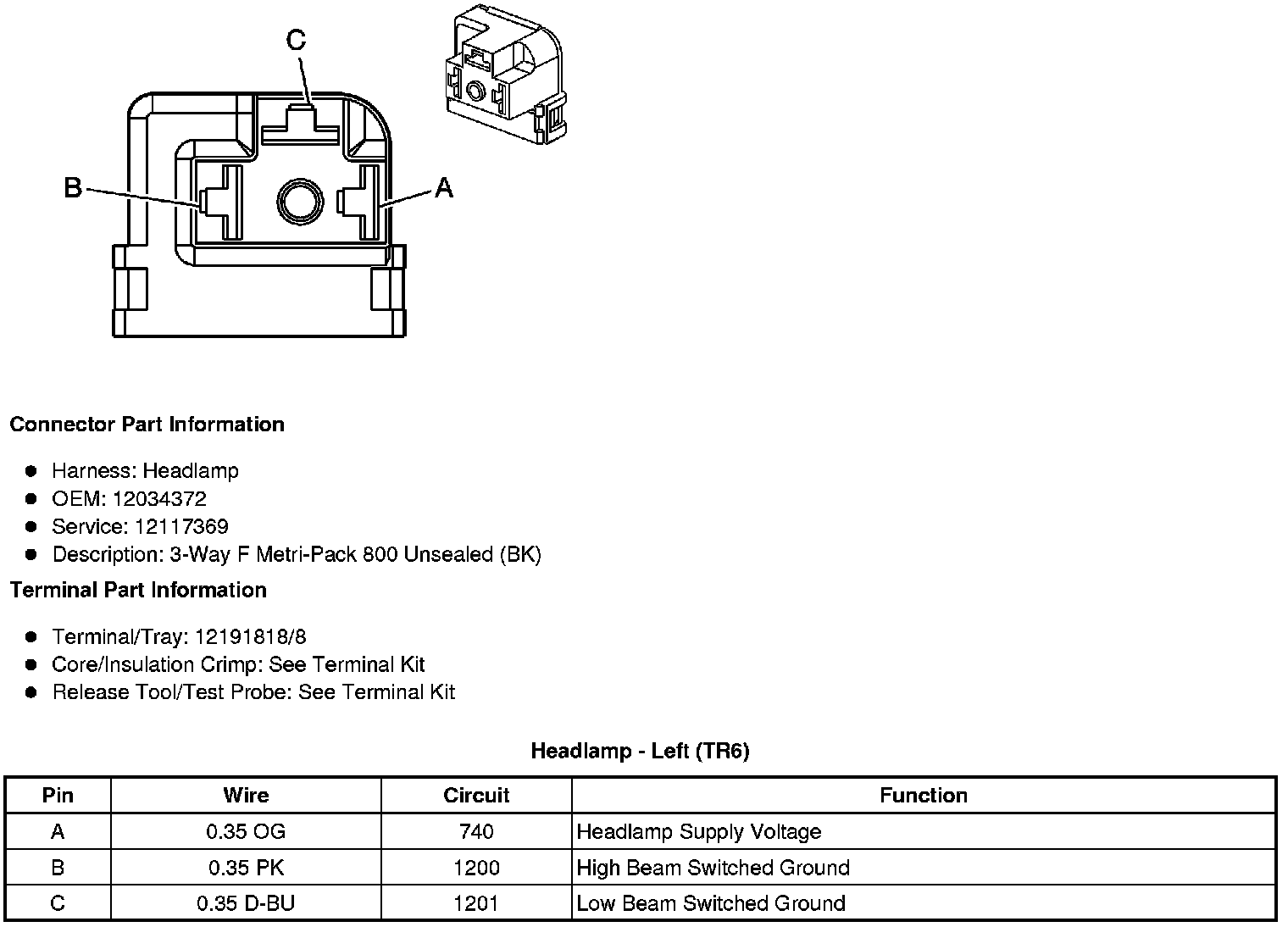

Headlamp - Left (TR6)





Headlamp - Right (without TR6)





Headlamp - Right (TR6)
