Fuel Injector
Component Connector End Views
Fuel Injector 1 (LH9)
Fuel Injector 1 (LLR)

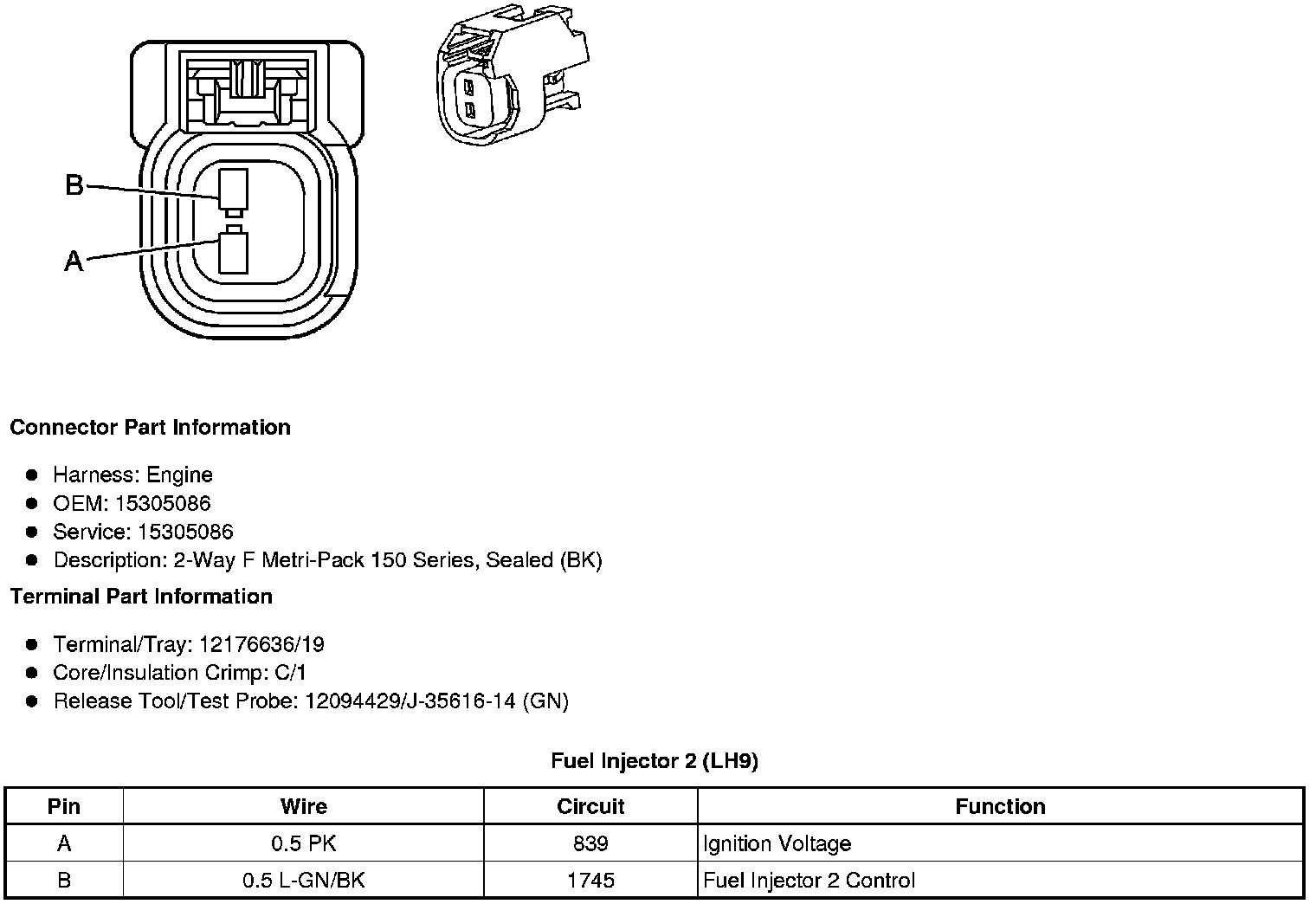

Fuel Injector 2 (LH9)

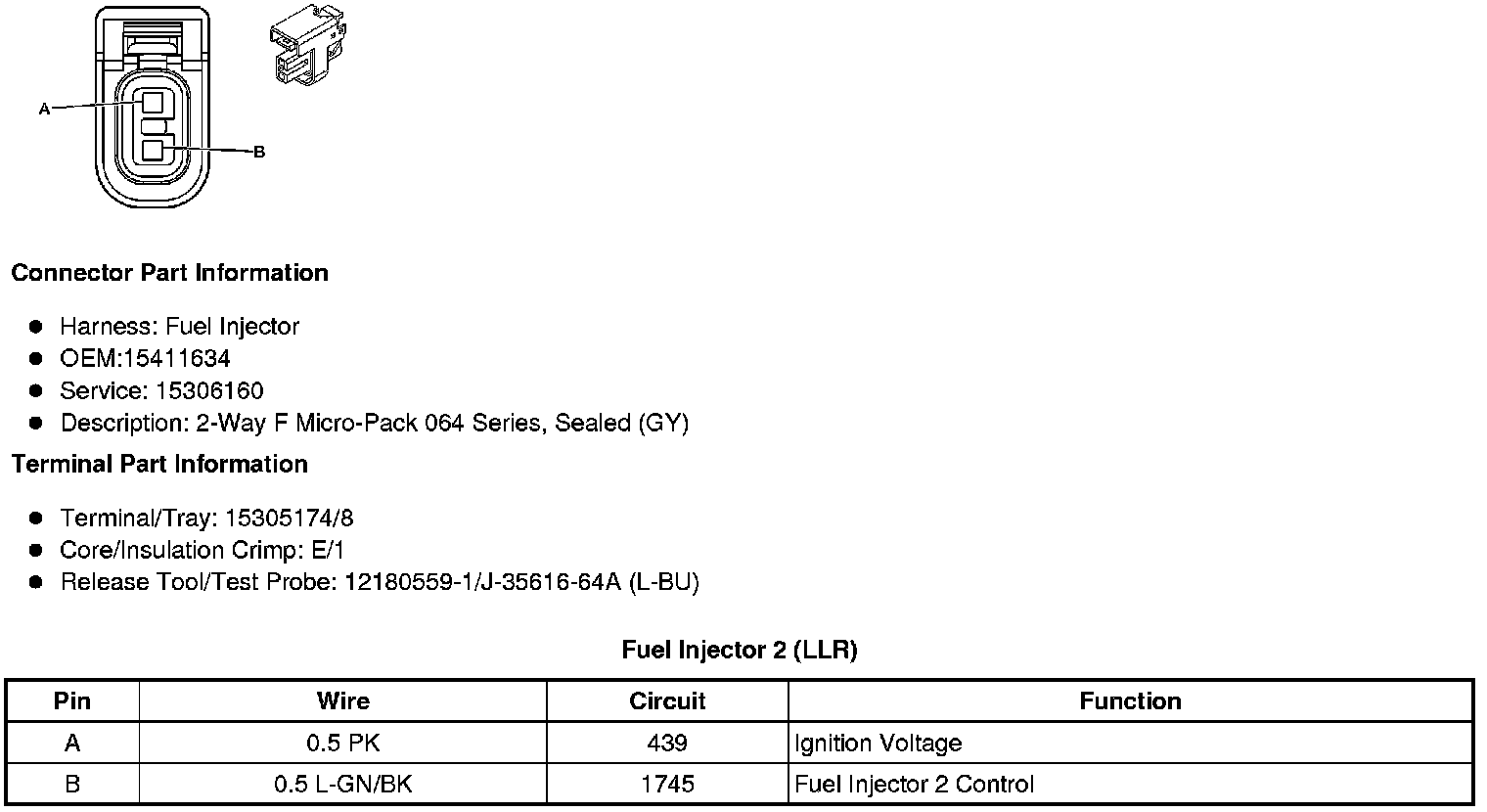

Fuel Injector 2 (LLR)
Fuel Injector 3 (LH9)

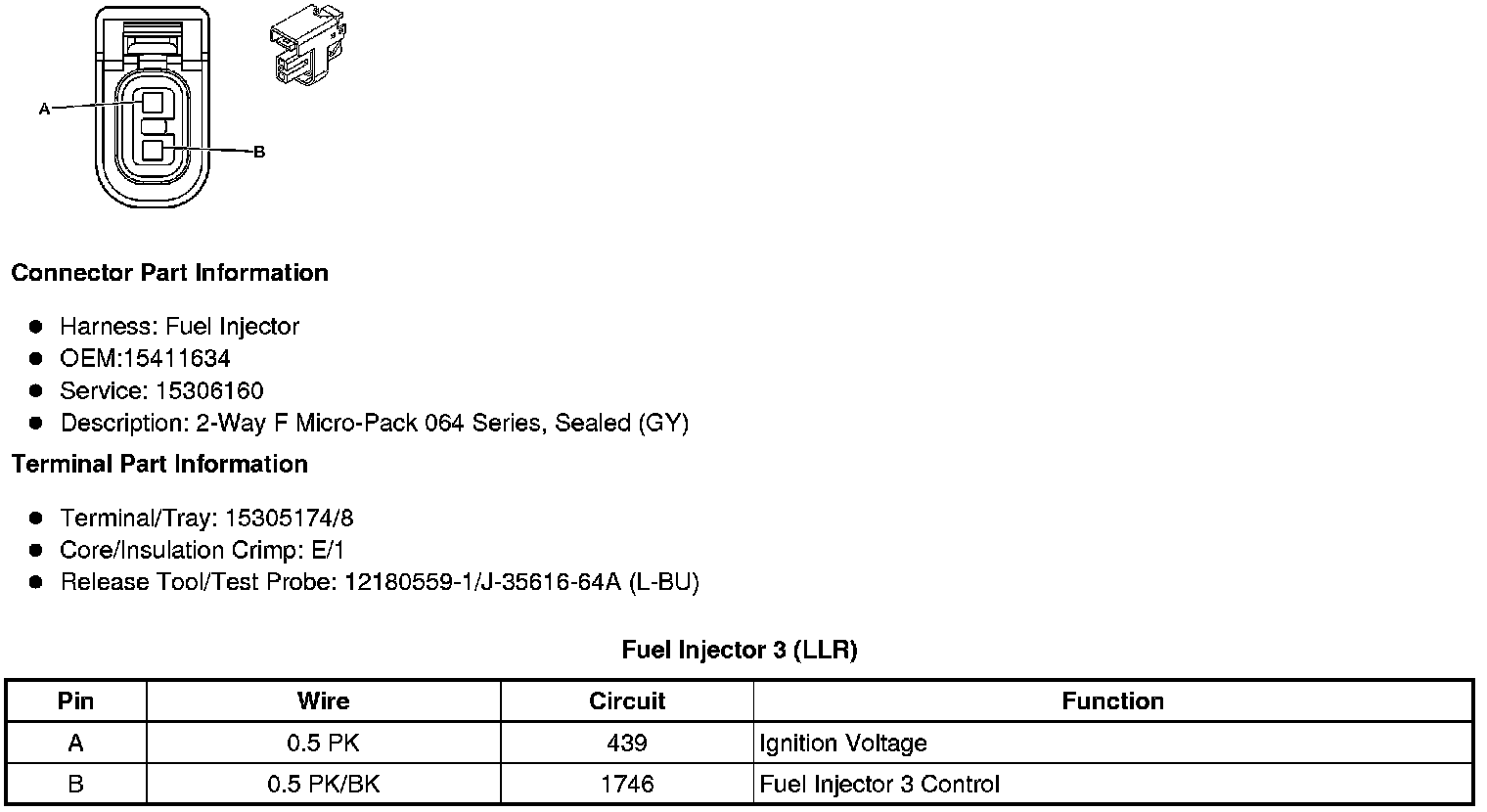

Fuel Injector 3 (LLR)
Fuel Injector 4 (LH9)
Fuel Injector 4 (LH9)
Fuel Injector 5 (LH9)

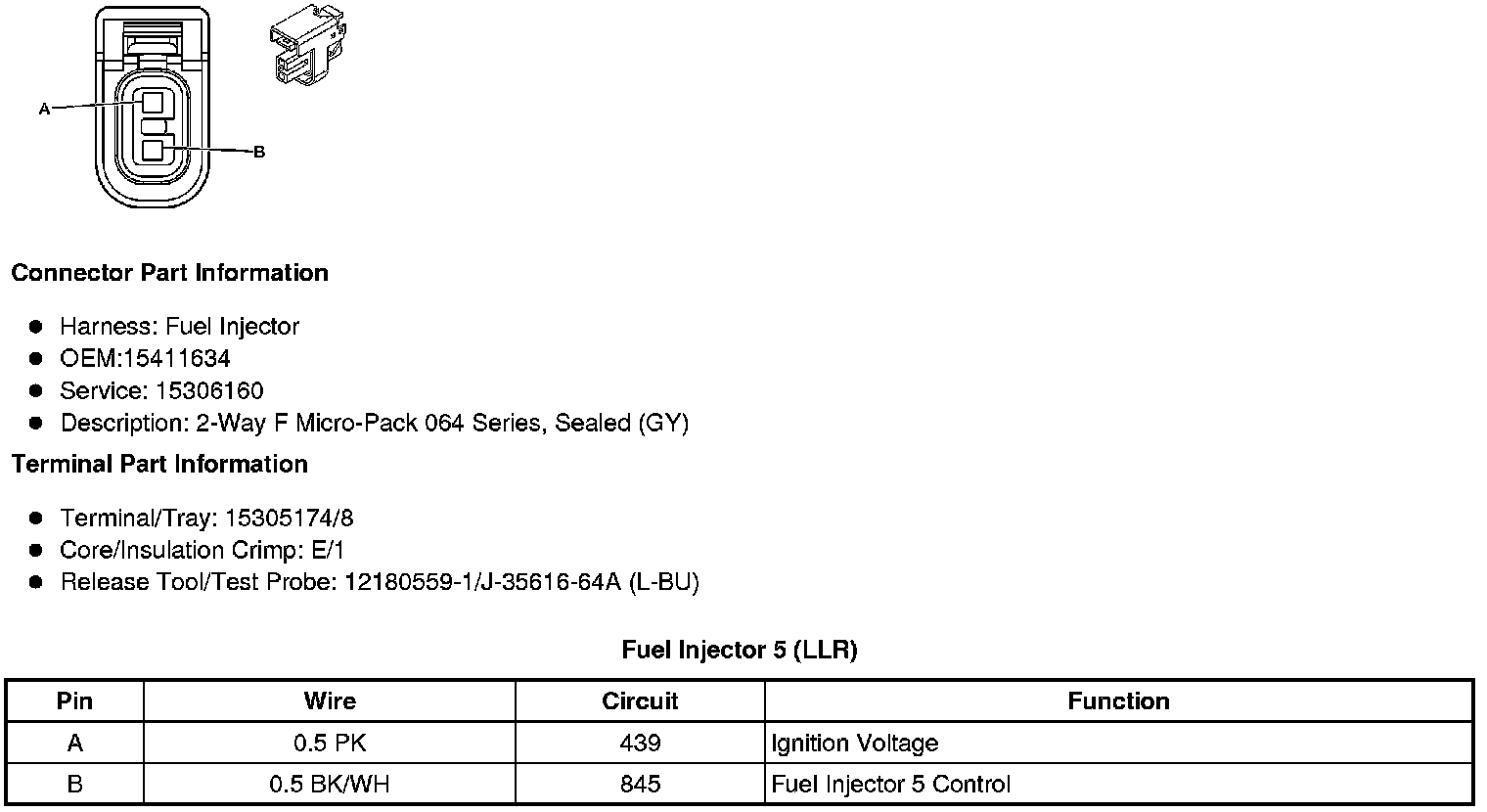

Fuel Injector 5 (LLR)
Fuel Injector 6 (LH9)

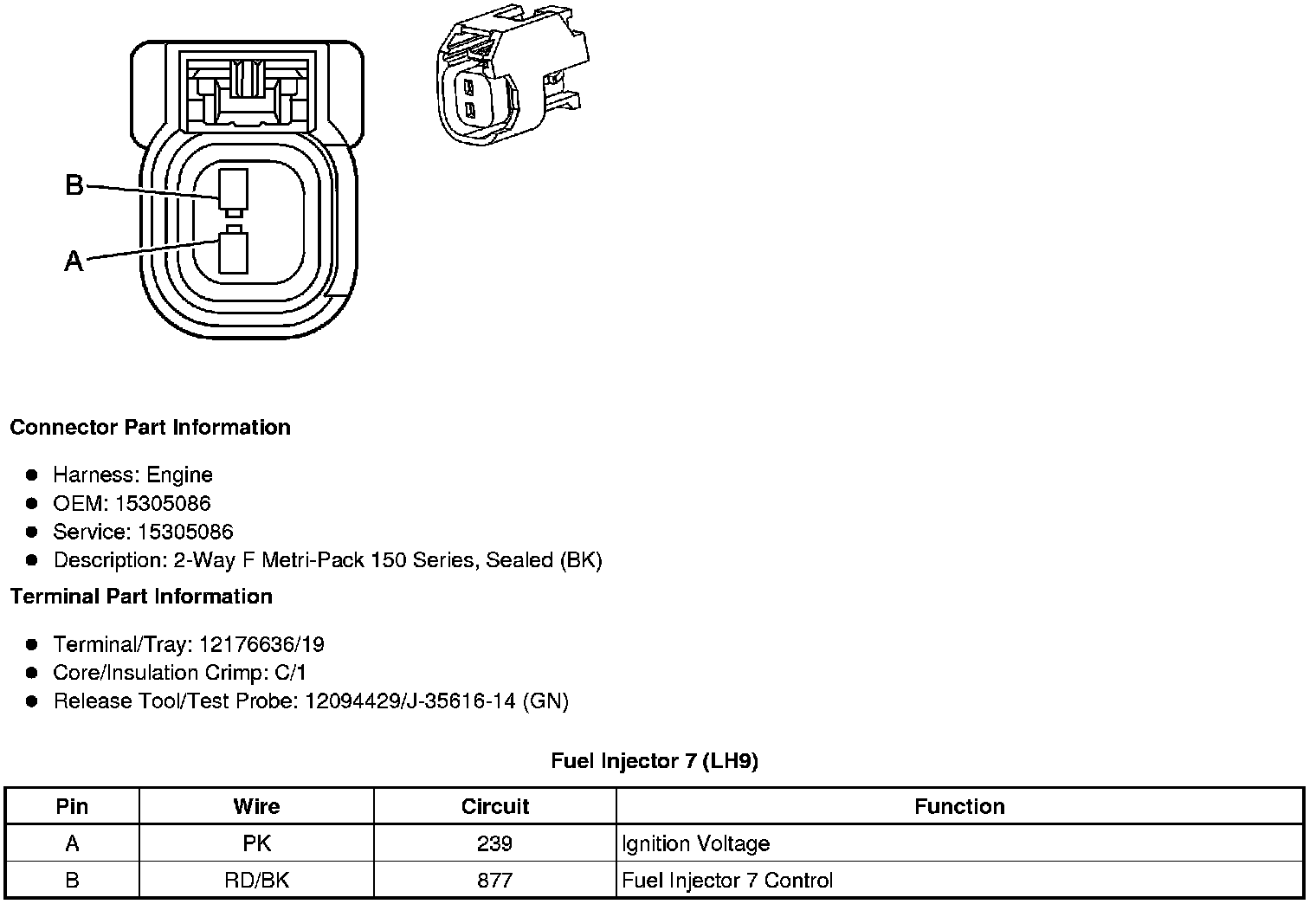

Fuel Injector 7 (LH9)
Fuel Injector 8 (LH9)
