System Diagram




Component Connector End Views

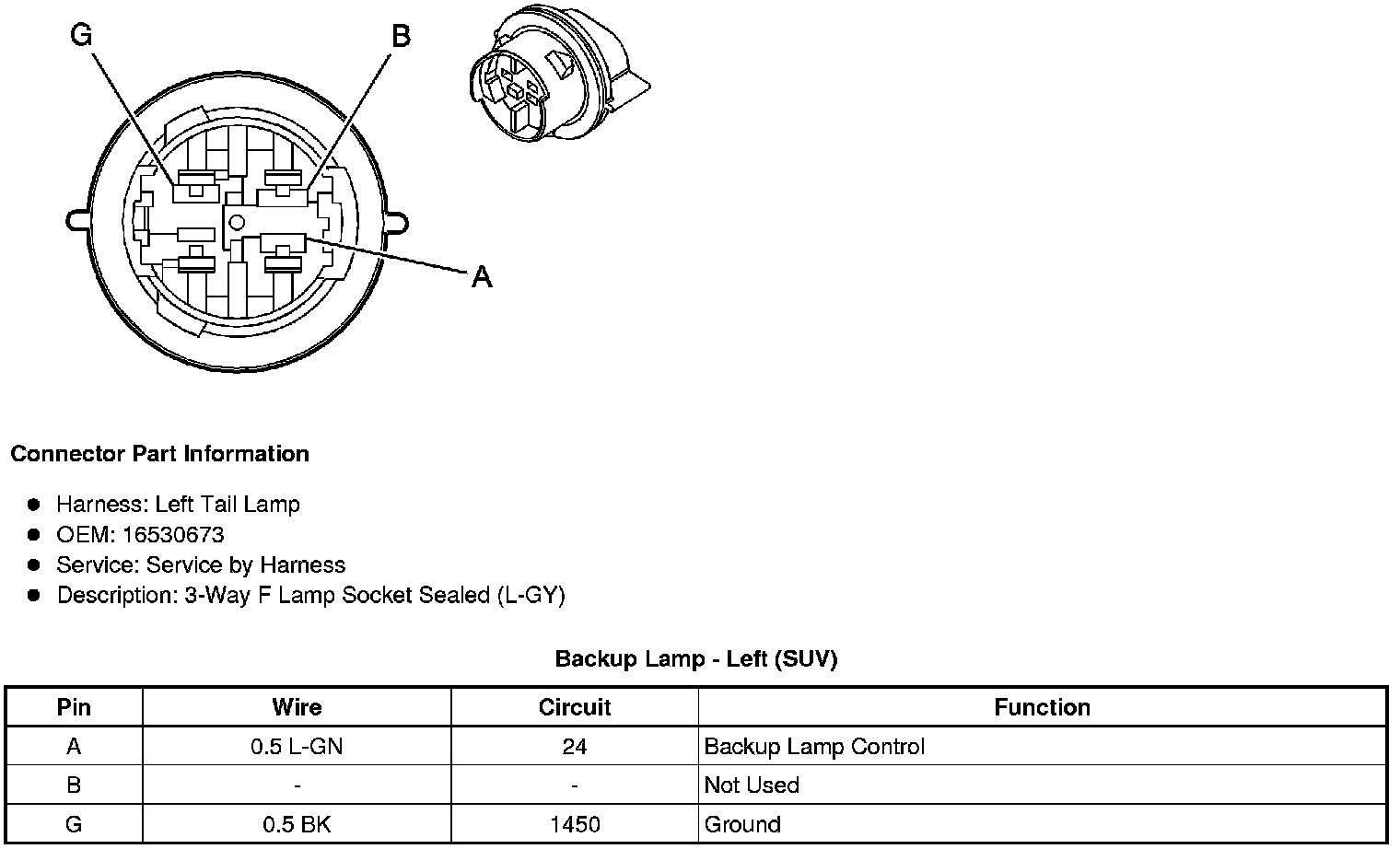

Backup Lamp - Left (SUV)





Backup Lamp - Left (Truck)





Backup Lamp - Right (SUV)





Backup Lamp - Right (Truck)
