Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

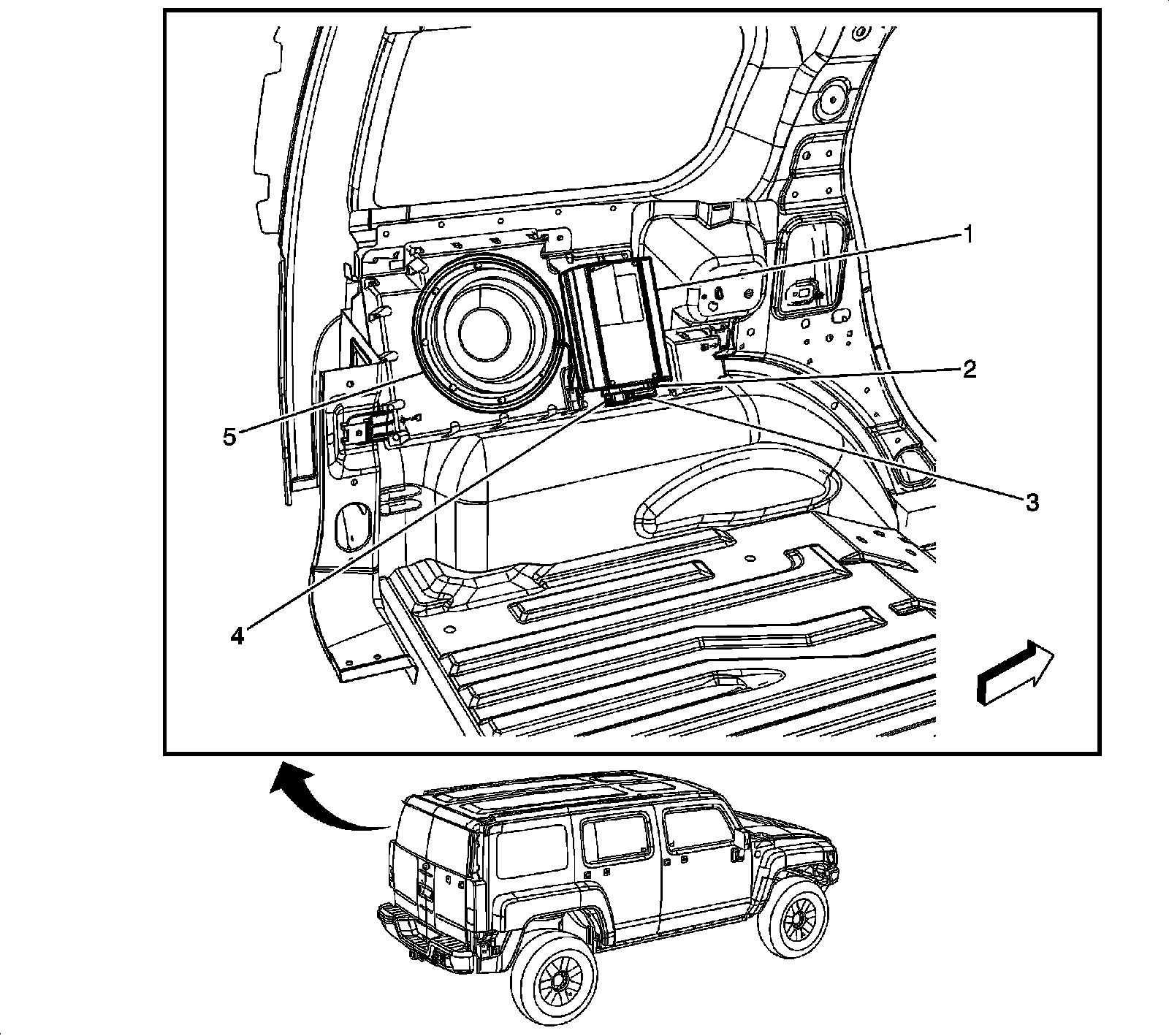

Left Side of the Luggage Compartment Components (SUV with UQA)




1 - Audio Amplifier
2 - Audio Amplifier - X1
3 - Audio Amplifier - X2
4 - Audio Amplifier - X3
5 - Speaker - Subwoofer

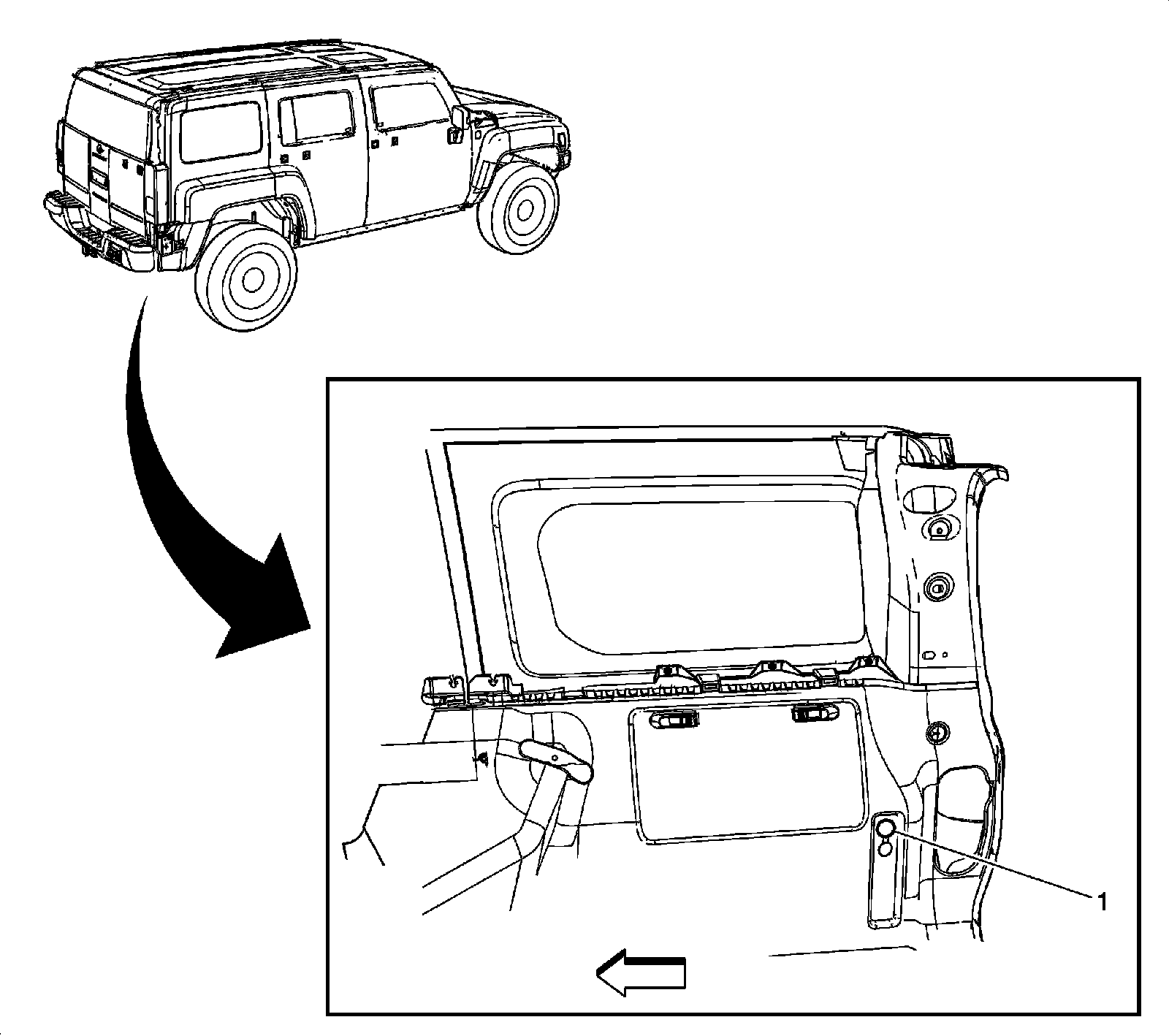

Right Side of the Luggage Compartment Components (SUV)




1 - Accessory Power Outlet - Rear

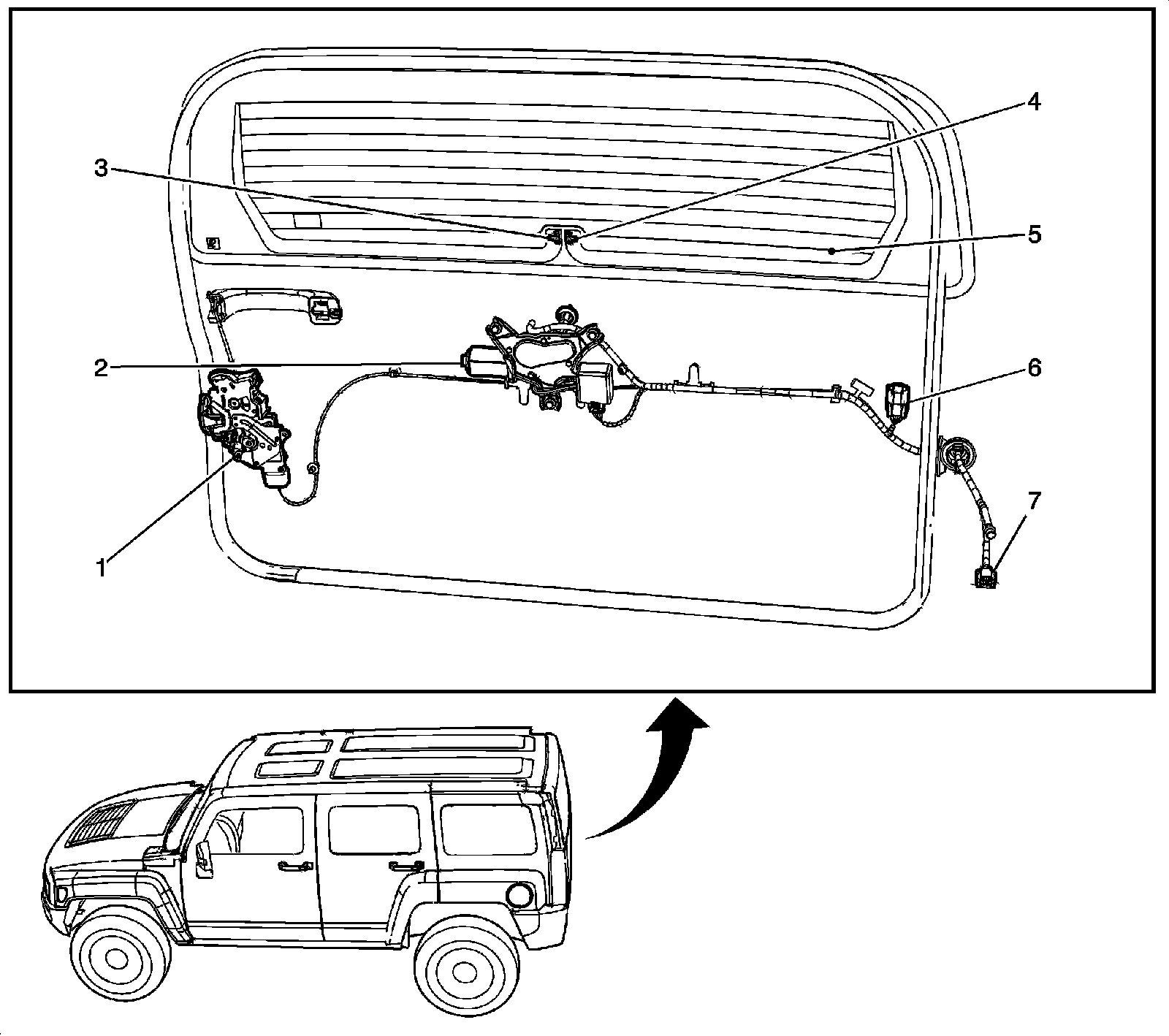

Endgate Components (SUV)




1 - Door Lock Actuator - Endgate
2 - Rear Window Wiper Motor
3 - Rear Window Defogger Connector X1
4 - Rear Window Defogger Connector X2
5 - Rear Window Defogger
6 - X901
7 - X450

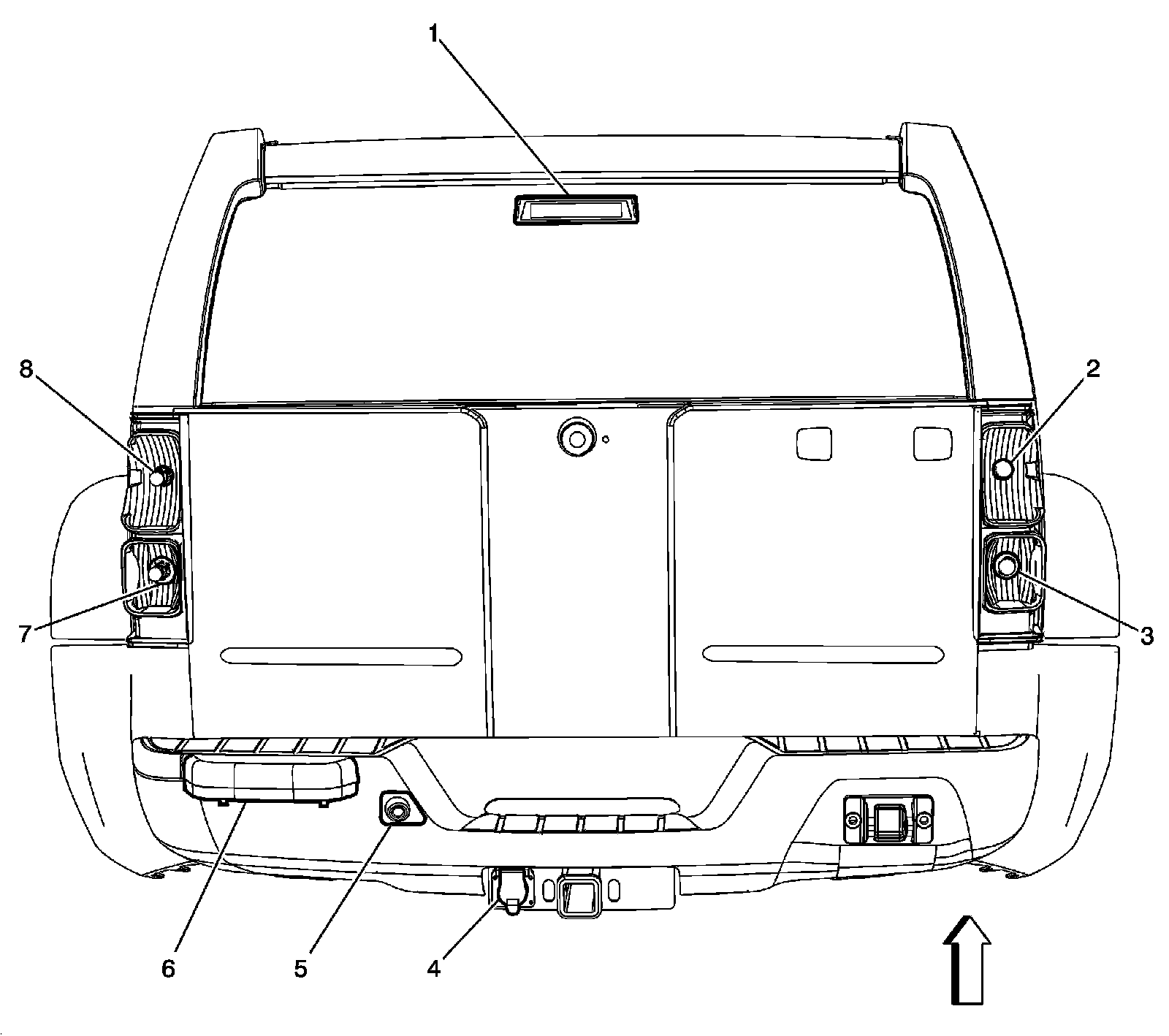

Rear of the Vehicle Components (SUV without BRM or T89)




1 - Center High Mounted Stop Lamp (CHMSL)
2 - Tail/Stop and Turn Signal Lamp - Right
3 - Backup Lamp - Right
4 - Trailer Connector (UY7)
5 - Rearview Camera (UVC)
6 - License Lamp
7 - Backup Lamp - Left
8 - Tail/Stop and Turn Signal Lamp - Left

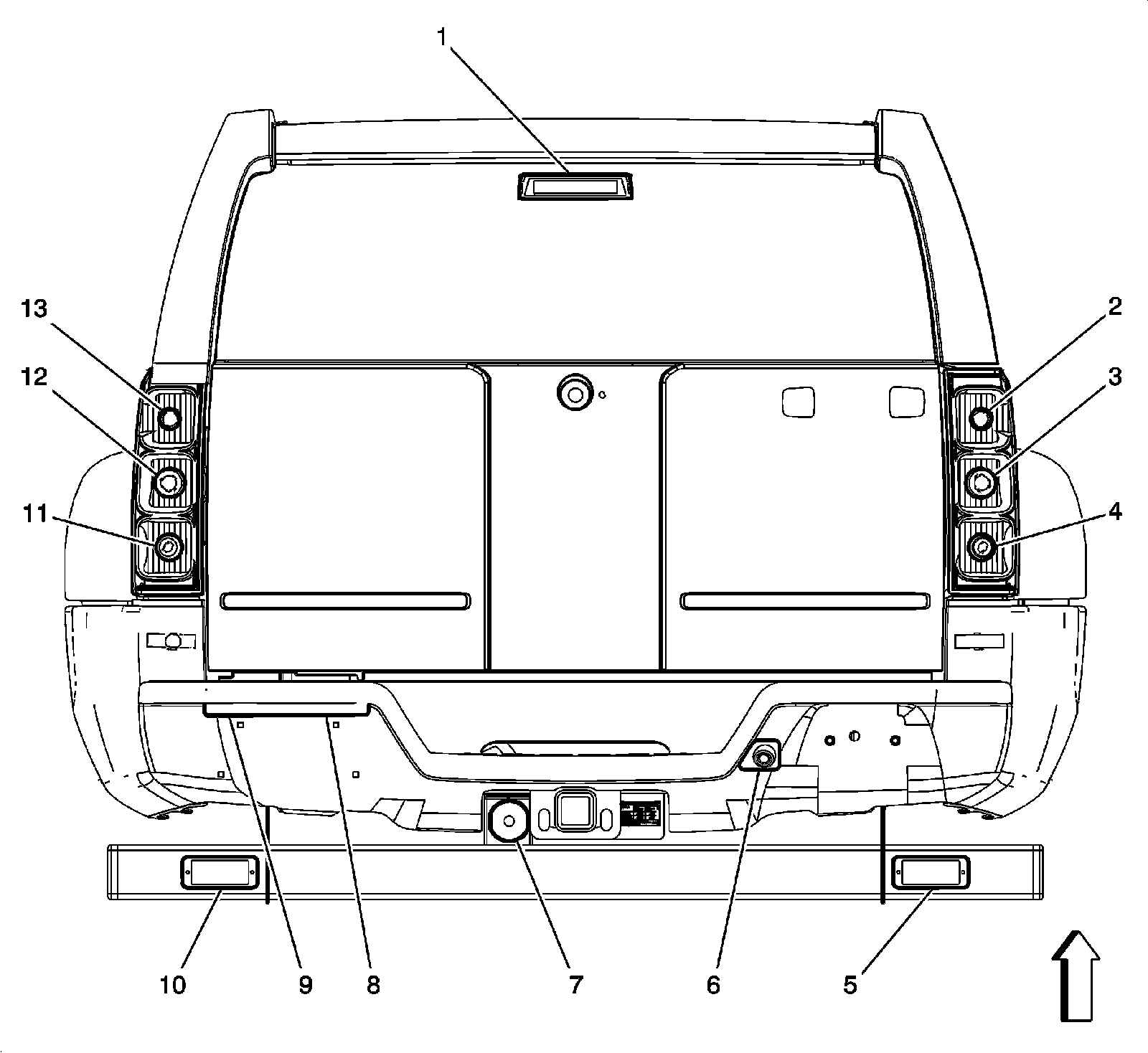

Rear of Vehicle Components (SUV with BRM and T89)




1 - Center High Mounted Stop Lamp (CHMSL)
2 - Tail/Stop Lamp - Right
3 - Turn Signal Lamp - Right Rear
4 - Backup Lamp - Right
5 - Fog Lamp - Right Rear (T79)
6 - Rearview Camera (UVC)
7 - Trailer Connector (B16 or UY7)
8 - License Lamp - Right
9 - License Lamp - Left
10 - Fog Lamp - Left Rear (T79)
11 - Backup Lamp - Left
12 - Turn Signal Lamp - Left Rear
13 - Tail/Stop Lamp - Left

Rear of Vehicle Components (Truck)




1 - Center High Mounted Stop Lamp (CHMSL)
2 - Tail/Stop Lamp - Right
3 - Turn Signal Lamp - Right Rear
4 - Backup Lamp - Right
5 - Rearview Camera (UVC)
6 - Trailer Connector (UY7)
7 - License Lamp
8 - Backup Lamp - Left
9 - Turn Signal Lamp - Left Rear
10 - Tail/Stop Lamp - Left
