Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

Front of the I/P Components




1 - Headlamp Switch (Left Hand Drive)
2 - Instrument Panel Cluster (IPC) (Left Hand Drive)
3 - Hazard Warning Switch
4 - Multifunction Switch I/P
5 - Radio
6 - Ambient Light Sensor (Left Hand Drive)
7 - Inflatable Restraint I/P Module (Left Hand Drive)
8 - HVAC Control Module
9 - Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10 - Frontview Camera Switch (UVF), Off Road Grille Lamp Switch (UNR), Off Road Roof Lamp Switch (UNJ), or Traction Control Switch (TCS) (G93)
11 - Window Wiper/Washer Switch - Rear (SUV)
12 - Inflatable Restraint Steering Wheel Module (Left Hand Drive)
13 - Turn Signal/Multifunction Switch (Left Hand Drive)

Behind the I/P Components - 1 of 2




1 - Instrument Panel Cluster (Left Hand Drive)
2 - Multifunction Switch - I/P
3 - Inflatable Restraint I/P Module
4 - Ambient Light Sensor (Left Hand Drive)
5 - Radio Antenna
6 - Transfer Case Shift Control Module
7 - Transfer Case Shift Control Module X3
8 - Transfer Case Shift Control Module X2
9 - Transfer Case Shift Control Module X1
10 - Digital Radio Receiver (U2K)
11 - I/P Courtesy Lamp - Right (Left Hand Drive)
12 - Body Control Module (BCM)
13 - Accessory Power Outlet - 1 and Accessory Power Outlet - 2
14 - Vehicle Communication Interface Module (VCIM) (UE1) or Serial Data Gateway Module (SDGM) (LVC)
15 - I/P Courtesy Lamp - Left (Left Hand Drive)
16 - Data Link Connector (DLC)

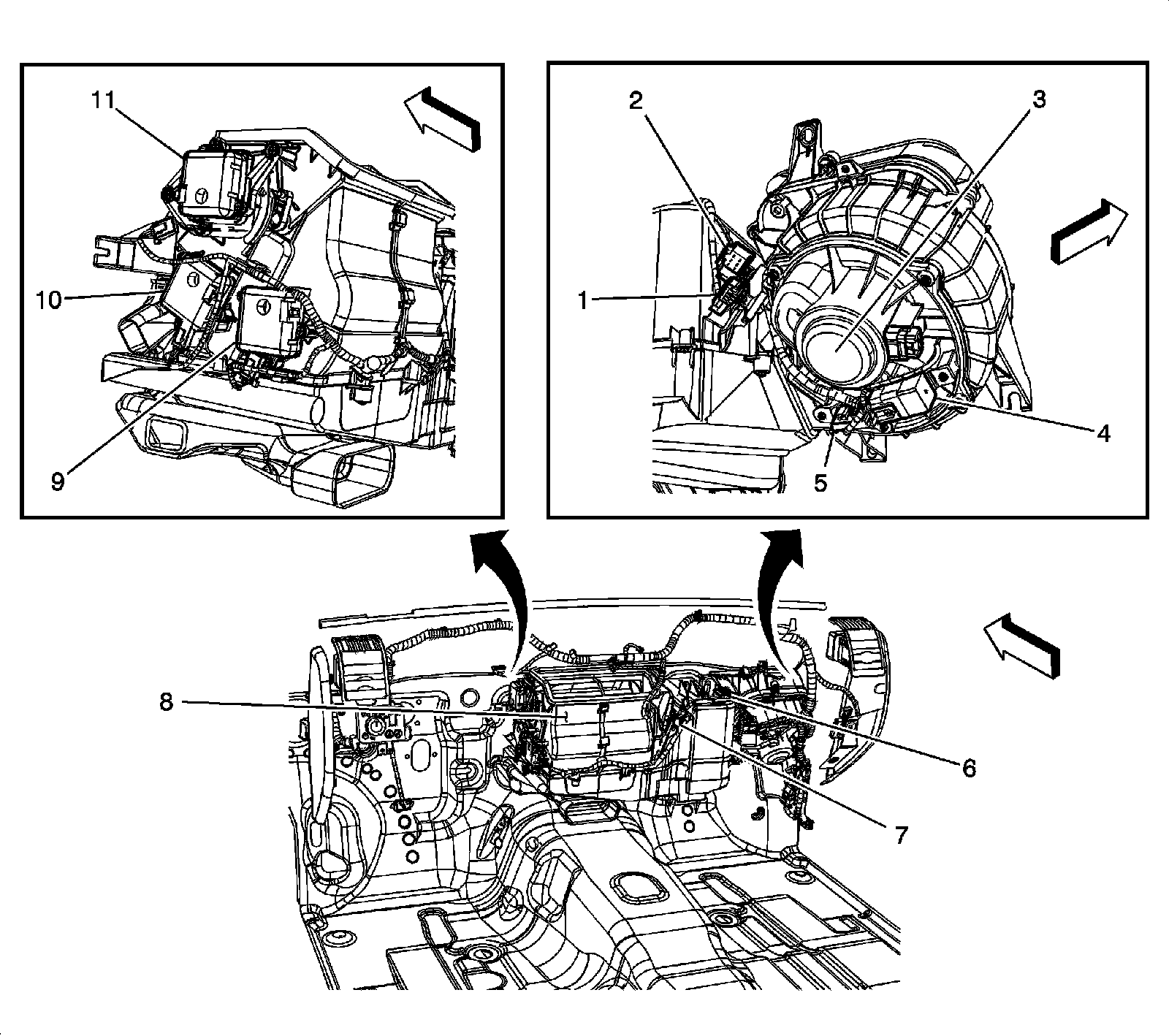

Behind the I/P Components - 2 of 2




1 - X205
2 - X203
3 - Blower Motor
4 - Blower Motor High Speed Relay
5 - Blower Motor Resistor
6 - Recirculation Actuator
7 - Evaporator Temperature Sensor
8 - HVAC Control Module
9 - Air Temperature Actuator - Right
10 - Air Temperature Actuator - Left
11 - Mode Actuator

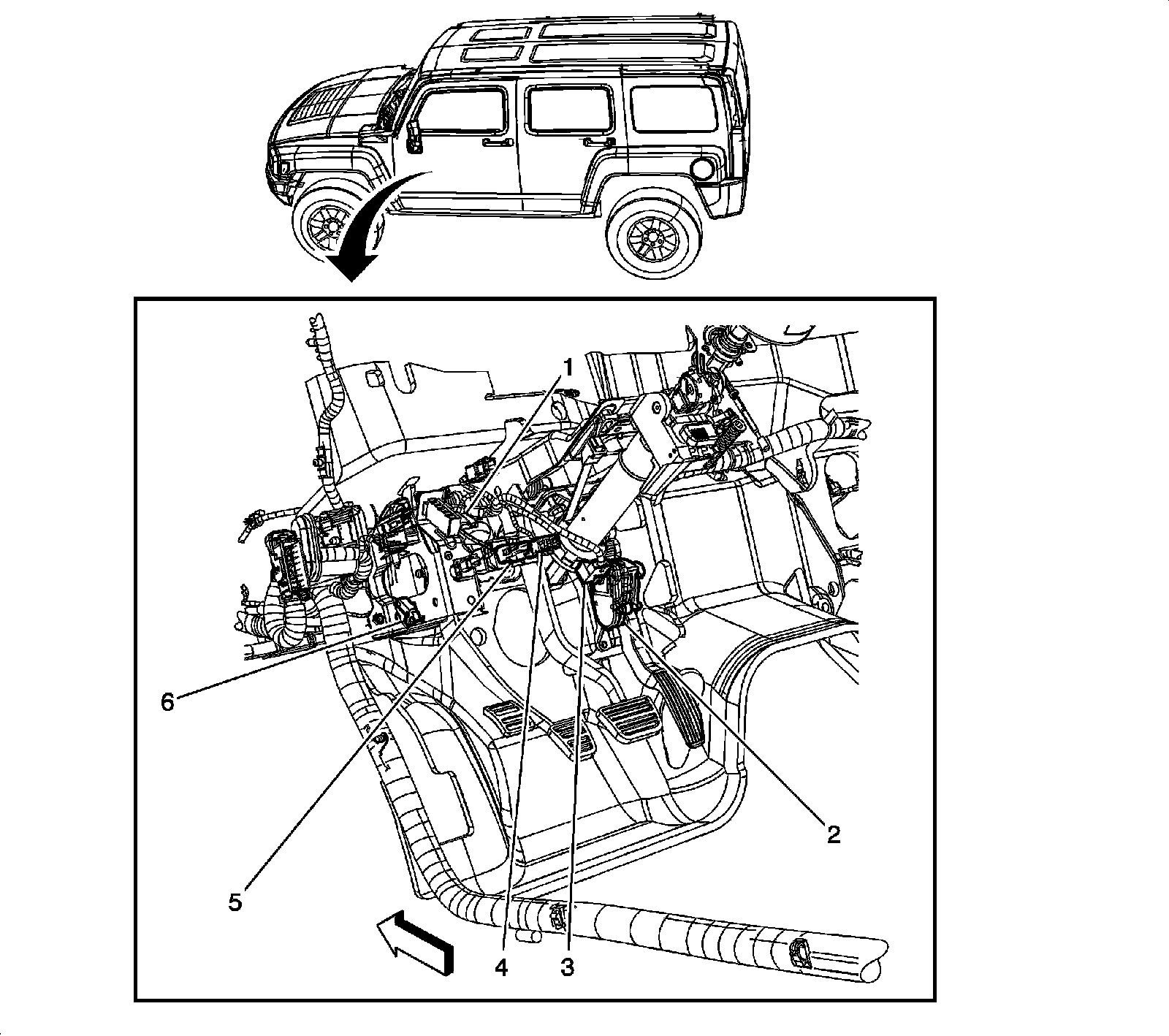

Under the Left Side of the I/P Components




1 - Clutch Pedal Position (CPP) Sensor (MA5)
2 - Accelerator Pedal Position (APP) Sensor
3 - Steering Wheel Position Sensor
4 - Cruise Control Release Switch
5 - Stop Lamp Switch
6 - Park Brake Switch

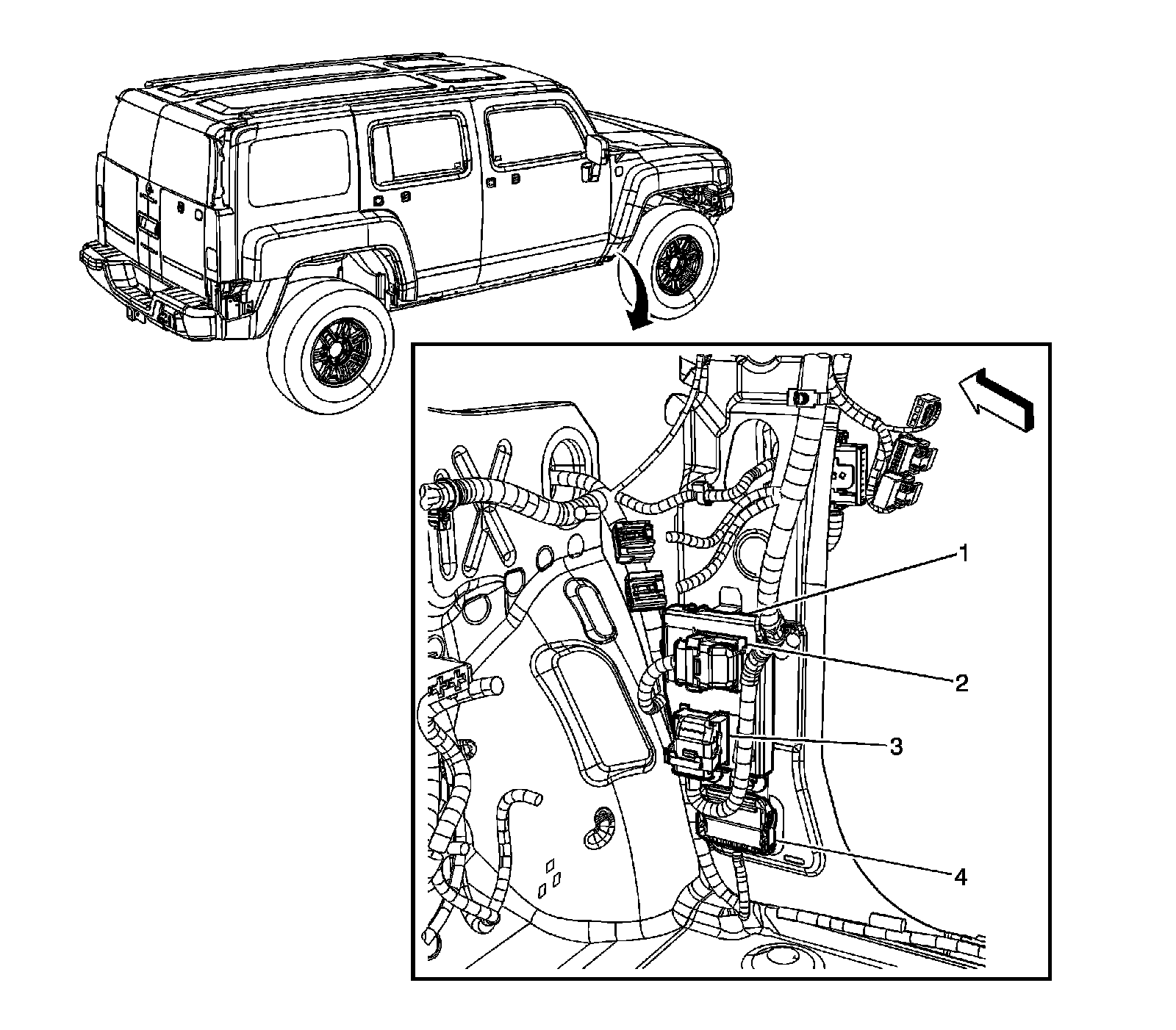

Right Kick Panel Components




1 - Body Control Module (BCM)
2 - Body Control Module (BCM) X1
3 - Body Control Module (BCM) X2
4 - X204

Steering Column Components




1 - Inflatable Restraint Steering Wheel Module X2
2 - Inflatable Restraint Steering Wheel Module X1
3 - X201 (Right Hand Drive)
4 - X275 (Right Hand Drive)
5 - Steering Wheel Position Sensor
6 - Ignition Lock Cylinder Control Actuator (MD8 or M30)
7 - Theft Deterrent Module (TDM) (BAE)
8 - Ignition Switch
9 - Turn Signal/Multifunction Switch
10 - Horn Switch Connector

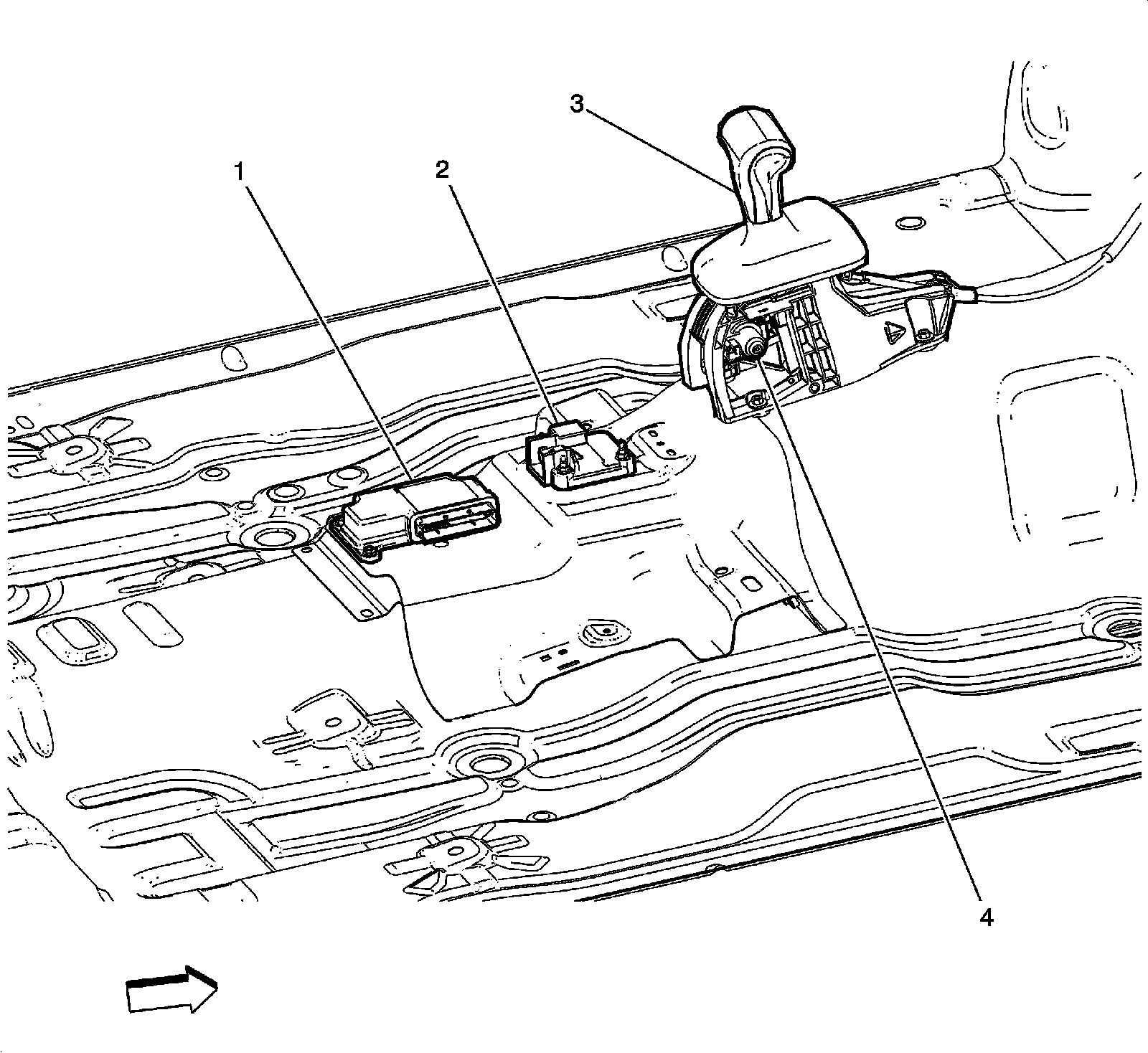

Center of Floor Components




1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Inflatable Restraint Vehicle Rollover Sensor
3 - Automatic Transmission Shift Lever (MD8 or M30)
4 - Automatic Transmission Shift Lock Control Solenoid (MD8 or M30)
