Front of Vehicle/Engine Compartment Component Views
Front of Vehicle/Engine Compartment Component Views

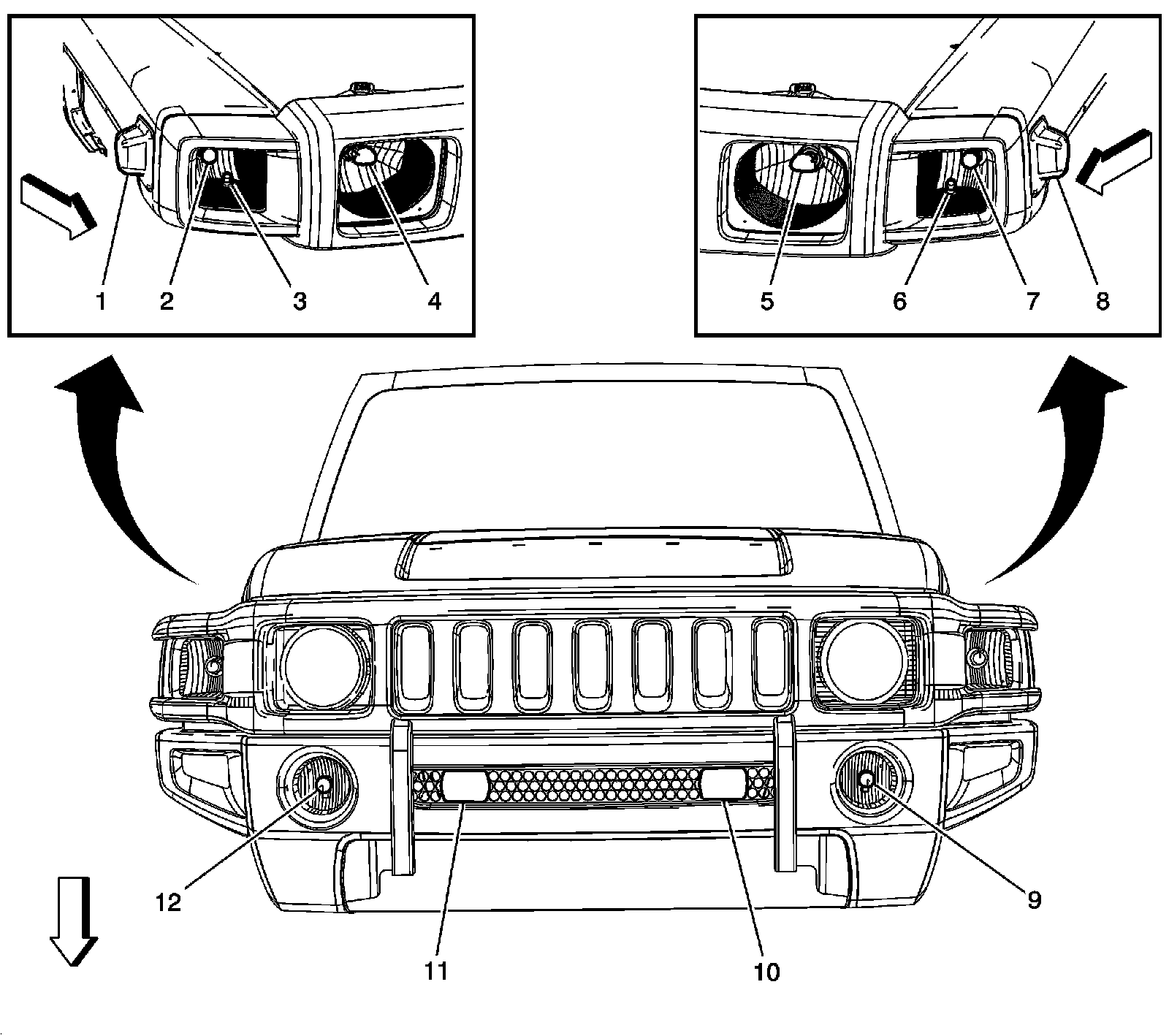

Front of the Vehicle Components (without BRM or TR6)
1 - Side Marker Lamp - Left Front
2 - Park/Turn Signal Lamp - Left
3 - Headlamp - Left
4 - Fog Lamp - Left Front
5 - Off Road Grille Lamp - Left
6 - Off Road Grille Lamp - Right
7 - Fog Lamp - Right Front
8 - Headlamp - Right
9 - Park/Turn Signal Lamp - Right
10 - Side Marker Lamp - Right Front

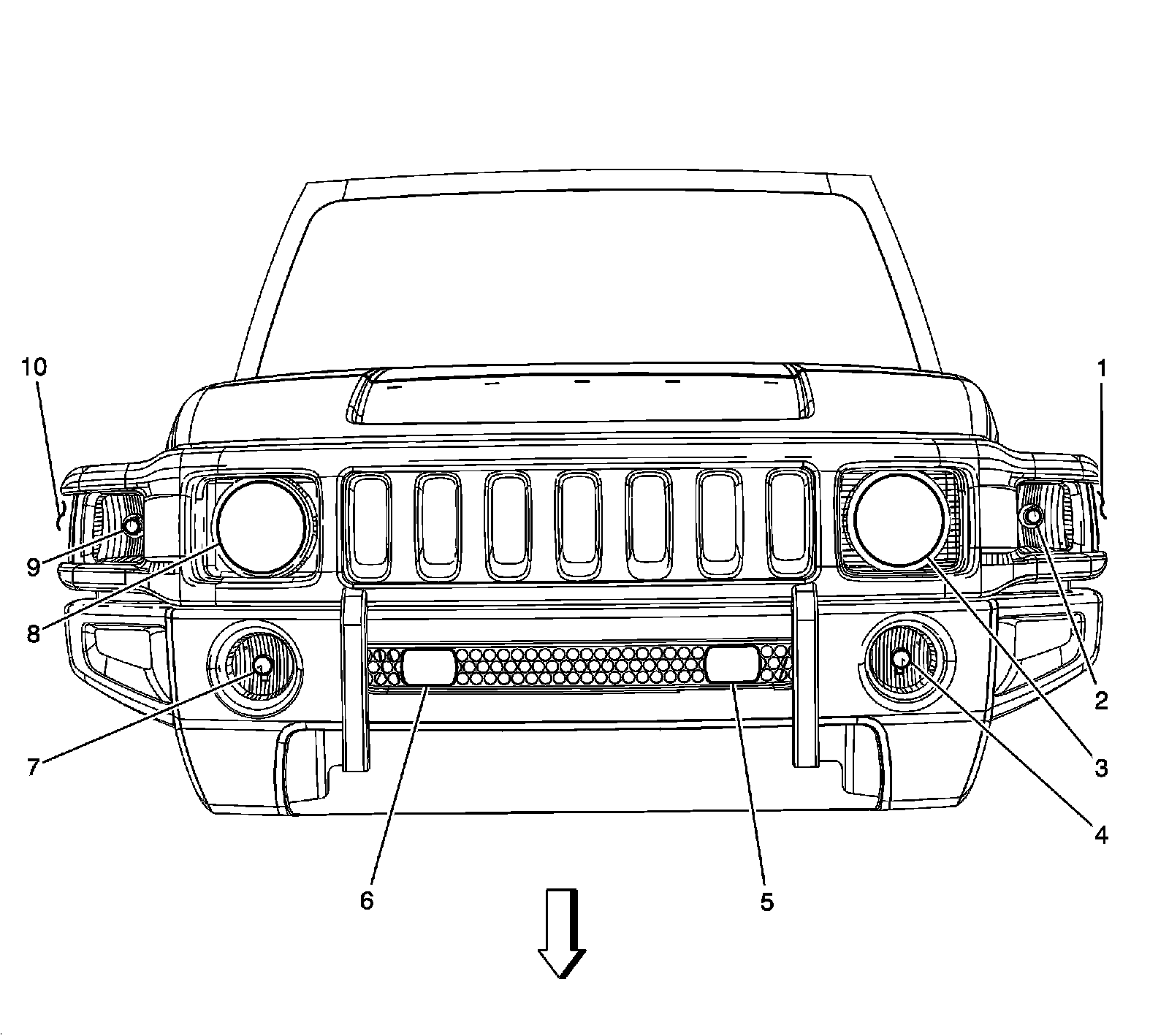

Front of Vehicle Components (BRM and TR6)
1 - Turn Signal Repeater Lamp - Right
2 - Turn Signal Lamp - Right Front
2 - Position Lamp - Right
4 - Headlamp - Right
5 - Headlamp - Left
6 - Position Lamp - Left
7 - Turn Signal Lamp - Left Front
8 - Turn Signal Repeater Lamp - Left
9 - Fog Lamp - Left Front
10 - Off Road Grille Lamp - Left
11 - Off Road Grille Lamp - Right
12 - Fog Lamp - Right Front

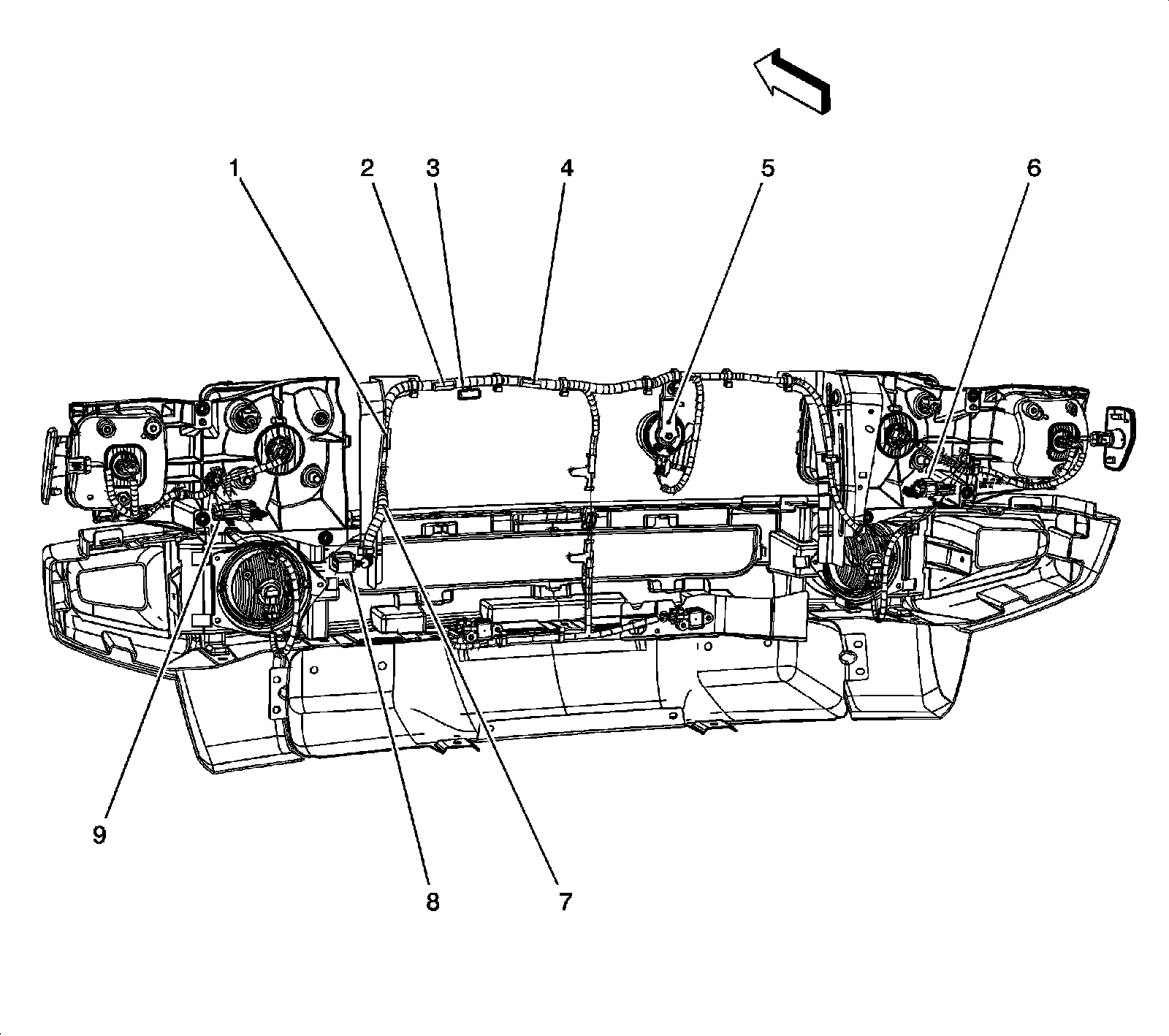

Front of the Engine Compartment Components
1 - J185
2 - J109
3 - J112
4 - J120
5 - Horn
6 - X117
7 - J134
8 - X115
9 - X116

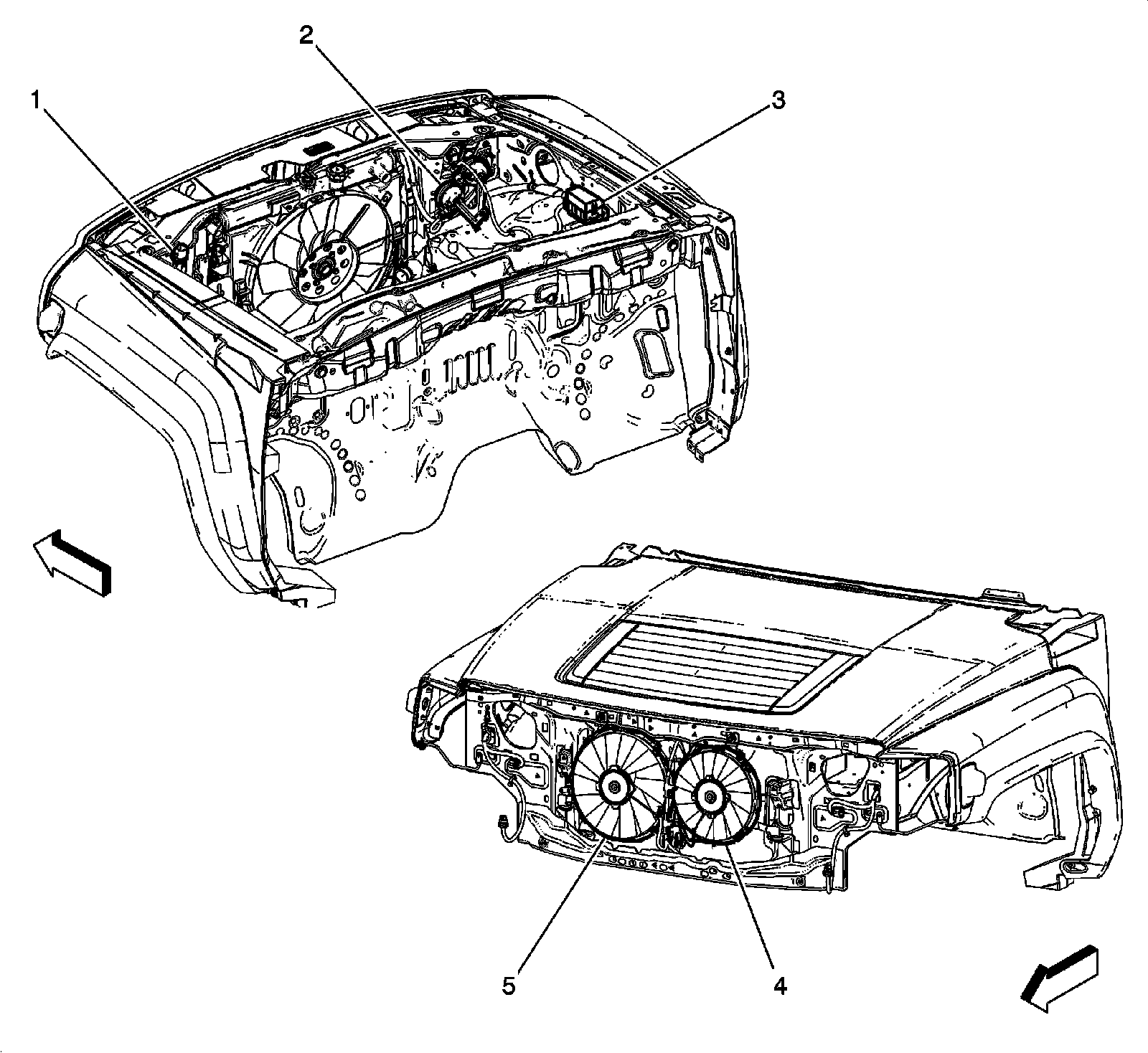

Radiator Support Components (BRM)
1 - Stop Lamp Relay (T89)
2 - Horn
3 - Fuse Block - Underhood Secondary (V08)
4 - Engine Cooling Fan - Left (V08)
5 - Engine Cooling Fan - Right (V08)

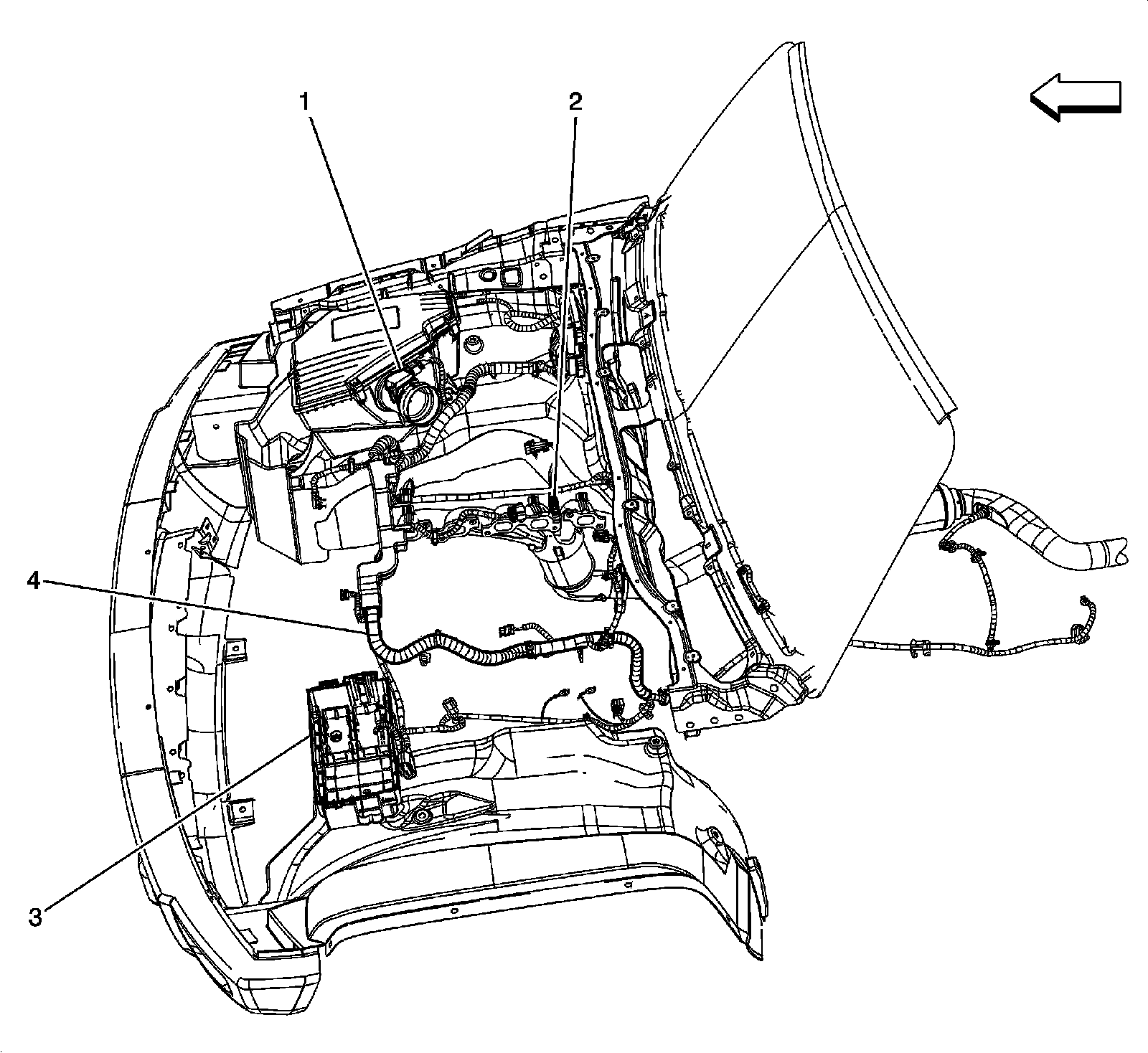

Engine Compartment Components - 1 of 3
1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Heated Oxygen Sensor (HO2S) 1 (LLR)
3 - Fuse Block - Underhood
4 - Engine Harness (LLR)

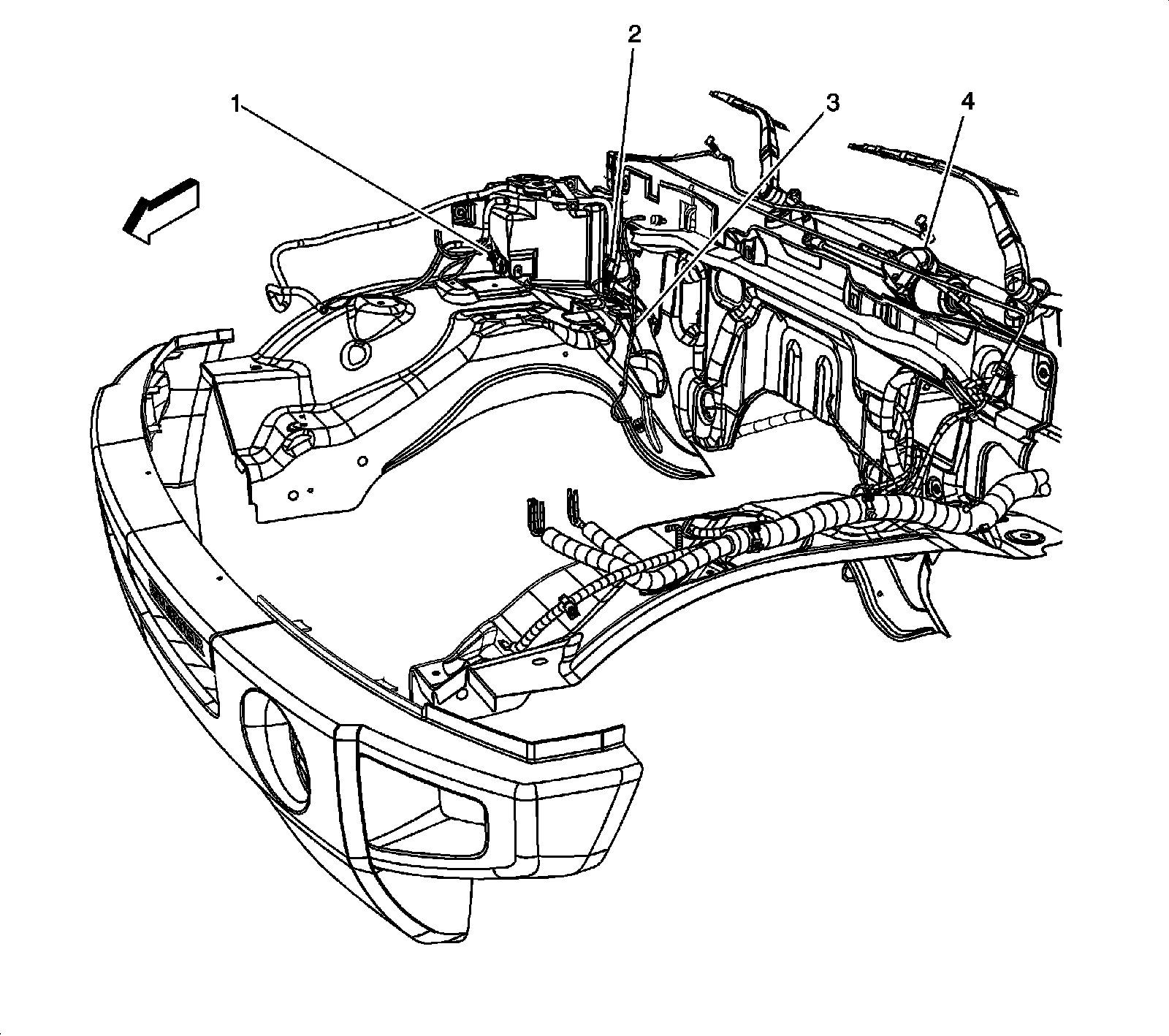

Engine Compartment Components - 2 of 3
1 - Rear Window Washer Fluid Pump
2 - Windshield Washer Fluid Pump
3 - Body Harness
4 - Windshield Wiper Motor (Left Hand Drive)
Engine Compartment Components - 3 of 3
1 - Body Harness
2 - A/C Refrigerant Pressure Sensor (Left Hand Drive)
3 - A/C Compressor Clutch (LLR)
4 - Ambient Air Temperature Sensor

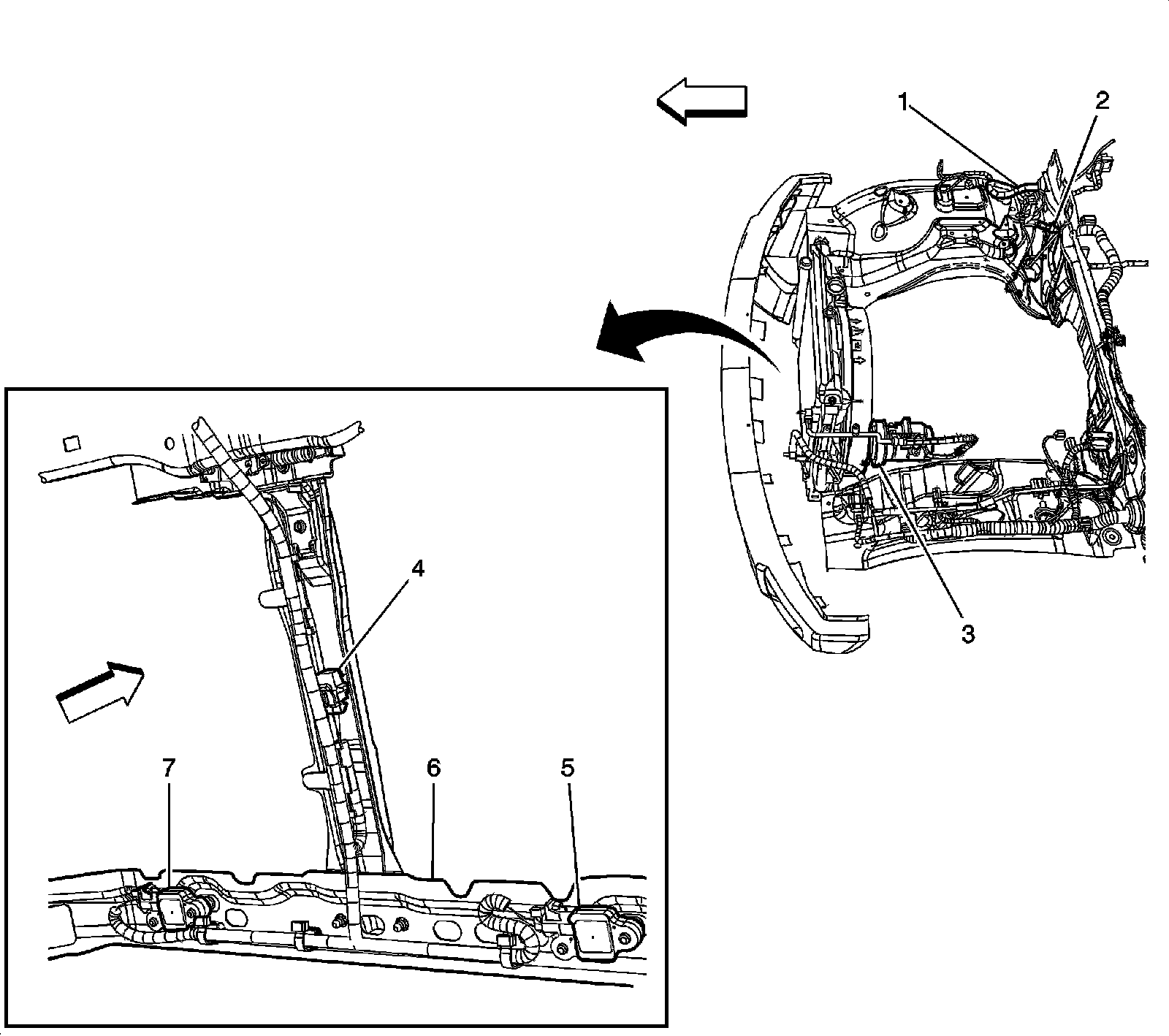

5 - Inflatable Restraint Front End Sensor - Right
6 - Lower Radiator Support
7 - Inflatable Restraint Front End Sensor - Left

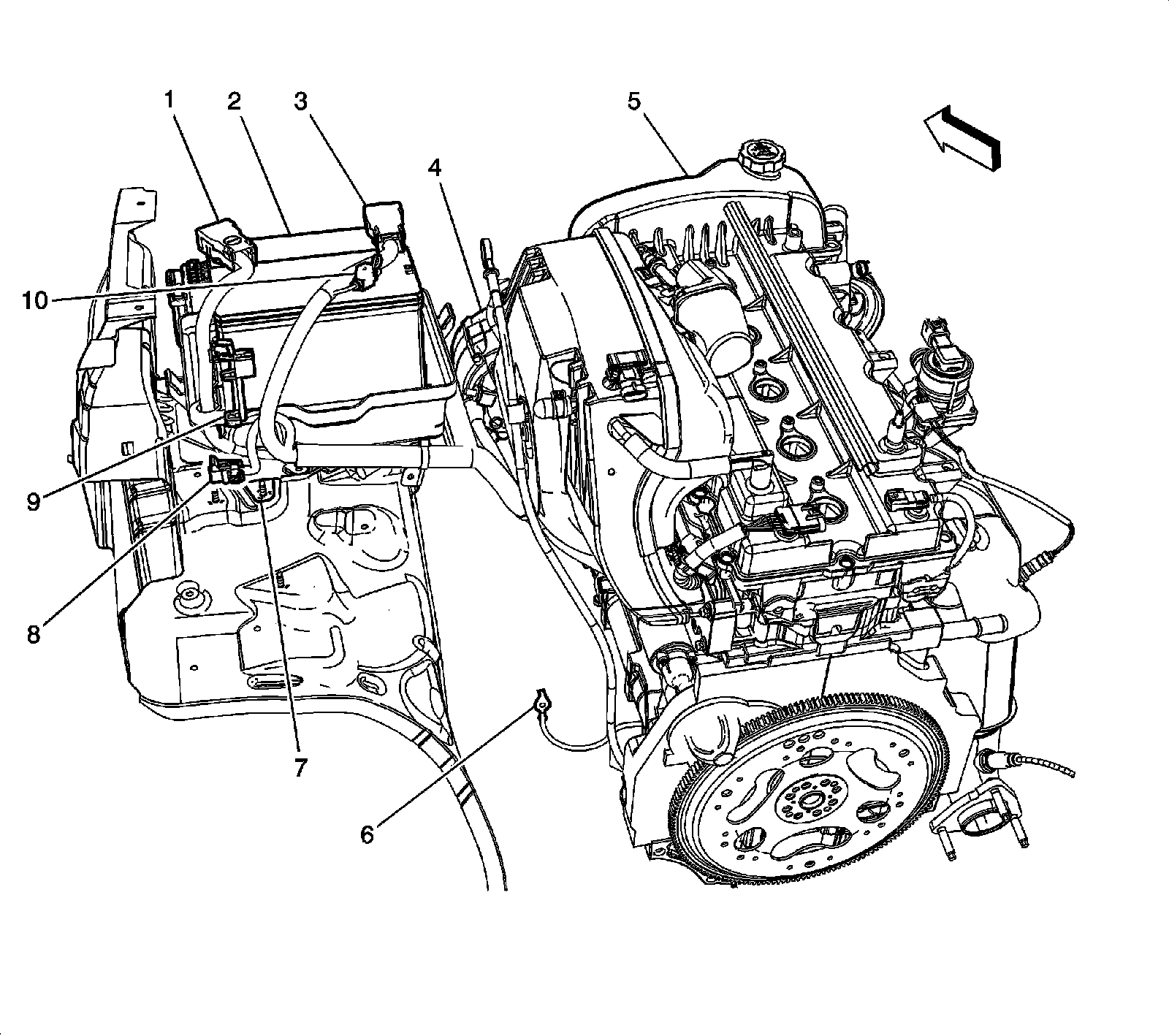

Left Side of the Engine Compartment Components
1 - Negative Battery Cable
2 - Battery
3 - Positive Battery Cable
4 - Generator (LLR)
5 - Engine (LLR)
6 - G120
7 - G100
8 - X130 (UE1)
9 - Generator Battery Control Module
10 - Inline Fuse - Vehicle Communication Interface Module (VCIM) (UE1 or U2K)

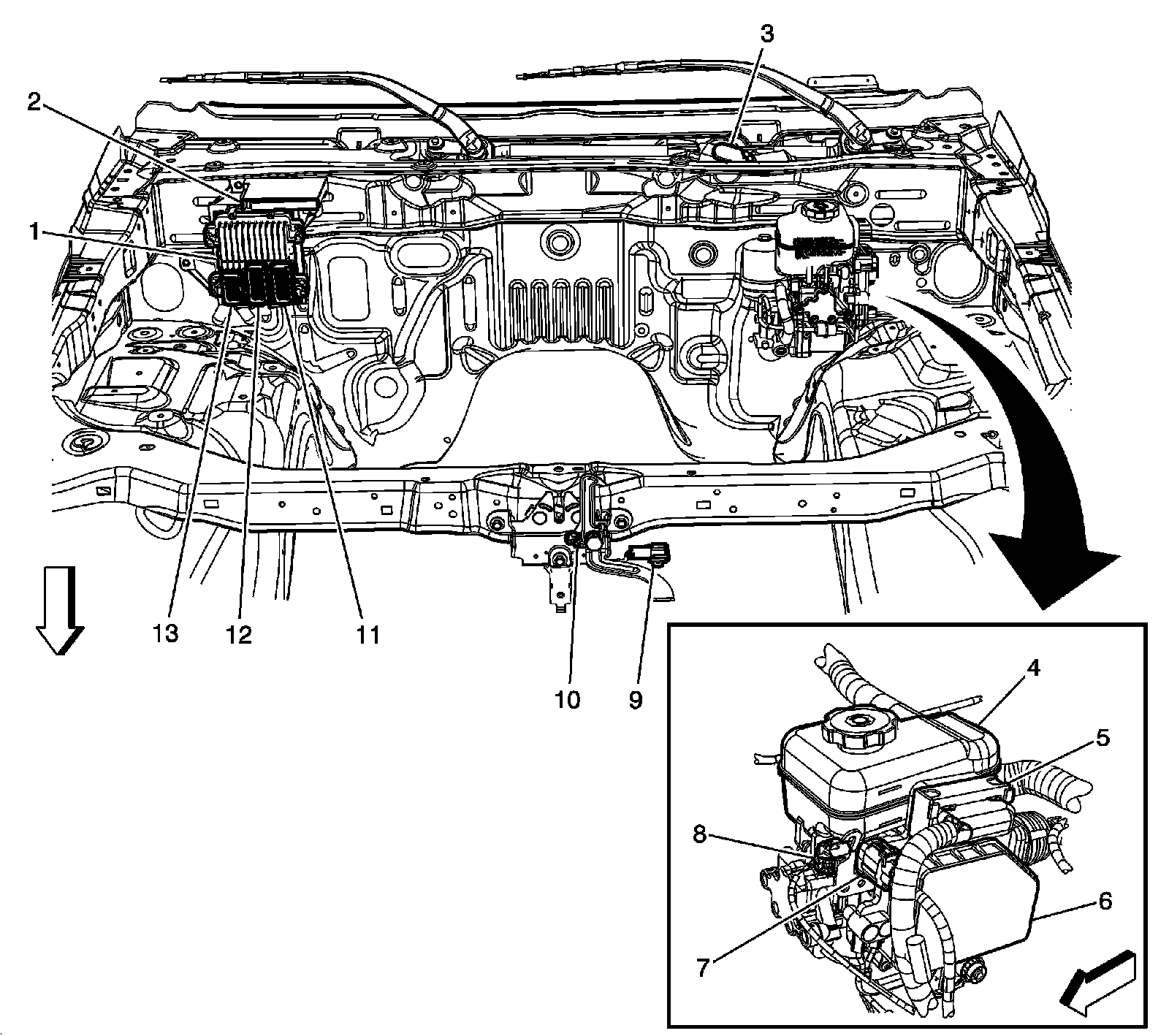

Rear of the Engine Compartment Components (Left Hand Drive)
1 - Engine Control Module (ECM)
2 - Transmission Control Module (TCM)
3 - Windshield Wiper Motor
4 - Brake Fluid Reservoir
5 - Electronic Brake Control Module (EBCM) X2
6 - Electronic Brake Control Module (EBCM)
7 - Electronic Brake Control Module (EBCM) X1
8 - Brake Fluid Level Switch
9 - Hood Ajar Switch (N04)
10 - Hood Latch
11 - Engine Control Module (ECM) X3
12 - Engine Control Module (ECM) X2
13 - Engine Control Module (ECM) X1
Rear of the Engine Compartment Components (Right Hand Drive)
1 - Windshield Wiper Motor
2 - Transmission Control Module (TCM)
3 - Engine Control Module (ECM)
4 - Engine Control Module (ECM) X3
5 - Engine Control Module (ECM) X2
6 - Engine Control Module (ECM) X1
7 - A/C Refrigerant Pressure Sensor
8 - Hood Ajar Switch (N04)
9 - Hood Latch
10 - Brake Fluid Reservoir
11 - Electronic Brake Control Module X2
12 - Electronic Brake Control Module
13 - Electronic Brake Control Module X1
14 - Brake Fluid Level Switch
