Door Component Views

Door Component Views

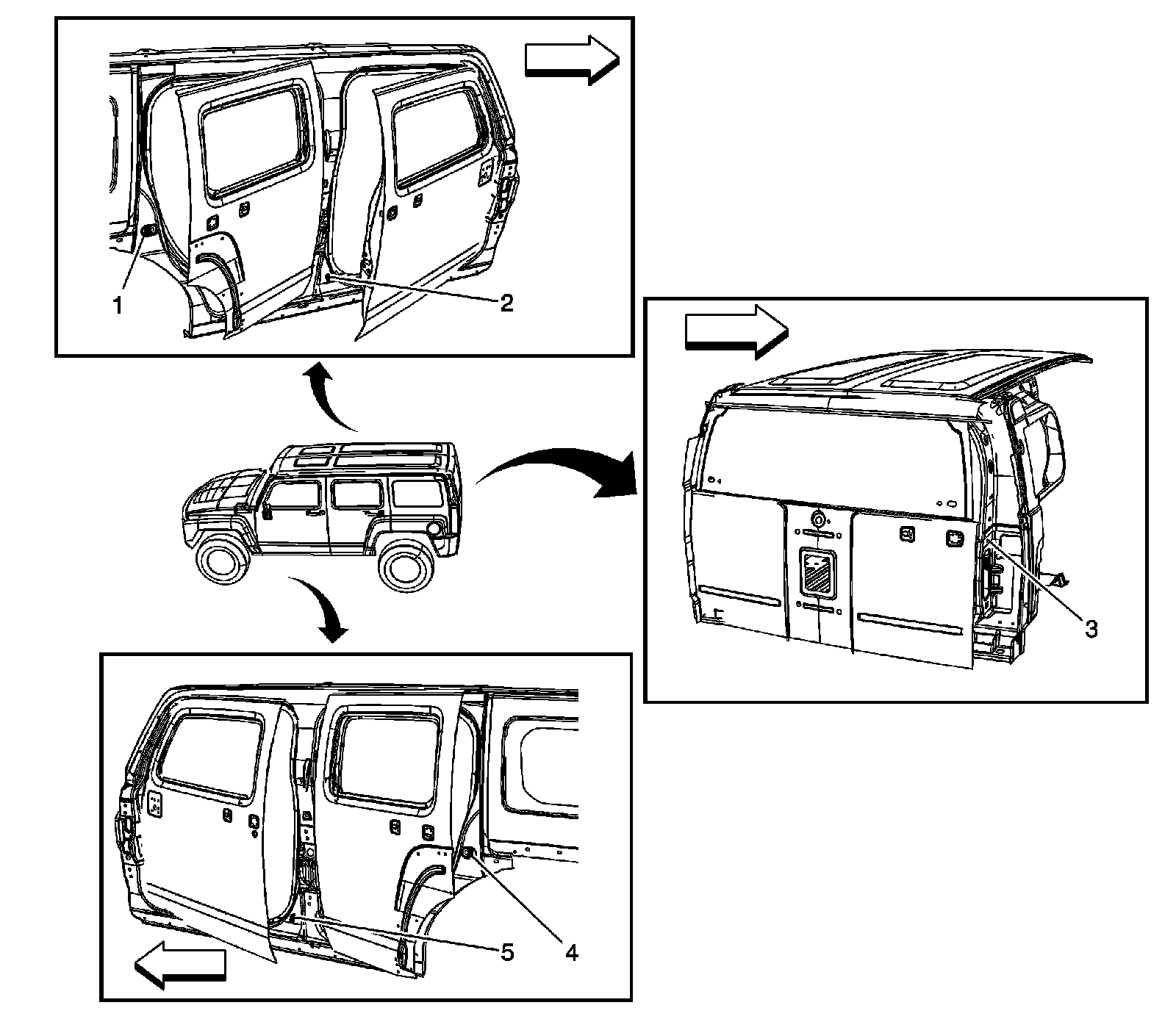

Door Components




1 - Door Jamb Switch - Right Rear
2 - Door Jamb Switch - Passenger
3 - Endgate Ajar Switch
4 - Door Jamb Switch - Left Rear
5 - Door Jamb Switch - Driver

Driver Door Components (Left Hand Drive)




1 - Outside Rearview Mirror - Driver
2 - Outside Rearview Mirror Switch
3 - X510
4 - X500
5 - Window Motor - Driver
6 - Speaker - Left Front
7 - Door Lock/Window Switch - Driver
8 - Door Lock/Window Switch - Driver X1
9 - Door Lock/Window Switch - Driver X2
10 - Door Lock Actuator - Driver
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12 - Key Lock Cylinder

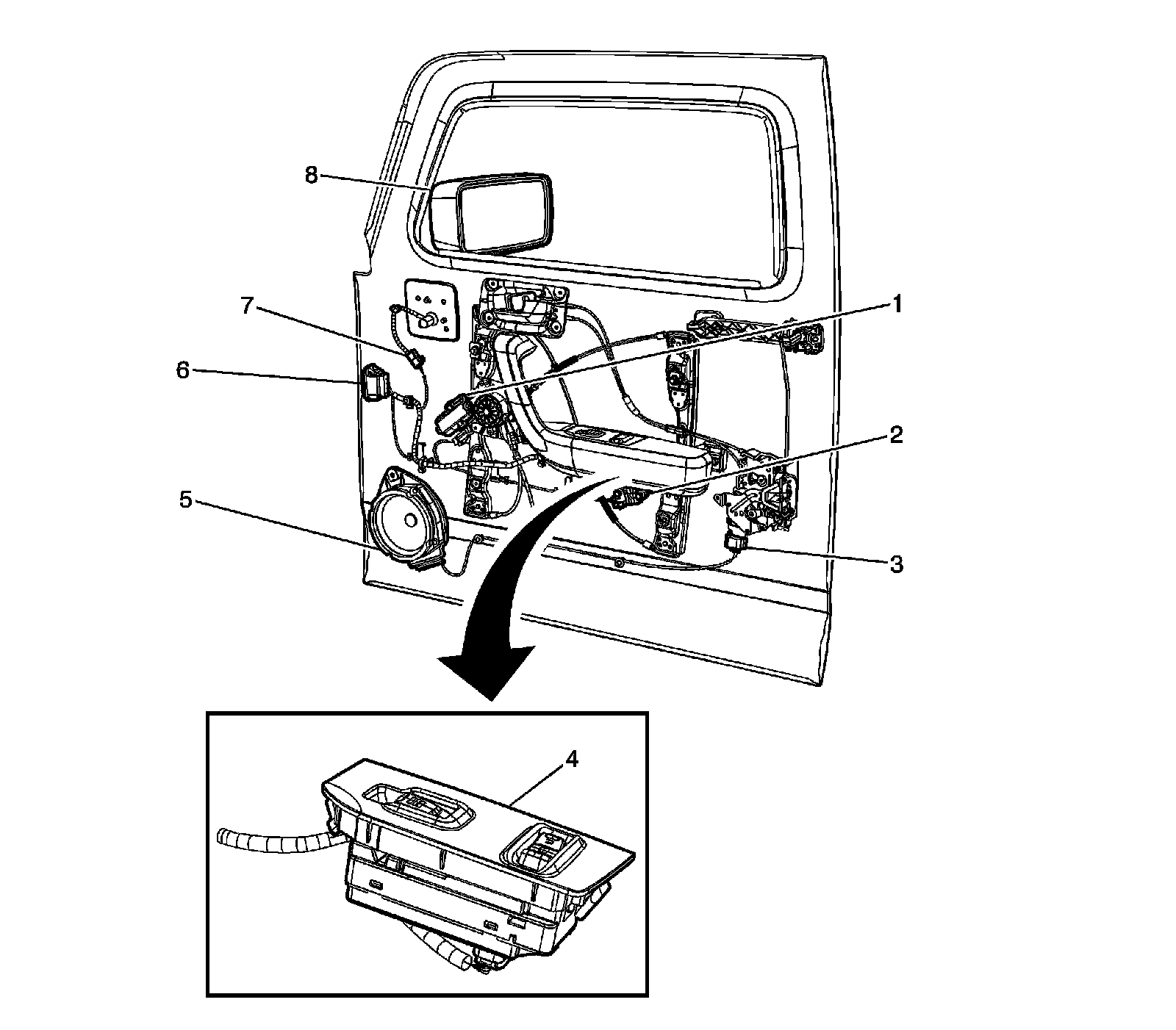

Passenger Door Components (Left Hand Drive)




1 - Window Motor - Passenger
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3 - Door Lock Actuator - Passenger
4 - Door Lock/Window Switch - Passenger
5 - Speaker - Right Front
6 - X600
7 - X610
8 - Outside Rearview Mirror - Passenger

Left Rear Door Components (SUV)




1 - Window Motor - Left Rear
2 - X700
3 - Speaker - Left Rear
4 - Window Switch - Left Rear
5 - Door Lock Actuator - Left Rear

Left Rear Door Components (Truck)




1 - Window Motor - Left Rear
2 - X700
3 - Speaker - Left Rear
4 - Window Switch - Left Rear
5 - Door Lock Actuator - Left Rear

Right Rear Door Components (SUV)




1 - Door Lock Actuator - Right Rear
2 - Window Switch - Right Rear
3 - Speaker - Right Rear
4 - X800
5 - Window Motor - Right Rear

Right Rear Door Components (Truck)




1 - Door Lock Actuator - Right Rear
2 - Window Switch - Right Rear
3 - Speaker - Right Rear
4 - X800
5 - Window Motor - Right Rear
