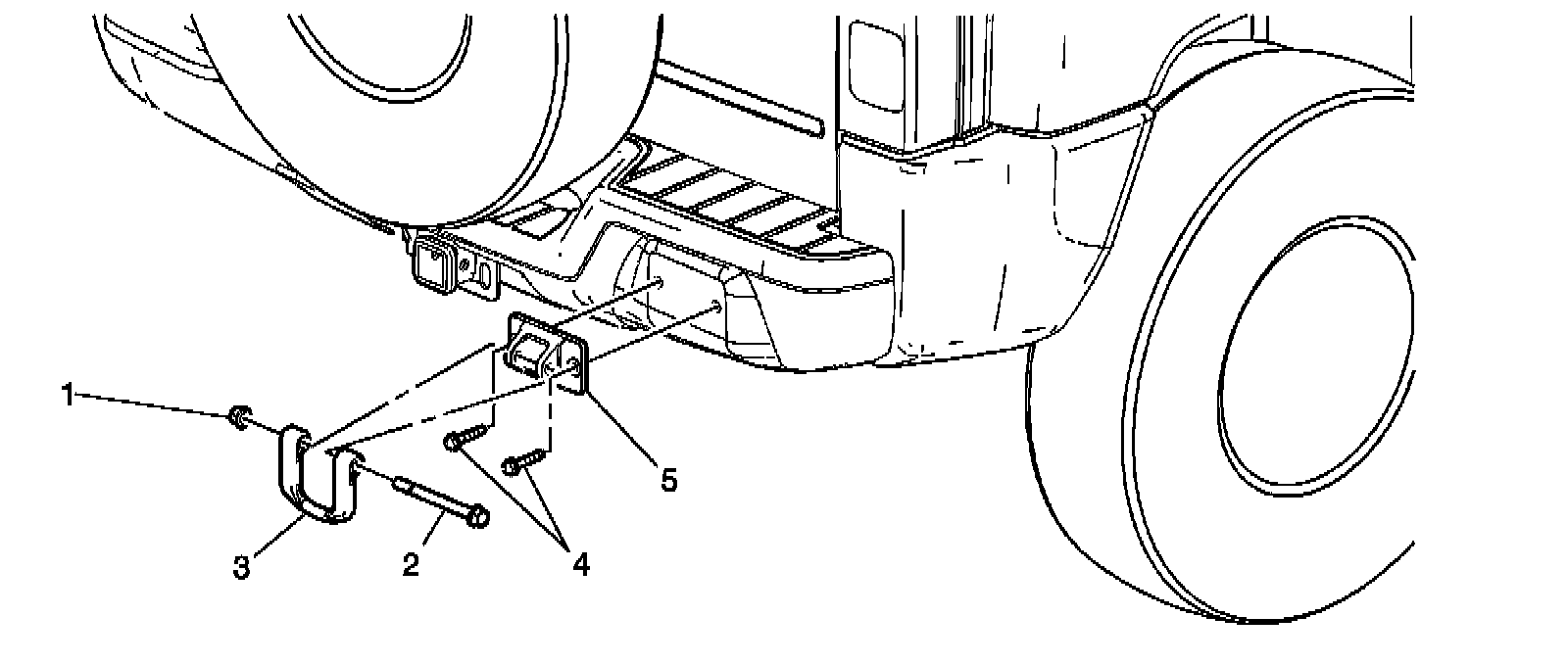

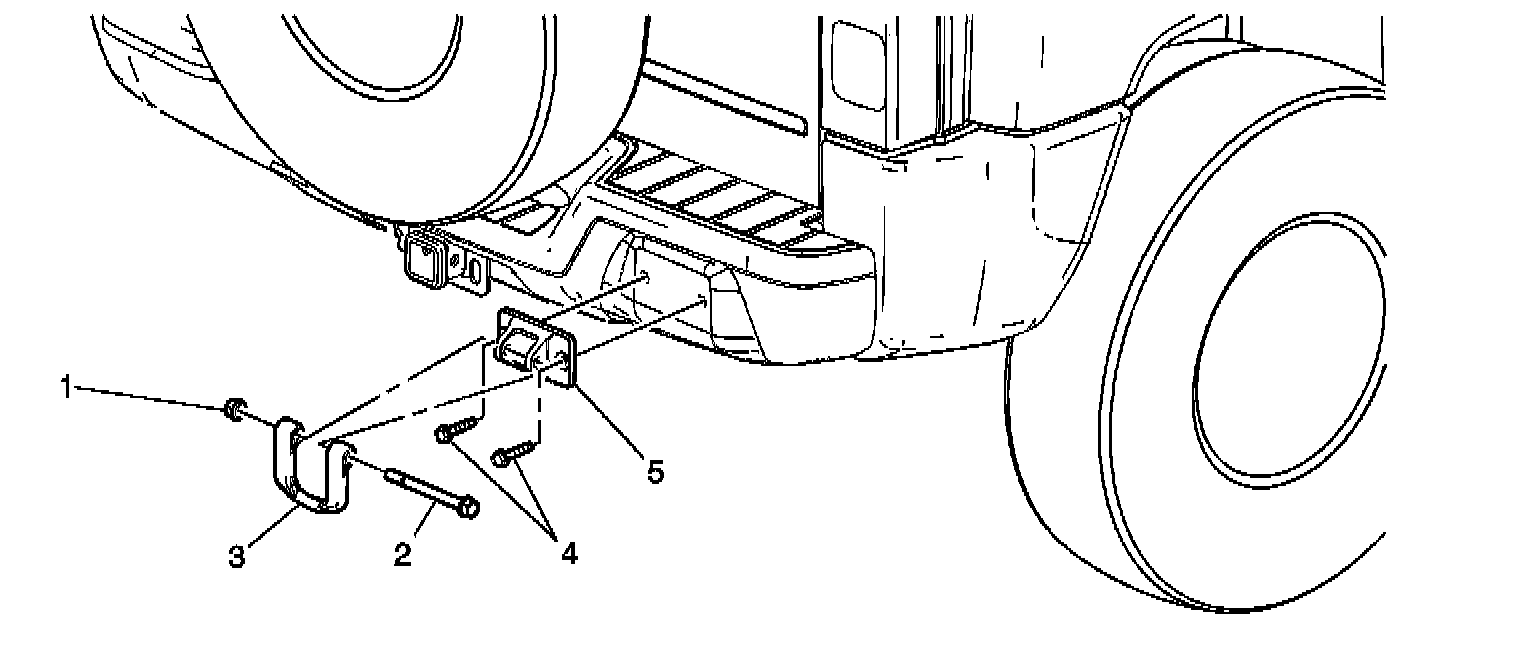

Rear Tow Eye Replacement

Rear Tow Eye Replacement













Rear Tow Eye Replacement

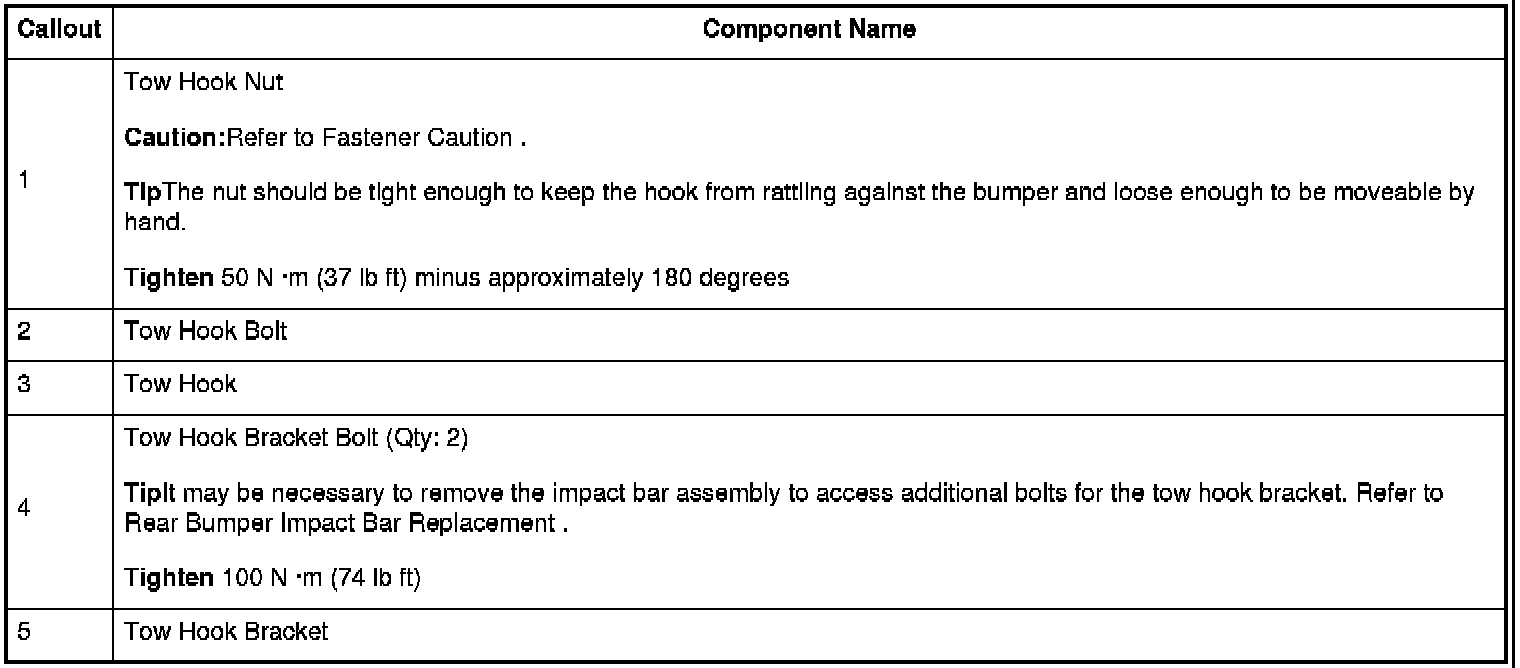

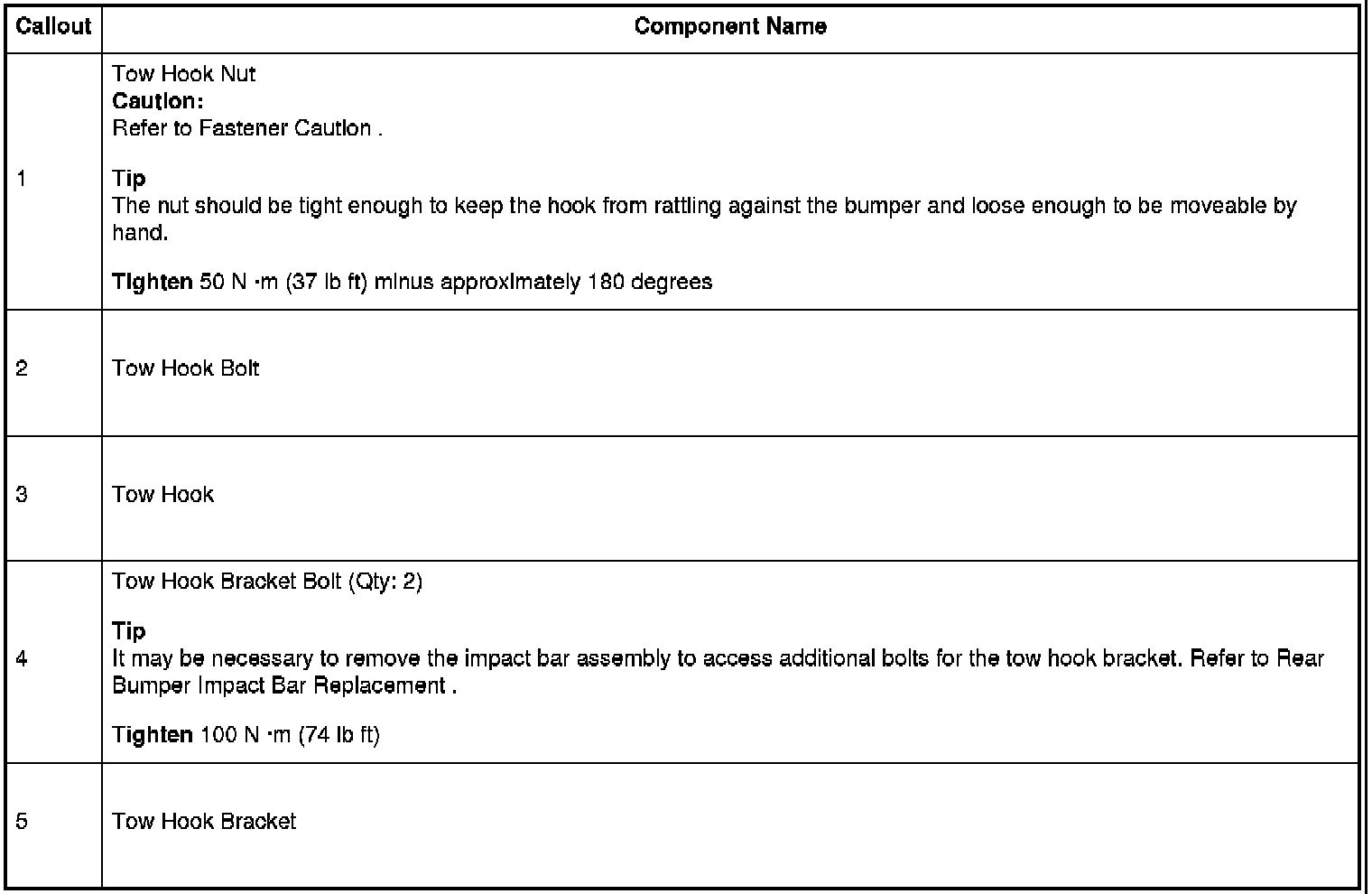

Caution:Refer toFastener Caution.

TipThe nut should be tight enough to keep the hook from rattling against the bumper and loose enough to be moveable by hand.
Tighten
TipIt may be necessary to remove the impact bar assembly to access additional bolts for the tow hook bracket. Refer to.
Tighten
