Luggage Carrier Nut Replacement

Luggage Carrier Nut Replacement

Removal Procedure

1. Remove the luggage carrier. Refer to Luggage Carrier Replacement (Luggage Carrier Replacement).





Warning

Wear safety glasses in order to avoid eye damage.

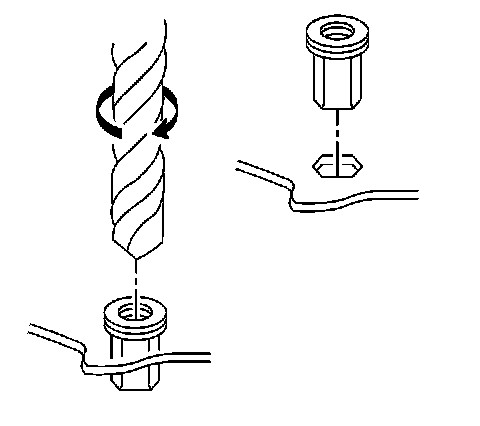

2. Drill through the luggage carrier rivnut head using a 7.5 mm (0.295 in) drill bit.
3. Remove the rivnut from the roof.

Installation Procedure

1. Using a 10 mm (0.3937 in) drill bit, drill the rivnut hex shape hole in the roof out to a round 10 mm hole.




2. Install a replacement rivnut to the hole in roof using a rivnut tool, or equivalent.
3. Install the luggage carrier. Refer to Luggage Carrier Replacement (Luggage Carrier Replacement).
