Rear Bumper Extension Replacement

Rear Bumper Extension Replacement

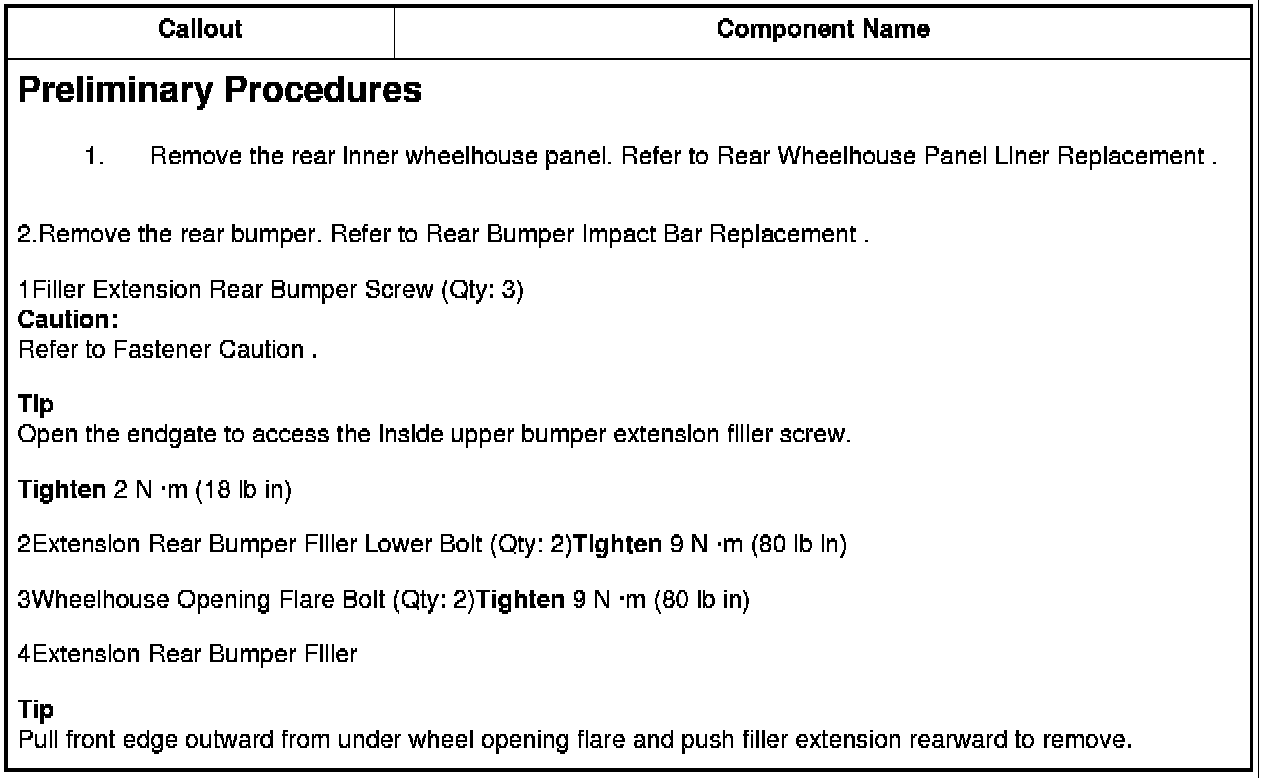

2.Remove the rear bumper. Refer to Rear Bumper Impact Bar Replacement .

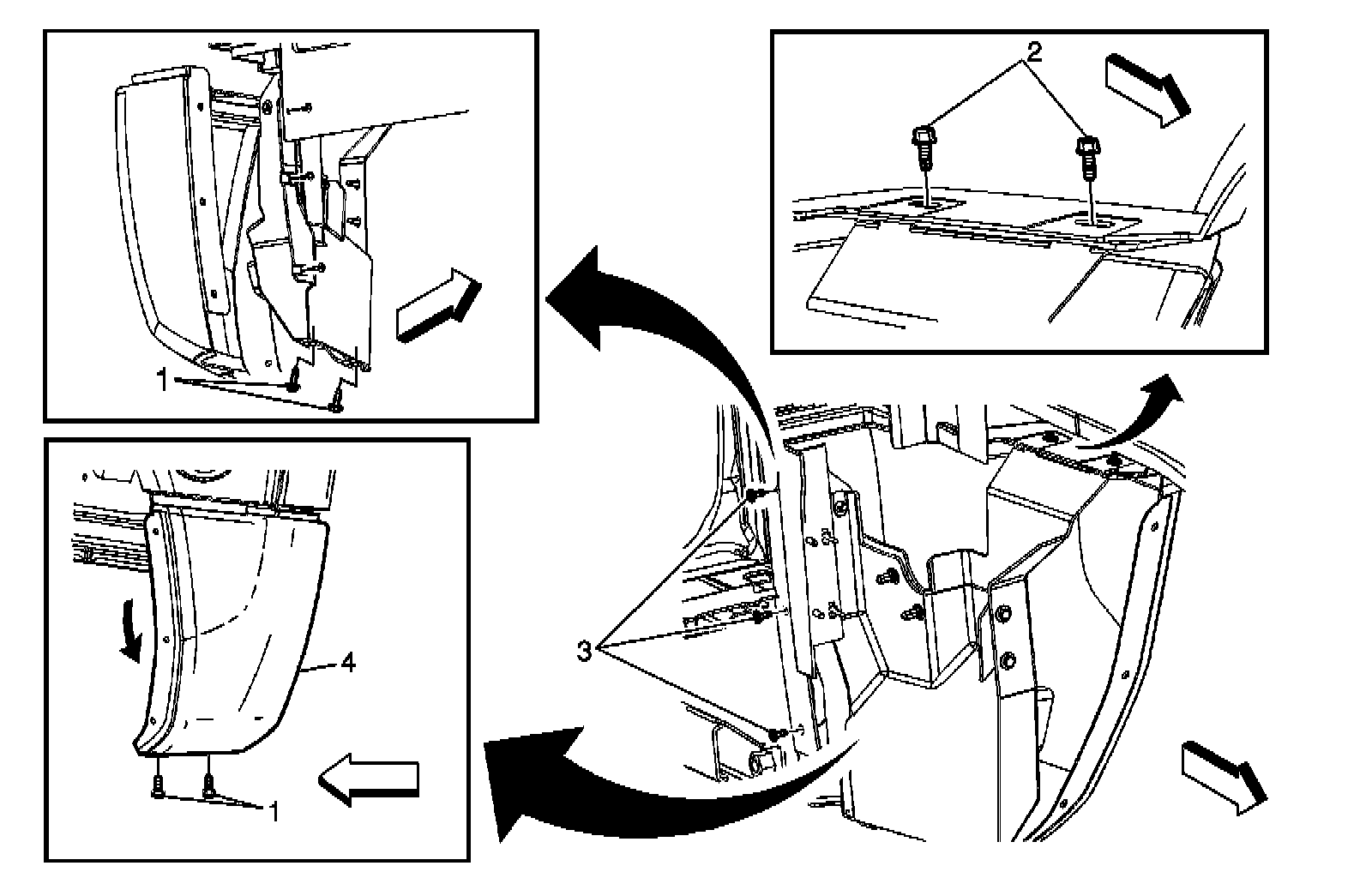

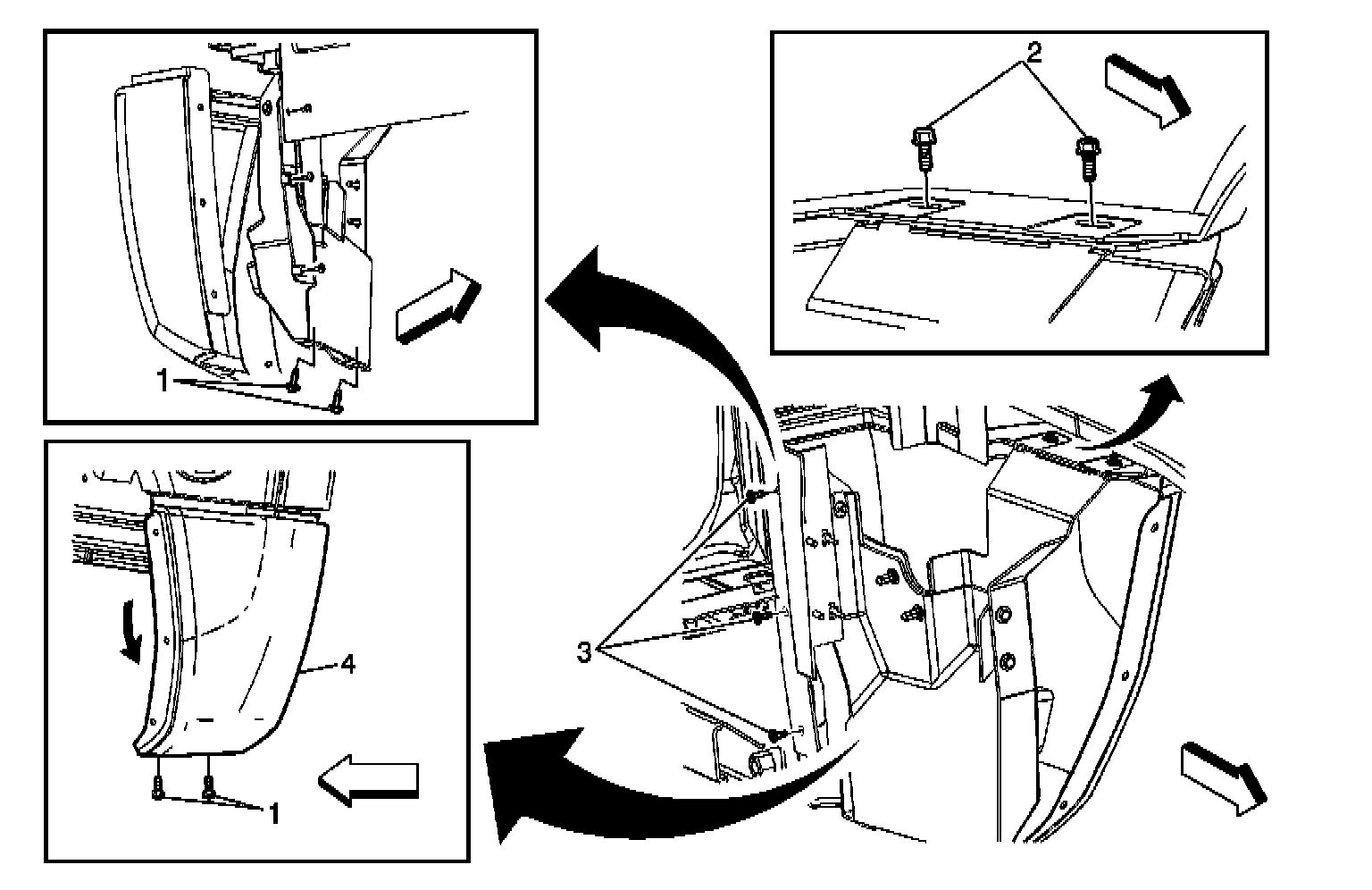

1Filler Extension Rear Bumper Screw (Qty: 3)
Caution:Refer to Fastener Caution .

Tip Open the endgate to access the inside upper bumper extension filler screw.
Tighten 2 N �m (18 lb in)

2Extension Rear Bumper Filler Lower Bolt (Qty: 2)Tighten 9 N �m (80 lb in)

3Wheelhouse Opening Flare Bolt (Qty: 2)Tighten 9 N �m (80 lb in)

4Extension Rear Bumper Filler
Tip Pull front edge outward from under wheel opening flare and push filler extension rearward to remove.


Rear Bumper Extension Replacement

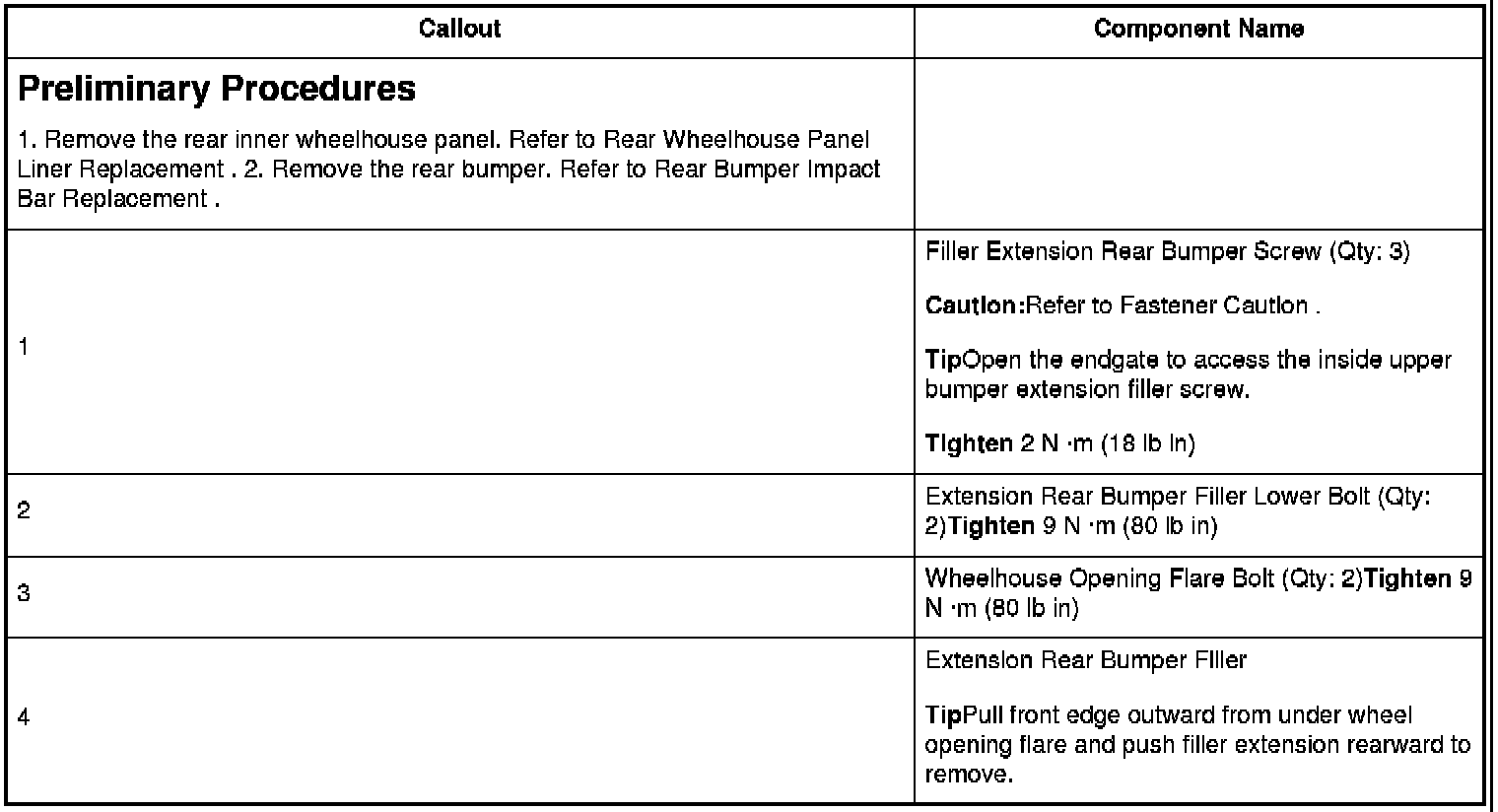

Preliminary Procedures

Caution:Refer toFastener Caution.

TipOpen the endgate to access the inside upper bumper extension filler screw.
TightenTightenTighten
TipPull front edge outward from under wheel opening flare and push filler extension rearward to remove.
