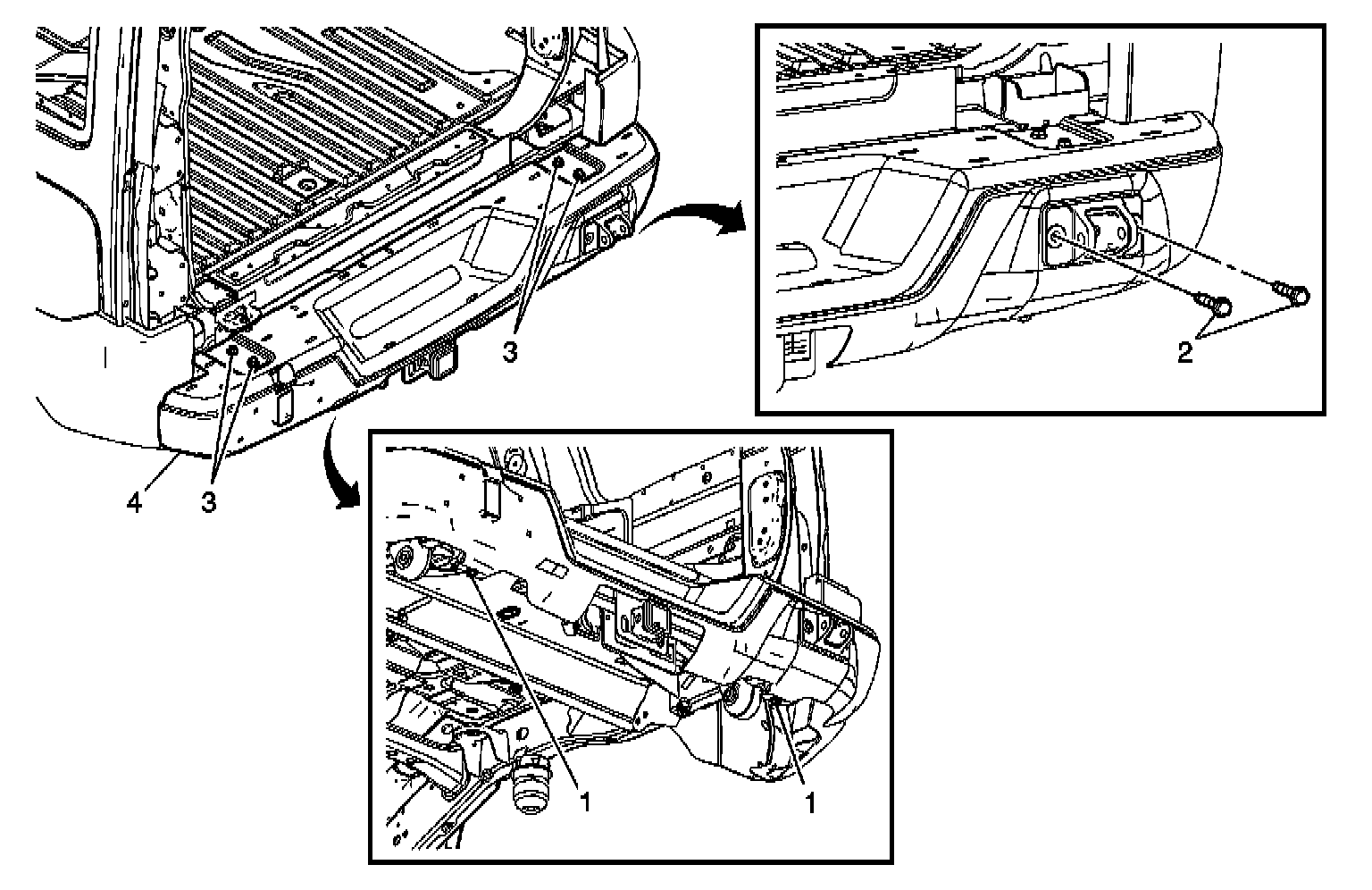

Rear Bumper Impact Bar Replacement


Rear Bumper Impact Bar Replacement

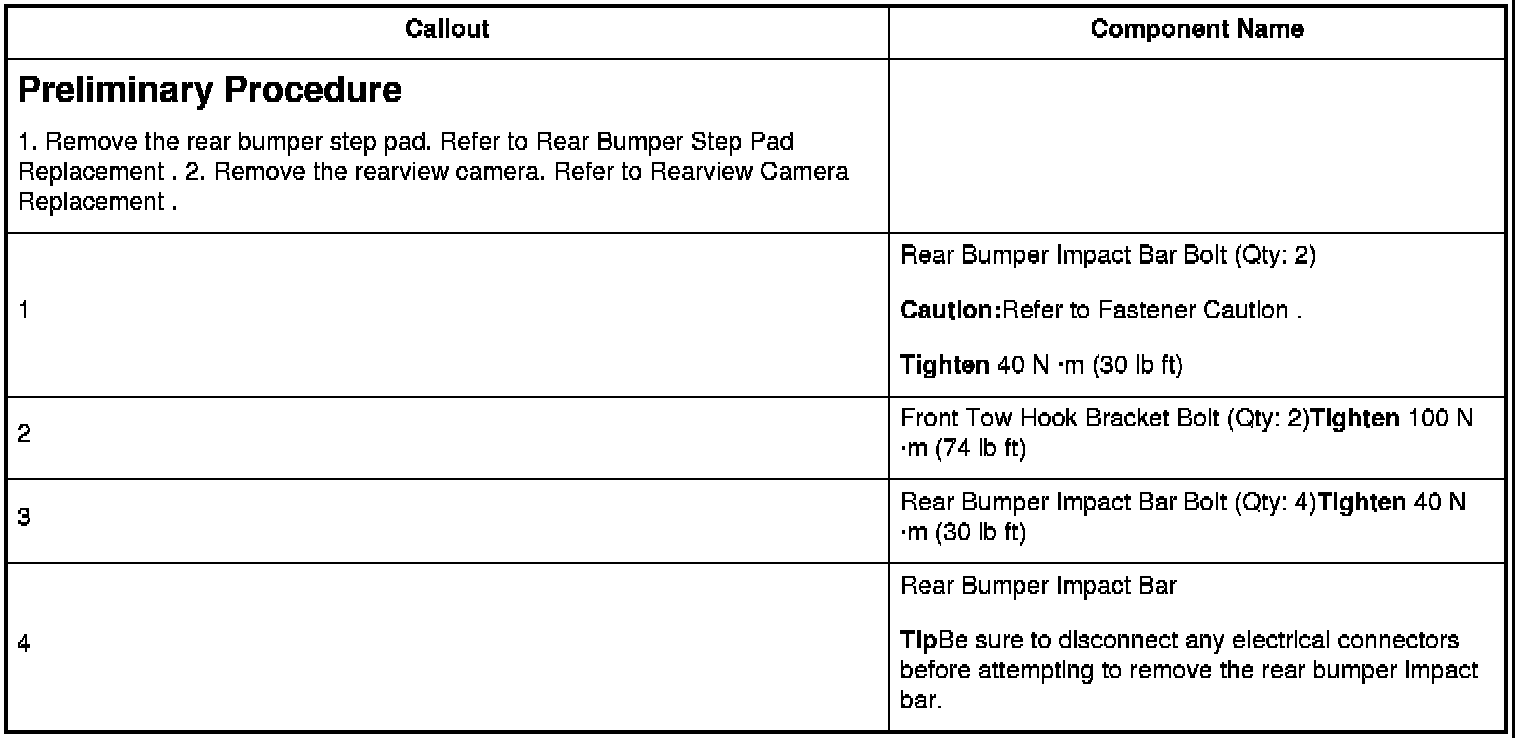

Preliminary Procedure

Caution:Refer toFastener Caution.
TightenTightenTighten
TipBe sure to disconnect any electrical connectors before attempting to remove the rear bumper impact bar.
