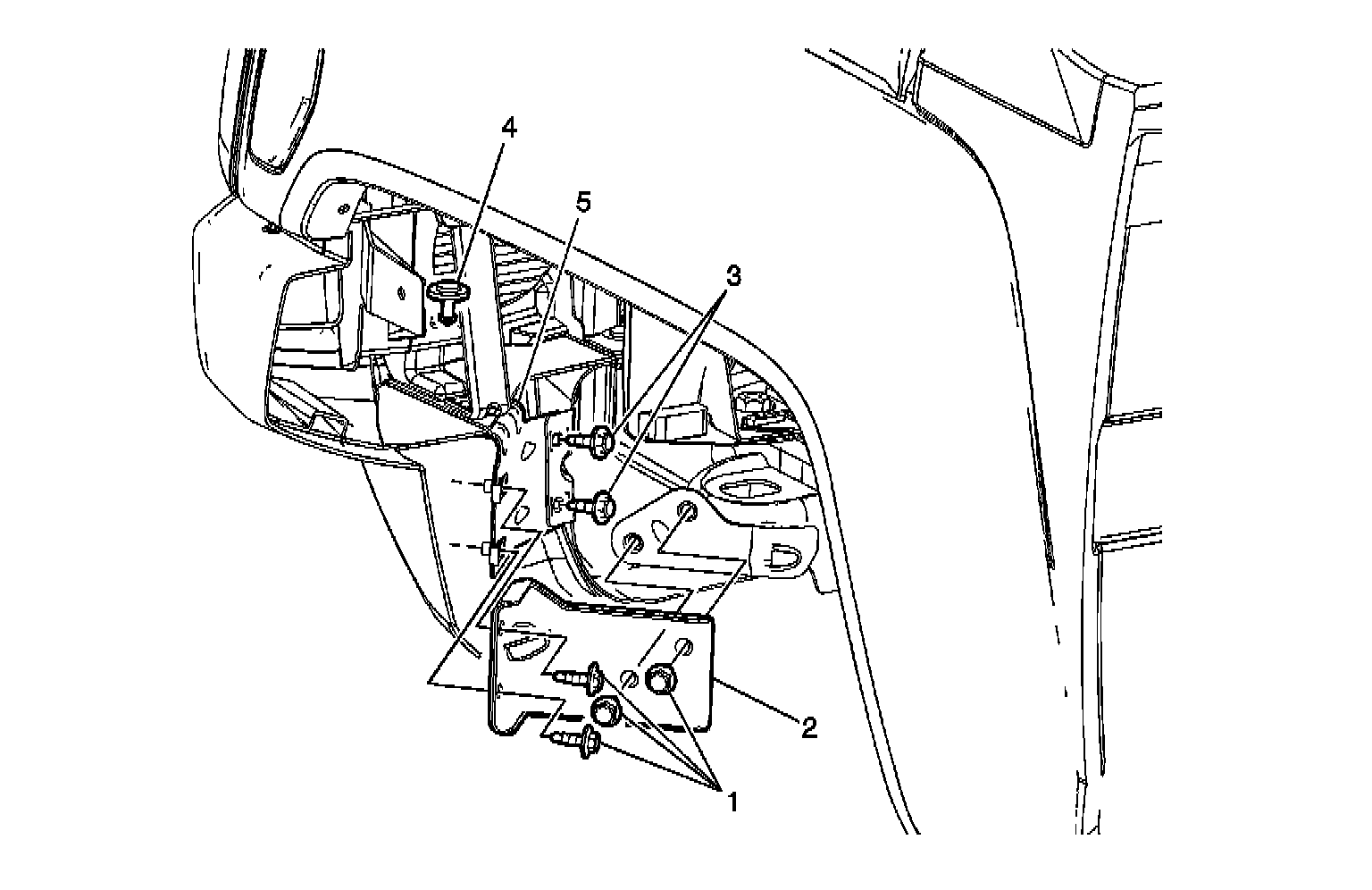

Front Bumper Impact Bar Bracket Replacement

Front Bumper Impact Bar Bracket Replacement

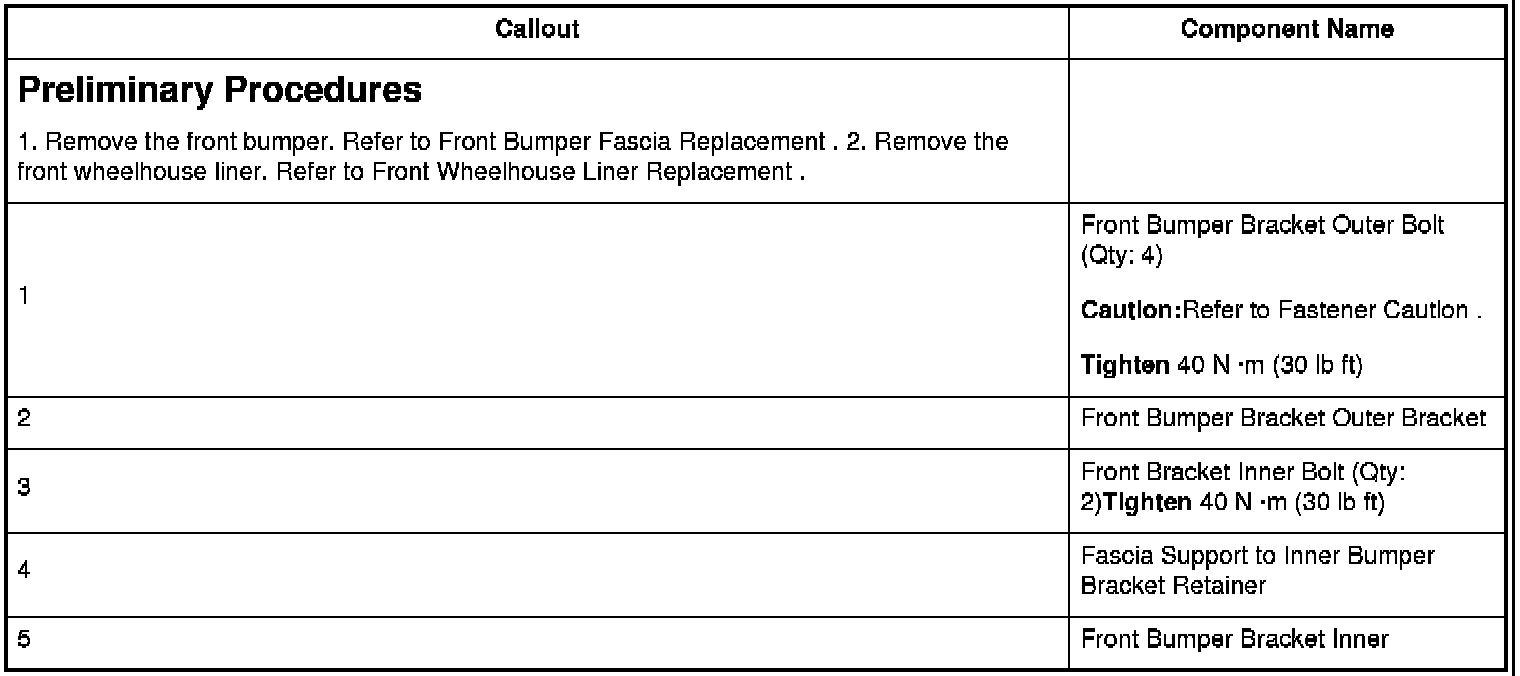

Preliminary Procedures

Caution:Refer toFastener Caution.
TightenTighten
