Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Rear Vision Camera >> Service and Repair >> Rearview Camera Image Display Module Replacement

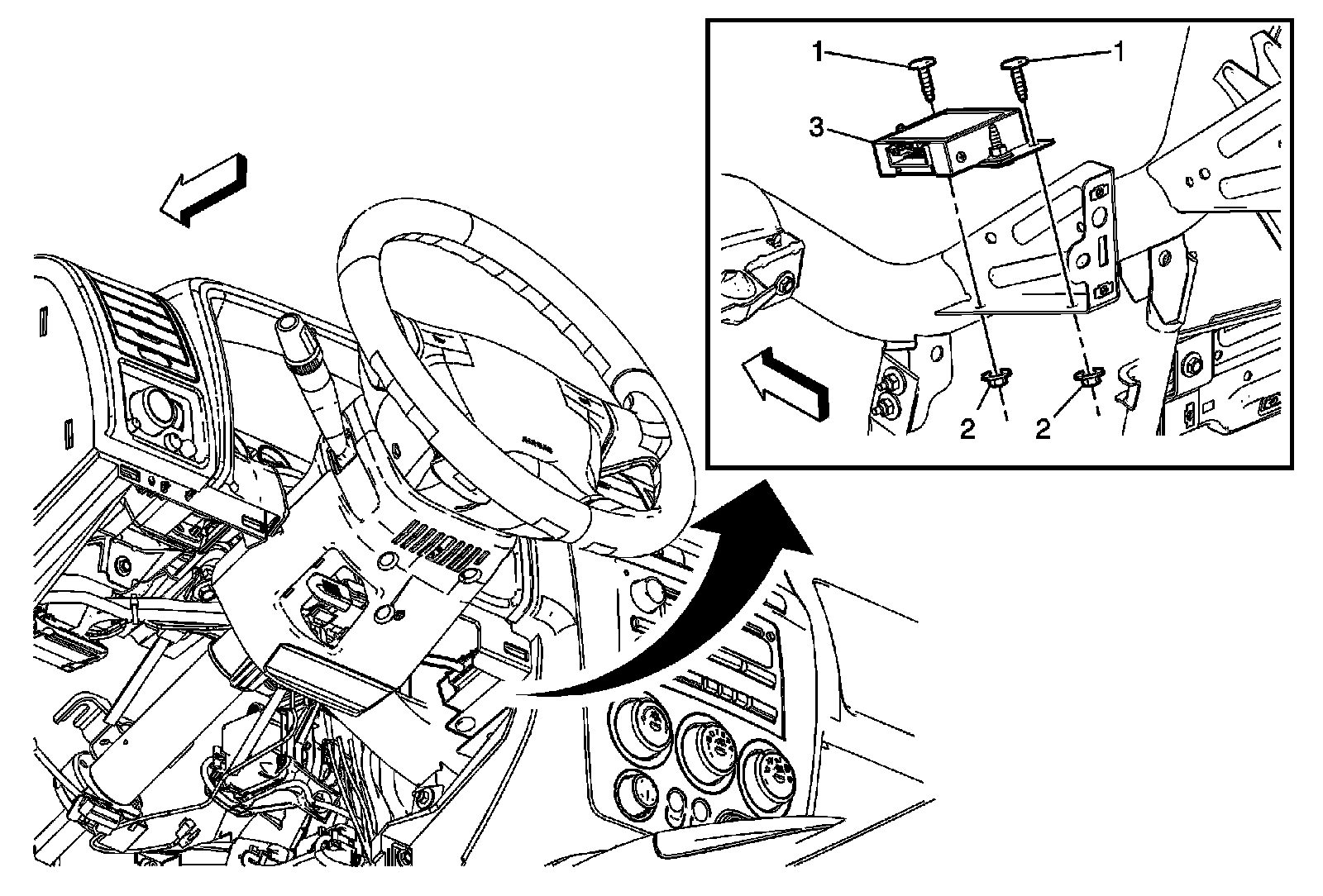

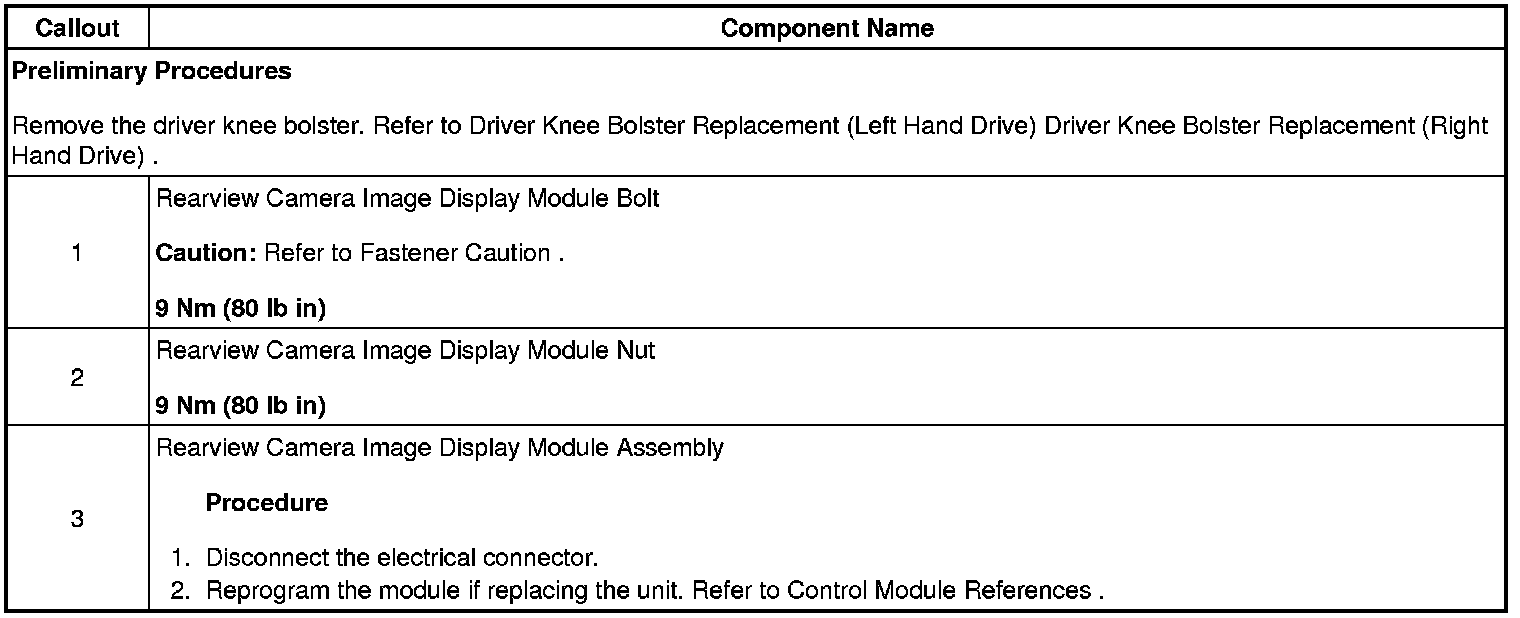

Rearview Camera Image Display Module Replacement




Rearview Camera Image Display Module Replacement
