FSCM

DTC P0562 (FSCM)

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.

DTC Descriptor
DTC P0562
- System Voltage Low - FPCM

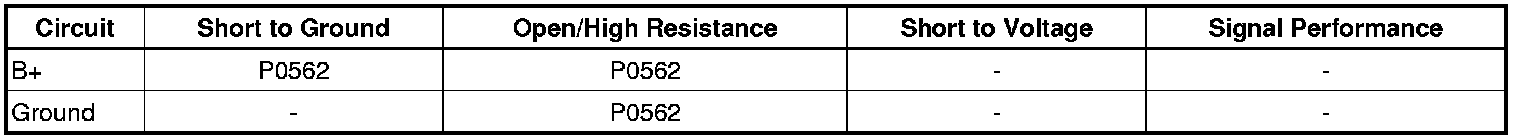

Diagnostic Fault Information





Circuit/System Description

The fuel pump control module (FPCM) monitors the system voltage to ensure that the voltage stays within the proper range. Damage to components, and incorrect data may occur when the voltage is out of range.

Conditions for Running the DTC

The engine is running.

Conditions for Setting the DTC

The FPCM detects that the battery voltage is less than 9 V.

Action Taken When the DTC Sets

DTC P0562 is a type C DTC.

Conditions for Clearing the DTC

DTC P0562 is a type C DTC.

Reference Information
Schematic Reference

Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector End Views By Name)
Description and Operation

Charging System Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Diagnostic Trouble Code Descriptions)
Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Testing

1. Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 V.

• If not within the specified range, refer to Charging System Test (Component Tests and General Diagnostics).

2. Ignition OFF, disconnect the harness connectors at the FPCM.
3. Ignition OFF and scan tool disconnected, open and close the driver door, and wait 1 minute. Test for less than 5 Ohms between the ground circuit terminal 1 and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

4. Verify that a test lamp illuminates between the B+ circuit terminal 32 and ground.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

5. If all circuits test normal, replace the FPCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

Control Module References (Programming and Relearning) for FPCM replacement, setup, and programming.
