B0827

DTC B0827

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.

DTC Descriptor
DTC B0827
- Traction Control Switch Off Indicator Circuit Low

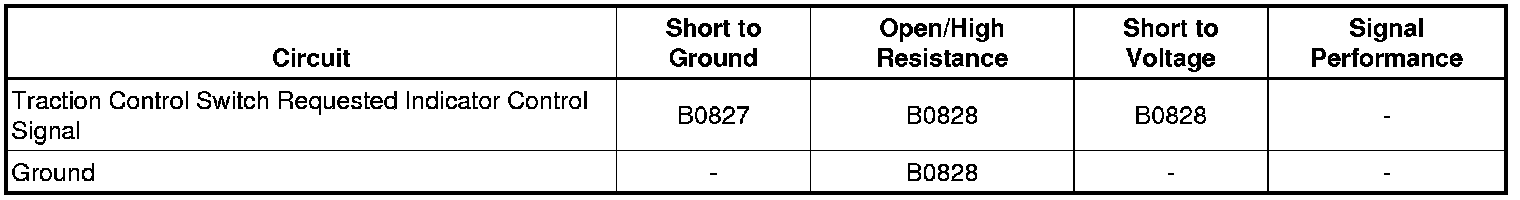

Diagnostic Fault Information





Circuit/System Description

After the traction control switch is pressed and released, the LED on the switch illuminates. The body control module (BCM) illuminates the LED by supplying adequate current to the high side of the LED.

Conditions for Running the DTC

* Ignition ON.
* Ignition voltage is greater than 10 V.

Conditions for Setting the DTC

The BCM detects low voltage on the traction control requested indicator control circuit when the LED is switched ON.

Action Taken When the DTC Sets

* The EBCM disables the Antilock Brake System (ABS), Traction Control System, and the Vehicle Stability Enhancement System for the duration of the ignition cycle.
* A Driver Information Center message and/or a warning indicator may be displayed.

Conditions for Clearing the DTC

* The condition for setting the DTC is no longer present.
* The EBCM clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Reference Information
Schematic Reference

Antilock Brake System Schematics (Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector End Views By Name)
Description and Operation

ABS Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the traction control switch.
2. Test for less than 5 ohms between the ground circuit terminal 13 and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Ignition ON, verify the scan tool BCM TCS Switch State parameter is Released.

• If not the specified value, test the signal circuit terminal 14 for a short to ground. If the circuit tests normal, replace the BCM.

4. Install a 3A fused jumper wire between the signal circuit terminal 14 and the ground circuit terminal 13. Verify the scan tool BCM TCS Switch State parameter is Pressed.

• If not the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

5. If all circuits test normal, replace the traction control switch. If the DTC resets, replace the BCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Accessory Switch Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
