Thread Repair Specifications




Thread Repair Specifications

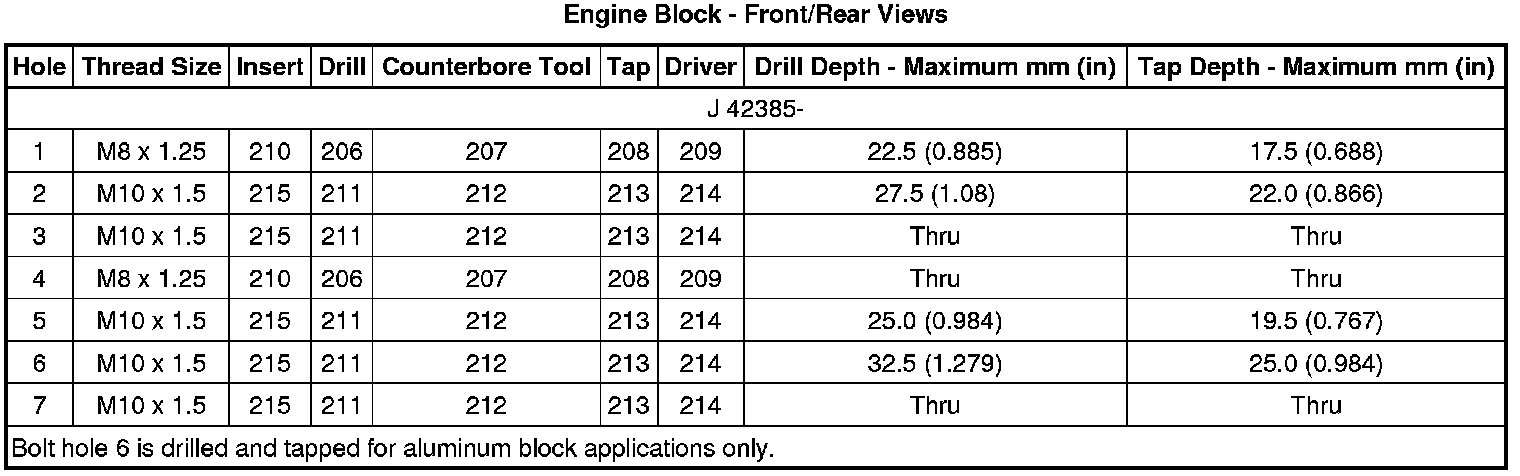

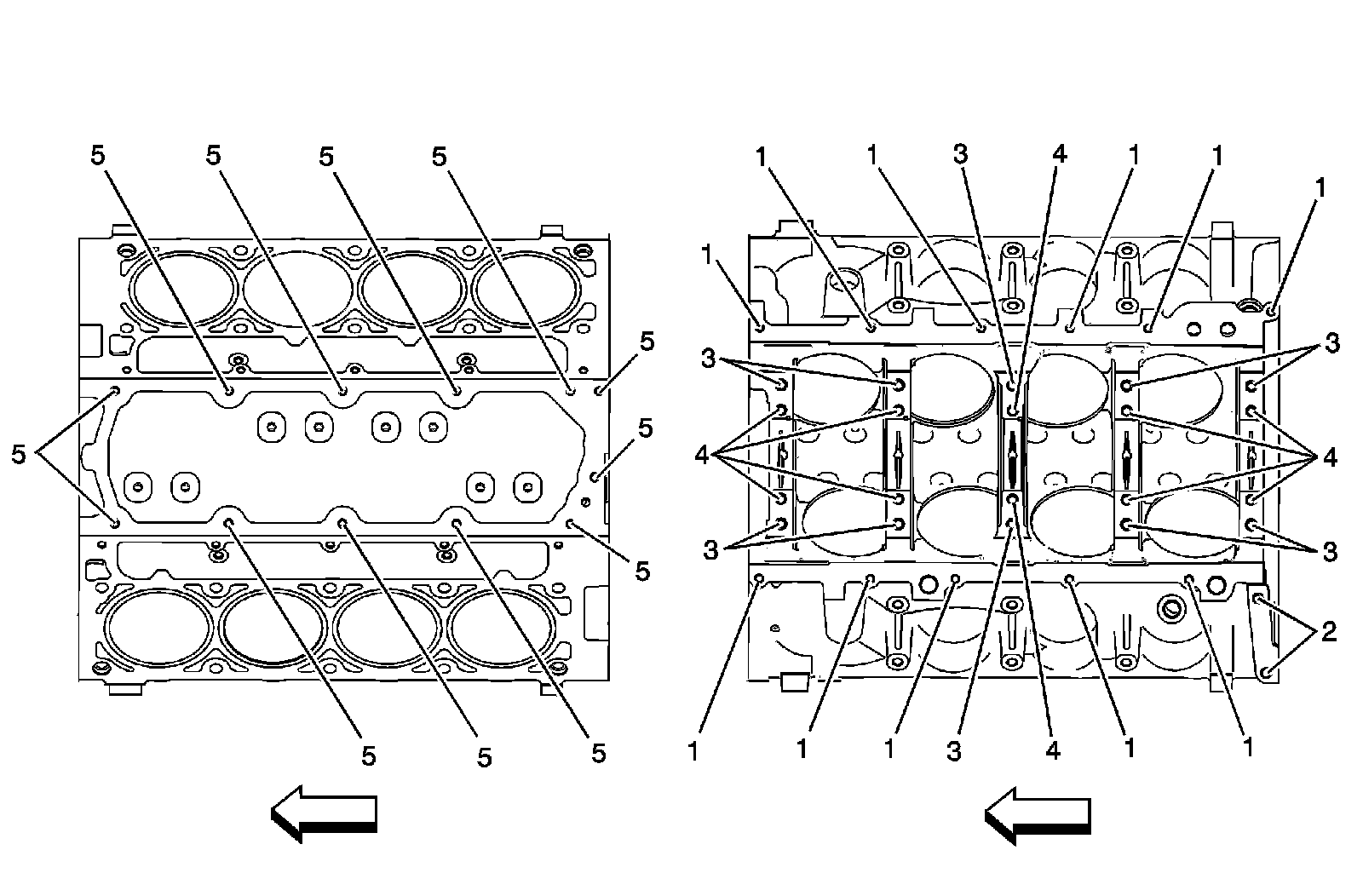

Engine Block - Front/Rear Views

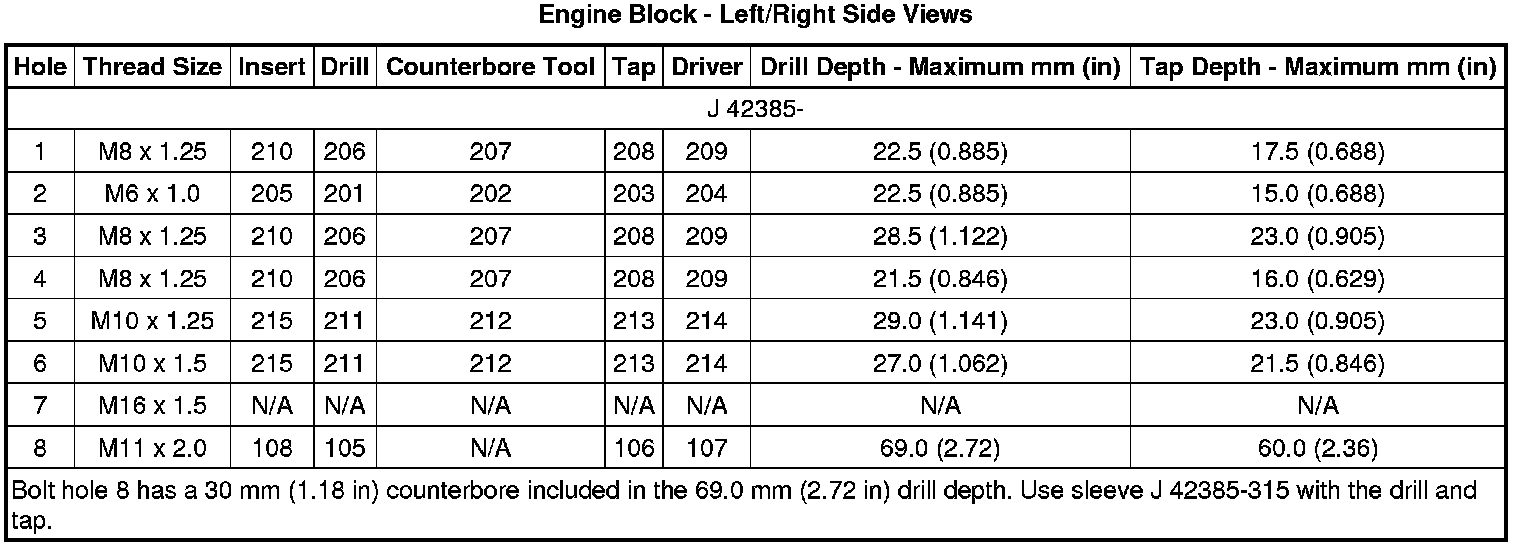

Engine Block - Left/Right Side Views

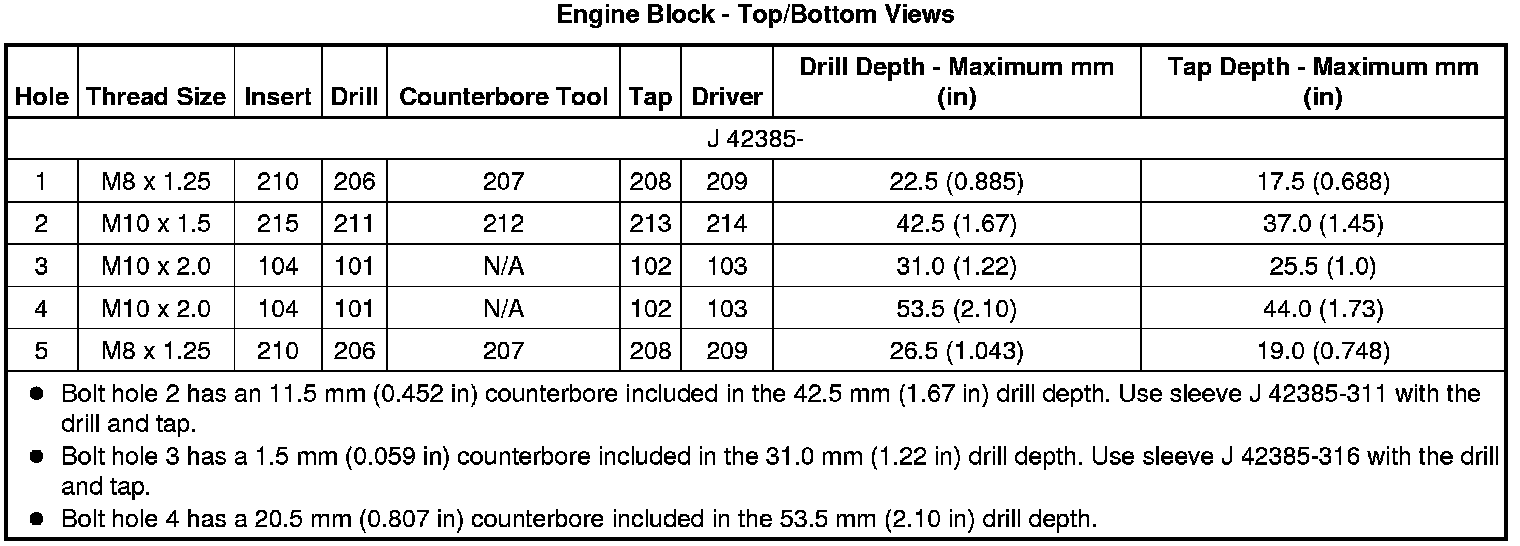

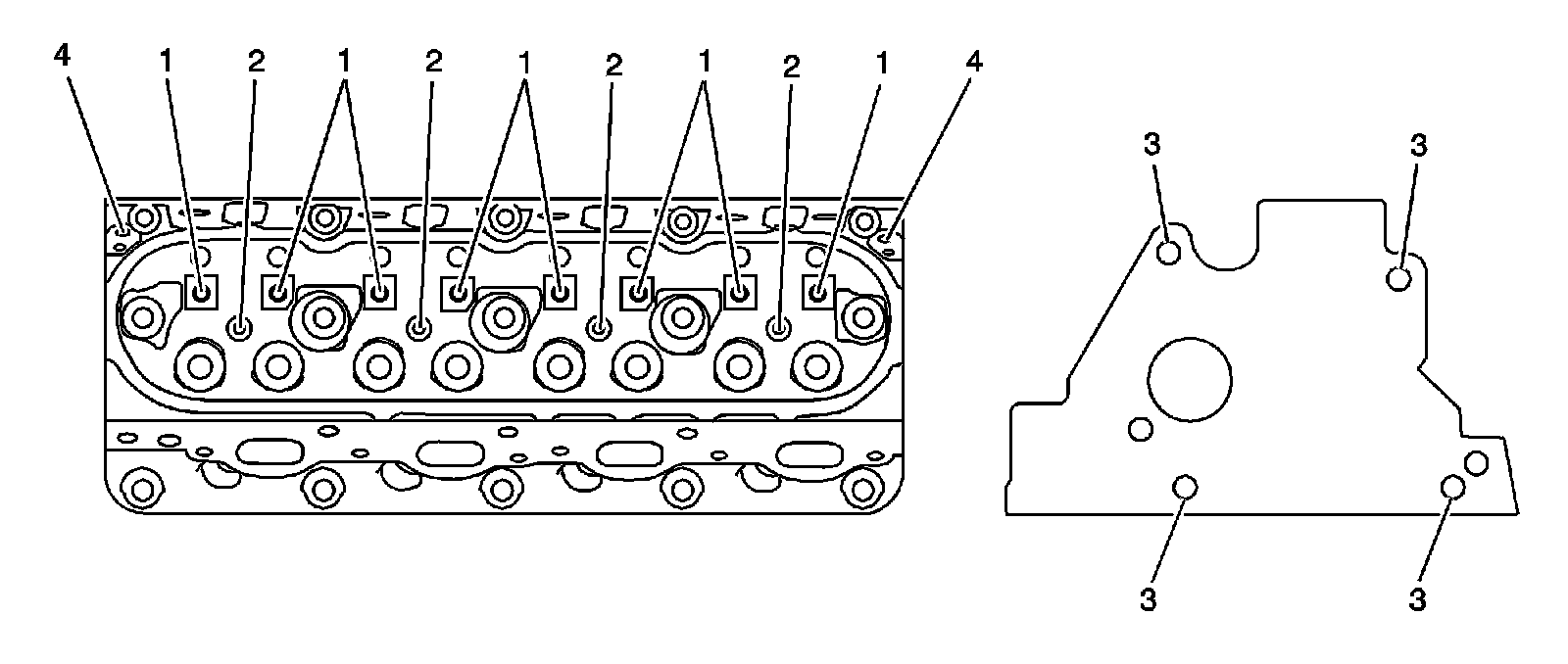

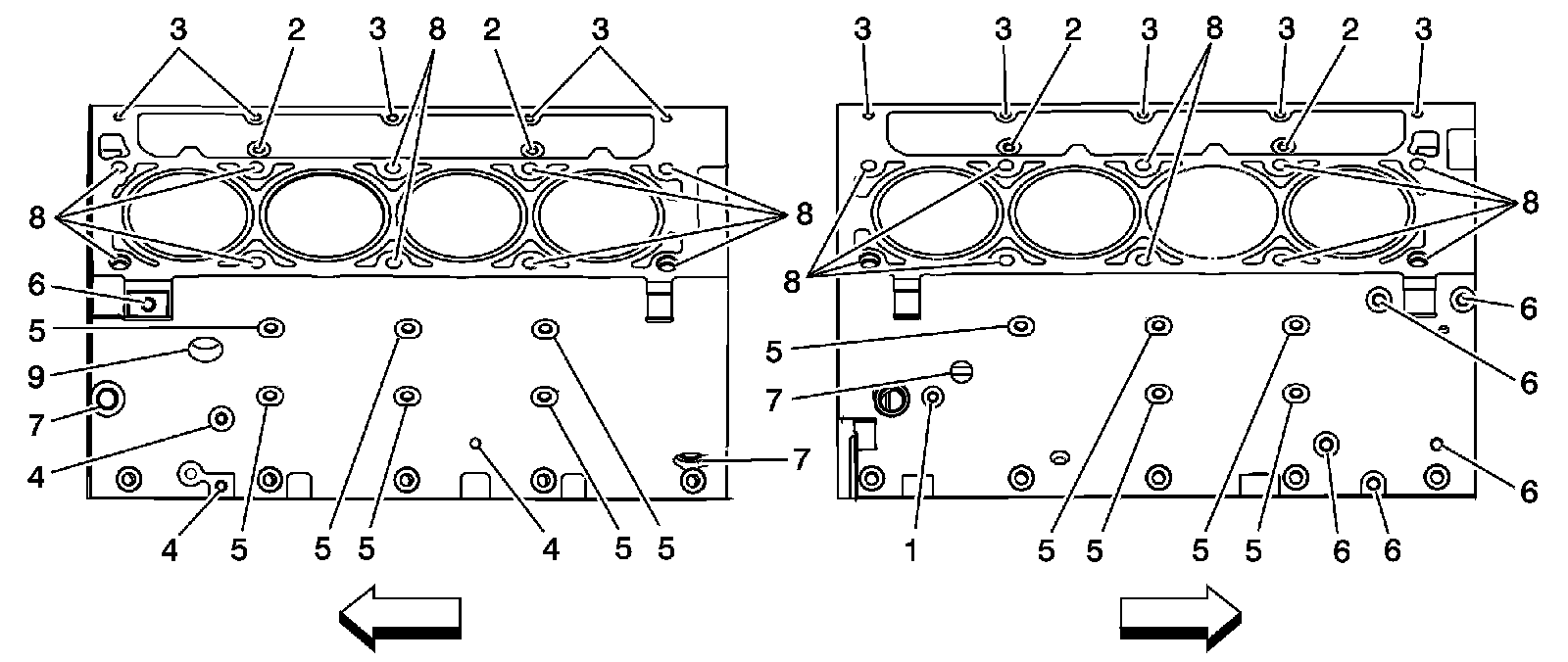

Engine Block - Top/Bottom Views

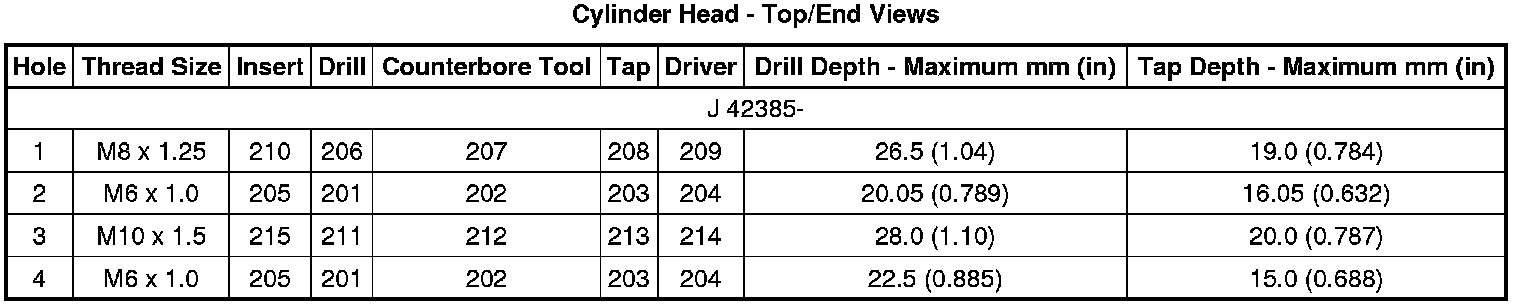

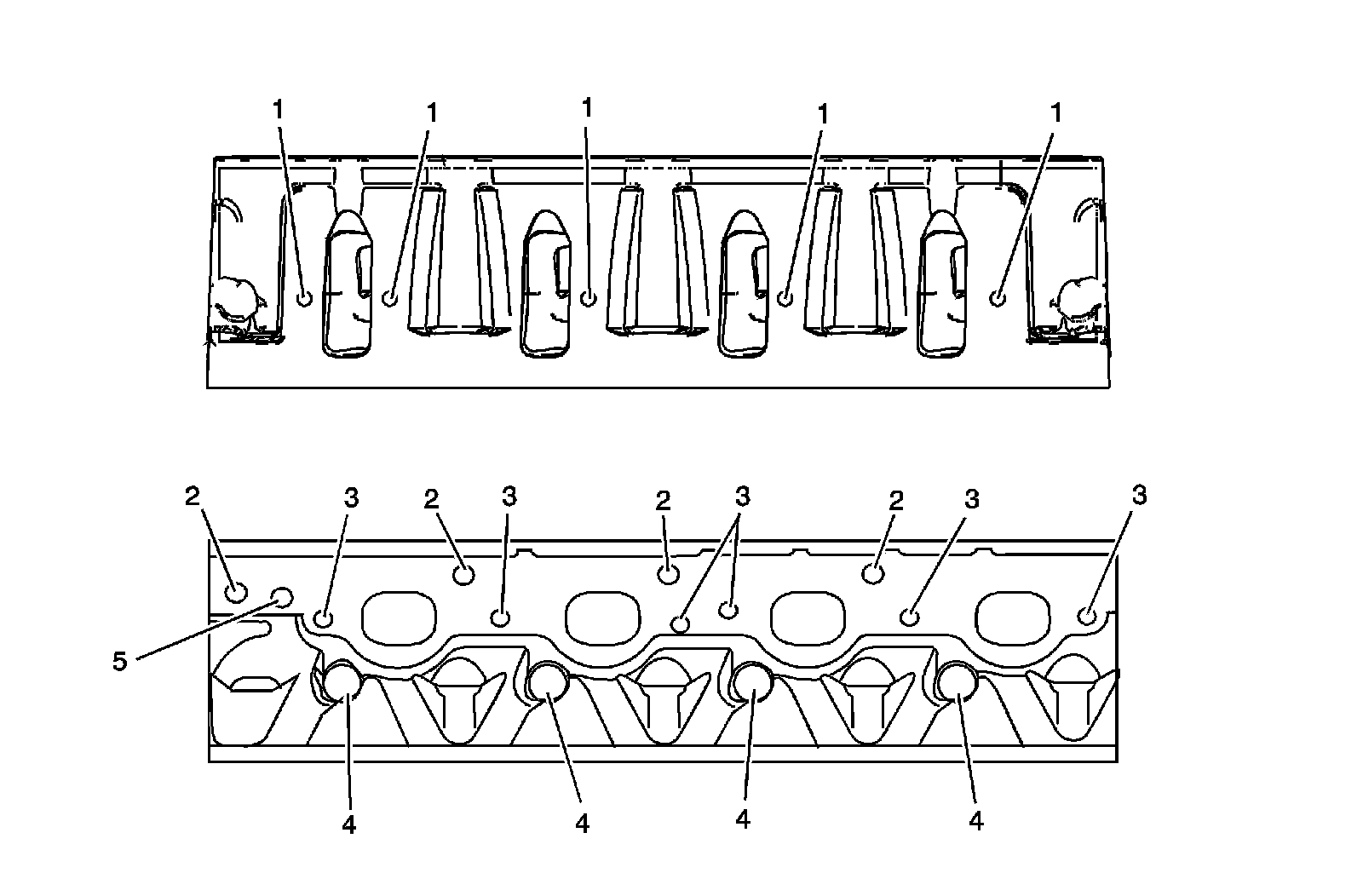

Cylinder Head - Top/End Views

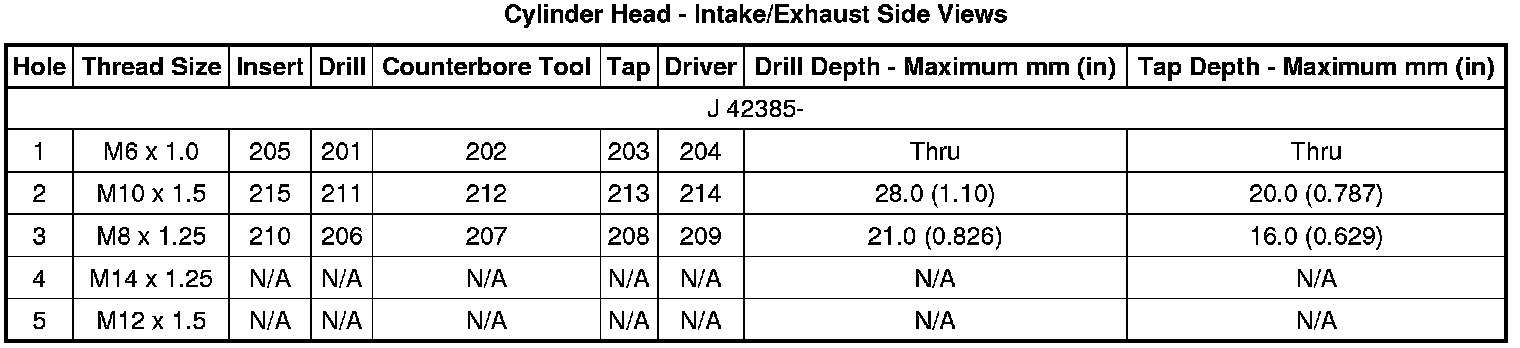

Cylinder Head - Intake/Exhaust Side Views
