Ignition Coil: Diagrams

Component Connector End Views

Ignition Coil 1 (LH8)

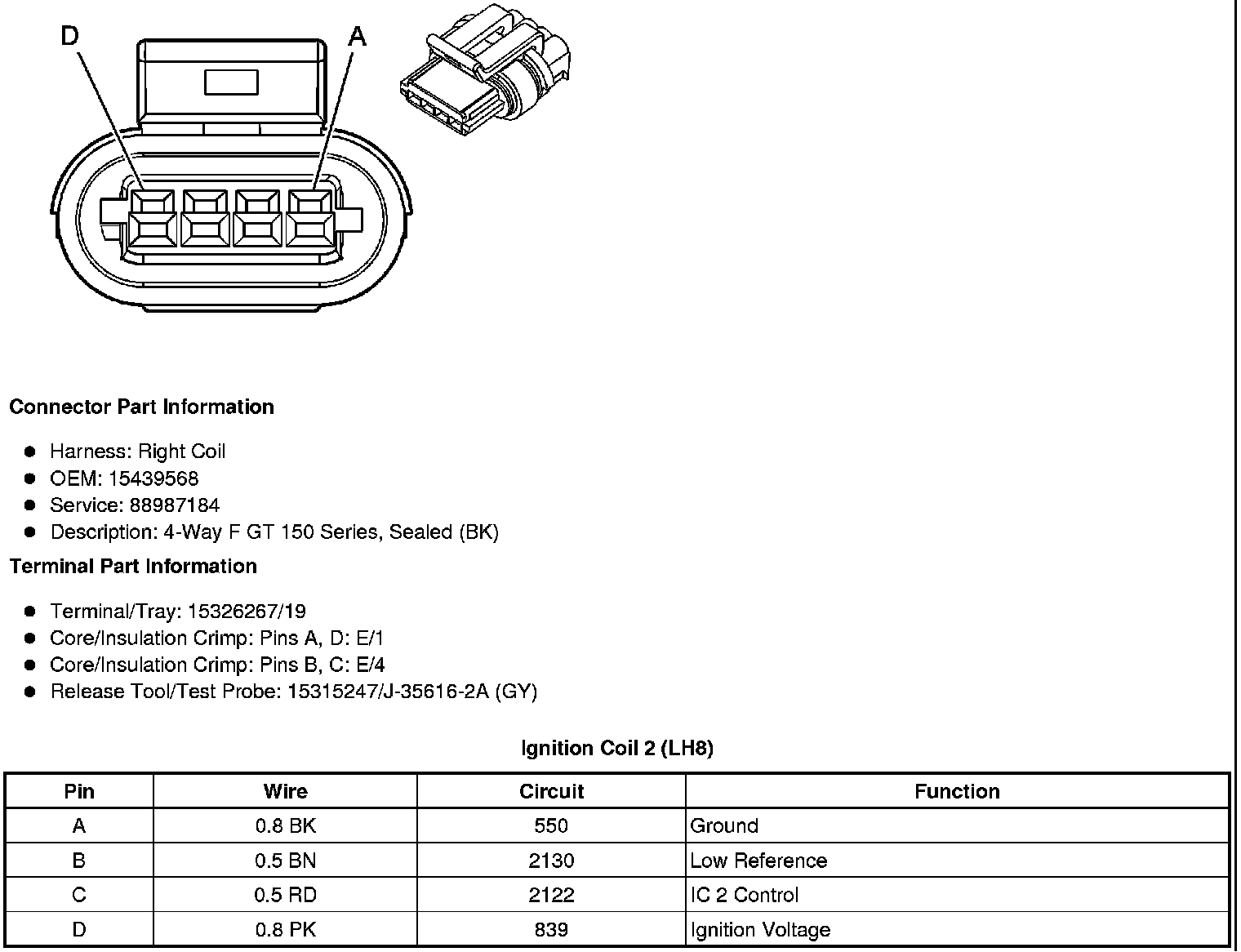

Ignition Coil 2 (LH8)

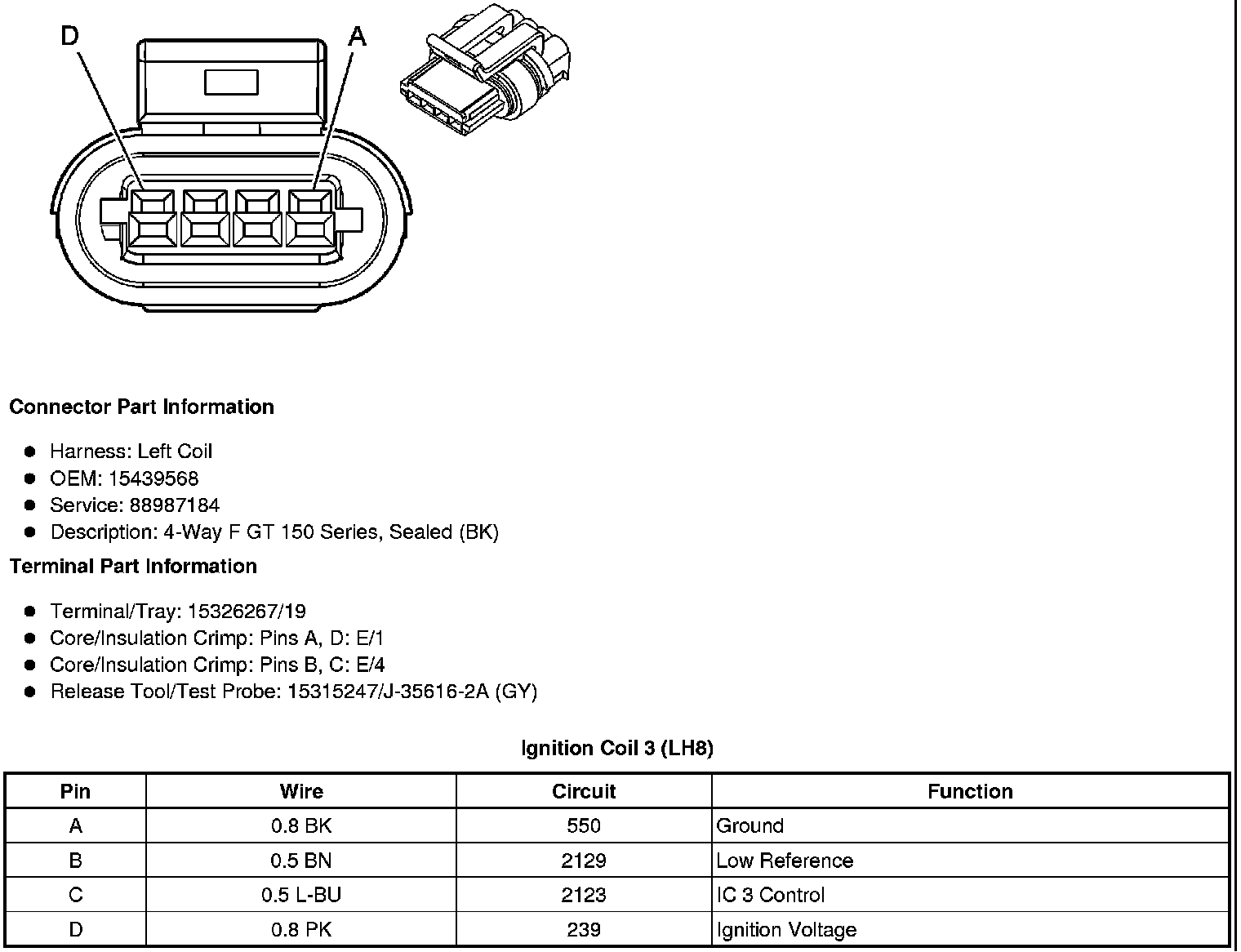

Ignition Coil 3 (LH8)

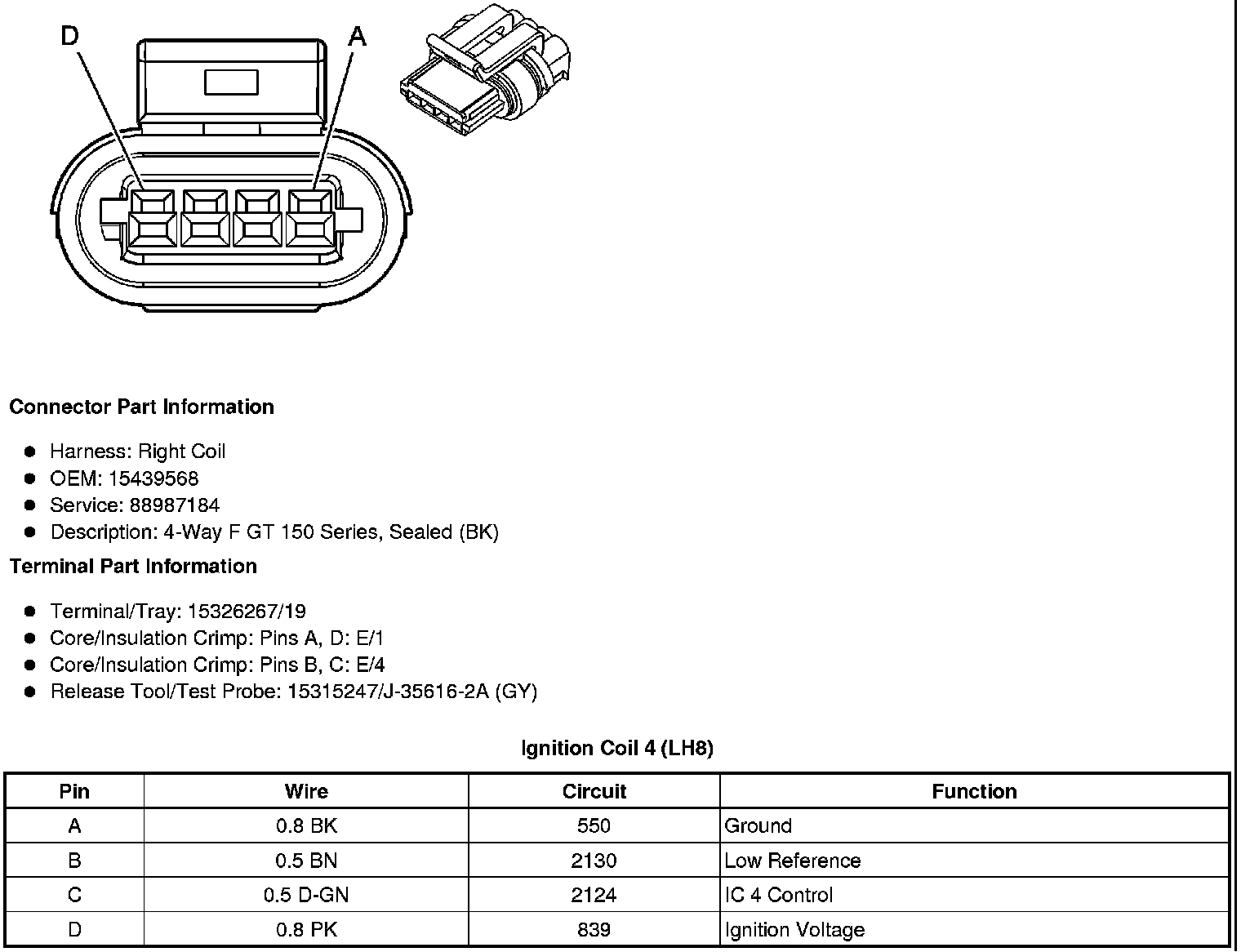

Ignition Coil 4 (LH8)

Ignition Coil 5 (LH8)

Ignition Coil 6 (LH8)

Ignition Coil 7 (LH8)

Ignition Coil 8 (LH8)
