Fuel Injector: Diagrams




Component Connector End Views

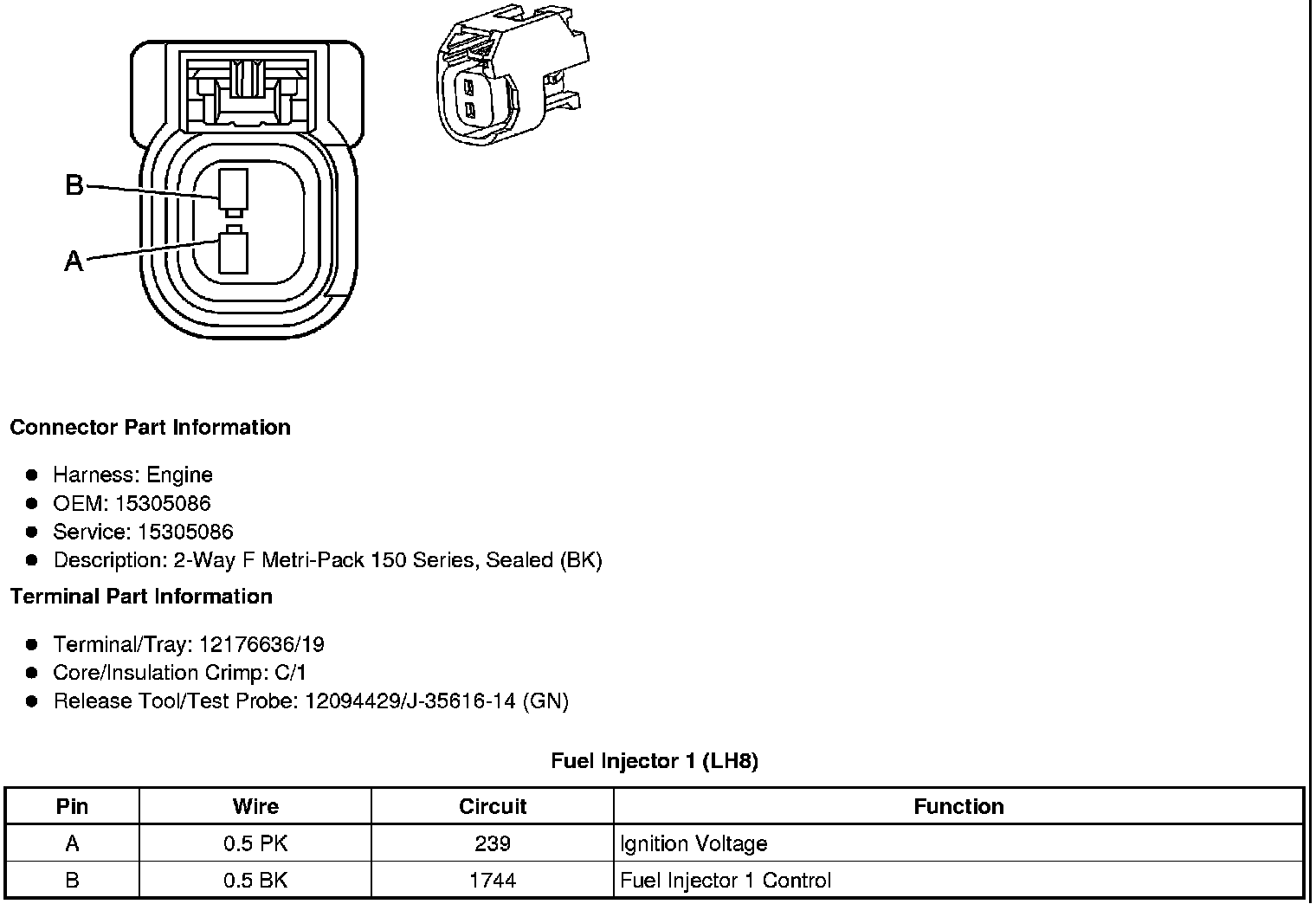

Fuel Injector 1 (LH8)






Fuel Injector 2 (LH8)

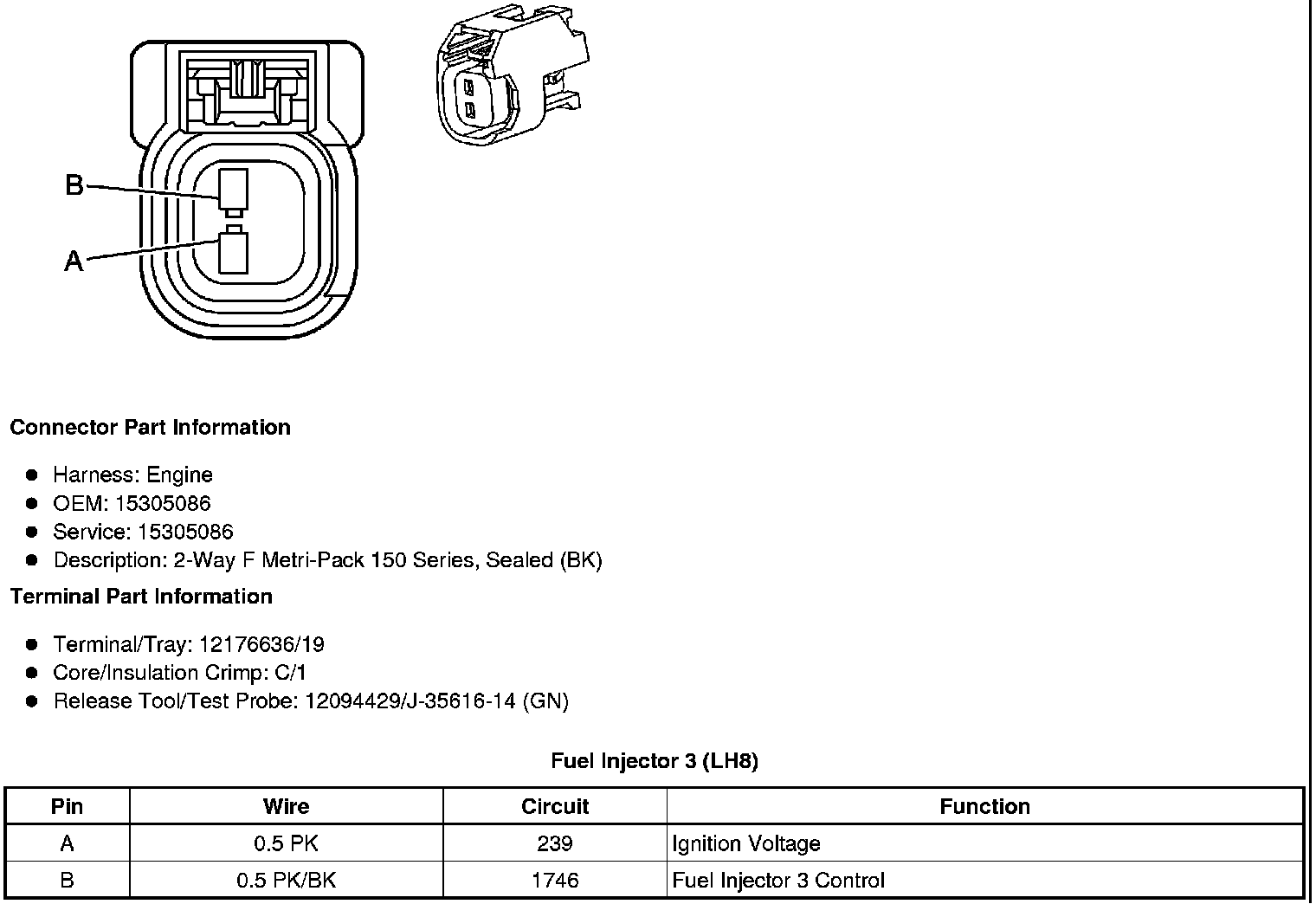

Fuel Injector 3 (LH8)






Fuel Injector 4 (LH8)






Fuel Injector 5 (LH8)






Fuel Injector 6 (LH8)






Fuel Injector 7 (LH8)

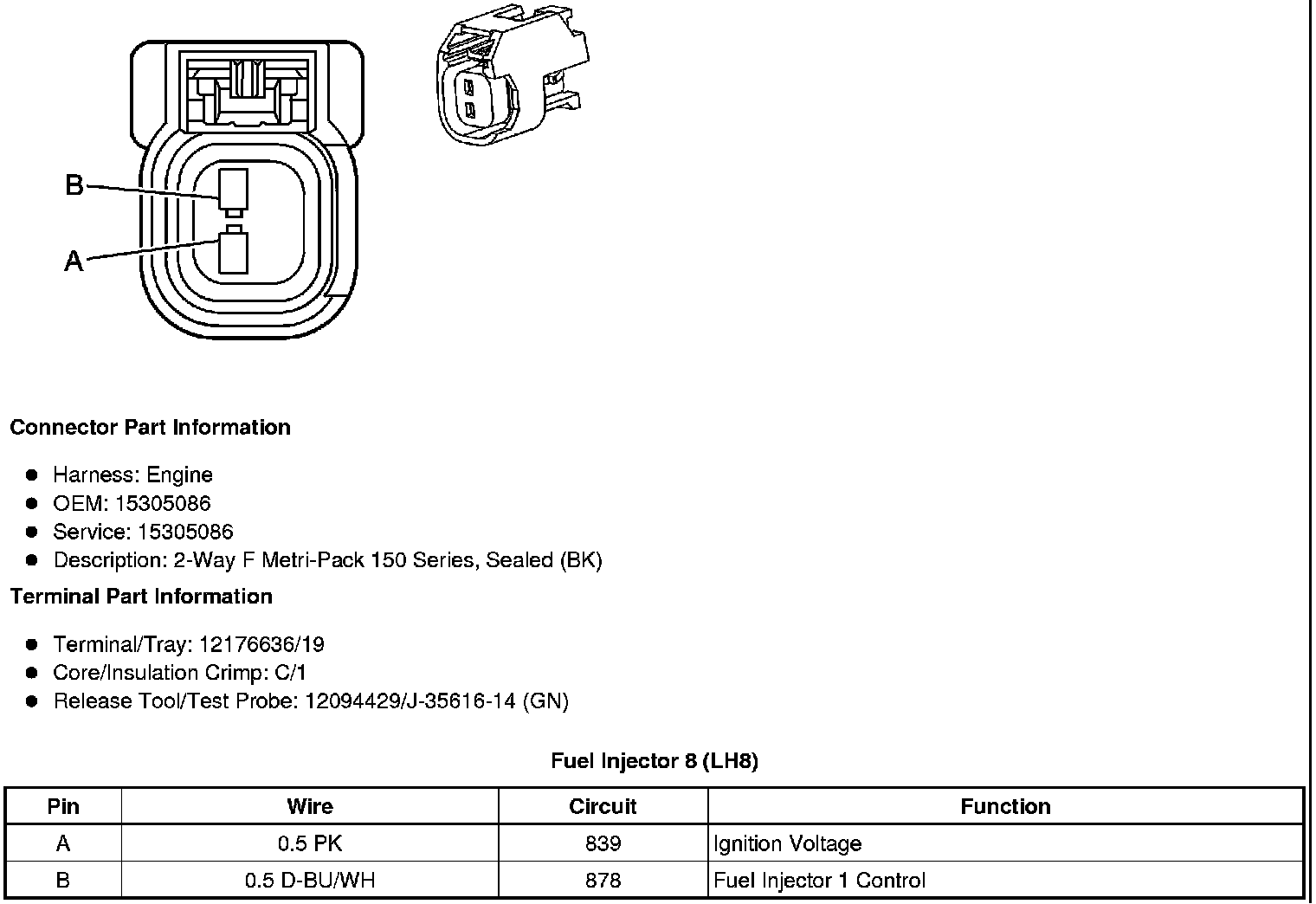

Fuel Injector 8 (LH8)
