Power Window Motor: Diagrams




Component Connector End Views

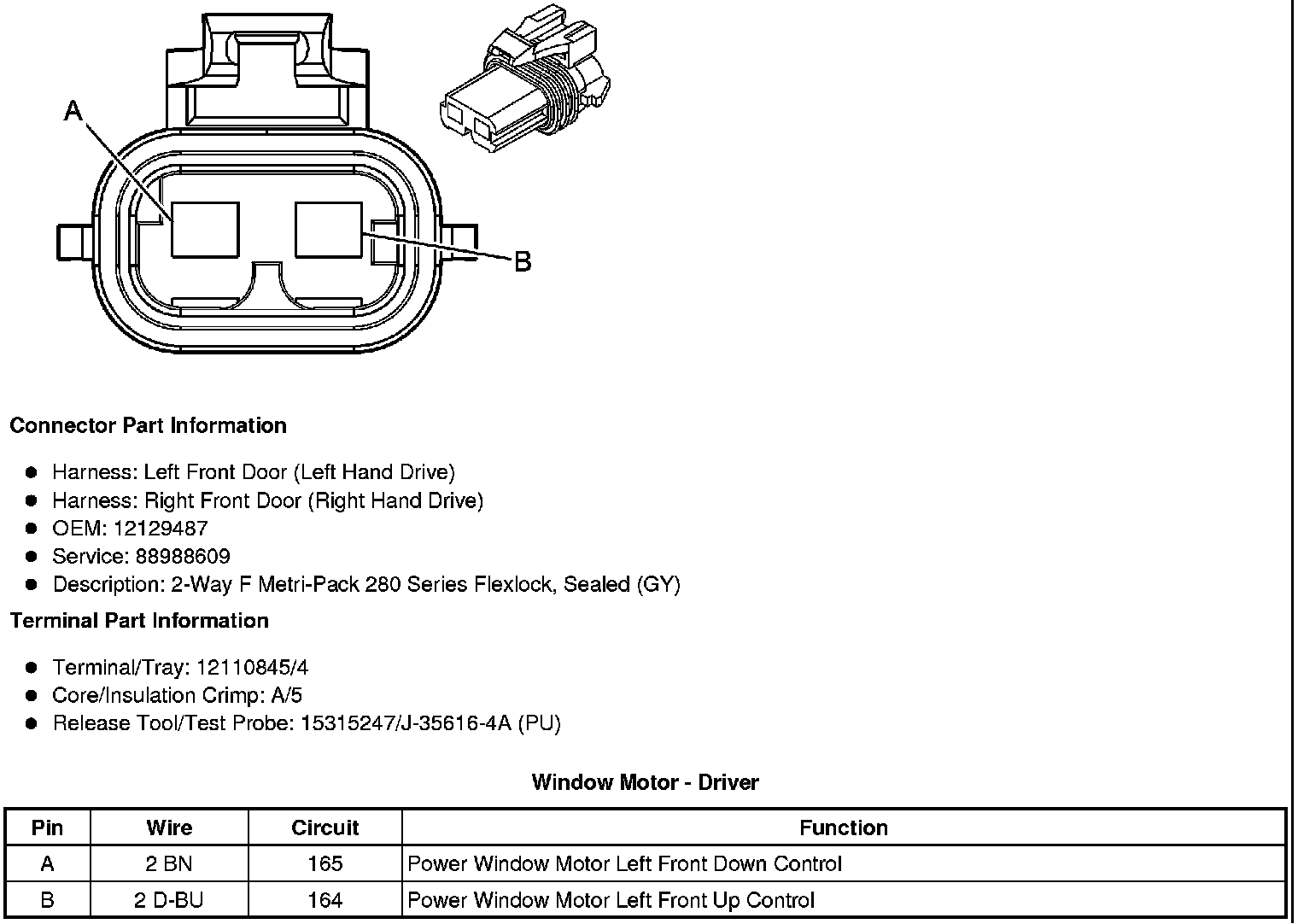

Window Motor - Driver

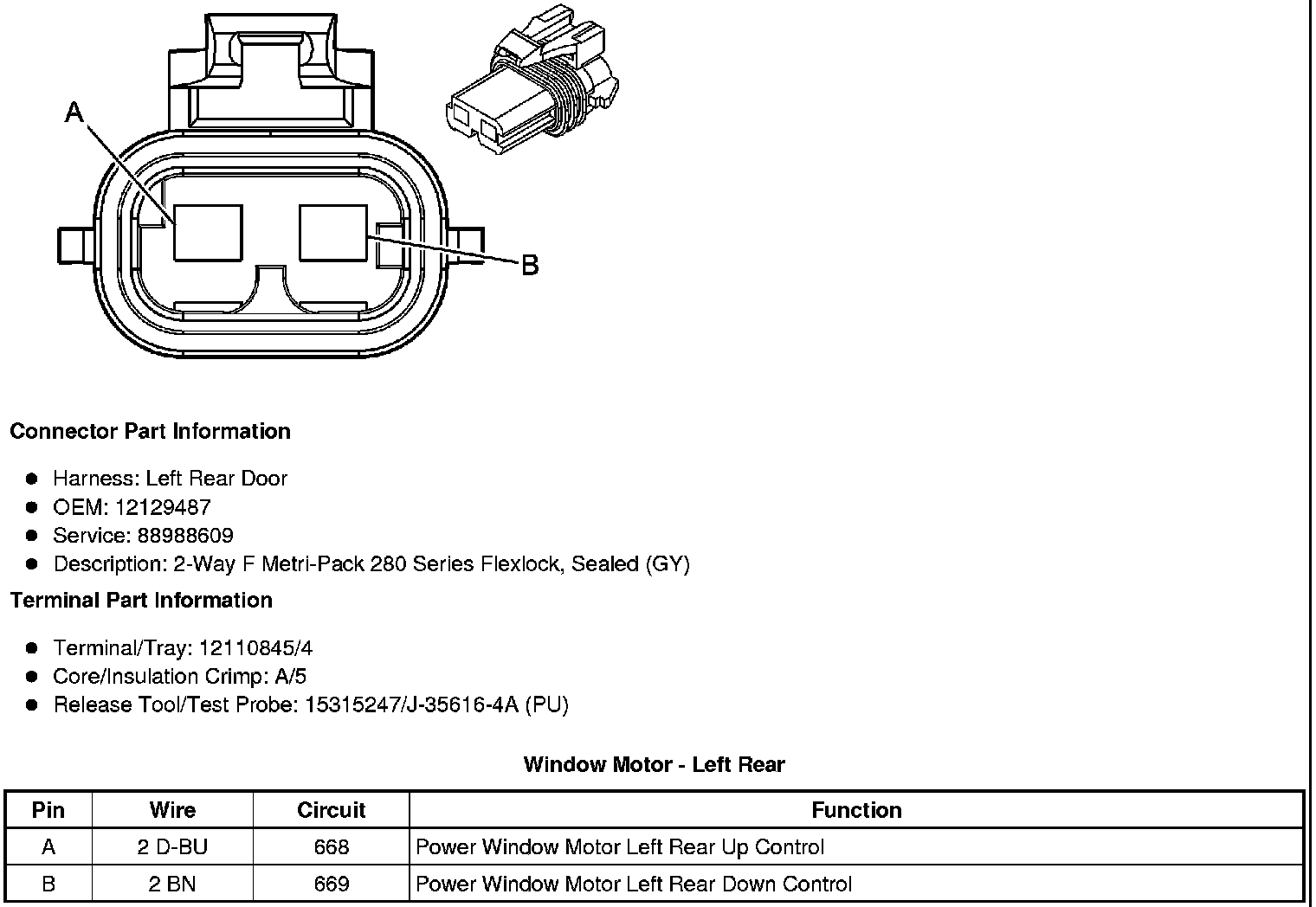

Window Motor - Left Rear

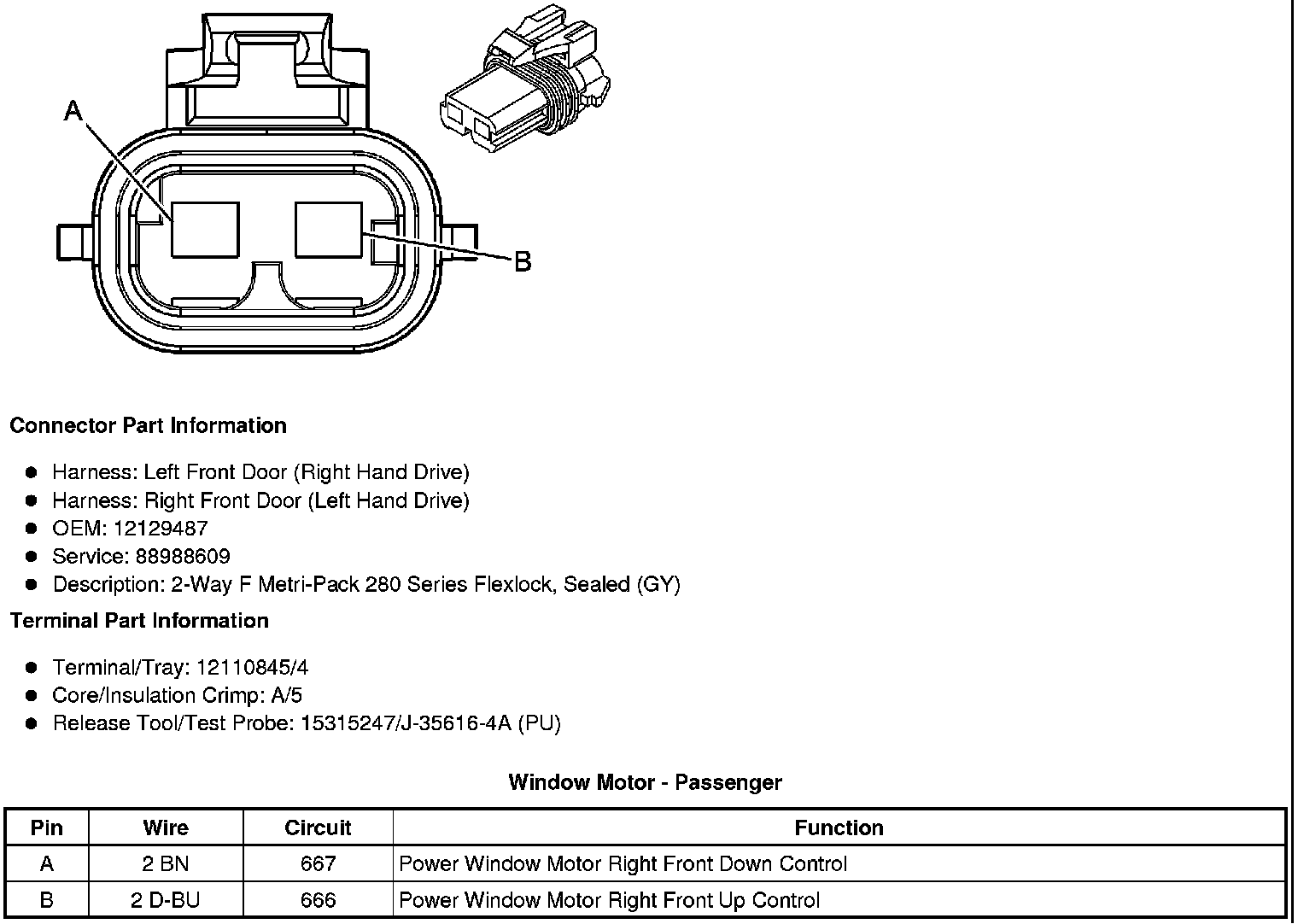

Window Motor - Passenger






Window Motor - Right Rear
