Transmission Housing Oil Seal Replacement - Rear

Transmission Housing Oil Seal Replacement - Rear

Tools Required
* J 6125-1B Slide Hammer
* J 23129 Universal Seal Remover
* J 45867 4WD Output Shaft Seal Installer

Removal Procedure

1. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement (Transfer Case Assembly Replacement).

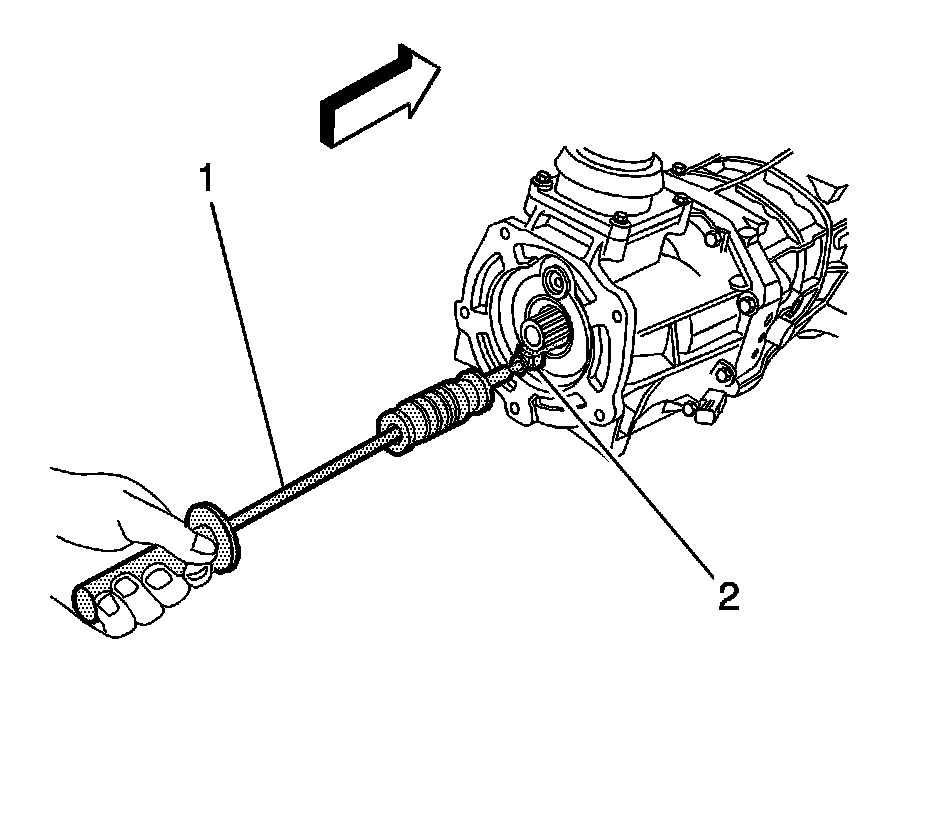

2. Using the J 6125-1B (1) and J 23129 (2) remove the rear transmission housing oil seal from the housing.

Installation Procedure




1. Using the J 45867 and a hammer, install the NEW rear transmission housing oil seal.
2. Check the transmission fluid level. Add if necessary. Refer to Transmission Fluid Replacement (Transmission Fluid Replacement).
3. Install the transfer case assembly. Refer to Transfer Case Assembly Replacement (Transfer Case Assembly Replacement).
