Vent Hose Replacement

Vent Hose Replacement

Removal Procedure




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the engine protection shield (EPS), if equipped. Refer to Engine Shield Replacement (Engine Shield Replacement).

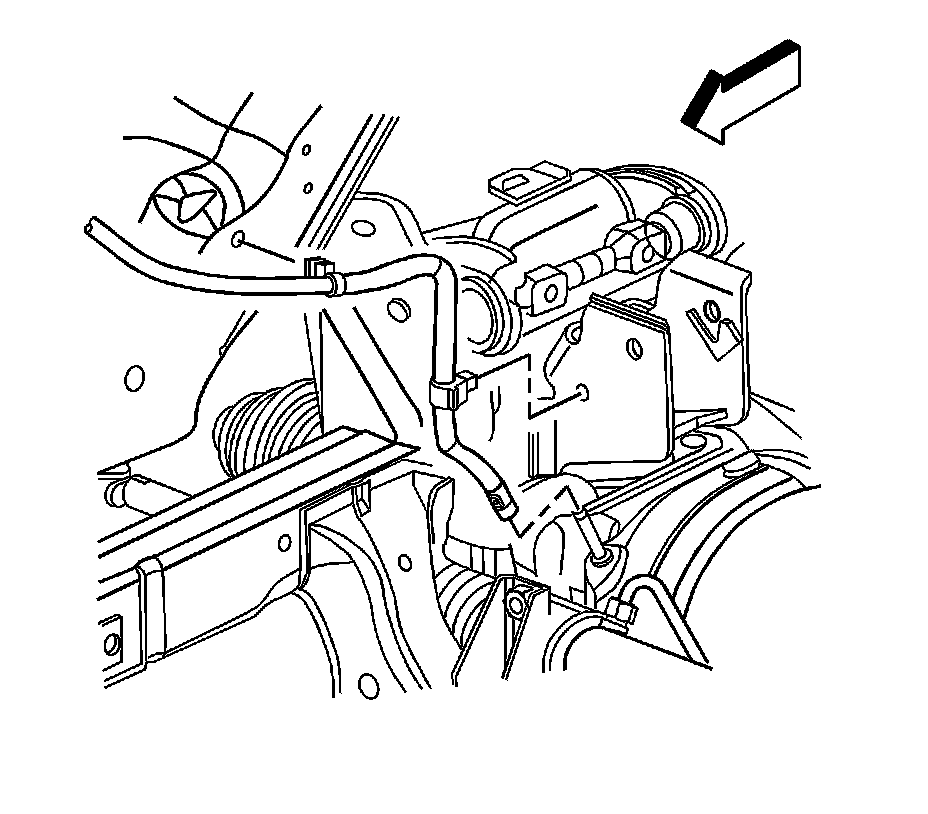

3. Remove the vent hose from the vent tube on the front differential housing.
4. Lower the vehicle.

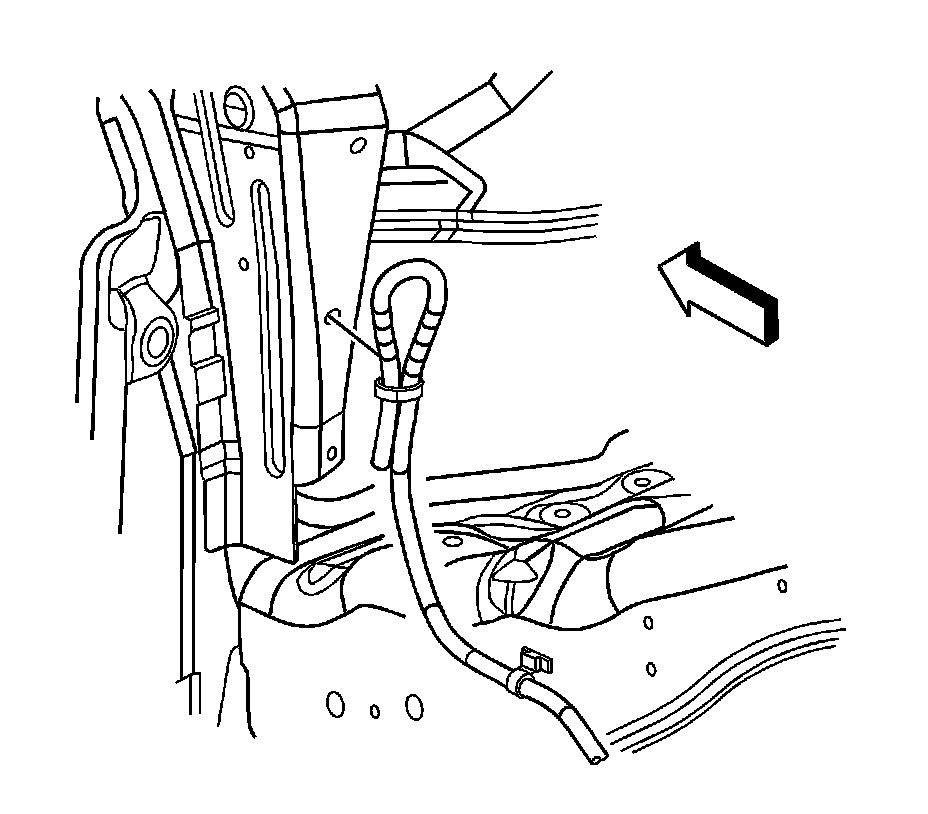

5. Remove the vent hose from the retainers on the radiator core support.

Installation Procedure




1. Install the vent hose to the retainers on the radiator core support.
2. Raise the vehicle.




3. Install the vent hose to the vent tube on the front differential housing.

Important: When installing the vent hose for the front differential, loop the vent hose so that foreign objects and debris are restricted from falling into the vent hose and blocking it.

4. Loop the vent hose about 3 inches and install in the upper retainer.




5. Install the EPS, if equipped. Refer to Engine Shield Replacement (Engine Shield Replacement).
6. Lower the vehicle.
