Front Suspension

Stabilizer Shaft Replacement

Removal Procedure

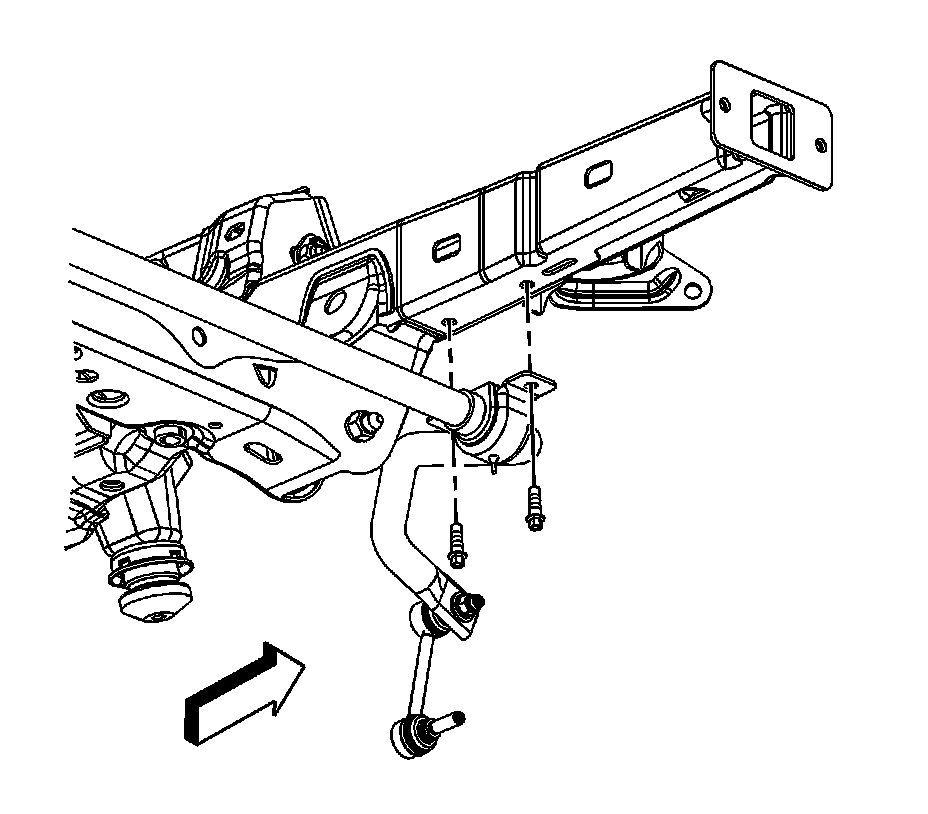

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).




2. Remove the nuts from the link assemblies.
3. Remove the link assemblies.




4. Remove the insulator clamp bolts.
5. Remove the clamps.
6. Remove the stabilizer shaft.
7. Remove the insulators.
8. Inspect all of the parts for wear and damage.

Installation Procedure

1. Install the insulators to the stabilizer shaft.




2. Install the stabilizer shaft.
3. Install the clamps over the insulators and the stabilizer shaft.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install insulator clamp bolts.

Tighten the bolts to 50 Nm (37 lb ft).

5. Support the lower control arms at curb height.




6. Install the link assemblies.
7. Install the nuts to the link assemblies.

Tighten the nut to 80 Nm (59 lb ft).

8. Lower the vehicle.
