X500

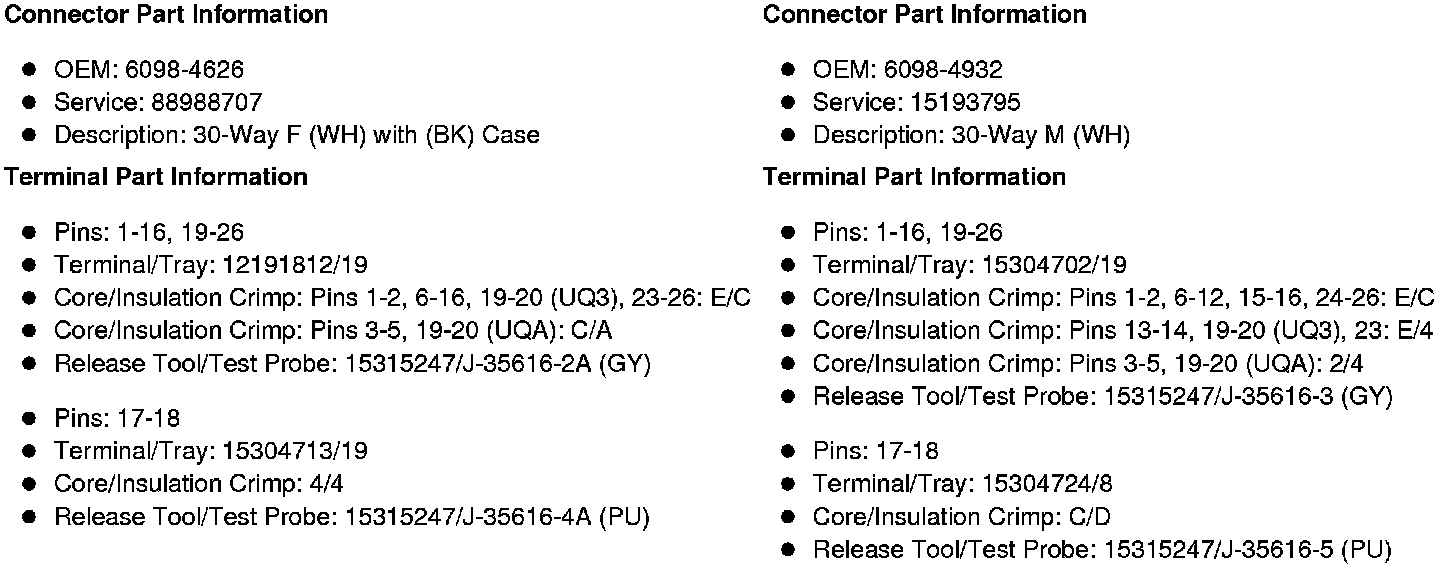

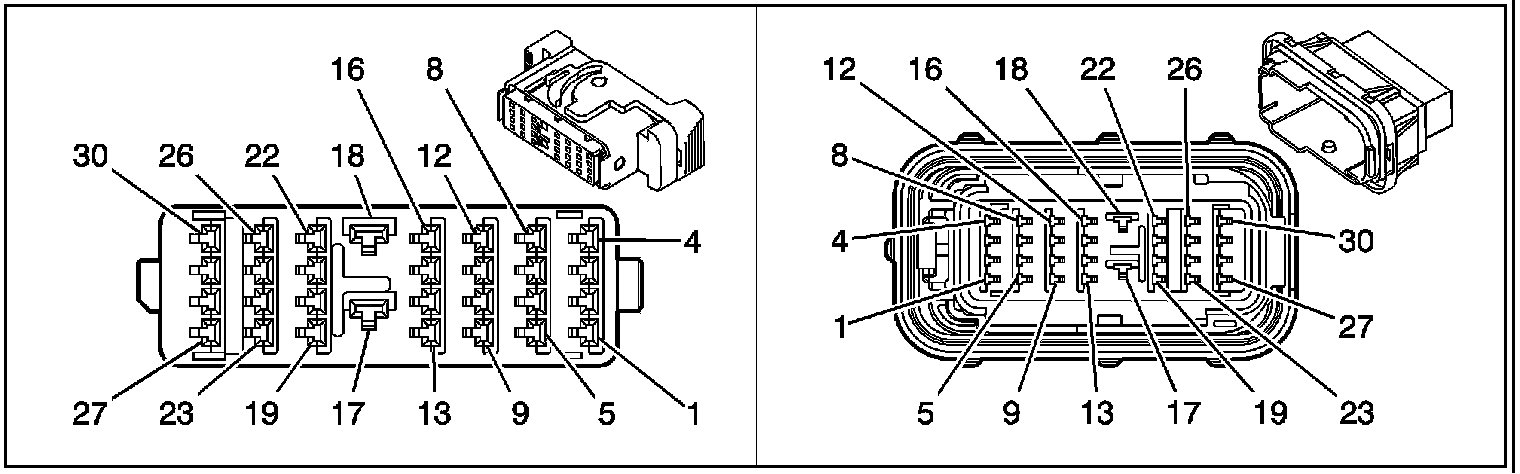

Inline Harness Connector End Views

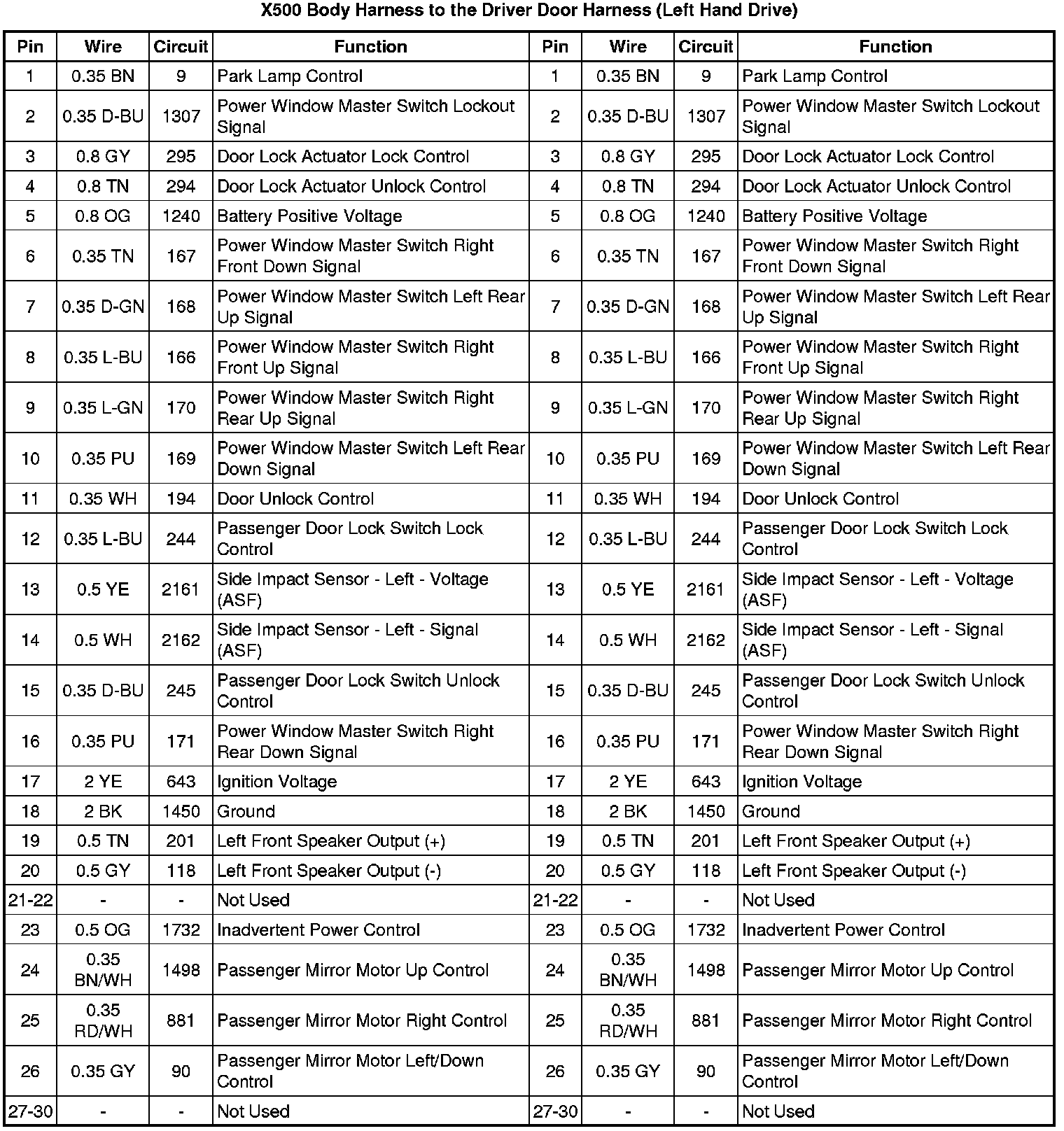

X500 Body Harness to the Driver Door Harness (Left Hand Drive)

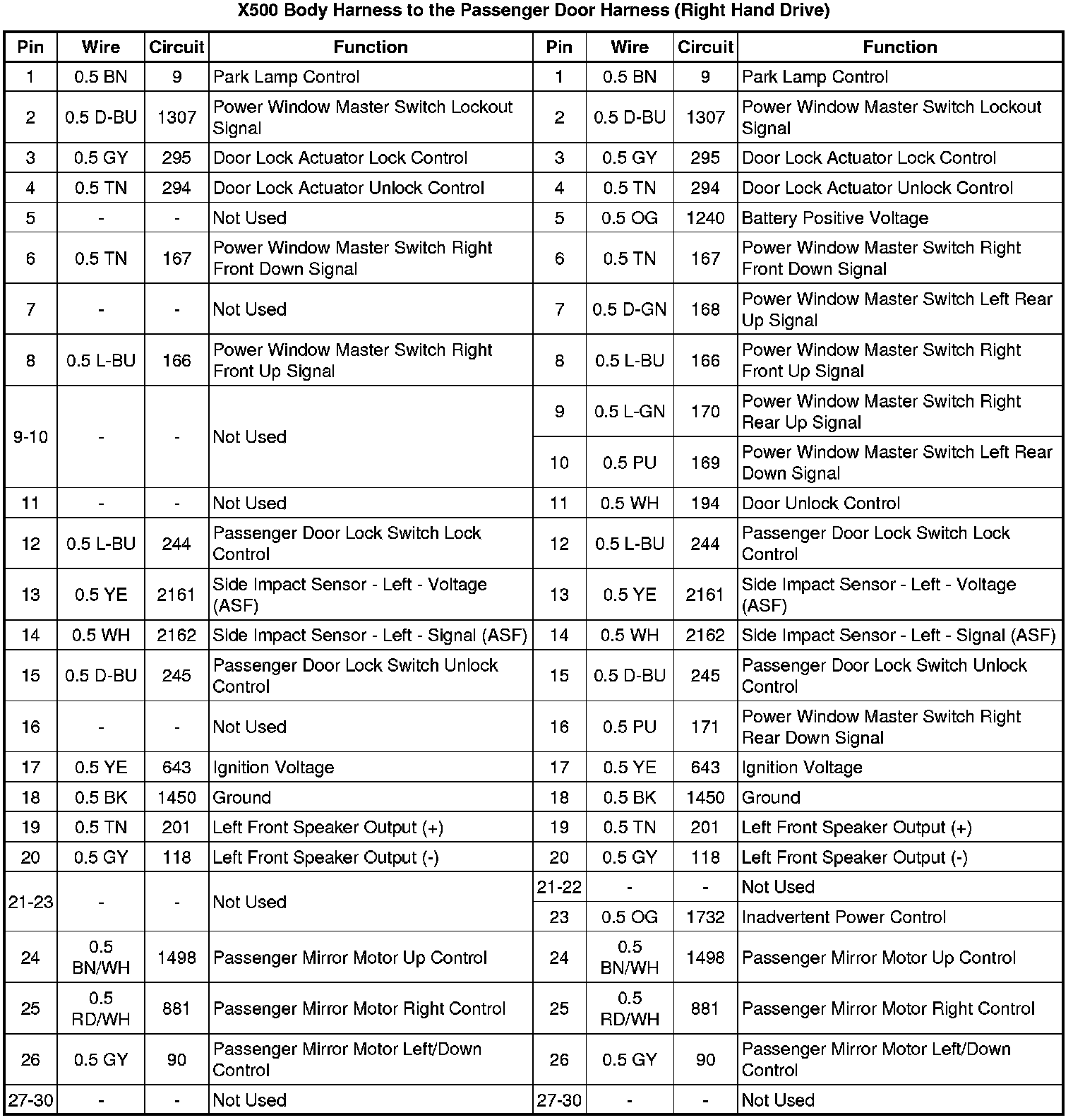

X500 Body Harness to the Passenger Door Harness (Right Hand Drive)
