Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X400 - X499 >> X460

X460

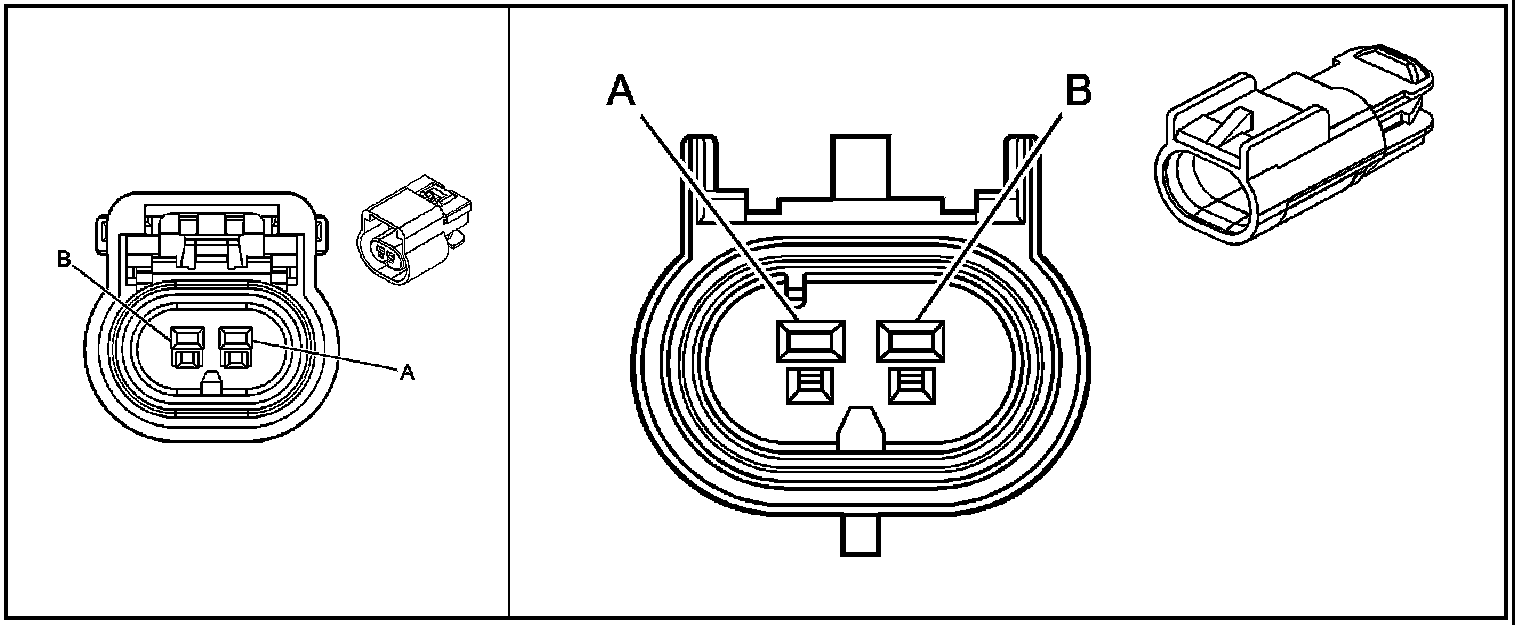

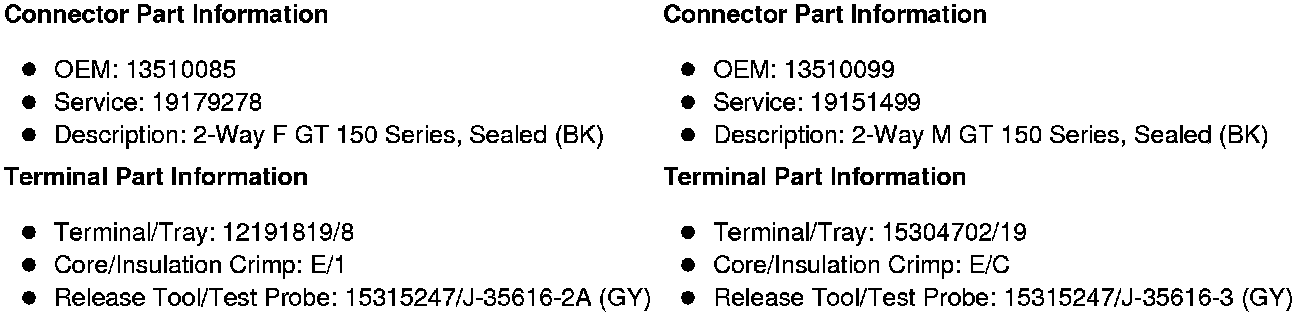

Inline Harness Connector End Views

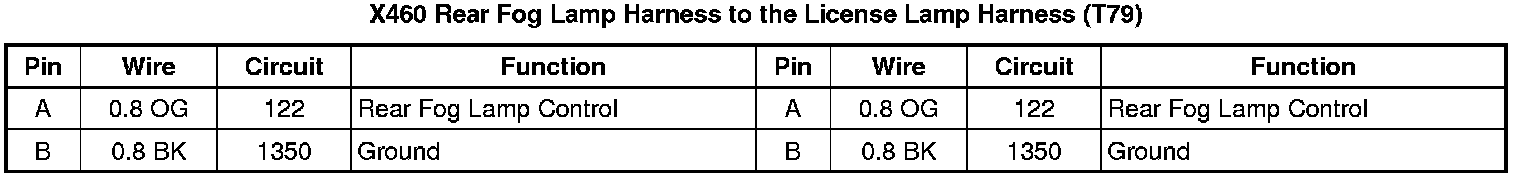

X460 Rear Fog Lamp Harness to the License Lamp Harness (T79)
