X430




Inline Harness Connector End Views

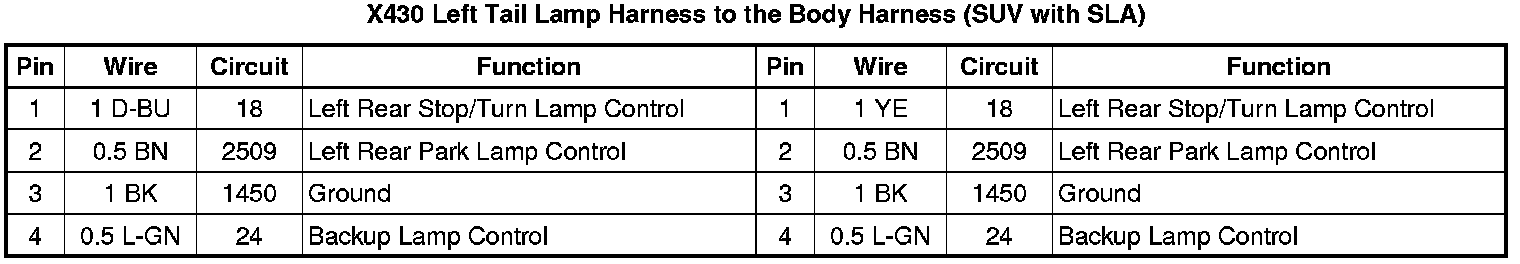

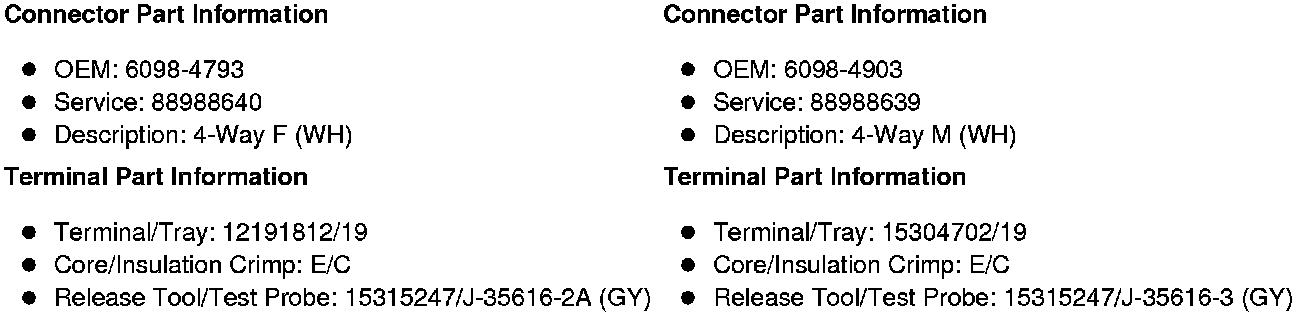

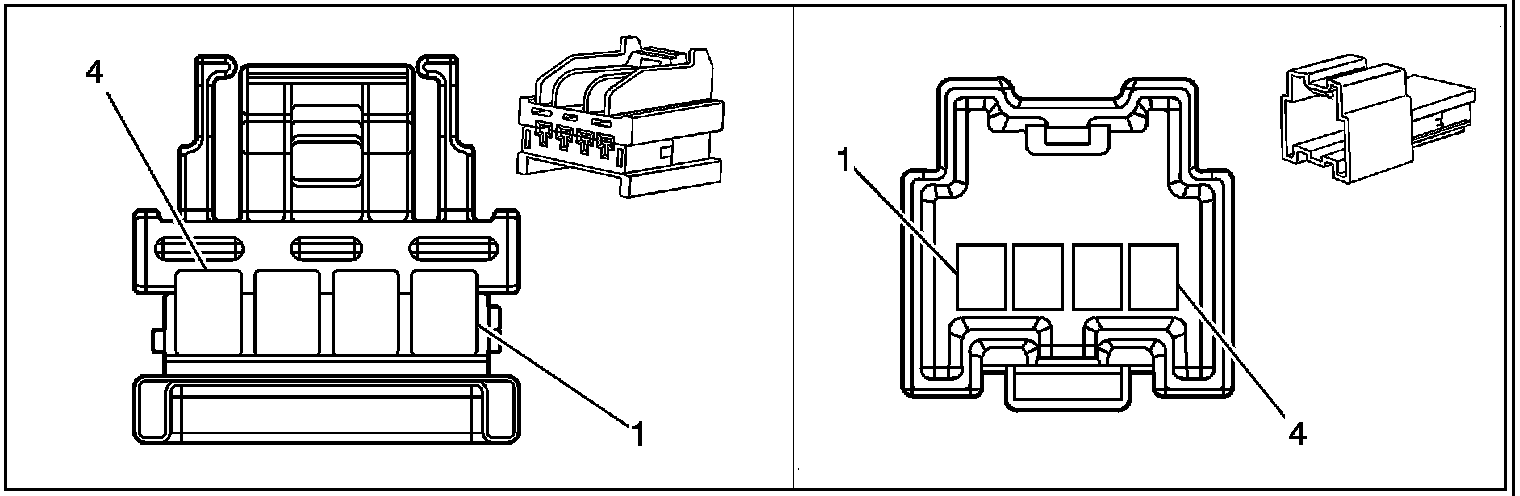

X430 Left Tail Lamp Harness to the Body Harness (SUV with SLA)

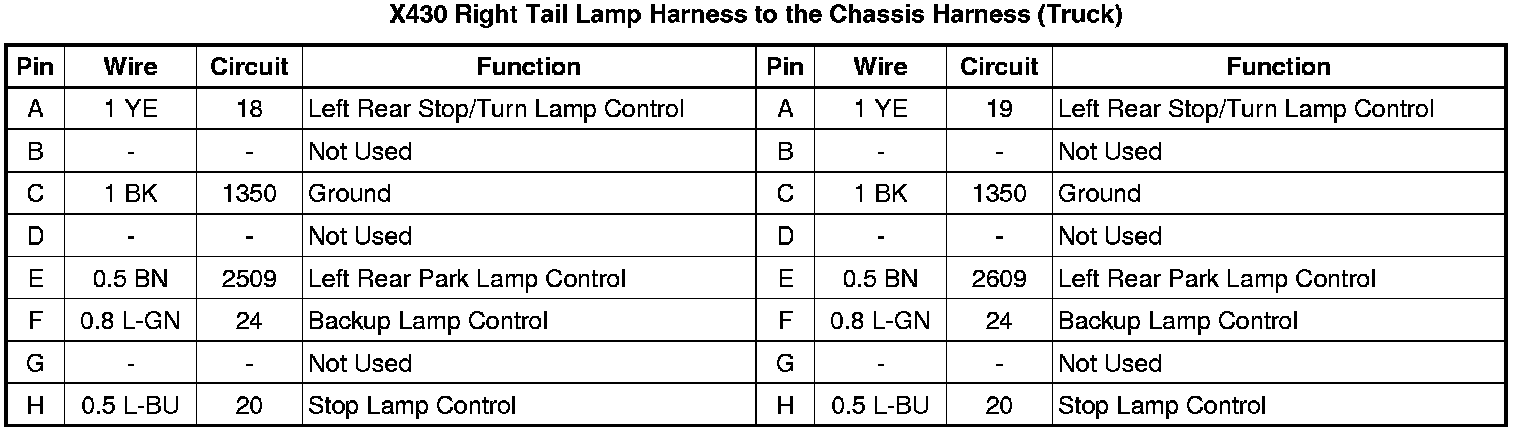

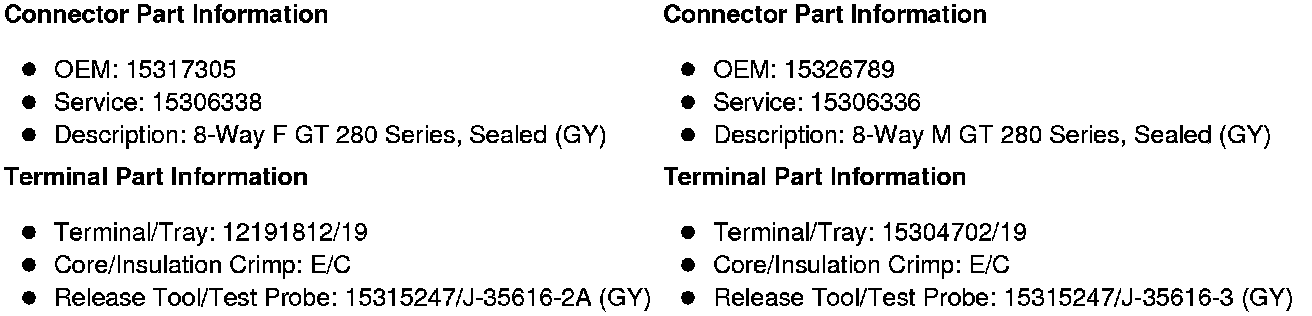

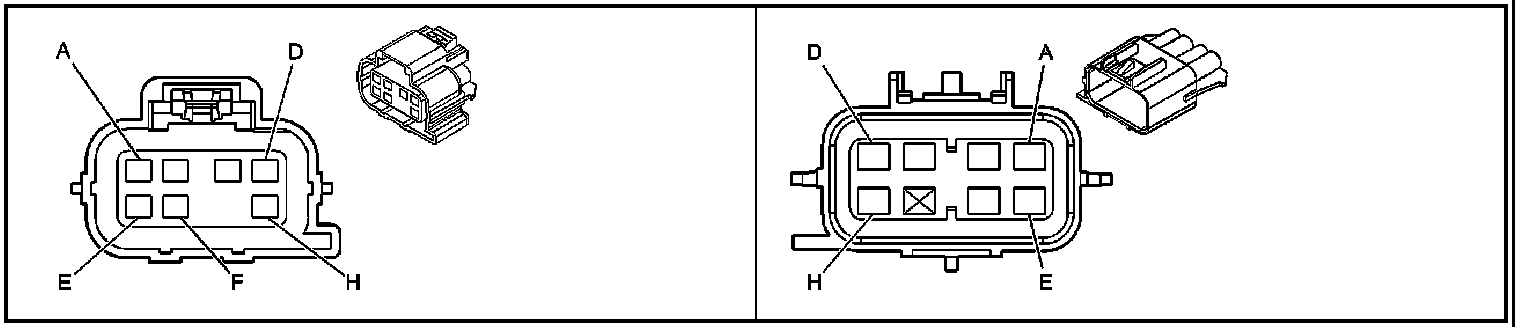

X430 Right Tail Lamp Harness to the Chassis Harness (Truck)

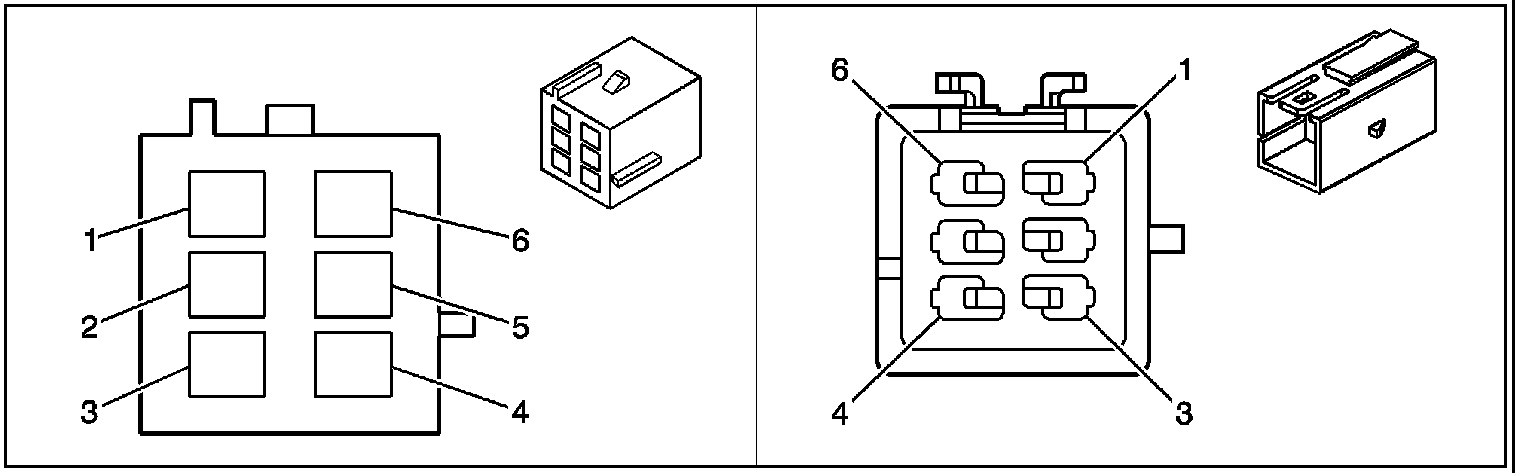

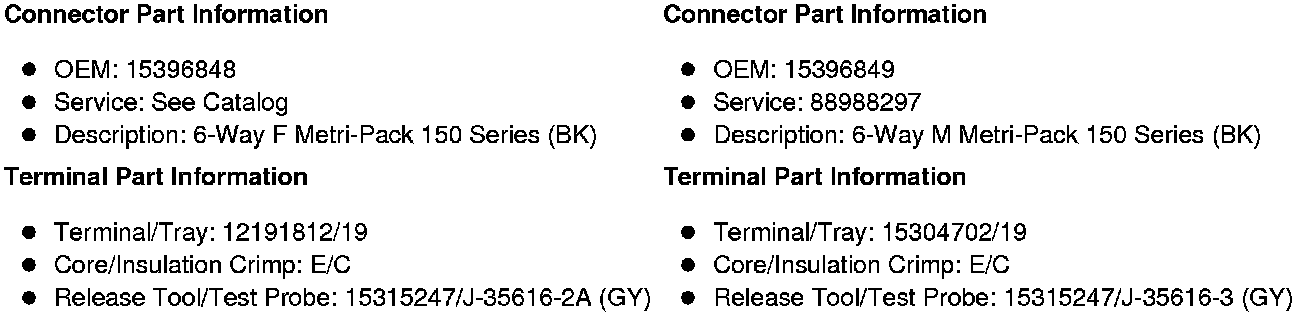

X430 Left Tail Lamp Harness to the Body Harness (SUV with SSA)
