X410




Inline Harness Connector End Views

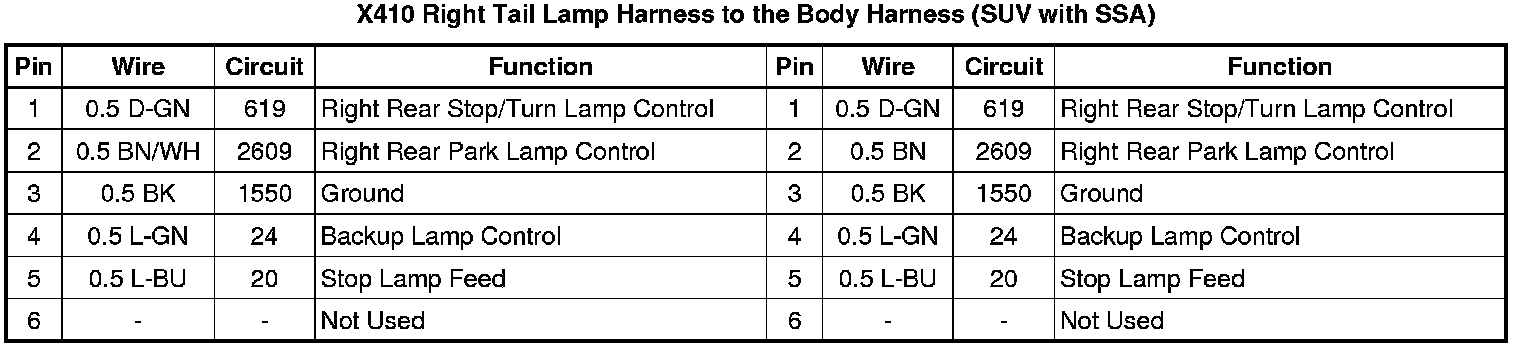

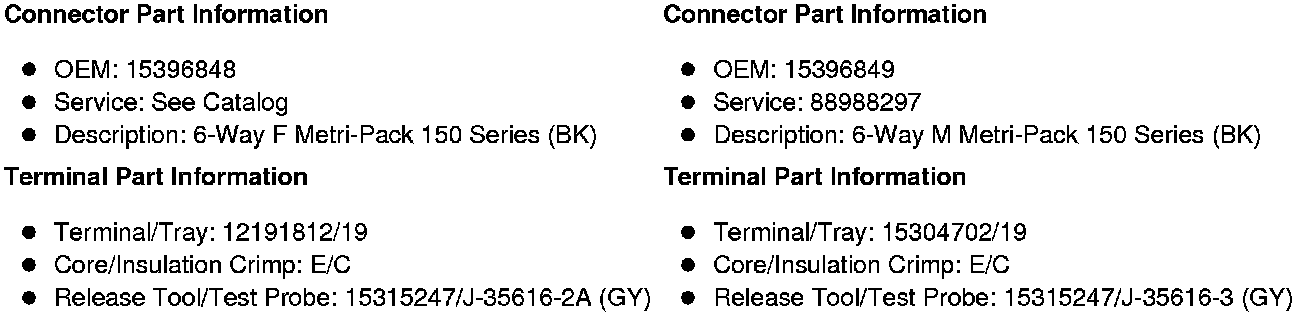

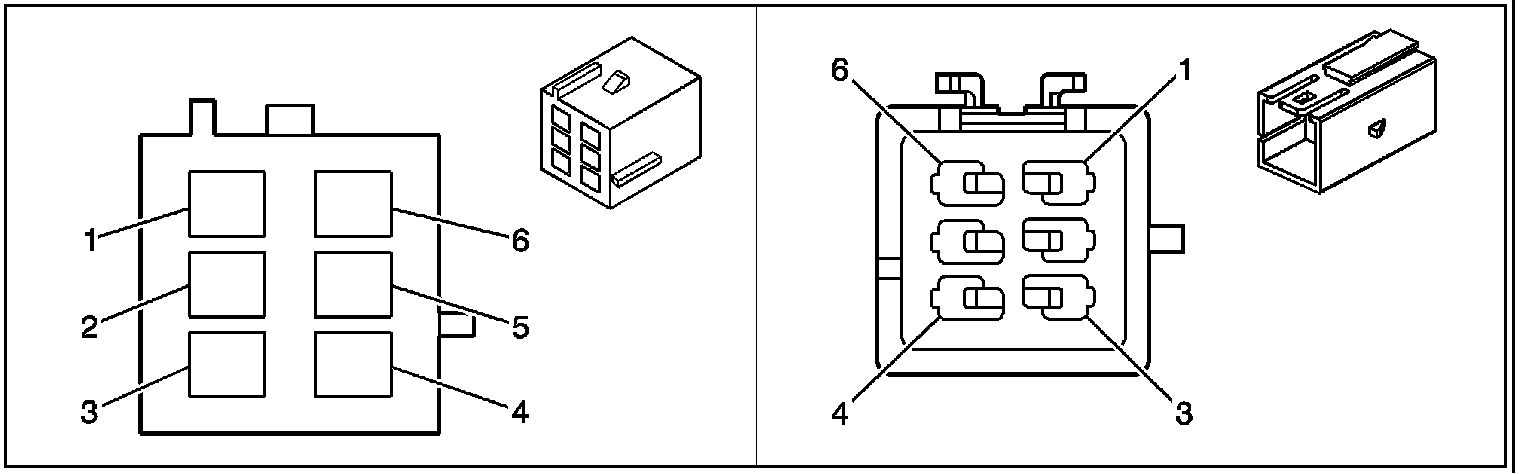

X410 Right Tail Lamp Harness to the Body Harness (SUV with SSA)

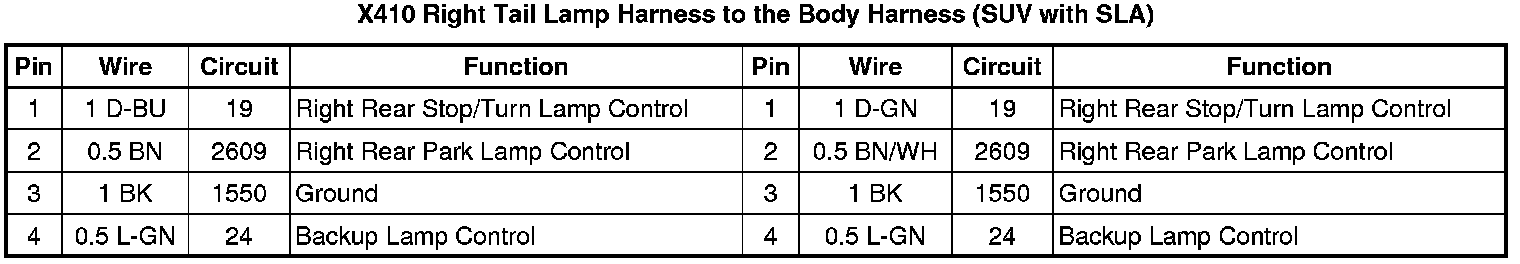

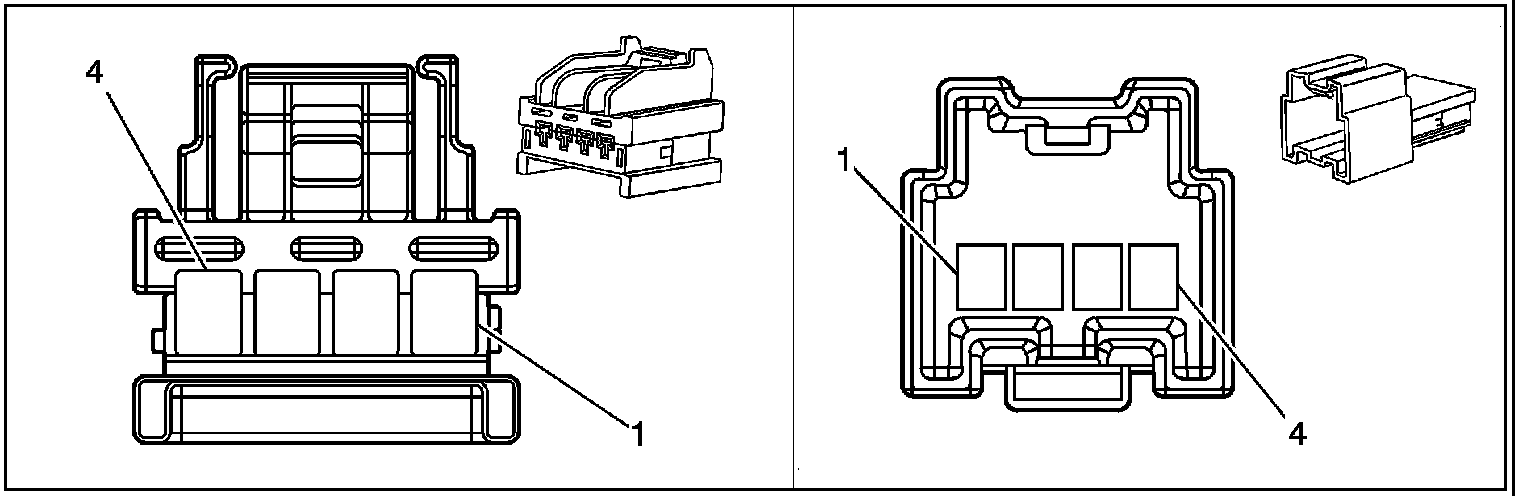

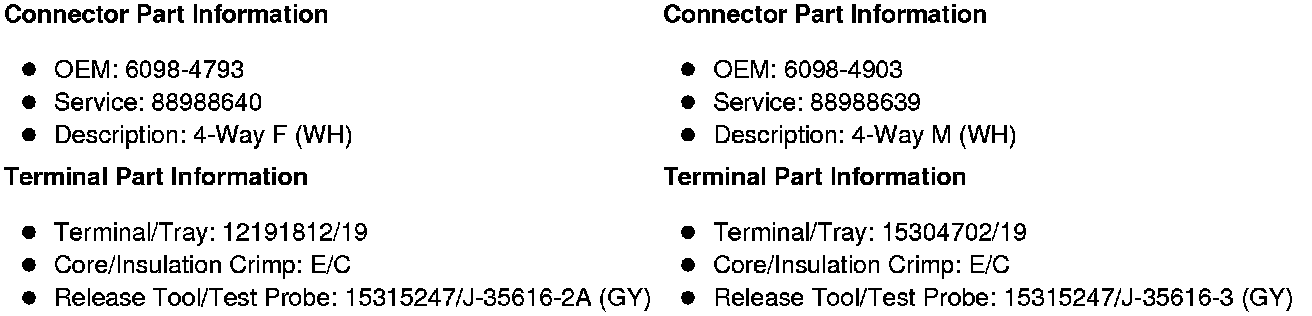

X410 Right Tail Lamp Harness to the Body Harness (SUV with SLA)

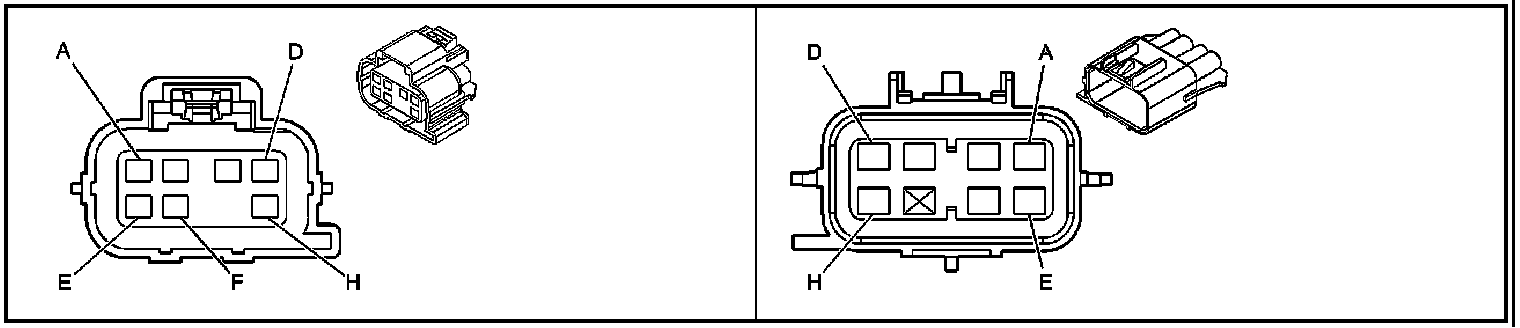

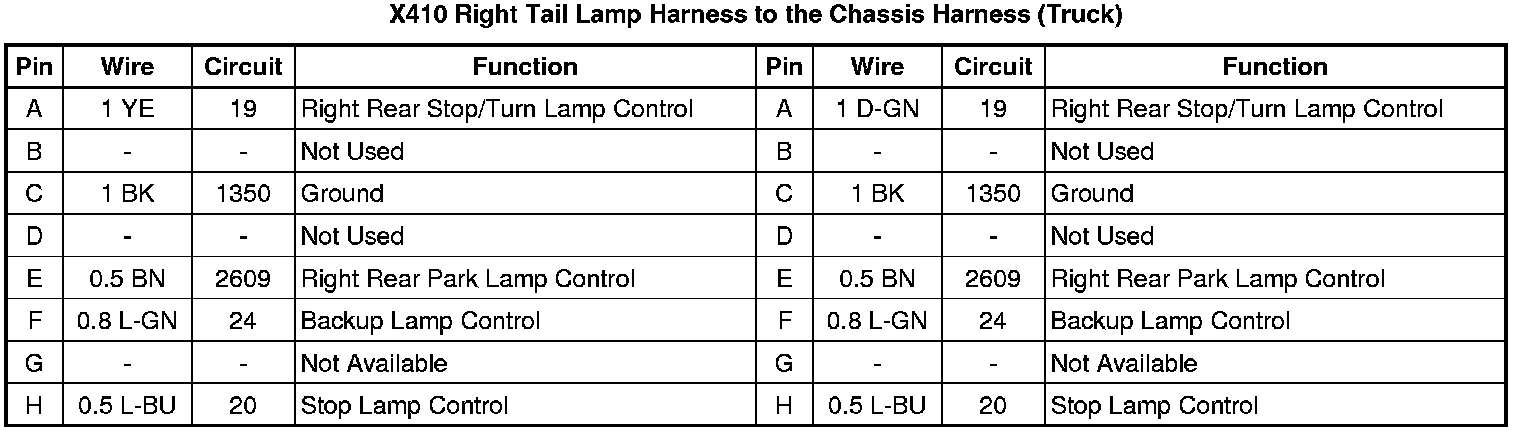

X410 Right Tail Lamp Harness to the Chassis Harness (Truck)
