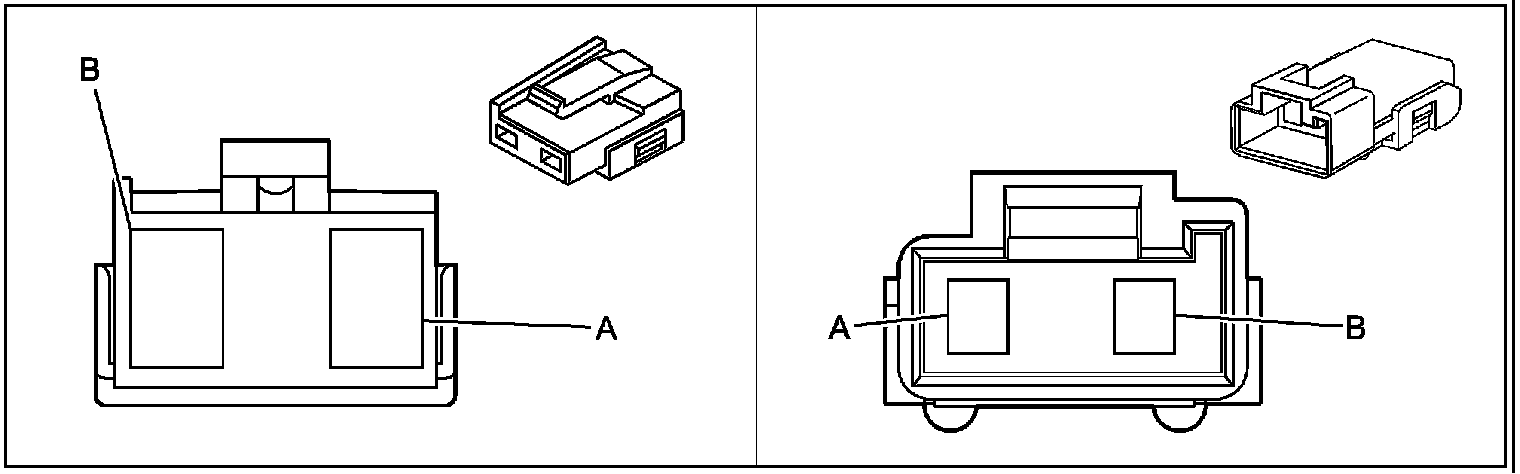

Inline Harness Connector End Views

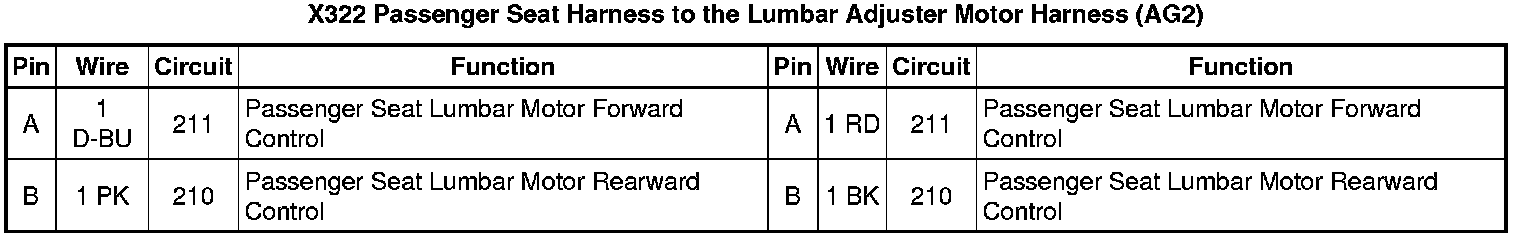

X322 Passenger Seat Harness to the Lumbar Adjuster Motor Harness (AG2)
