Battery Box Replacement

Battery Box Replacement (LH8,LLR) (5.3L,3.7L)

Removal Procedure




1. Remove the battery. Refer to Battery Replacement (LLR) (Removal and Replacement)Battery Replacement (LH8) (Removal and Replacement).
2. Remove the battery cable harness clips (1, 2) from the battery tray.

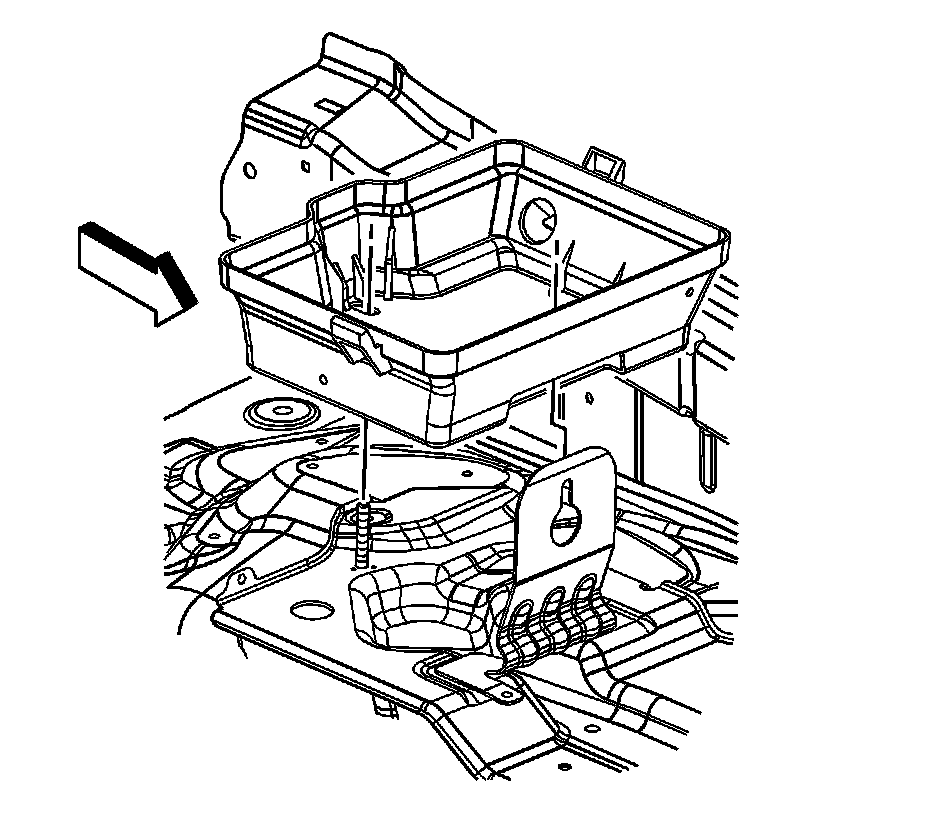

3. Lift the lower battery box upward from the battery tray.

Installation Procedure




1. Install the lower battery box to the retainer stud and battery tray.




2. Install the battery cable harness clips (1, 2) to the battery tray.
3. Install the battery. Refer to Battery Replacement (LLR) (Removal and Replacement)Battery Replacement (LH8) (Removal and Replacement).
