Turn Signal Switch: Locations

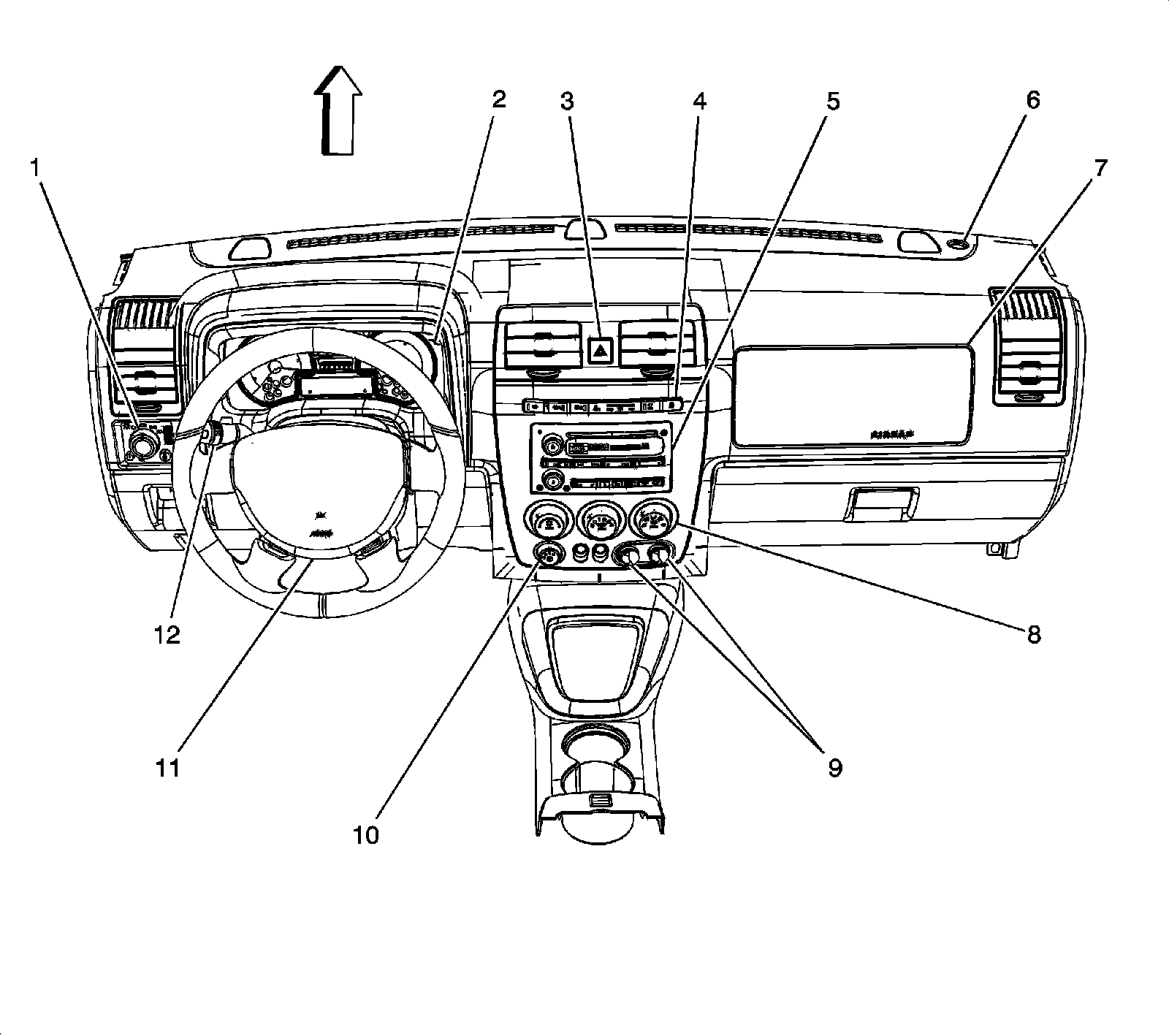

Instrument Panel/Center Console Component Views

Front of the I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Radio
6 - Ambient Light Sensor
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module
9 - Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10 - Window Wiper/Washer Switch - Rear
11 - Inflatable Restraint Steering Wheel Module
12 - Turn Signal/Multifunction Switch

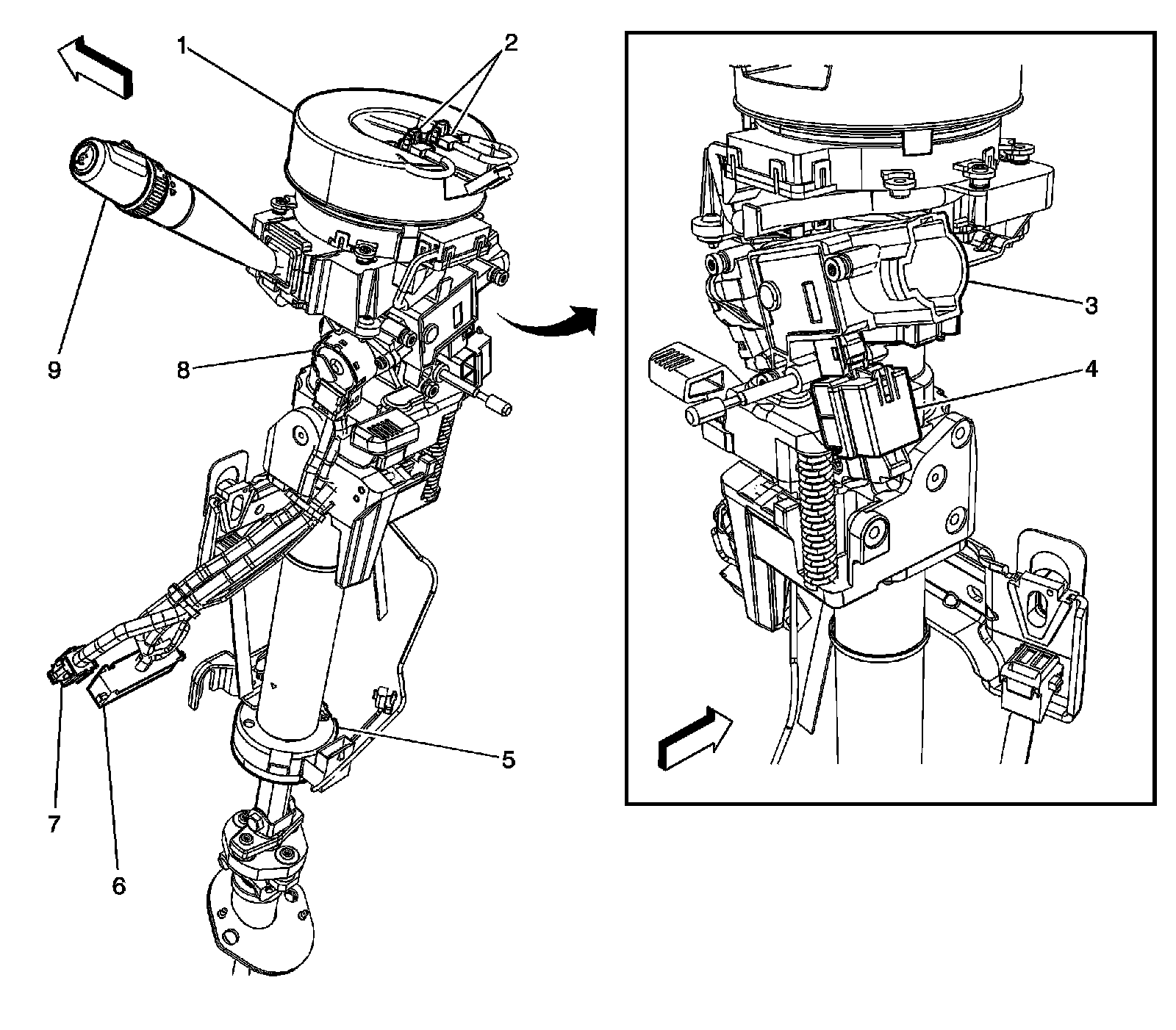

Steering Column Components




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module Connectors
3 - Ignition Switch
4 - Ignition Lock Cylinder Control Actuator (M30)
5 - Steering Wheel Position Sensor (JL4)
6 - X201
7 - X275
8 - Ignition Switch
9 - Turn Signal/Multifunction Switch
