Seat Belt Replacement - Center Rear (H3T)

Seat Belt Replacement - Center Rear (H3T)

Removal Procedure




1. Remove the rear end trim panel. Refer to Rear End Trim Finish Panel Replacement (H3T) (Rear End Trim Finish Panel Replacement (H3T)).
2. Insert screwdriver into slot to release buckle from shoulder belt assembly.

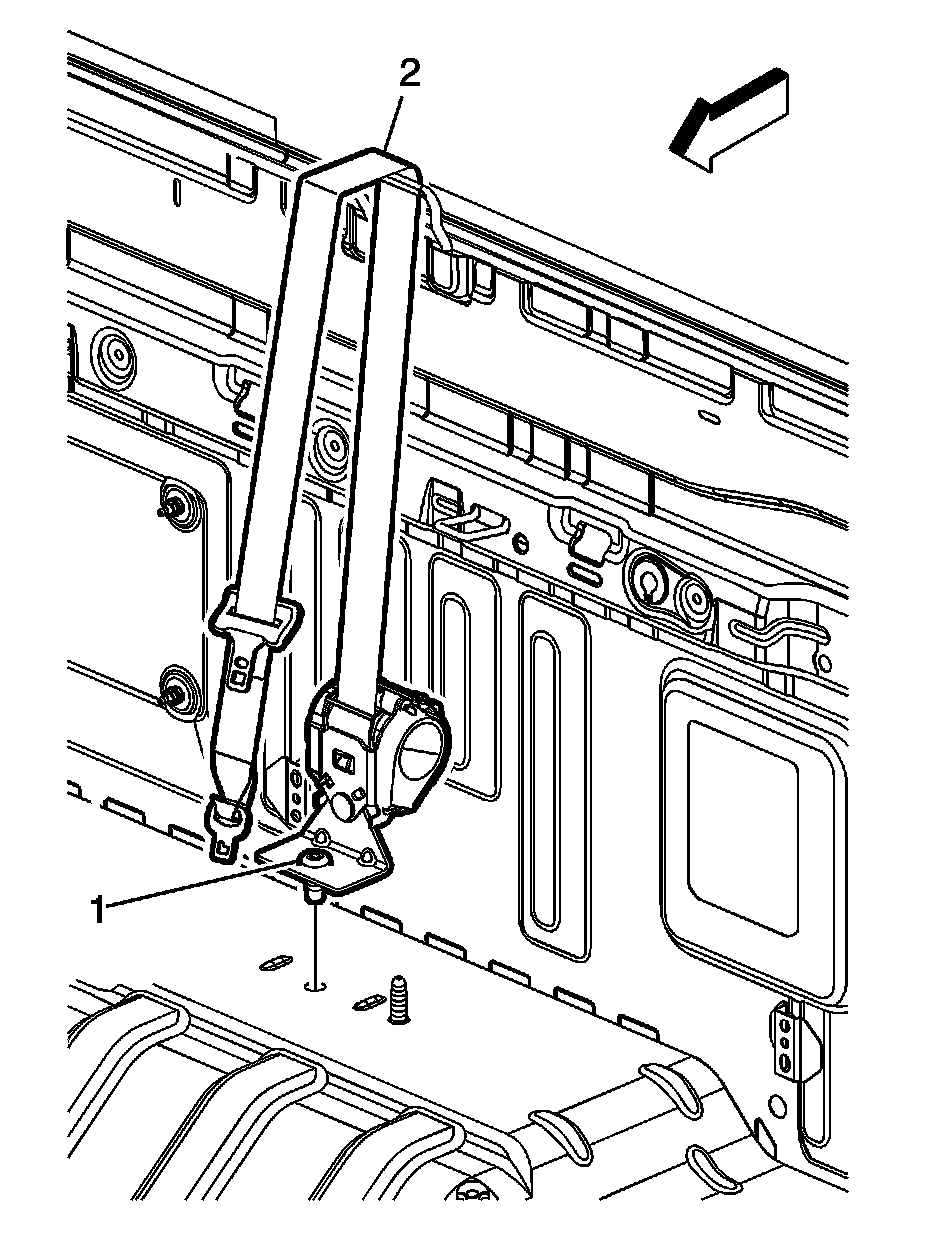

3. Remove the bolt that retains the rear center seat belt assembly to the floor panel.
4. Remove the rear center seat belt assembly from the vehicle.

Installation Procedure




1. Position the rear center seat belt assembly on the floor panel.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolt which retains the rear center seat belt assembly to the floor and tighten the bolt to 52.5 Nm (39 lb ft).
3. Route the rear center seat belt webbing up through the guide loop. Ensure that the seat belt webbing is not twisted.
4. Install the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement (H3T) (Rear End Trim Finish Panel Replacement (H3T)).
