Seat Belt Buckle: Diagrams




Component Connector End Views

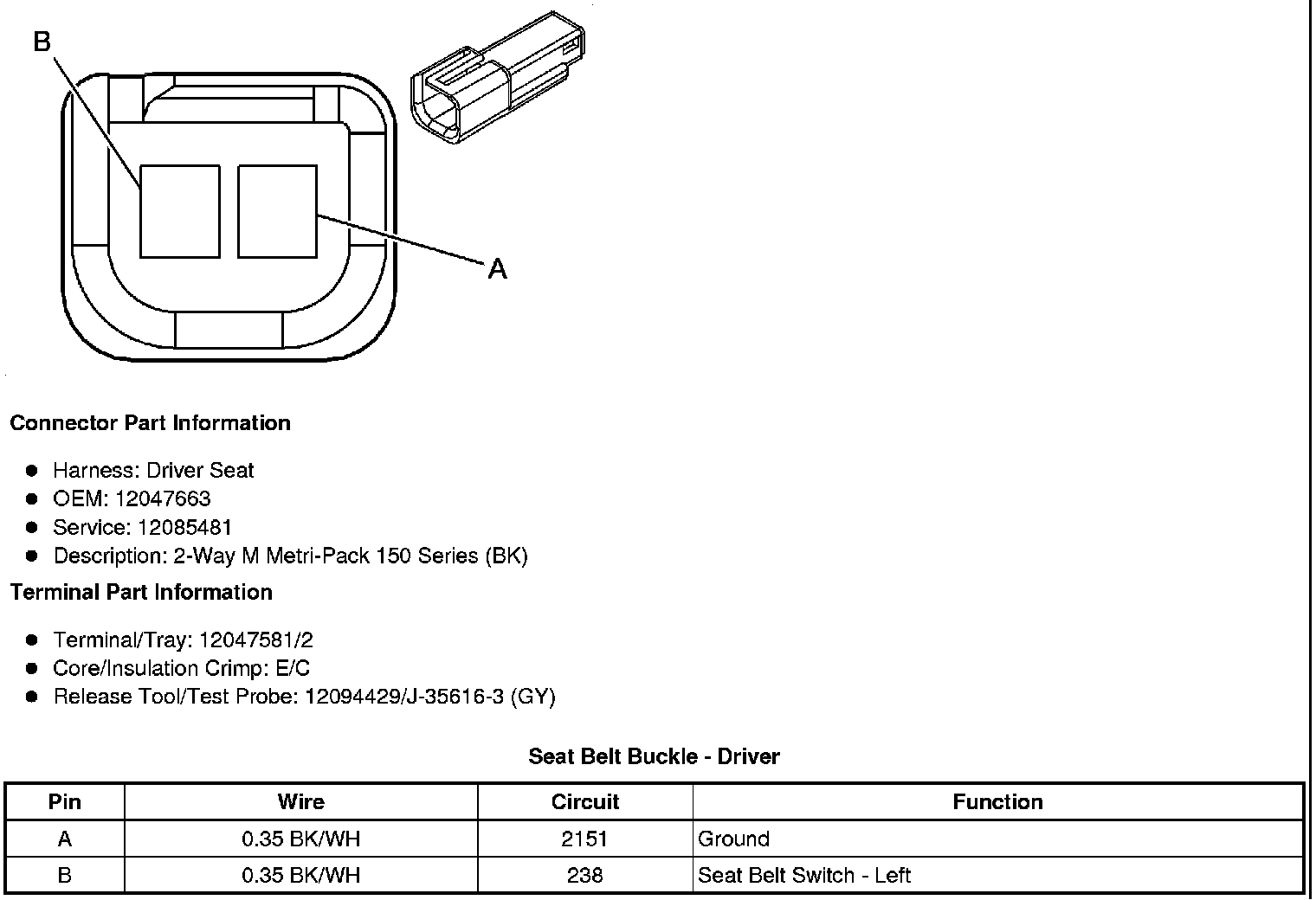

Seat Belt Buckle - Driver

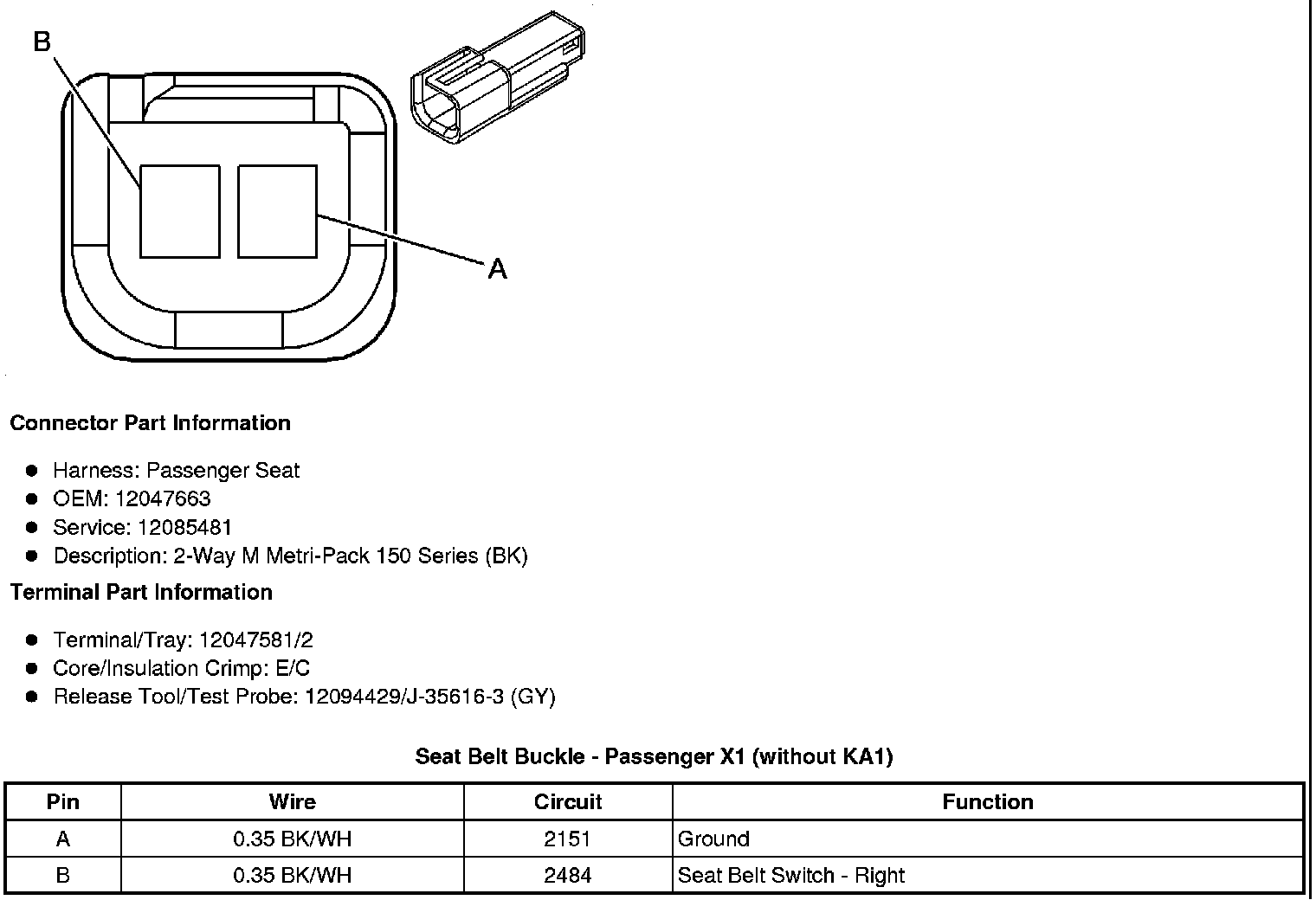

Seat Belt Buckle - Passenger X1 (without KA1)

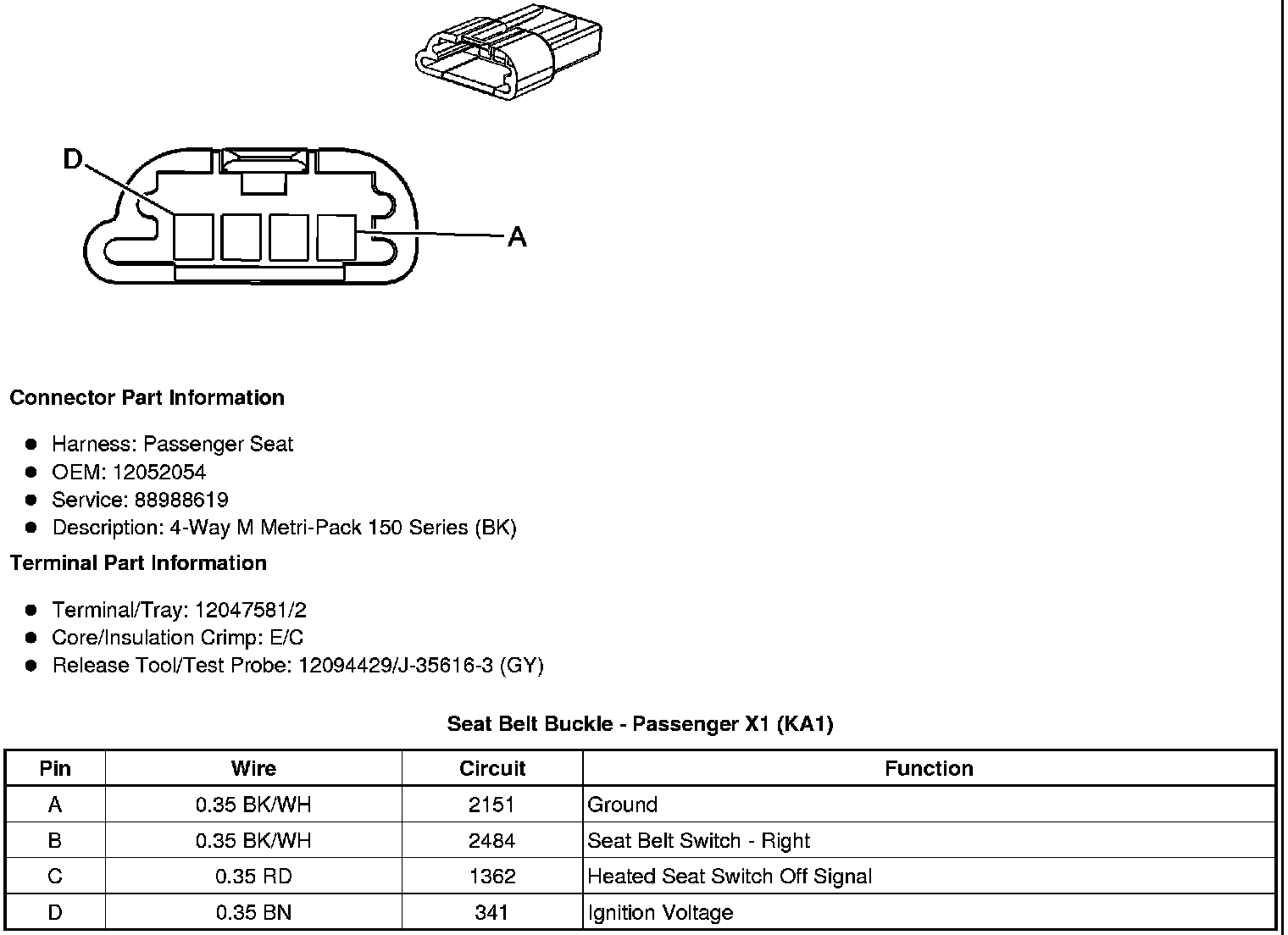

Seat Belt Buckle - Passenger X1 (KA1)

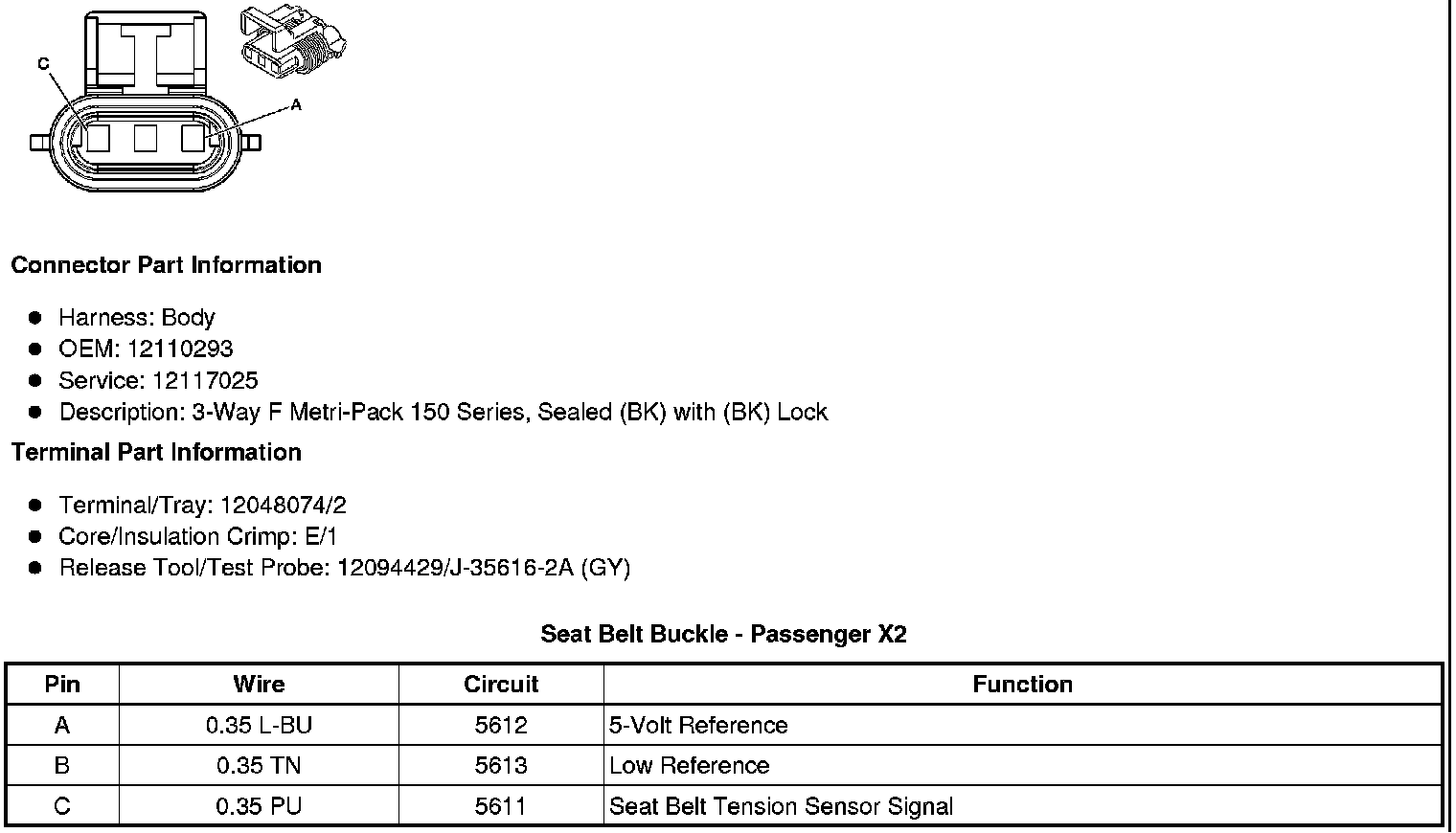

Seat Belt Buckle - Passenger X2
