Fuel Pump Flow Control Module Replacement

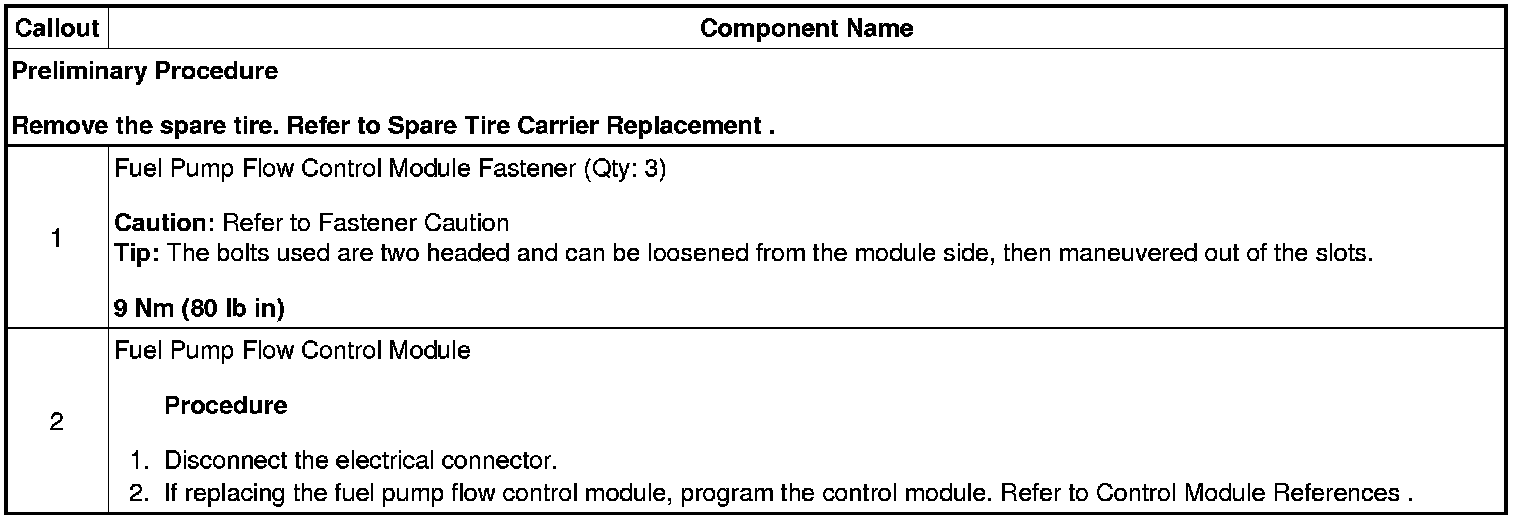

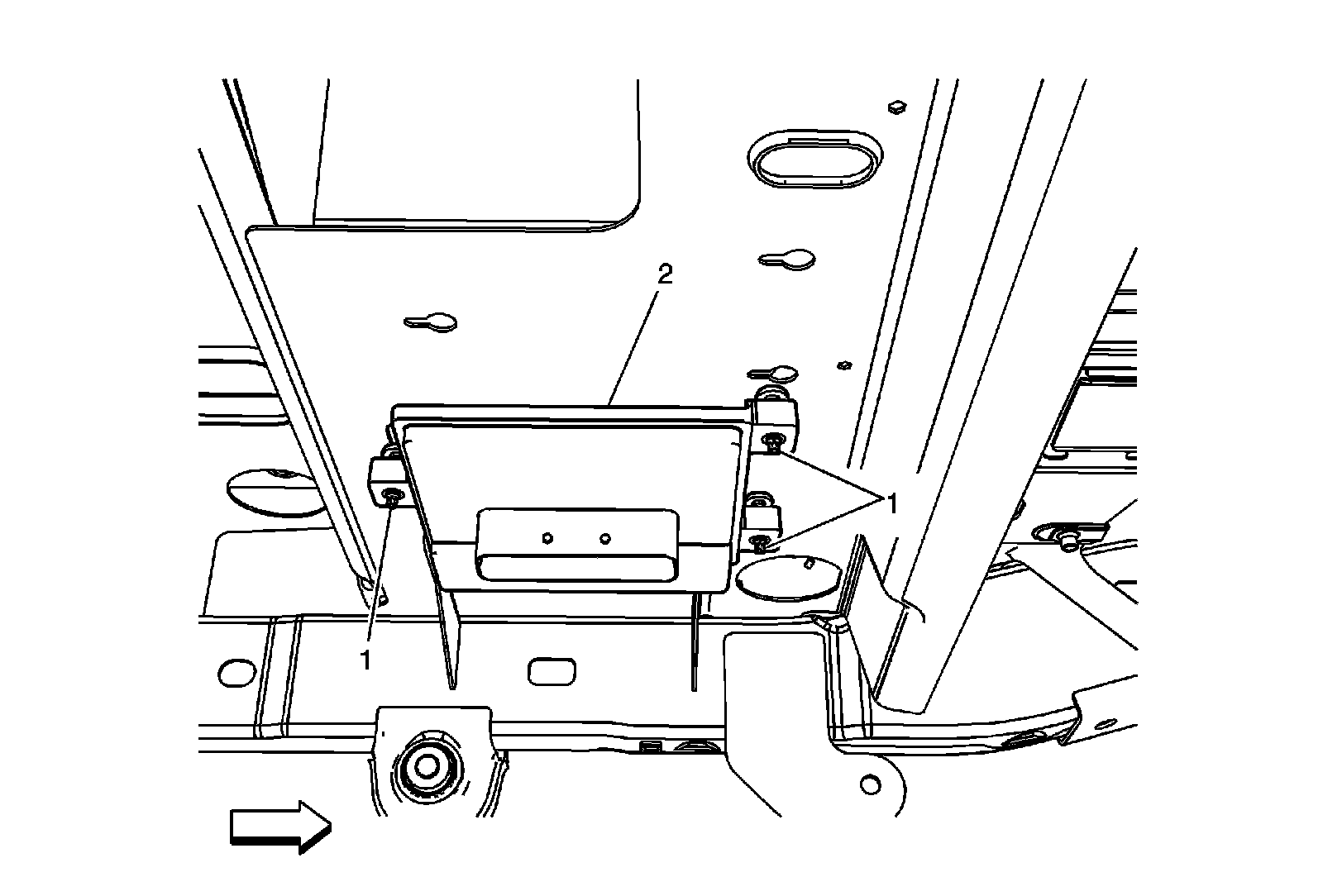

Fuel Pump Flow Control Module Replacement
Fuel Pump
Flow Control Module Replacement
